Structural Concepts

Fusion® 62-7/8 Inch Flat-Profile Countertop Refrigerated Self-Service Case, Remote DX

SKU: GHSS552RLB (FLAT)
$14,627.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Food Displays & Merchandisers Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Structural Concepts

Fusion® 62-7/8 Inch Flat-Profile Countertop Refrigerated Self-Service Case, Remote DX

40°F Or Less, LED Top and Shelf Lighting, Solid Back Panel

Showcase chilled packaged products in a sleek flat-profile case that delivers 40°F-or-less performance with bright LED merchandising lights.

  • 62-7/8-inch wide flat-profile refrigerated self-service case for packaged chilled products.
  • Remote DX refrigeration keeps the condensing unit off the case; floor drain required.
  • LED top and shelf lights with frosted lens improve product visibility.
  • Designed to maintain a warmest average product temperature of 40°F or less.
  • Solid back panel and stainless steel rear exterior support a clean, durable installation.
  • Includes a one-year parts and labor warranty.

Overall Dimensions:

62.87"W x 42.75"D x 51.25"H

Product Weight:

800.0 lb

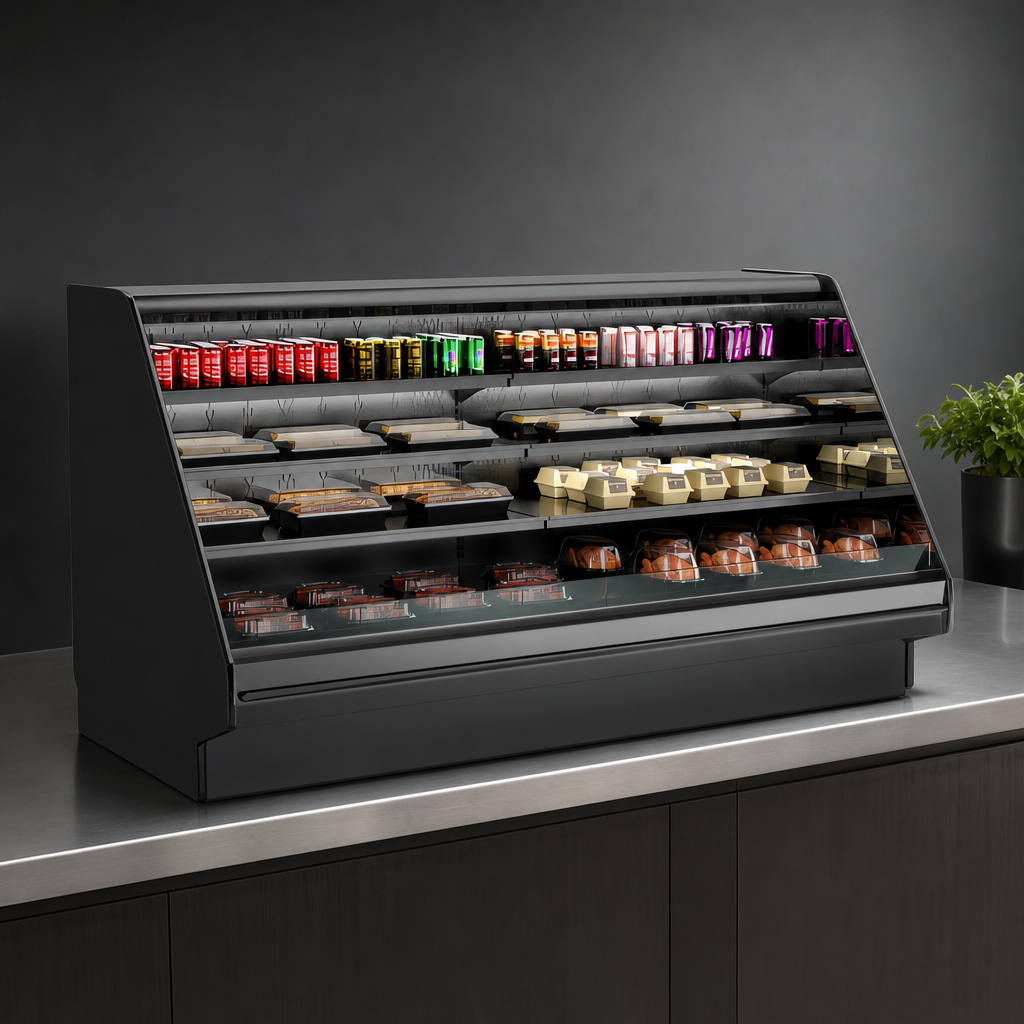

Flat Profile Merchandising

Open flat profile creates a clean self-service presentation and helps maximize product visibility.

Flat Profile Merchandising

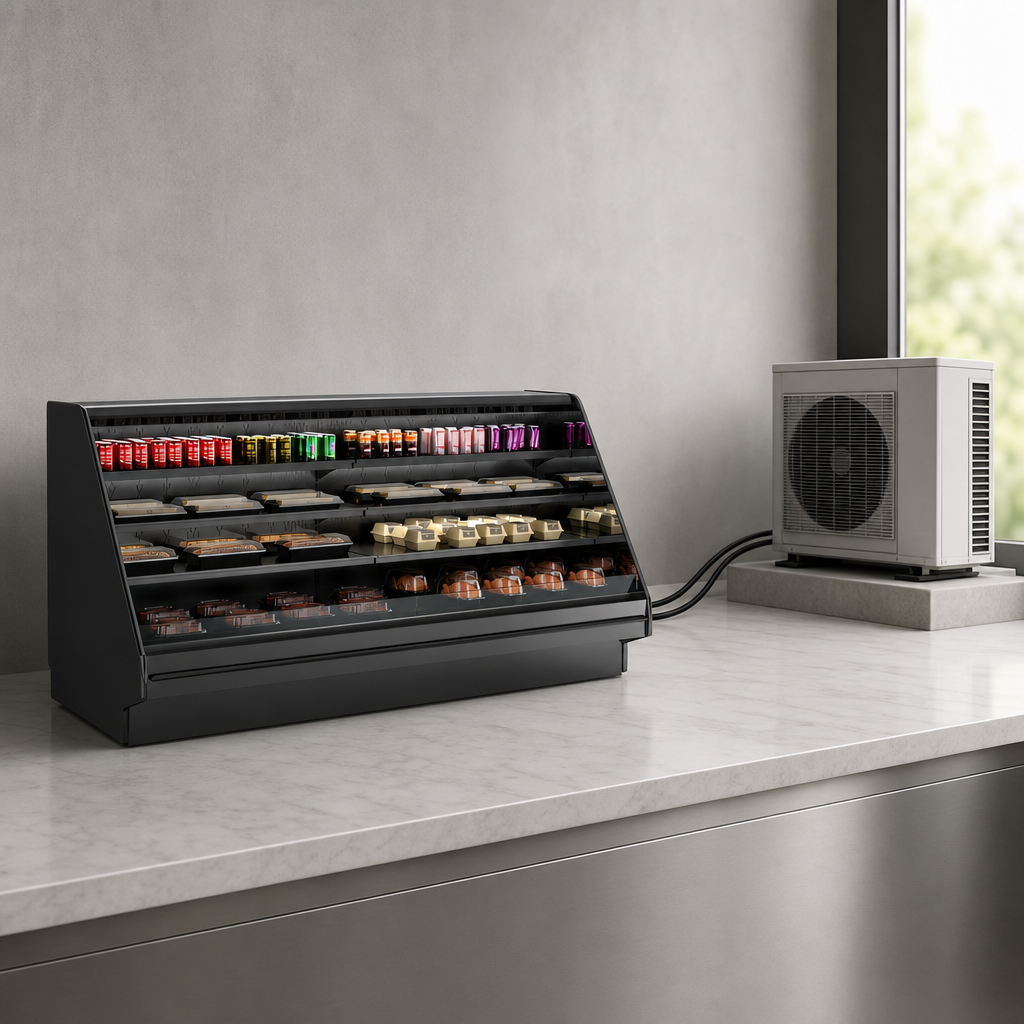

Remote DX Refrigeration

Remote direct expansion refrigeration keeps heat-producing equipment off the case; electrical leads are supplied for the remote connection and the condensing unit is not included.

Remote DX Refrigeration

LED Top and Shelf Lighting

3500K LED top and shelf lights with a frosted lens brighten the display and reduce glare.

40°F Or Less Product Temperature

Designed for packaged refrigerated products prechilled to a warmest average product temperature of 40°F or less.

Solid Back Panel

Standard solid rear panel supports a cleaner back-of-house appearance.

Stainless Steel Rear Exterior

Stainless steel rear exterior adds durability in a high-wear area.

Type I Operating Environment

Designed to operate in ambient conditions of 75°F with 55% relative humidity.

Installation Notes

Remote refrigeration requires a floor drain, 45-inch minimum door entry clearance, and the unit must be shimmed level and plumb.

Type Refrigerated Self-Service Case
Style Flat Profile
Installation Type Countertop
Refrigeration Type Remote DX
Color Black
Voltage 110-120 Volts
Amps 2.88 Amps
Watts 175 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Multiple
Shipping Width 63 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 800 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Map policy PDF Download PDF Spec guide PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Scc product nomenclature PDF Download PDF Exterior finishes and bumpers PDF Download

Frequently Asked Questions

No. This model uses remote DX refrigeration, so the condensing unit is not included and a floor drain is required.
It is intended for packaged refrigerated products prechilled to a warmest average product temperature of 40°F or less.
Standard lighting includes LED top and shelf lights with a frosted lens in 3500K.
Yes. Standard configuration is a solid back panel, with optional solid rear swinging doors with lock. Solid or glass shelving is also available.
Available accessories include a drain strainer, retractable non-locking night curtain, and a removable wire security cover with locking.
The model is listed at 110-120 Volts, 1-Phase, 60 Hz, and 2.88 Amps, with electrical leads for remote connection.
