Structural Concepts Fusion® GHSS1260RLB (CURVED) Curved Refrigerated Self-Service Case, Remote DX, LED Lighting, 40°F or Less

SKU: GHSS1260RLB (CURVED)
$38,910.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Refrigeration, Freezing & Ice Reach-In Refrigerators & Freezers Undercounter, Worktop & Countertop Refrigeration Refrigerated Prep Tables & Cold Food Stations Bar, Beverage & Wine Cooling Ice Machines & Ice Equipment Walk-In Coolers & Freezers Chest, Glass-Door & Specialty Freezers Blast Chillers & Specialty Cooling Frozen Dessert & Ice Cream Equipment

Structural Concepts Fusion® Curved Refrigerated Self-Service Case, 148-1/2"W x 43"D x 59-5/8"H, Remote DX

Open Curved Profile, Solid Back Panel, LED Lighting

Present packaged refrigerated products in a high-visibility curved case with remote DX cooling, LED shelf lighting, and 40°F-or-less product temperature performance.

  • Curved-profile refrigerated self-service case designed for packaged refrigerated products.
  • Remote DX refrigeration supports a clean merchandising presentation; condensing unit is not included.
  • LED top and shelf lights with frosted lens help highlight product displays.
  • Maintains a warmest average product temperature of 40°F or less.
  • Solid back panel and stainless steel rear exterior support durability and service access.
  • Includes a one-year parts and labor warranty.
  • Intended for Type I ambient conditions at 75°F and 55% relative humidity.

Overall Dimensions:

148.5"W x 43.0"D x 59.63"H

Product Weight:

1500.0 lb

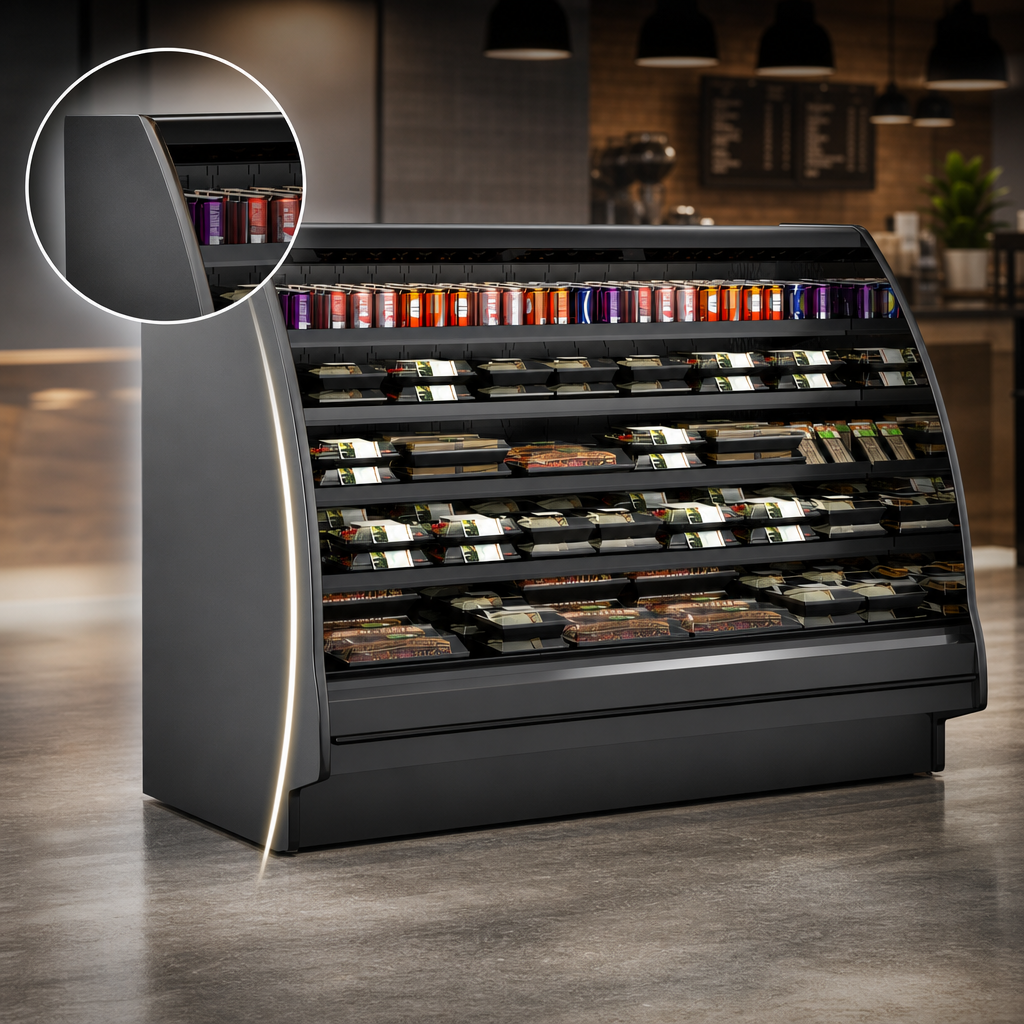

Curved Merchandising Profile

Open curved design provides a modern presentation and improved product visibility.

Curved Merchandising Profile

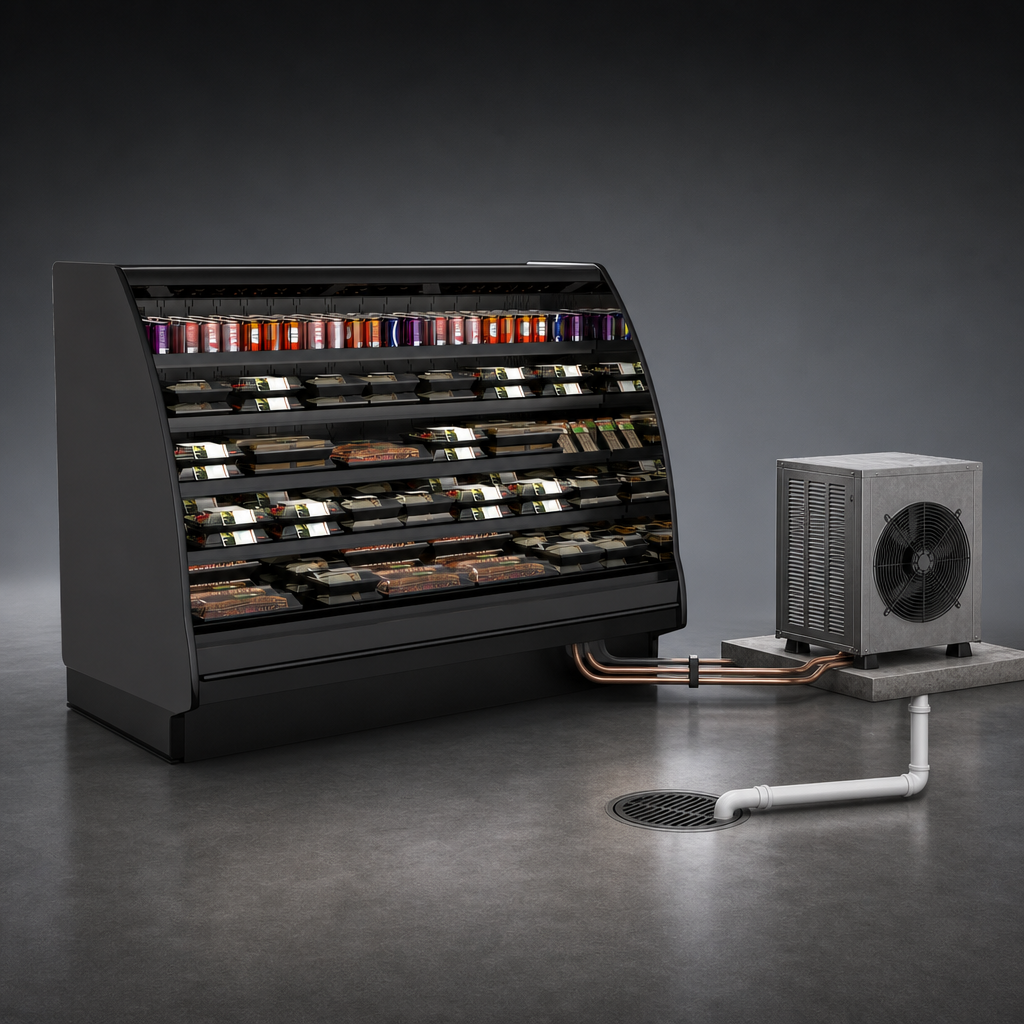

Remote DX Refrigeration

Uses remote direct-expansion refrigeration; condensing unit is not included and a floor drain is required.

Remote DX Refrigeration

LED Top And Shelf Lighting

LED lights with frosted lens brighten the display and help merchandise packaged products.

40°F Or Less Product Temperature

Designed to maintain a warmest average product temperature of 40°F or below.

Solid Back Panel

Solid rear panel creates a clean self-service presentation.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior supports service access and long-term use.

Type I Ambient Design

Intended to operate in ambient conditions of 75°F with 55% relative humidity.

Included Warranty

Includes a one-year parts and labor warranty.

Type Refrigerated Self-Service Case
Style Open Curved Profile
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 4.59 Amps
Watts 384 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Multiple
Color Black
Finish Laminate
Width 149 Inches
Depth 43 Inches
Height 60 Inches
Weight 1500 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Scc product nomenclature PDF Download PDF Warranty PDF Download PDF Map policy PDF Download PDF Spec guide PDF Download PDF Warranty PDF Download PDF Owner's manual PDF Download PDF Exterior finishes and bumpers PDF Download

Frequently Asked Questions

No. It uses remote DX refrigeration, and the condensing unit is not included.
It is intended for packaged refrigerated products.
The warmest average product temperature is 40°F or less.
LED top and shelf lights with a frosted lens are included.
A one-year parts and labor warranty is included.
