Structural Concepts

Structural Concepts Fusion Refrigerated Self-Service Case with Flat Profile, Remote DX, 148-1/2 Inch Wide

SKU: GHSS1252RLB (FLAT)
$29,872.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Food Displays & Merchandisers New Arrivals Restaurant Equipment Structural Concepts

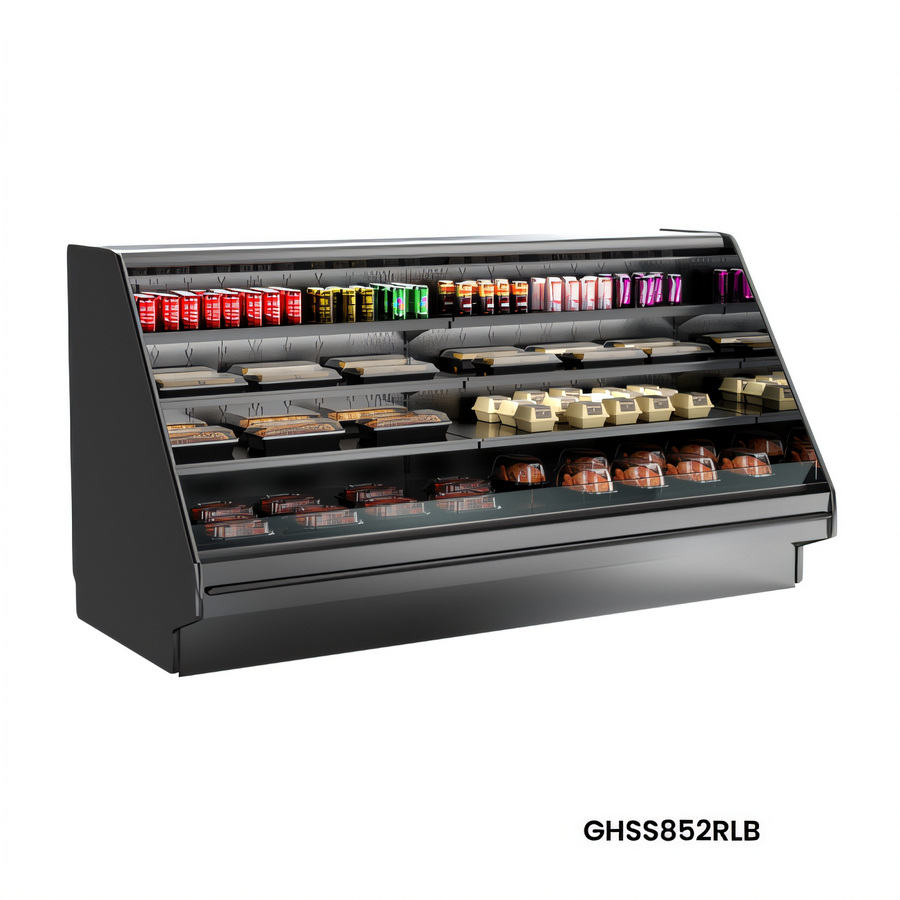

Structural Concepts Fusion Refrigerated Self-Service Case with Flat Profile, Remote DX, 148-1/2 Inch Wide

42-3/4" Deep x 51-1/4" High, 40°F or Less

A wide flat-profile merchandiser with remote DX refrigeration and LED shelf lighting that keeps packaged foods at 40°F or less.

  • 148-1/2-inch-wide flat-profile self-service case maximizes display space for packaged refrigerated products.
  • Remote DX refrigeration keeps the condensing unit off the case and holds products at 40°F or less.
  • LED top and shelf lights with frosted lens improve product visibility and presentation.
  • Solid back panel and stainless steel rear exterior support a clean, durable installation.
  • Includes a one-year parts and labor warranty; optional accessories include a night curtain, drain strainer, and locking wire security cover.

Overall Dimensions:

148.5"W x 42.75"D x 51.25"H

Product Weight:

1500.0 lb

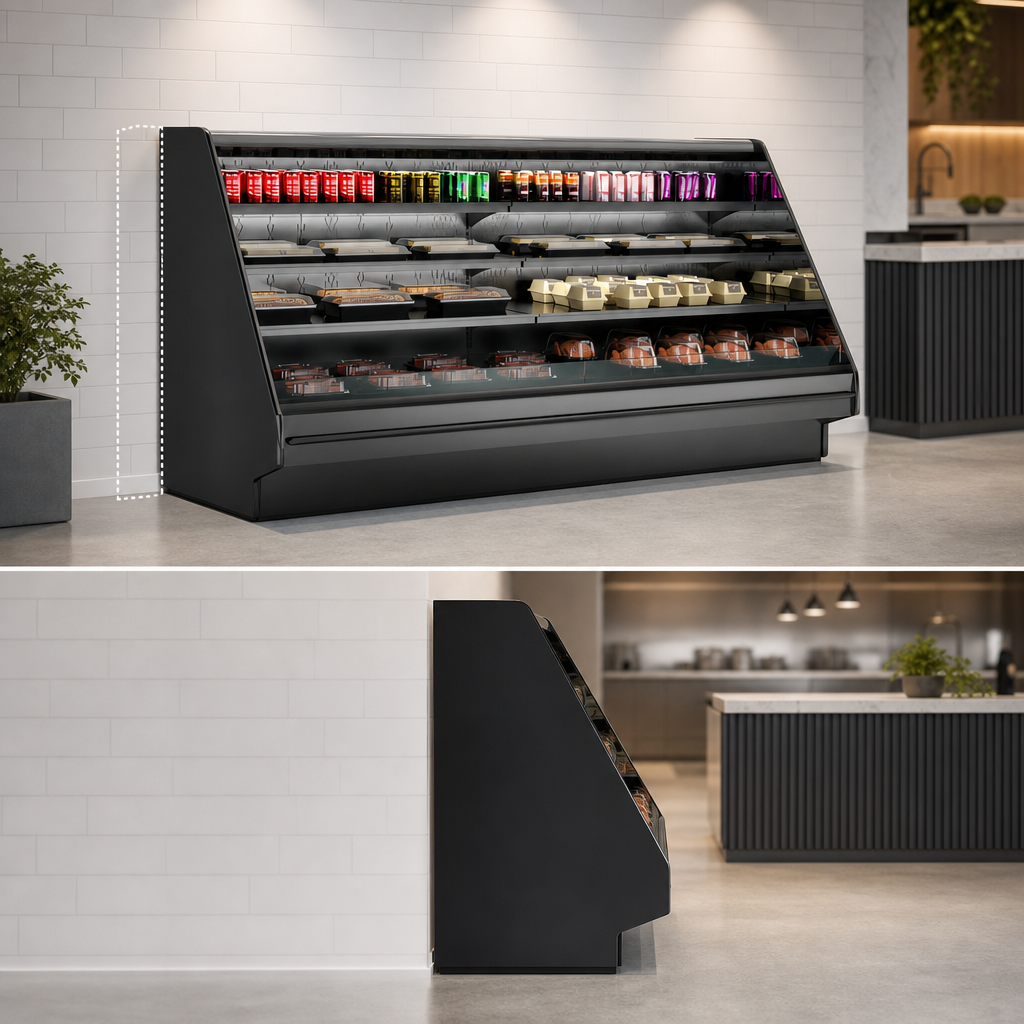

Flat Profile Design

52-inch-high refrigerated self-service case built for presenting packaged refrigerated products.

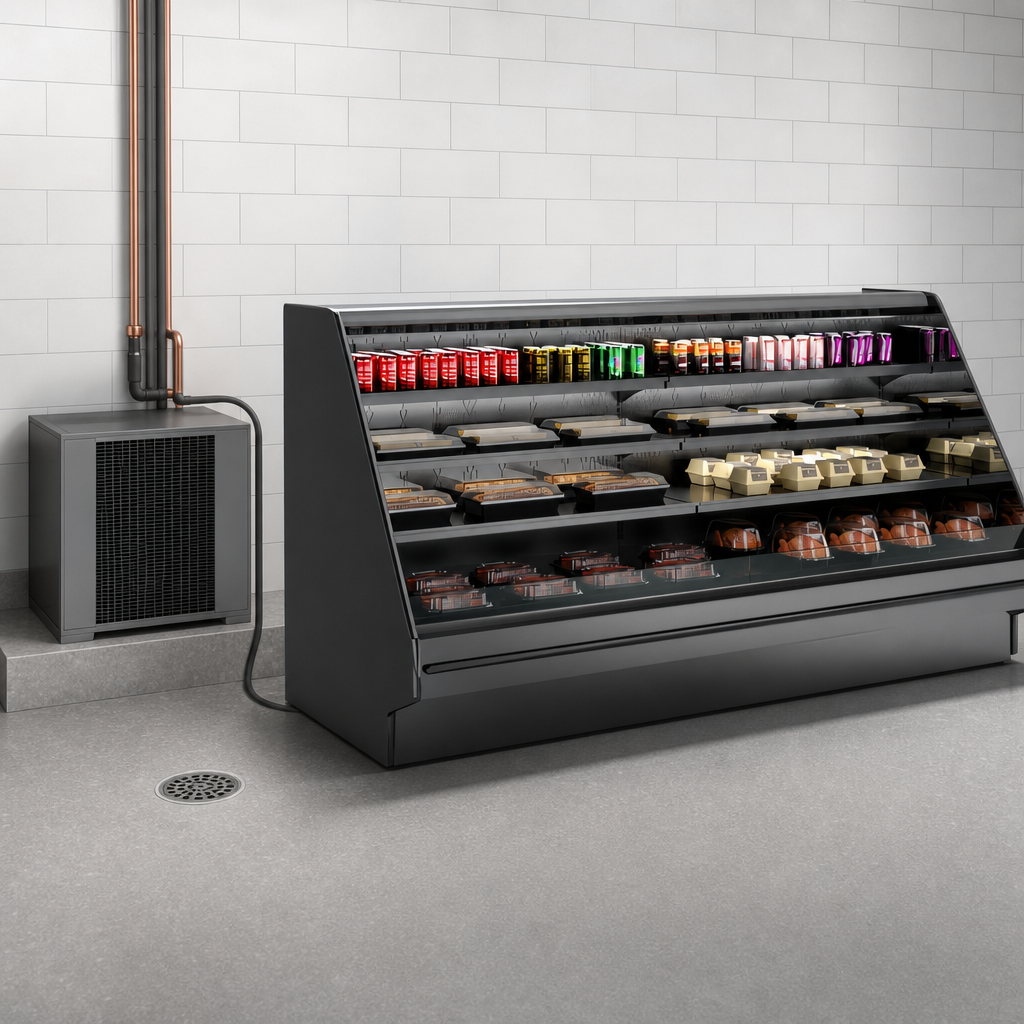

Remote DX Refrigeration

Remote refrigeration keeps the condensing unit off the case; a floor drain is required.

LED Top And Shelf Lighting

LED top and shelf lights with frosted lens help merchandise stand out under bright, even lighting.

40°F Or Less Holding Temperature

Designed to maintain a warmest average product temperature of 40°F or less.

Solid Back Panel

No rear doors are included in the standard configuration; the case uses a solid back panel.

Stainless Steel Rear Exterior

The rear exterior is stainless steel for a durable commercial finish.

Type I Environment

Designed to operate in ambient conditions of 75°F and 55% relative humidity.

Type Refrigerated Self-Service Case
Style Flat Profile
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Interior Finish Powder Coated Silversan Black
Voltage 110-120 Volts
Amps 4.51 Amps
Watts 413 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads Multiple
Shipping Width 149 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,500 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Scc product nomenclature PDF Download PDF Exterior finishes and bumpers PDF Download PDF Warranty PDF Download PDF Map policy PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less.
No. It uses remote DX refrigeration, so the condensing unit is not included.
Yes. The documentation notes that a floor drain is required for remote refrigeration installation.
LED top and shelf lights with a frosted lens are included, and the standard light color is 3500K.
Optional accessories include a drain strainer, retractable non-locking night curtain, and removable locking wire security cover.
A one-year parts and labor warranty is included.
