Fusion® Curved Profile Refrigerated Self-Service Case, 123-3/8-Inch Wide, Remote DX

60-Inch High, Solid Back Panel, LED Shelf and Top Lighting

Deliver packaged refrigerated products in a high-visibility curved display case with remote DX cooling and LED lighting that helps maintain a 40°F-or-less average product temperature.

  • Curved-profile refrigerated self-service case for packaged refrigerated products.
  • Remote DX refrigeration with electrical leads; condensing unit is not included.
  • Maintains a warmest average product temperature of 40°F or less.
  • LED top and shelf lights with frosted lens improve product presentation.
  • Solid back panel and stainless steel rear exterior support a clean, durable build.
  • Designed for Type I ambient conditions and includes a one-year parts and labor warranty.

Overall Dimensions:

123.37"W x 43.0"D x 59.63"H

Product Weight:

1300.0 lb

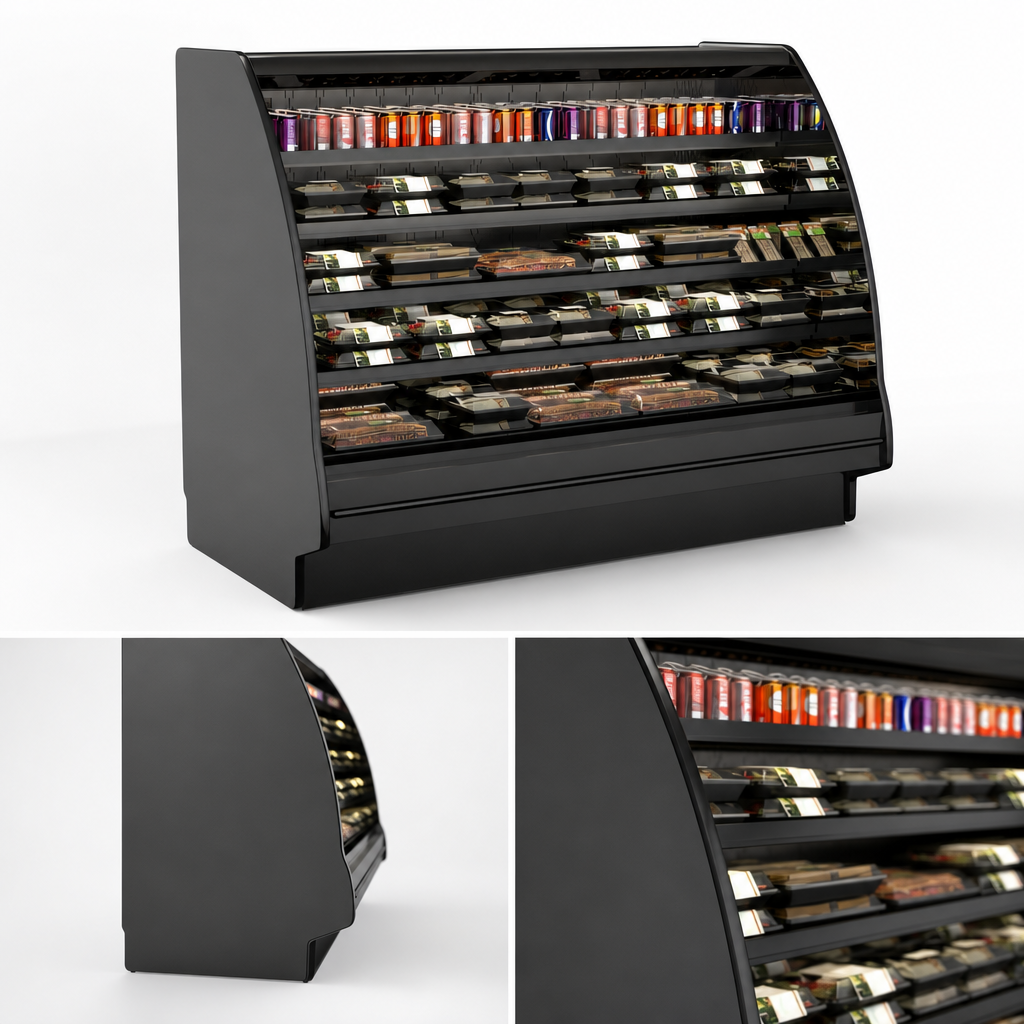

Curved Profile Display

Open curved merchandising profile creates a sleek self-service presentation.

Curved Profile Display

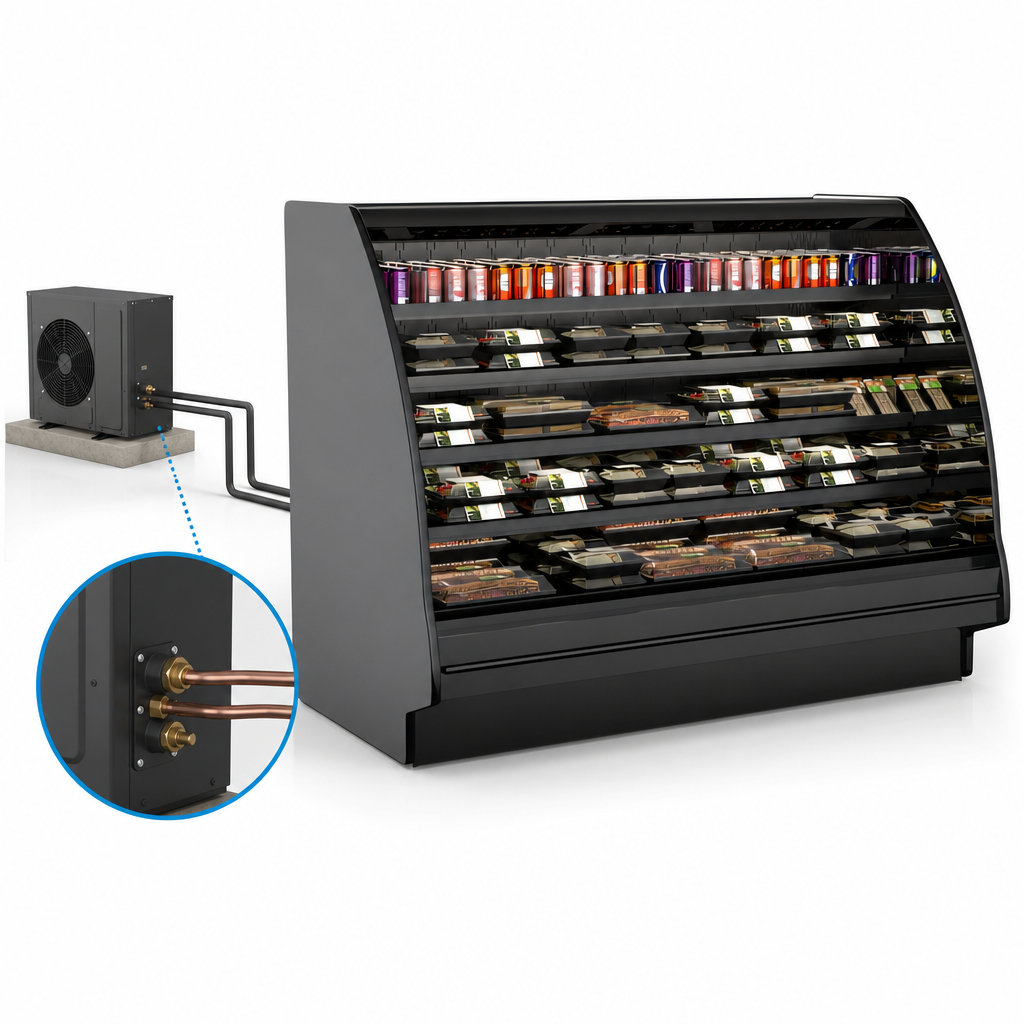

Remote DX Refrigeration

Uses remote direct-expansion refrigeration; condensing unit is not included.

Remote DX Refrigeration

40°F-Or-Less Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less.

LED Top and Shelf Lighting

LED lights with frosted lenses help illuminate displayed products evenly.

Solid Back Panel

Solid rear back panel provides a clean rear appearance and product separation.

Stainless Steel Rear Exterior

Stainless steel rear exterior adds durability and a professional finish.

Type I Environment

Designed to operate in 75°F ambient conditions at 55% relative humidity.

Electrical Leads for Remote Setup

Supplied with electrical leads for remote refrigeration installation.

Type Refrigerated Self-Service Case
Style Curved Profile
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Interior Finish Black
Voltage 110-120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 3.86 Amps
Watts 295 Watts
Plug Type Leads Multiple
Shipping Width 124 Inches
Shipping Depth 43 Inches
Shipping Height 60 Inches
Shipping Weight 1,300 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty PDF Download PDF Scc product nomenclature PDF Download PDF Owner's manual PDF Download PDF Exterior finishes and bumpers PDF Download PDF Map policy PDF Download PDF Spec guide PDF Download

Frequently Asked Questions

It is intended for packaged refrigerated products.
It uses remote DX refrigeration, so the condensing unit is not included.
The warmest average product temperature is 40°F or less.
LED top and shelf lights with frosted lenses come standard.
Yes. The remote refrigeration note states that a floor drain is required.
It includes a one-year parts and labor warranty.
