Structural Concepts

Fusion 52-Inch High Flat Glass Refrigerated Service Case, 99-3/4-Inch Wide, Remote DX

SKU: GHS852RLB (FLAT)
$26,752.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

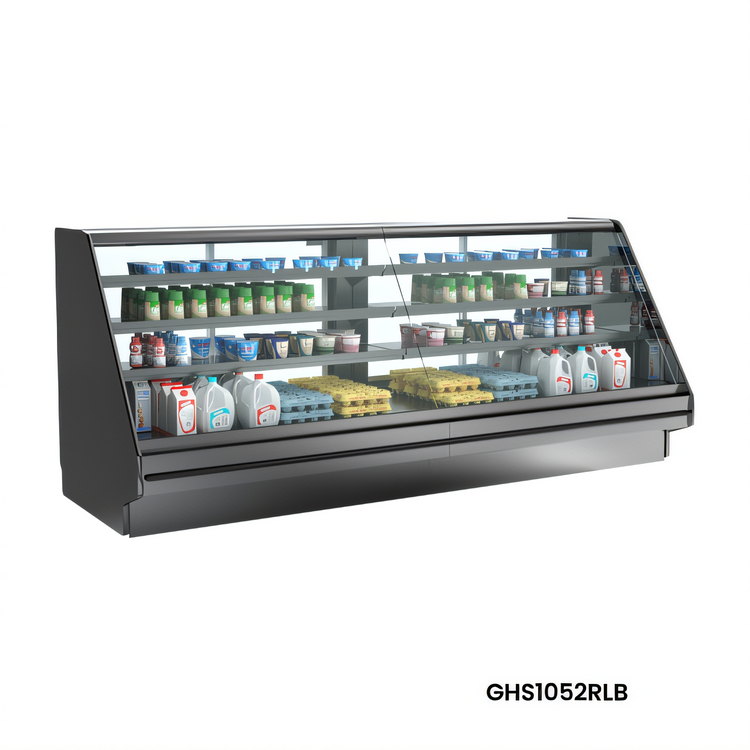

Fusion 52-Inch High Flat Glass Refrigerated Service Case, 99-3/4-Inch Wide, Remote DX

3 Solid Shelves, Clear Rear Sliding Doors, Stainless Steel Rear Exterior

Merchandise prechilled foods in a wide flat-glass service case that holds a warmest average product temperature of 40°F or less with remote DX refrigeration and LED lighting.

  • Remote DX refrigeration is designed for remote installation and keeps product at 40°F or less on average.
  • Flat angled lift-up front glass creates a clean presentation and easy customer-facing access.
  • Includes three solid shelves plus clear glass rear sliding doors for efficient stocking and service.
  • LED top and shelf lights with frosted lens help showcase products clearly.
  • Stainless steel rear exterior adds durability in high-traffic commercial environments.
  • One-year parts and labor warranty is included.

Overall Dimensions:

99.75"W x 42.75"D x 51.25"H

Product Weight:

1500.0 lb

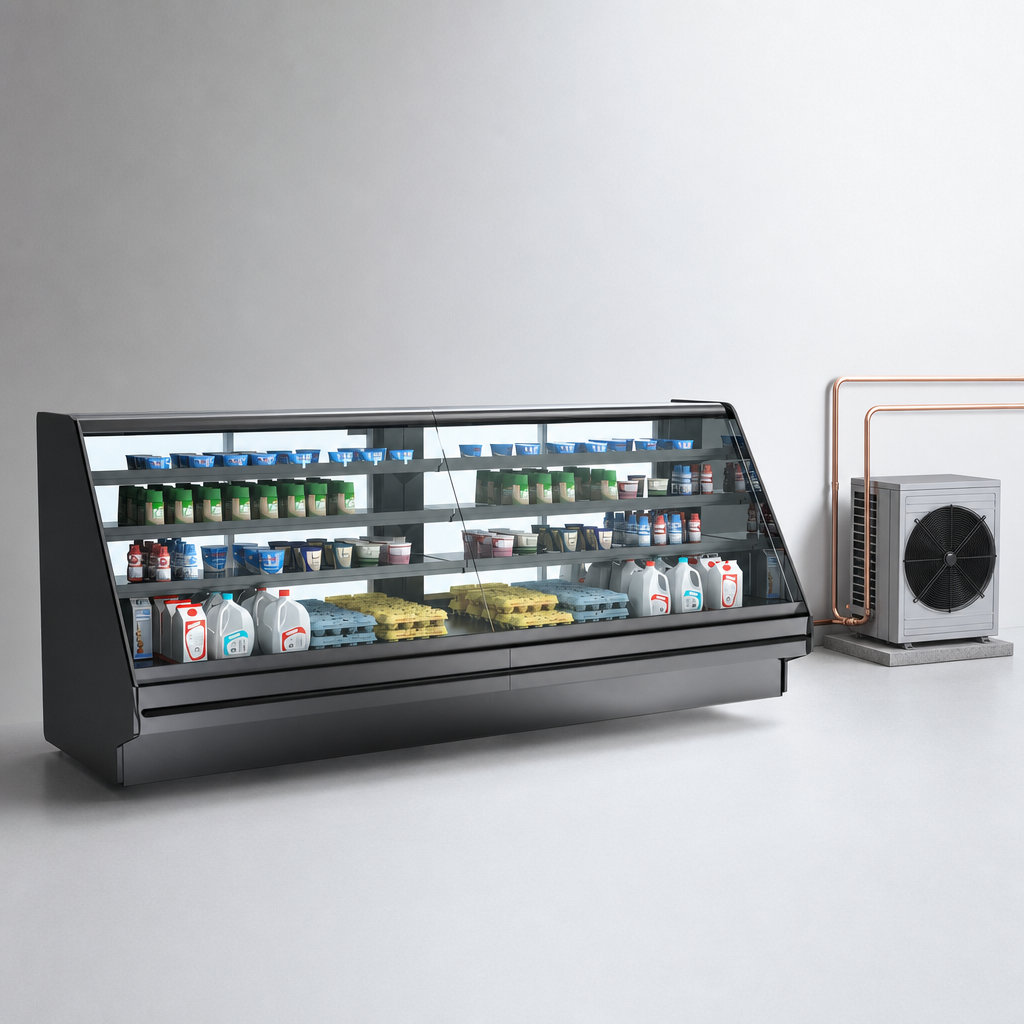

Remote DX Refrigeration

Designed for remote refrigeration; condensing unit is not included.

Remote DX Refrigeration

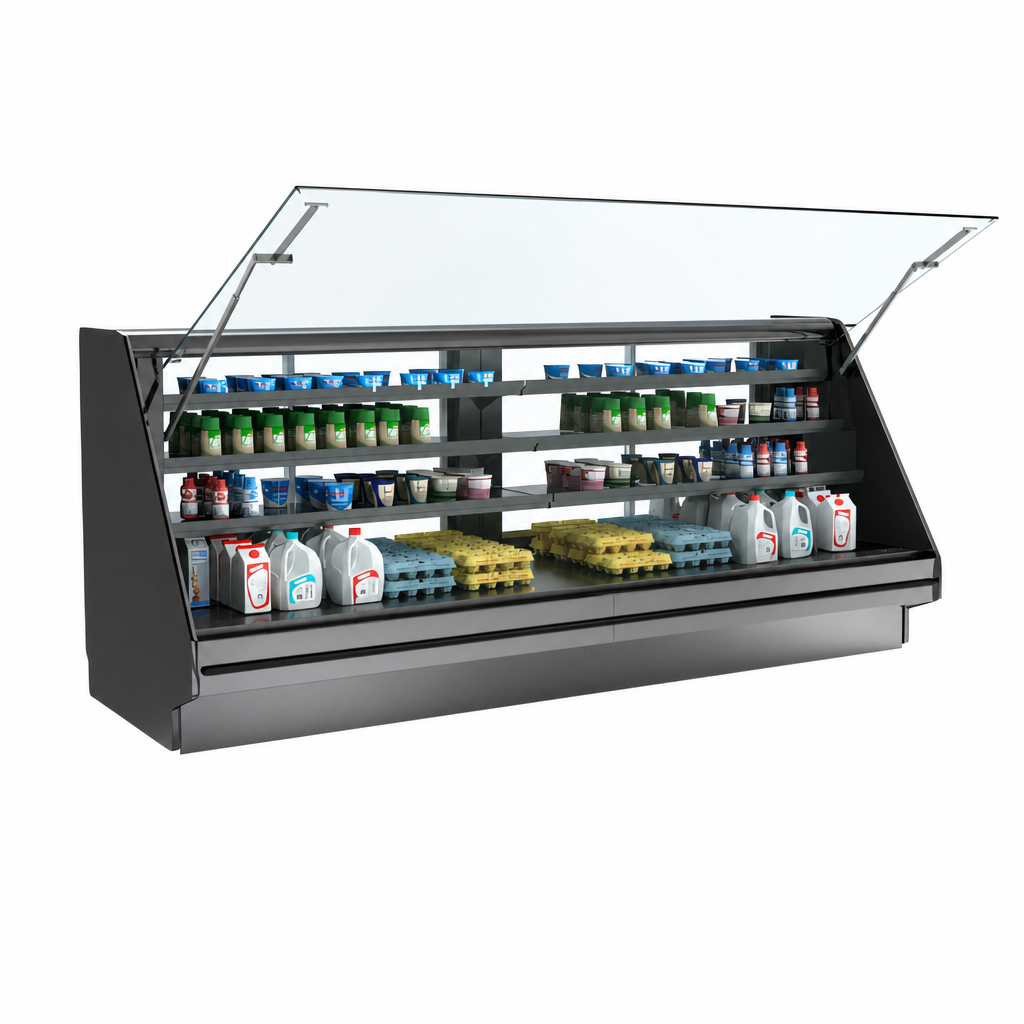

Flat Angled Lift-Up Front Glass

Improves product visibility while providing front access to the case.

Flat Angled Lift-Up Front Glass

Three Solid Shelves

Standard shelving includes 12" and 16" and 16" solid shelves for organized display.

LED Top And Shelf Lighting

LED lights with frosted lens brighten the display area for better merchandising.

Clear Glass Rear Sliding Doors

Rear doors support easy stocking and service access from the back of the case.

Stainless Steel Rear Exterior

Durable stainless steel rear finish suited to busy service environments.

40°F Or Less Average Product Temperature

Built to keep unpackaged refrigerated products prechilled and displayed at a warmest average product temperature of 40°F or less.

Remote Installation Requirements

Separate circuit required; floor drain required for remote refrigeration installation.

Type Refrigerated Service Case
Style Flat Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F Or Less
Voltage 110-120 Volts
Amps 3.87 Amps
Watts 193 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type Leads
Shipping Width 100 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,500 Pounds
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It uses remote DX refrigeration.
No. The cutsheet notes that the condensing unit is not included and that a floor drain is required.
It is designed to maintain a warmest average product temperature of 40°F or less for prechilled unpackaged refrigerated products.
It includes three solid shelves and LED top and shelf lights with a frosted lens.
A one-year parts and labor warranty is included.
