Structural Concepts

Fusion 62-7/8-Inch Wide Flat Glass Refrigerated Service Case with Remote DX Refrigeration

SKU: GHS552RLB (FLAT)
$16,807.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

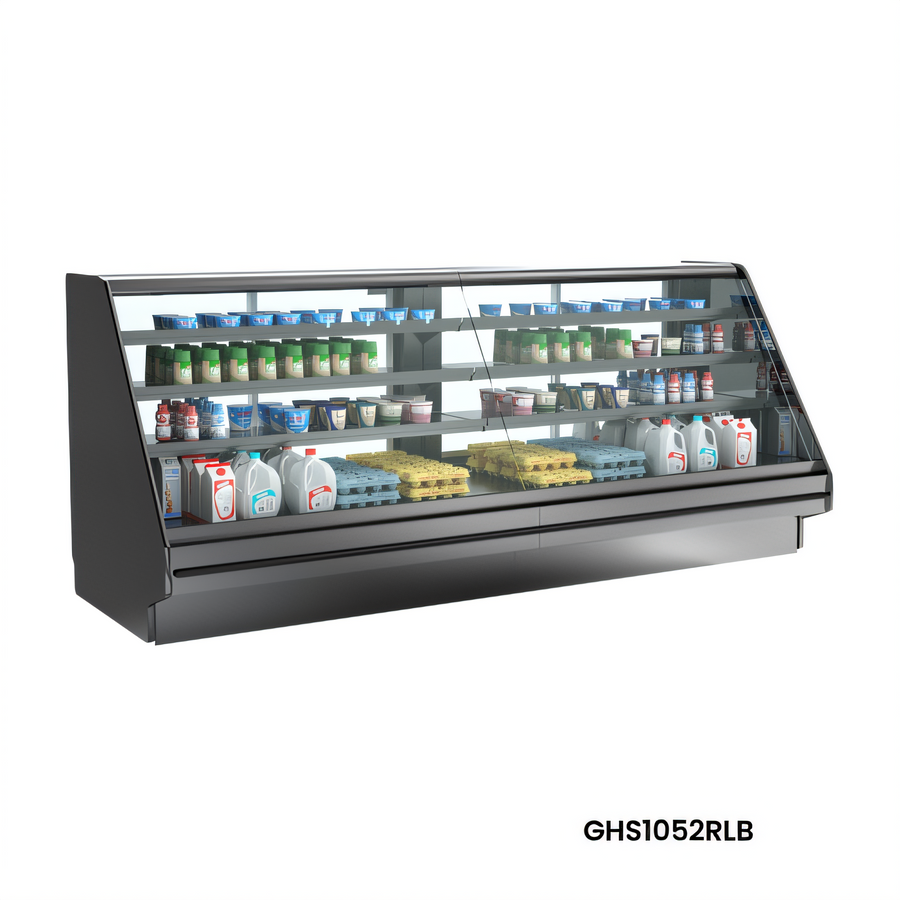

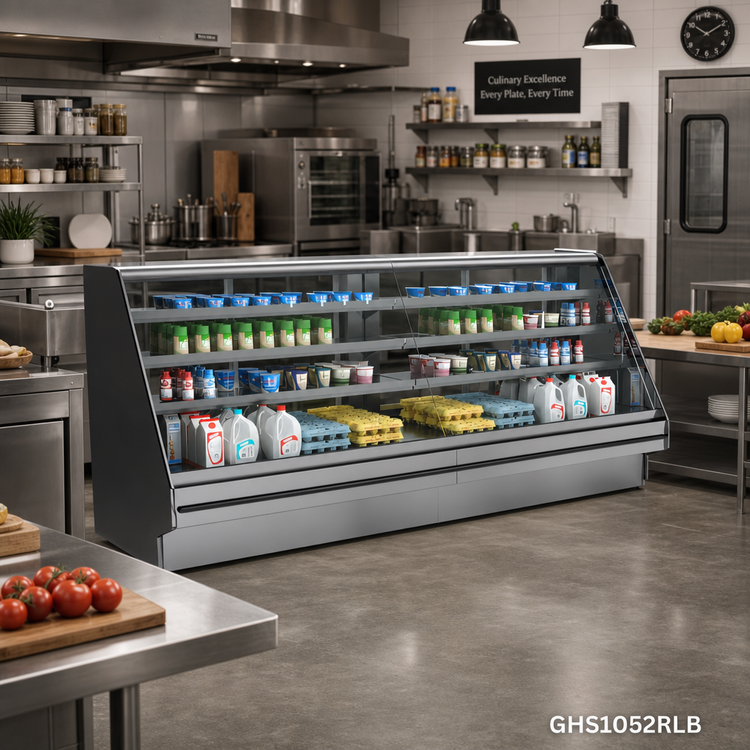

Fusion 62-7/8-Inch Wide Flat Glass Refrigerated Service Case with Remote DX Refrigeration

52-Inch High, Clear Glass Rear Sliding Doors, Three Solid Shelves

A sleek remote DX merchandiser that keeps prechilled foods at 40°F or less while maximizing product visibility and service access.

  • Remote DX refrigeration keeps the condensing unit offsite; condensing unit not included.
  • Flat angled lift-up front glass delivers a clean presentation and easier service access.
  • Clear glass rear sliding doors and three solid shelves support efficient merchandising.
  • LED top and shelf lights with frosted lenses brighten the display.
  • Designed for unpackaged refrigerated products held at a warmest average product temperature of 40°F or less.
  • Stainless steel rear exterior adds durability in busy service areas.

Overall Dimensions:

62.87"W x 42.75"D x 51.25"H

Product Weight:

1000.0 lb

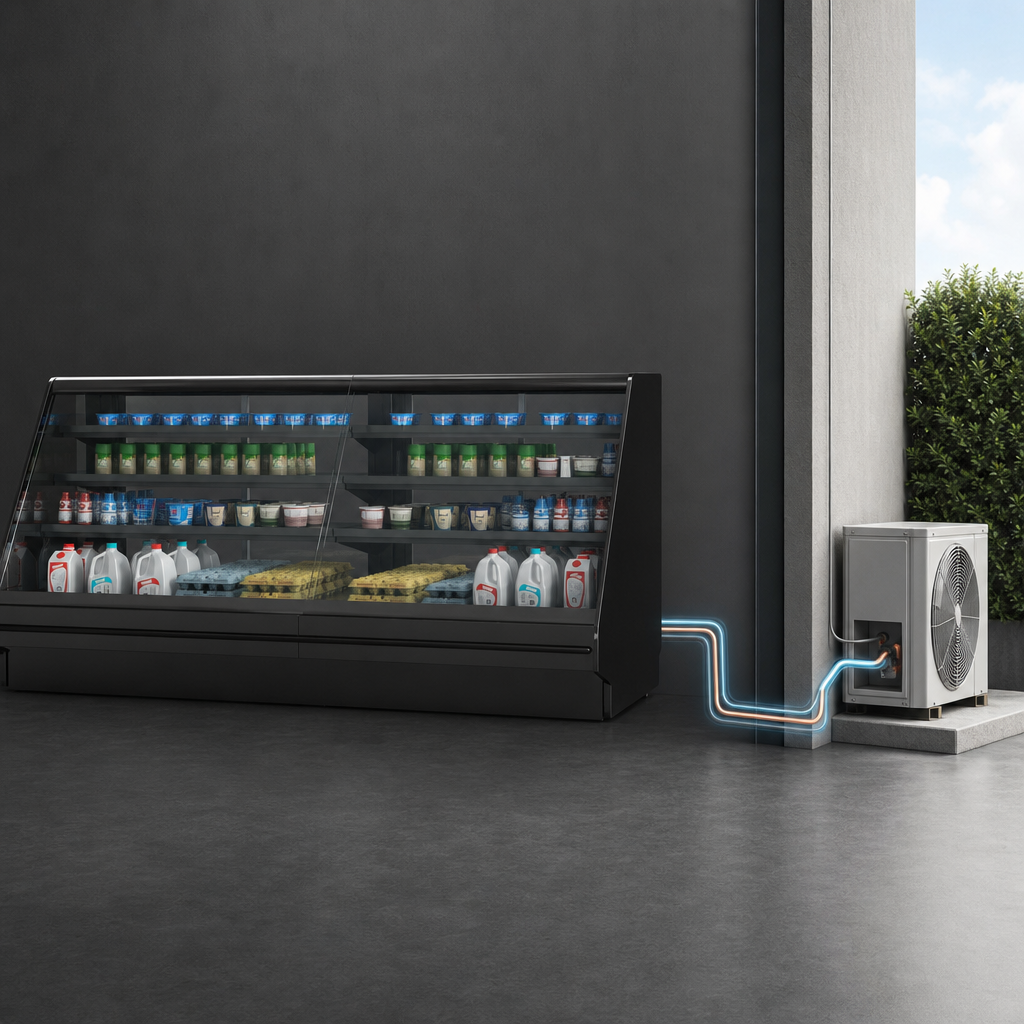

Remote DX Refrigeration

Remote direct-expansion refrigeration system; condensing unit is not included.

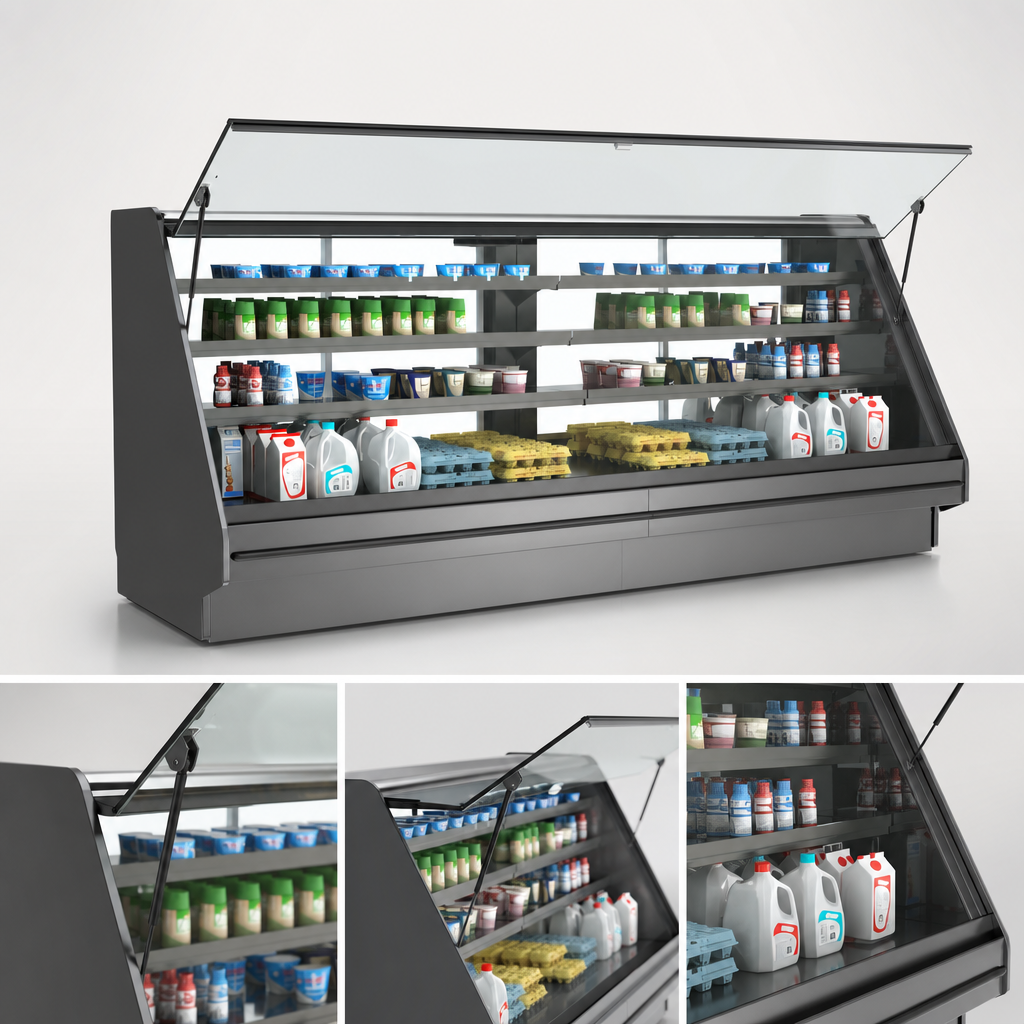

Flat Angled Lift-Up Front Glass

Flat front glass lifts up for better product presentation and easier service access.

Clear Glass Rear Sliding Doors

Rear sliding doors provide operator-side access and a clear view of product.

LED Top and Shelf Lights

Standard LED lighting with frosted lenses brightens the display for strong product visibility.

Three Solid Shelves

Includes three solid shelves for organized display merchandising.

40°F or Less Product Temperature

Designed for unpackaged refrigerated products prechilled to a warmest average product temperature of 40°F or less.

Stainless Steel Rear Exterior

Durable stainless steel rear exterior helps protect the case in service environments.

Type I Environment

Designed to operate in ambient conditions of 75°F with 55% relative humidity unless otherwise noted.

Type Refrigerated Service Case
Style Flat Glass
Installation Type Floor Model
Refrigeration Type Remote DX
Temperature Range 40°F or Less
Voltage 110-120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 3.41 Amps
Watts 119 Watts
Shipping Width 63 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 1,000 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

No. It uses remote DX refrigeration, and the condensing unit is not included.
It is designed for unpackaged refrigerated products that are prechilled to a warmest average product temperature of 40°F or less.
Three solid shelves are included.
It includes a flat angled lift-up front glass and clear glass rear sliding doors.
A separate circuit is required, remote refrigeration requires a floor drain, and the unit must be shimmed during installation so it is level and plumb.
It is intended for Type I service environments and is designed to operate at 75°F ambient temperature with 55% relative humidity unless otherwise noted.
