Structural Concepts

Fusion 51-Inch Refrigerated Service Case with Curved Lift-Up Front Glass and Sliding Rear Doors

SKU: GHS456R (CURVED)
$16,832.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Fusion 51-Inch Refrigerated Service Case with Curved Lift-Up Front Glass and Sliding Rear Doors

51"W x 43"D x 55-3/4"H, Self-Contained R290, 3 Shelves

Showcase refrigerated merchandise with curved glass, bright LED lighting, and self-contained R290 cooling in a durable freestanding case.

  • Curved lift-up front glass offers strong product visibility and easy access.
  • Breeze self-contained R290 refrigeration simplifies installation.
  • LED top and shelf lights with frosted lens help merchandise stand out.
  • Clear glass sliding rear doors and three standard shelves support efficient service.
  • Maintains a warmest average product temperature of 40°F or less.
  • Stainless steel rear exterior and casters with levelers add durability and mobility.
  • Includes 1-year parts and labor plus 5-year compressor warranty.

Overall Dimensions:

51.0"W x 43.0"D x 55.75"H

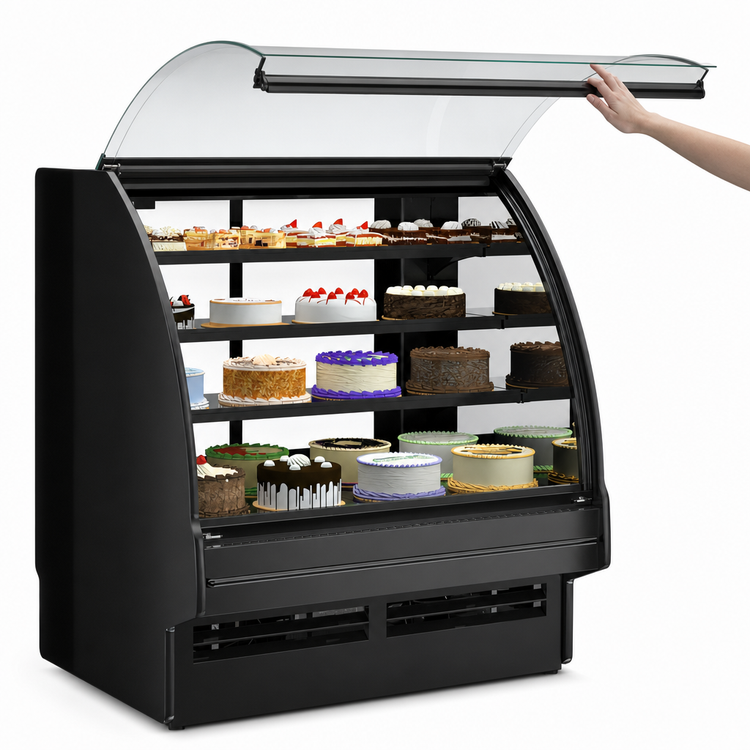

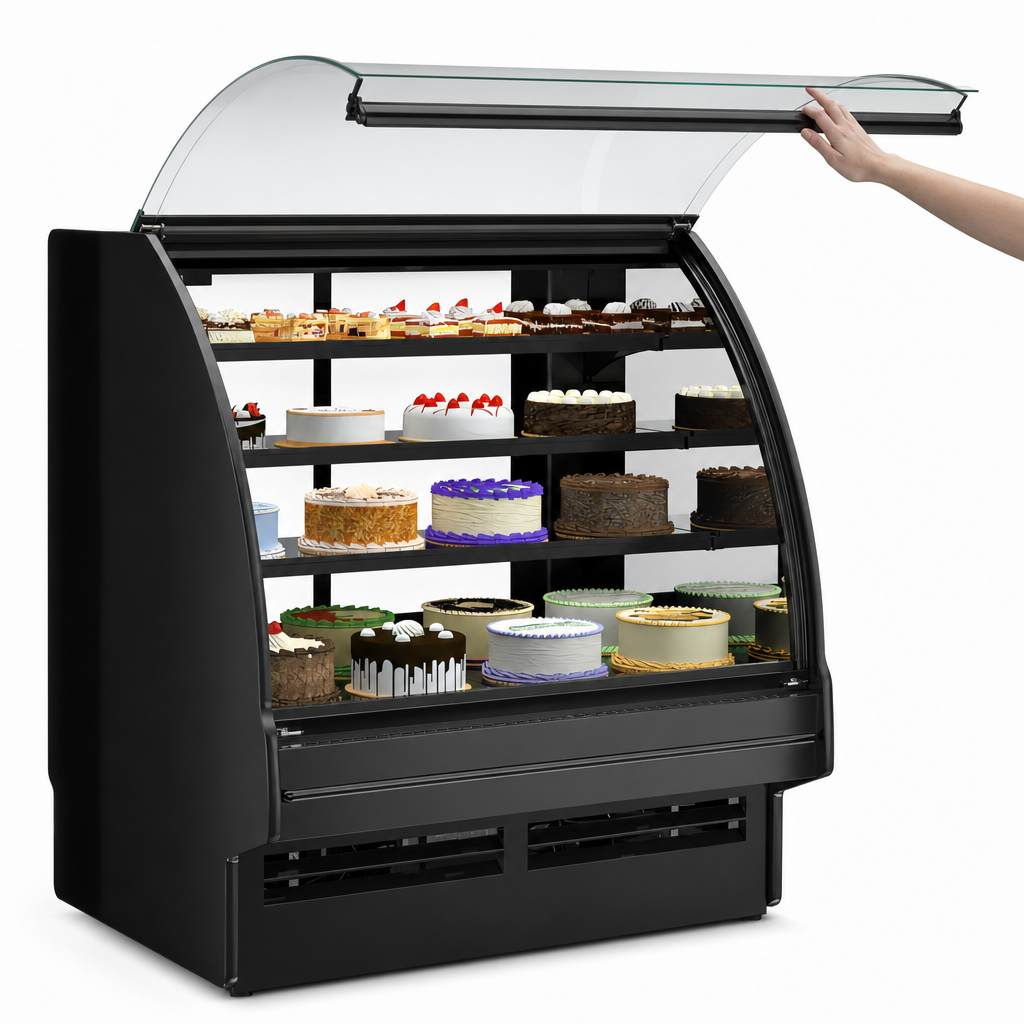

Curved Lift-Up Front Glass

Improves product visibility while allowing convenient front access.

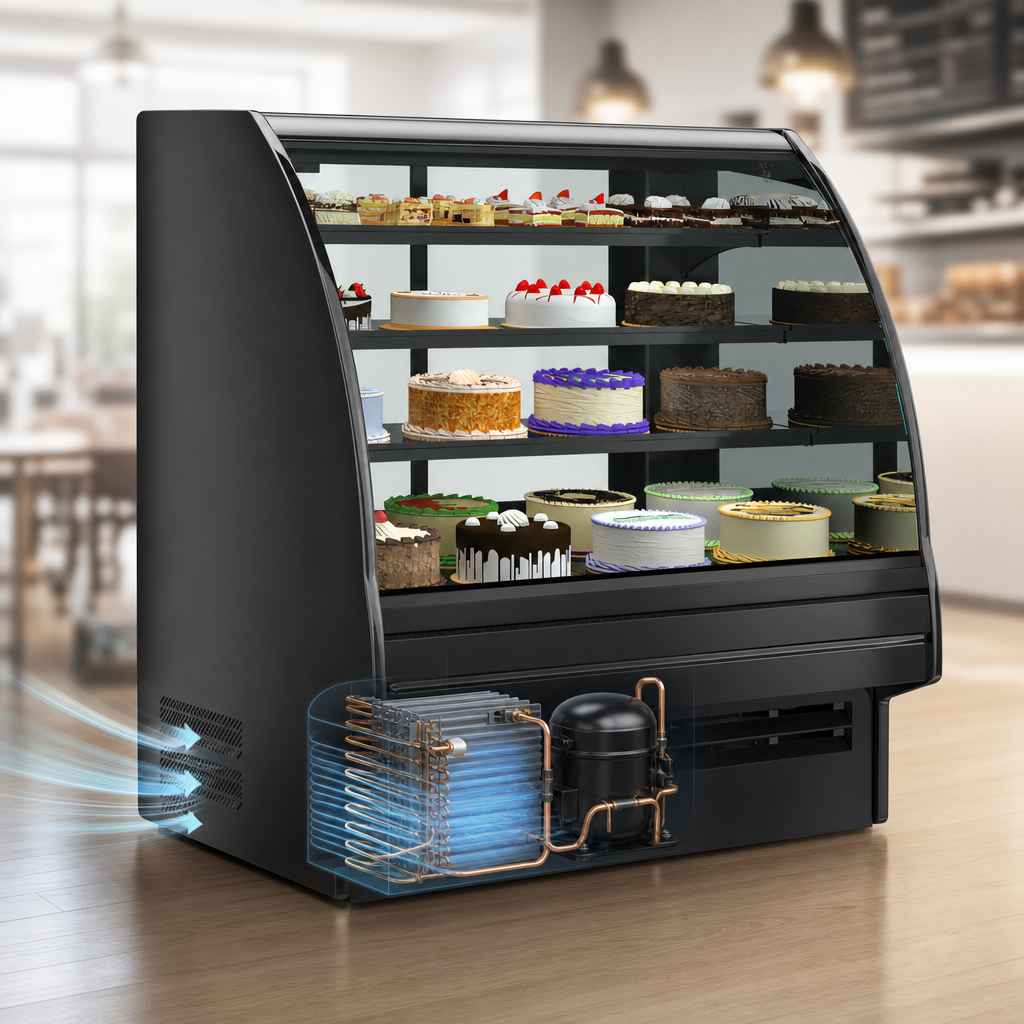

Breeze Self-Contained R290 Refrigeration

Integrated refrigeration system uses R290 refrigerant for a simpler installation.

LED Top And Shelf Lighting

3500K LED lighting with frosted lens helps illuminate displayed products.

Sliding Rear Glass Doors

Clear glass rear sliding doors provide easy rear access and product viewing.

Three Standard Shelves

Includes 16-inch, 20-inch, and 20-inch solid shelving for display flexibility.

40°F Or Less Average Product Temperature

Designed to hold packaged refrigerated products at a warmest average temperature of 40°F or less.

Freestanding Base With Casters And Levelers

Caster and leveler base support helps with placement and leveling.

Type I Ambient Rating

Designed to operate in ambient conditions of 75°F with 55% relative humidity.

Stainless Steel Rear Exterior

Durable rear exterior construction adds strength and a clean appearance.

Type Refrigerated Service Case
Style Curved Glass
Installation Type Freestanding
Refrigeration Type Self-Contained
Refrigerant Type R290
Shelves 3
Temperature Range 40°F or Less
Finish Laminate Exterior
Voltage 110-120 Volts
Amps 15.91 Amps
Watts 1.516 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P or L5-20P
Cord Length 6 Feet
Shipping Width 51 Inches
Shipping Depth 43 Inches
Shipping Height 56 Inches
Shipping Weight 692 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less for packaged refrigerated products.
Yes. The unit uses Breeze self-contained R290 refrigeration.
The model uses 110-120V power, 1-phase, 60 Hz, 15.91 amps, and 1,516 watts with a 5-20P or L5-20P plug. A separate circuit is required.
It includes three solid shelves: 16-inch, 20-inch, and 20-inch.
The unit includes a 1-year parts and labor warranty and a 5-year compressor warranty.
