Fusion GHS452RLB 51 Inch Refrigerated Service Case with Flat Lift-Up Glass

Full-Size, Remote DX Refrigeration, 40°F or Less, Floor Model

This Fusion refrigerated service case provides optimal merchandising for pre-chilled products with its spacious interior and elegant flat glass design.

  • Spacious 51" wide refrigerated service case for optimal product display.
  • Maintains an integrated average product temperature of 40°F or less, ideal for unpackaged refrigerated items.
  • Features a flat angled lift-up front glass for easy loading and cleaning.
  • Equipped with energy-efficient LED top and shelf lighting with frosted lenses to enhance product visibility.
  • Designed for remote DX refrigeration, requiring a separate condensing unit and floor drain for operation.
  • Includes clear glass rear sliding doors for convenient staff access and servicing.
  • Constructed with a durable stainless steel rear exterior for a professional appearance.

Overall Dimensions:

51.0"W x 42.75"D x 51.25"H

Product Weight:

925.0 lb

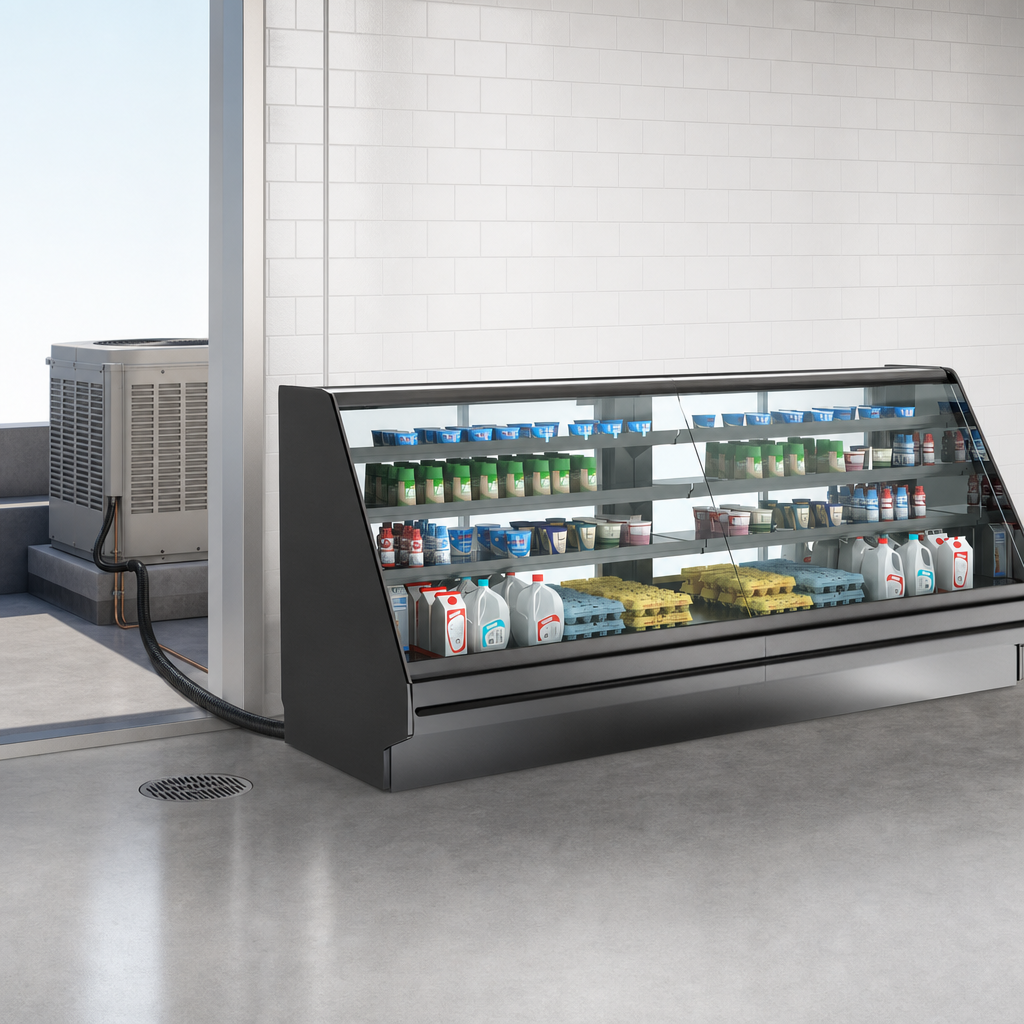

Remote DX Refrigeration

Designed for connection to a remote condensing unit, optimizing display space and reducing ambient heat and noise in the service area. Requires a floor drain.

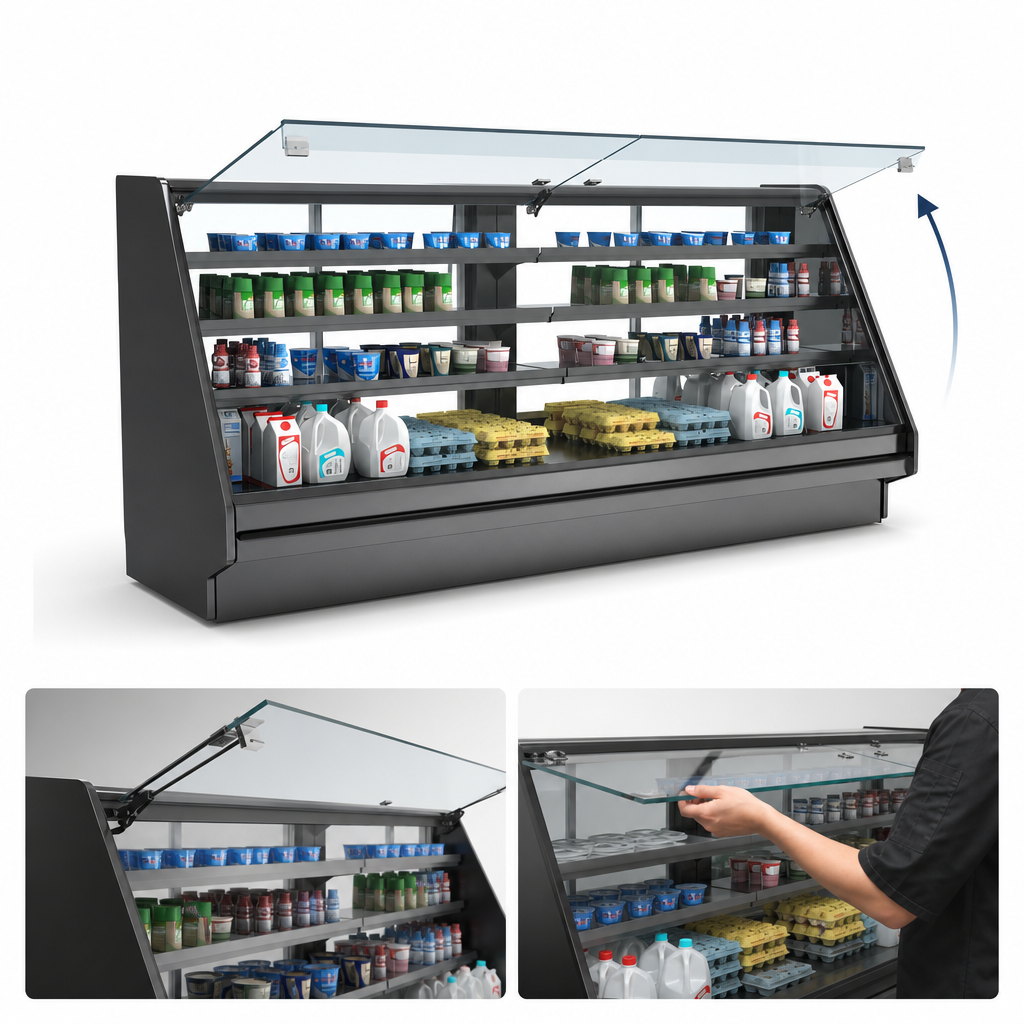

Flat Angled Lift-Up Front Glass

Provides excellent product visibility for customers and can be easily lifted for convenient access during stocking, cleaning, or maintenance.

LED Top & Shelf Lights with Frosted Lens

Illuminates products brightly and energy-efficiently, enhancing visual appeal and product presentation.

Integrated Average Product Temperature

Maintains a warmest average product temperature of 40°F or less, ensuring proper storage conditions for pre-chilled unpackaged refrigerated products.

Clear Glass Rear Sliding Doors

Allows for easy loading, restocking, and serving of products from the rear, ensuring efficient operation.

Stainless Steel Rear Exterior

Offers durability, resistance to corrosion, and a clean, professional aesthetic from the service side.

Solid Shelving

Comes standard with three solid shelves (12", 16", 16") providing ample and sturdy display space for various product types.

Type Refrigerated Service Case
Style Flat Glass
Installation Type Floor Model
Pan Capacity 3 Solid Shelves
Temperature Range 40°F or less
Refrigeration Type Remote DX
BTU 1728 BTUH (Conventional Rack), 1600 BTUH (Parallel Rack)
Voltage 110-120 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 1.93 Amps
Watts 96 Watts
Plug Type Leads Multiple
Interior Finish Powder coated Silversan Black
Exterior Finish Laminate (stock colors), Stainless Steel (rear)
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 51 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 925 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Spec guide PDF Download PDF Scc product nomenclature PDF Download PDF Warranty PDF Download PDF Exterior finishes and bumpers PDF Download PDF Map policy PDF Download

Frequently Asked Questions

The Fusion GHS452RLB utilizes remote DX refrigeration. This means the condensing unit is not included and must be purchased separately. A floor drain is also required for operation.
This case is designed to maintain a warmest average product temperature of 40°F or less, making it suitable for pre-chilled unpackaged refrigerated products.
Yes, the Fusion GHS452RLB features a flat angled lift-up front glass, allowing for easy access during stocking, cleaning, and maintenance.
The standard interior color is Powder coated Silversan Black. The standard exterior finish is Laminate (stock colors), with a stainless steel rear exterior.
This is a remote refrigeration unit, so a condensing unit is not included, and a floor drain is required. The unit must also be shimmed during installation to ensure it is level and plumb. A minimum 45-inch door entry clearance is required for delivery (without shipping skid).
