Structural Concepts

Oasis Self-Service Refrigerated End Cap Display Case, Curved Open Front

SKU: FSE460R
$24,377.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

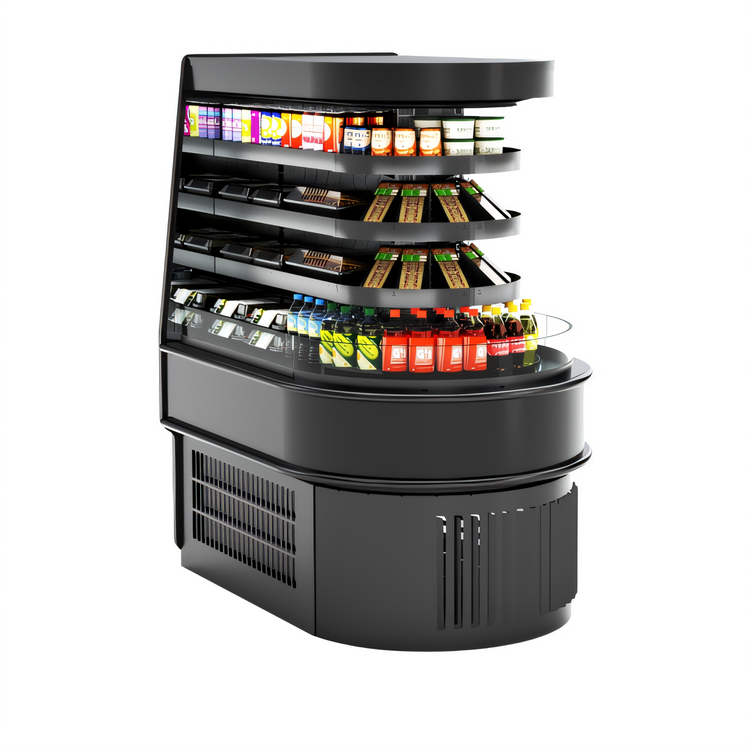

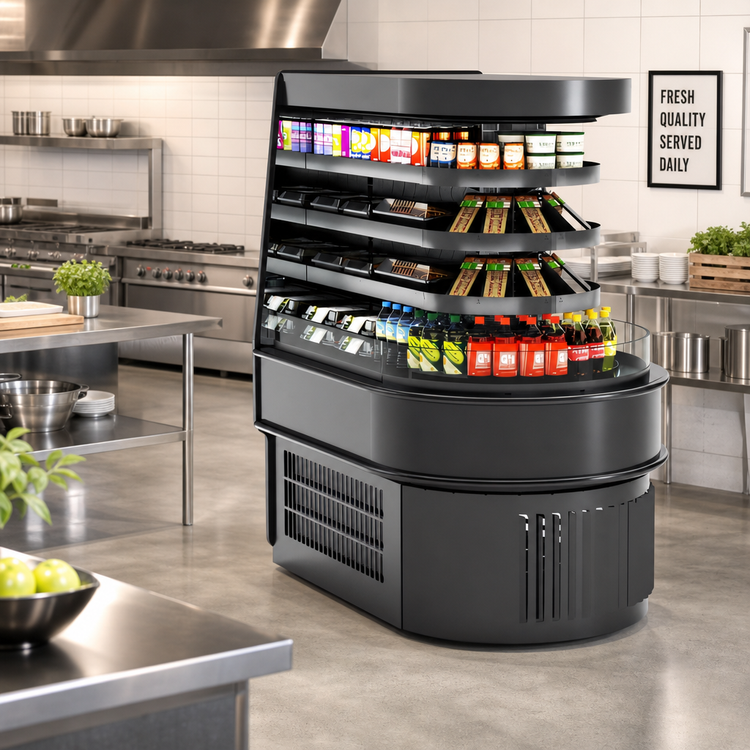

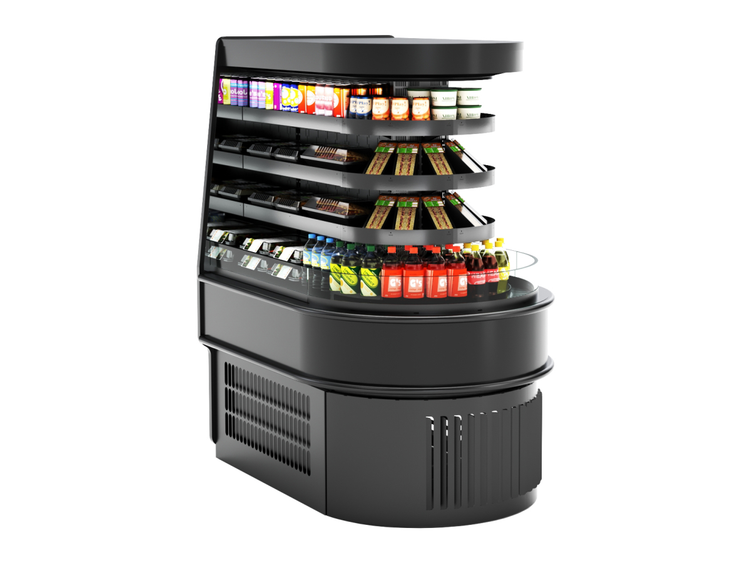

Oasis Self-Service Refrigerated End Cap Display Case, Curved Open Front

Self-Contained Refrigeration, Three Adjustable Shelves, LED Top Light

This self-service end cap case highlights grab-and-go items with a curved open front, mirrored end panel, and bright LED top lighting.

  • Self-service refrigerated end cap case designed for high-visibility merchandising.
  • Curved open front makes products easy to access and shop.
  • Breeze self-contained refrigeration with R290 hydrocarbon refrigerant simplifies installation.
  • Includes three non-lit adjustable metal shelves on 1-inch centers.
  • LED 4000K top light and mirrored end panel enhance product presentation.
  • Price tag moulding, levelers, and a protective 1-inch double-strip bumper are included.
  • Designed to maintain a warmest average product temperature of 40°F or less.

Overall Dimensions:

50.75"W x 36.12"D x 60.62"H

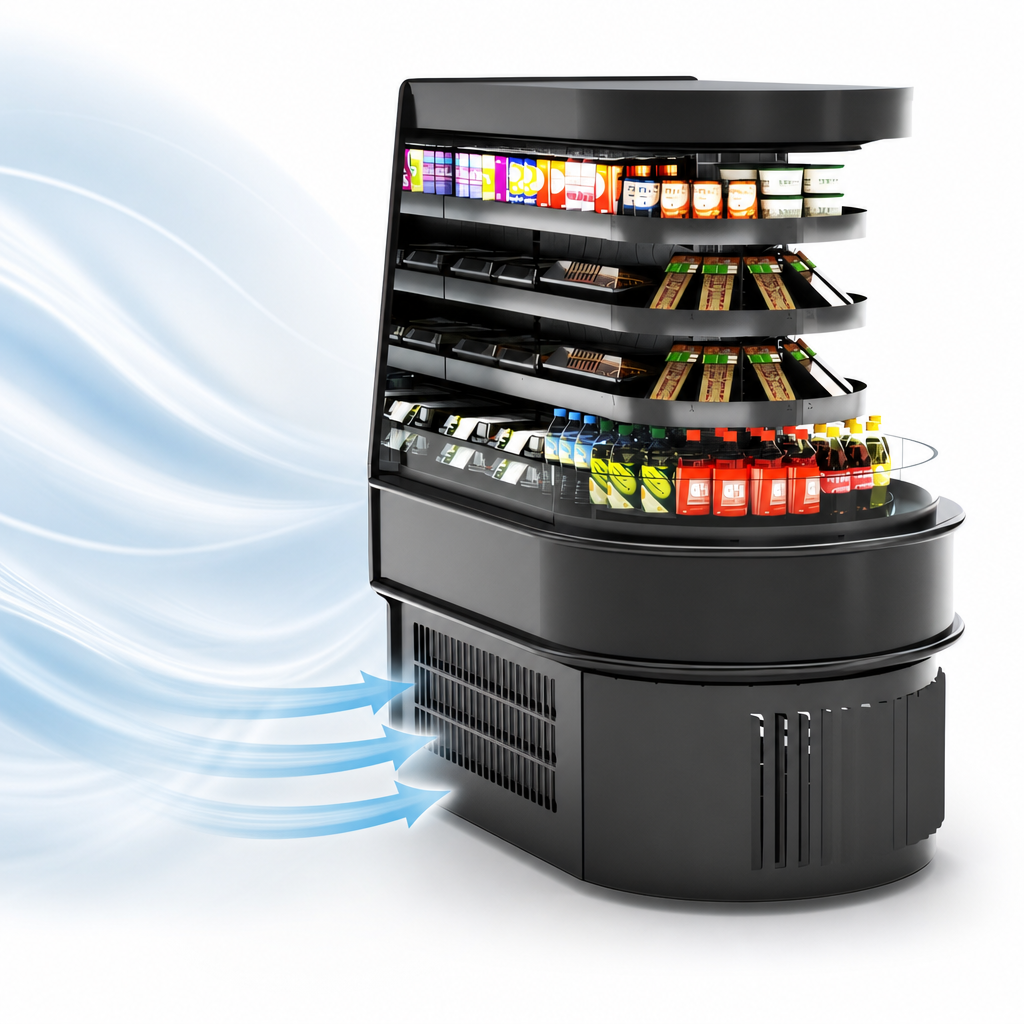

Breeze Self-Contained Refrigeration

Integrated self-contained refrigeration system supports simpler installation and operation.

Breeze Self-Contained Refrigeration

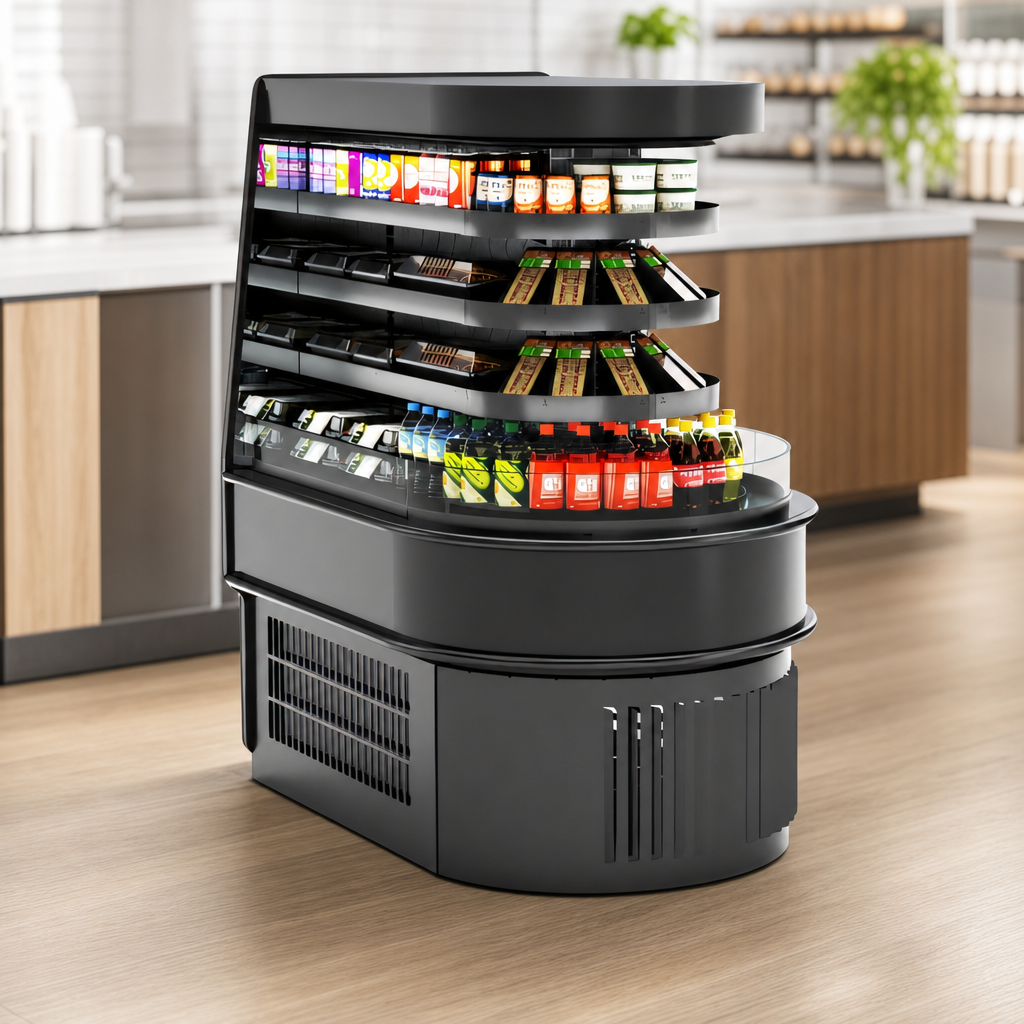

Curved Open Front

Open-front design improves customer access and creates an inviting self-service display.

Curved Open Front

Three Adjustable Metal Shelves

Three non-lit shelves are removable and adjustable on 1-inch centers for flexible merchandising.

LED 4000K Top Lighting

Top lighting helps showcase product visibility and presentation.

Full End Panel with Mirror Interior

Mirrored end panel enhances display visibility and adds a polished merchandising look.

Black Interior and Lower Front Panel

Dark interior surfaces help merchandise stand out visually.

Price Tag Moulding

Included price tag moulding matches the interior color for a clean display finish.

Removable Deck Pans

Removable deck pans provide complete access to the evaporator coil and refrigeration connections.

1-Inch Double-Strip Bumper

Included bumper helps protect the case from incidental contact; color is specified separately.

Levelers Included

Levelers help the case sit properly on uneven floors.

40°F Maximum Average Product Temperature

Designed for a warmest average product temperature of 40°F or less.

Type Refrigerated End Cap Case
Style Self-Service
Installation Type Floor Model
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 40°F or Less
Selling Unit Each
Units Per Case 1
Shipping Width 51 Inches
Shipping Depth 37 Inches
Shipping Height 61 Inches
Shipping Weight 936 Pounds

Frequently Asked Questions

Yes. It includes a Breeze self-contained refrigeration system.
It uses R290 hydrocarbon refrigerant.
Three non-lit adjustable metal shelves are included, and they adjust on 1-inch centers.
Yes. It includes LED 4000K top light(s).
The cutsheet lists a one-year parts and labor warranty and a five-year compressor warranty.
The case is designed for a warmest average product temperature of 40°F or less.
