Structural Concepts

Structural Concepts Grocerant FB3S-2H Heated Service Food Bar, 2 Wells, Full Service, 36 Inch, 208V

SKU: FB3S-2H
$15,690.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

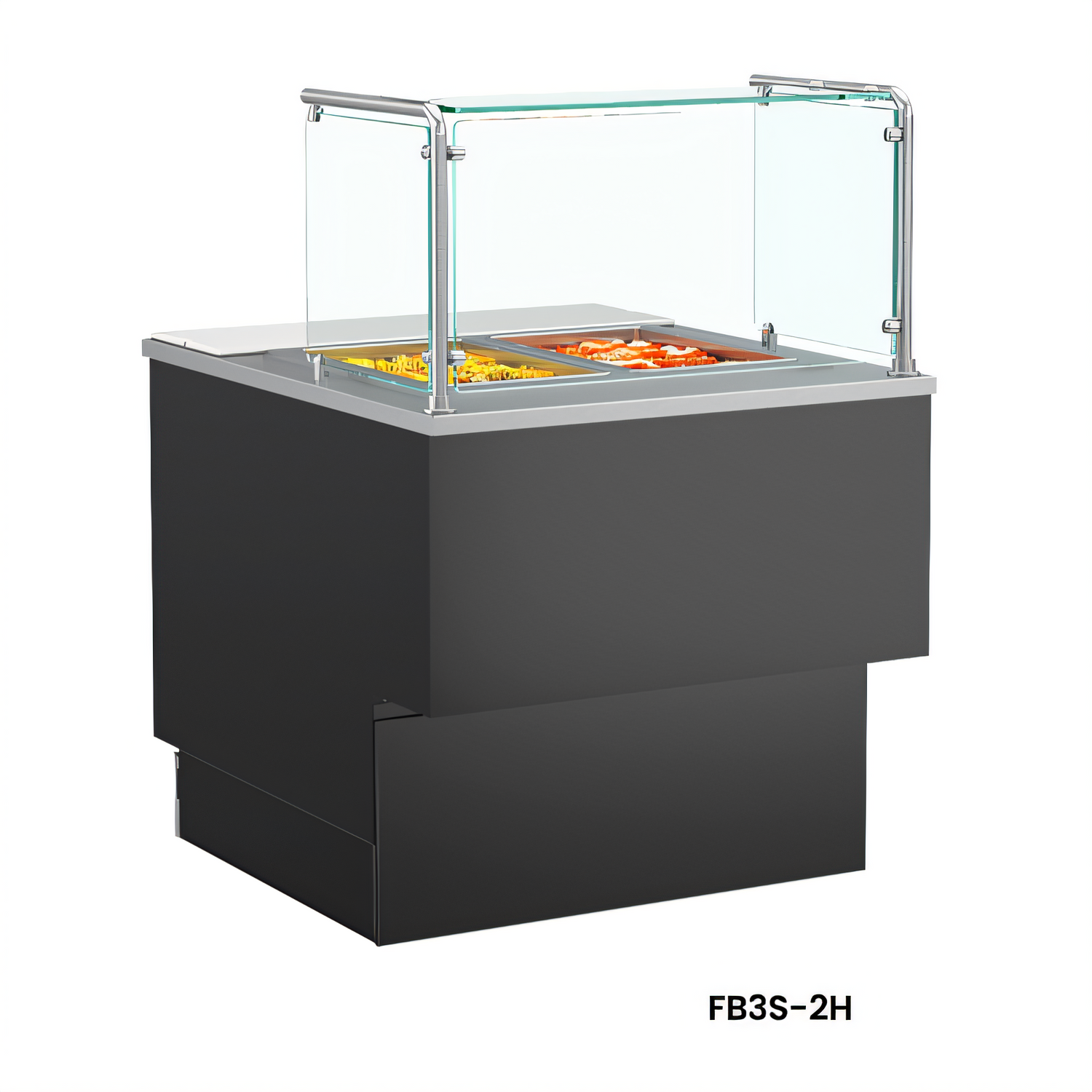

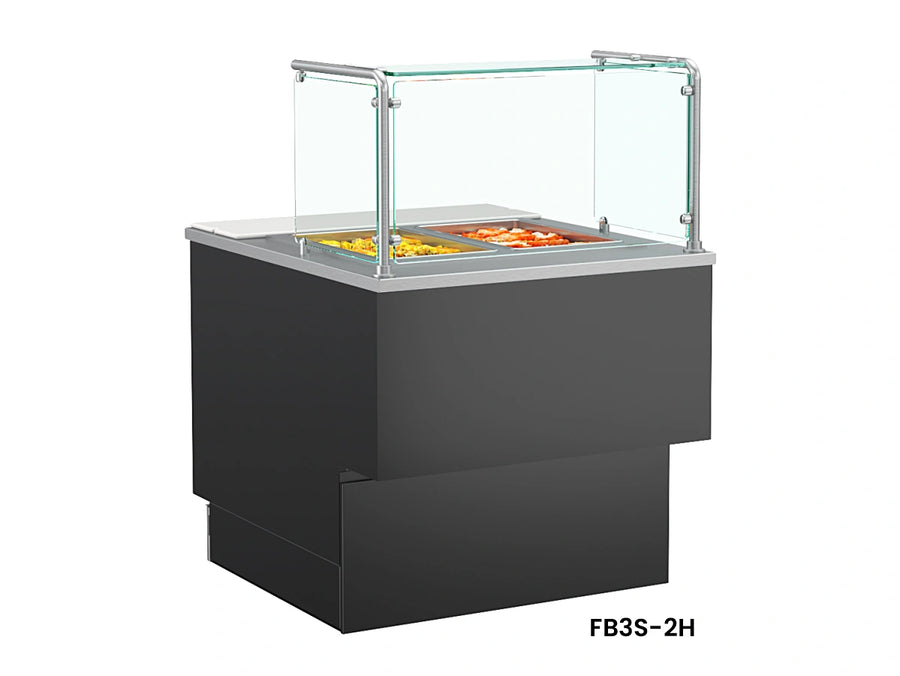

Structural Concepts Grocerant FB3S-2H Heated Service Food Bar, 2 Wells, Full Service, 36 Inch, 208V

Steam Heat Manual Fill, Clear Glass Sneeze Guard, Open Rear Storage

A compact full-service hot food bar that keeps product visible, protected, and independently temperature-controlled for efficient front-of-house service.

  • Compact 36-inch heated service food bar with 2 wells for front-of-house merchandising.
  • Holds full-size 6D pans; pans are not included.
  • Individual well controls help maintain consistent holding temperatures.
  • Clear glass sneeze guard, squared glass front, and rear wrapping board support sanitary service.
  • Open rear storage keeps serving supplies within easy reach.
  • Standard steam heat manual fill system with electrical leads; floor drain required for steam wells.

Overall Dimensions:

36.0"W x 43.0"D x 52.0"H

Product Weight:

700.0 lb

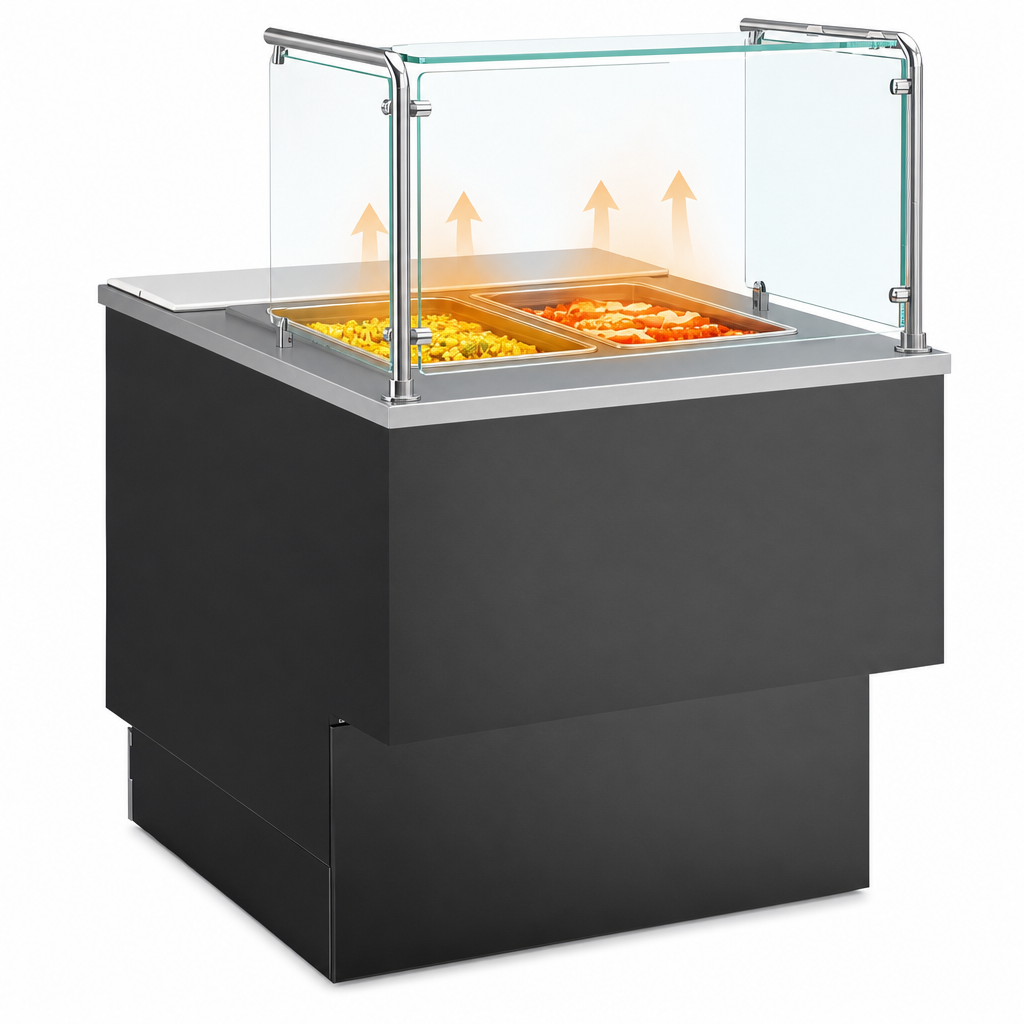

Two Heated Wells

Provides two separate holding wells in a compact service footprint.

Two Heated Wells

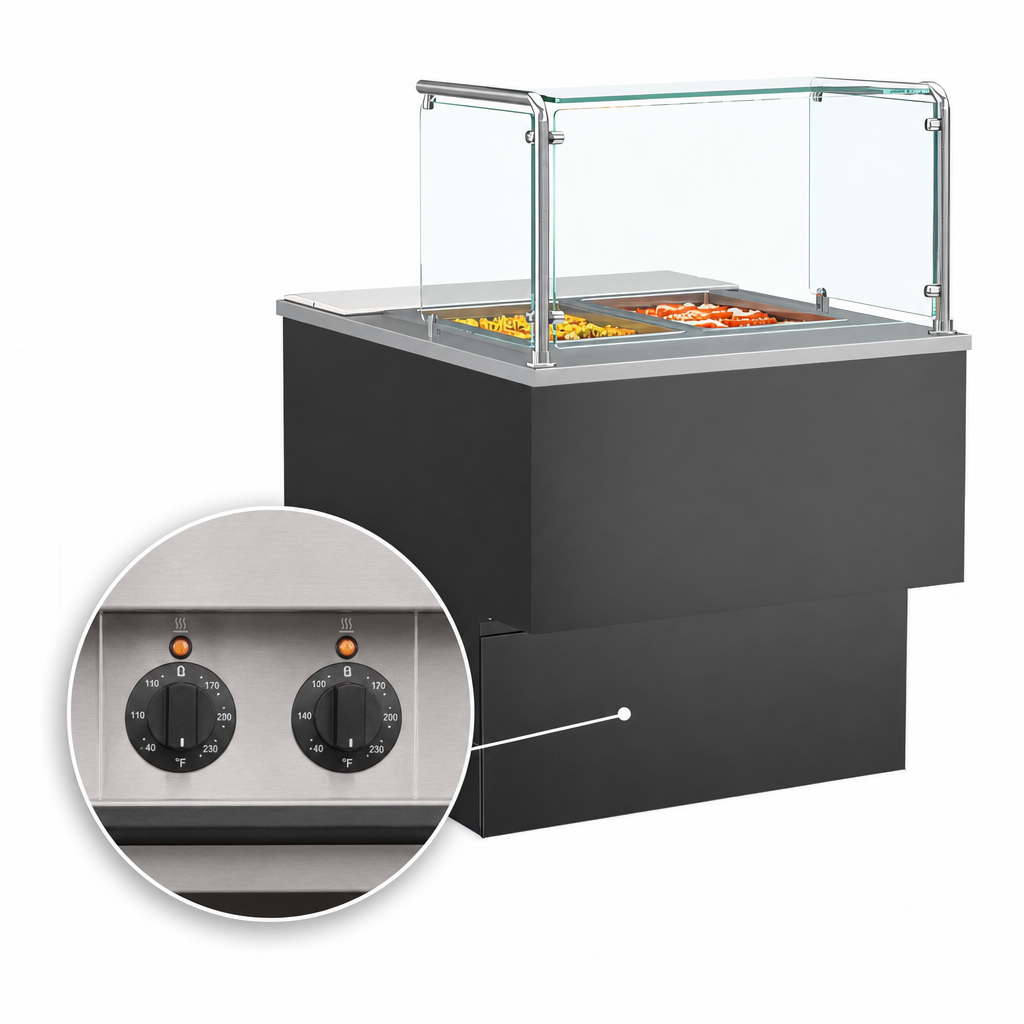

Individual Temperature Controls

Lets operators adjust each well independently for better holding control.

Individual Temperature Controls

Full-Size 6D Pan Capacity

Accommodates full-size 6D pans; pans are not included.

Clear Glass Sneeze Guard

Helps protect food while keeping the display open and visible to customers.

White Sanalite Rear Wrapping Board

Adds a convenient back-of-house service surface for wrapping and plating.

Open Rear Storage

Creates accessible storage space behind the serving line for supplies.

Steam Heat Manual Fill System

Standard heated-well system for hot food holding.

Electrical Leads Connection

Supplied with electrical leads for field connection.

Designed for Unpackaged Heated Product

Intended to display unpackaged heated product in front-of-house service applications.

Type Heated Service Food Bar
Style Full Service
Installation Type Floor Model
Material Laminate
Compartments 2
Pan Capacity 2 Full-Size 6D Pans
Pan Size Full Size 6D
Controls Individual Temperature Controls
Voltage 208 Volts
Phase 1-Phase
Hertz 60 Hz
Plug Type Electrical Leads
Water Connection Not Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 43 Inches
Shipping Height 52 Inches
Shipping Weight 700 lb.

Frequently Asked Questions

This model has 2 heated wells.
It holds full-size 6D pans, and the pans are not included.
The standard setup uses steam heat with a manual fill system. Dry heat and steam heat with autofill are listed as options.
Yes. The documentation notes that a floor drain is required for steam wells.
It is specified with 208V, 1-phase, 60 Hz power and electrical leads.
No. The documentation notes that it is not applicable for bone-in protein.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
