1 / 6

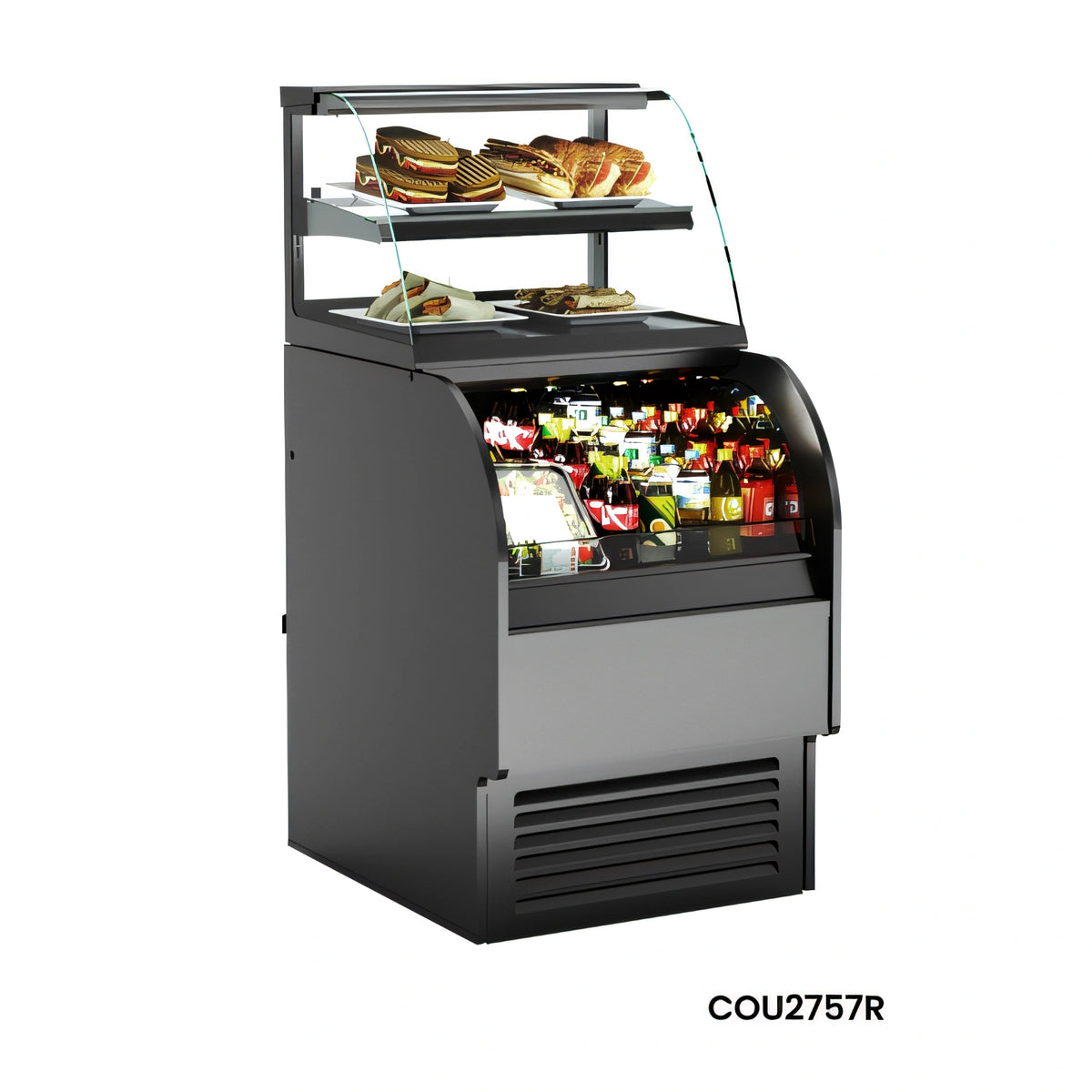

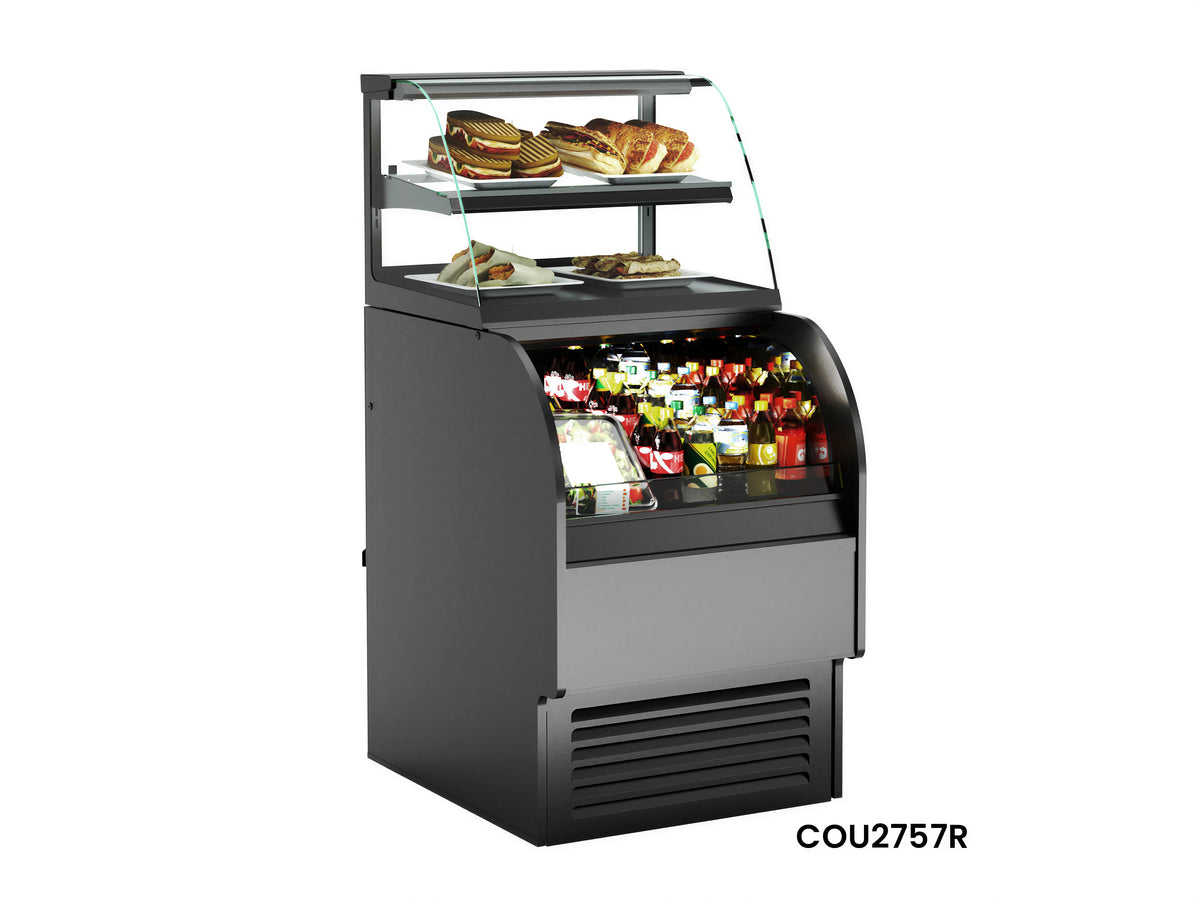

Structural Concepts Oasis® COU2757R Dual-Temperature Service/Self-Service Merchandiser, Curved Glass, Self-Contained Refrigerated Base
$12,087.50
/each
Ships in 16–19 business days
- Configuration
- Dual-temperature service/self-service merchandiser
- Upper section
- Service, non-refrigerated
- Lower section
- Self-service, open front, refrigerated base
- Refrigeration
- Breeze self-contained refrigeration; R290
- Exterior finish
- Laminate exterior
- Interior finish
- Black interior
Specifications
Configuration
Dual-temperature service/self-service merchandiser
Upper section
Service, non-refrigerated
Lower section
Self-service, open front, refrigerated base
Refrigeration
Breeze self-contained refrigeration; R290
Exterior finish
Laminate exterior
Interior finish
Black interior
Front glass
Curved single-pane, fixed front glass
Rear doors
Clear glass sliding rear doors
Shelf
(1) clear glass shelf, lighted
Deck
Angled deck
Lighting
LED 3500K top and shelf lights
End panels
Full end panels with mirror
Casters
Included
Electrical system
Self-contained, 110-120 V, 1 phase, 60 Hz
Current
10.43 A
Power
965 W
Wiring
2+G
NEMA plug
5-15P or L5-15P
Intended environment
Type I; 75°F ambient temperature and 55% relative humidity
Warmest average product temperature
40°F or less
Minimum door entry clearance
35.5 in without shipping skid
Airflow requirement
Front panel cannot be blocked; compressor air intake is from the rear and exhausts through the front toe kick
Description
The Structural Concepts Oasis® COU2757R combines an upper non-refrigerated service display with a lower open-front refrigerated self-service base.
- Upper section: Curved single-pane fixed front glass, one lighted clear glass shelf, clear glass sliding rear doors, and LED top lighting.
- Lower section: Open-front refrigerated self-service area with Breeze self-contained refrigeration and an angled deck.
- Construction: Laminate exterior, black interior, full end panels with mirror, and casters.
Overall Dimensions:
27.5"W x 34.75"D x 57.75"HProduct Weight:

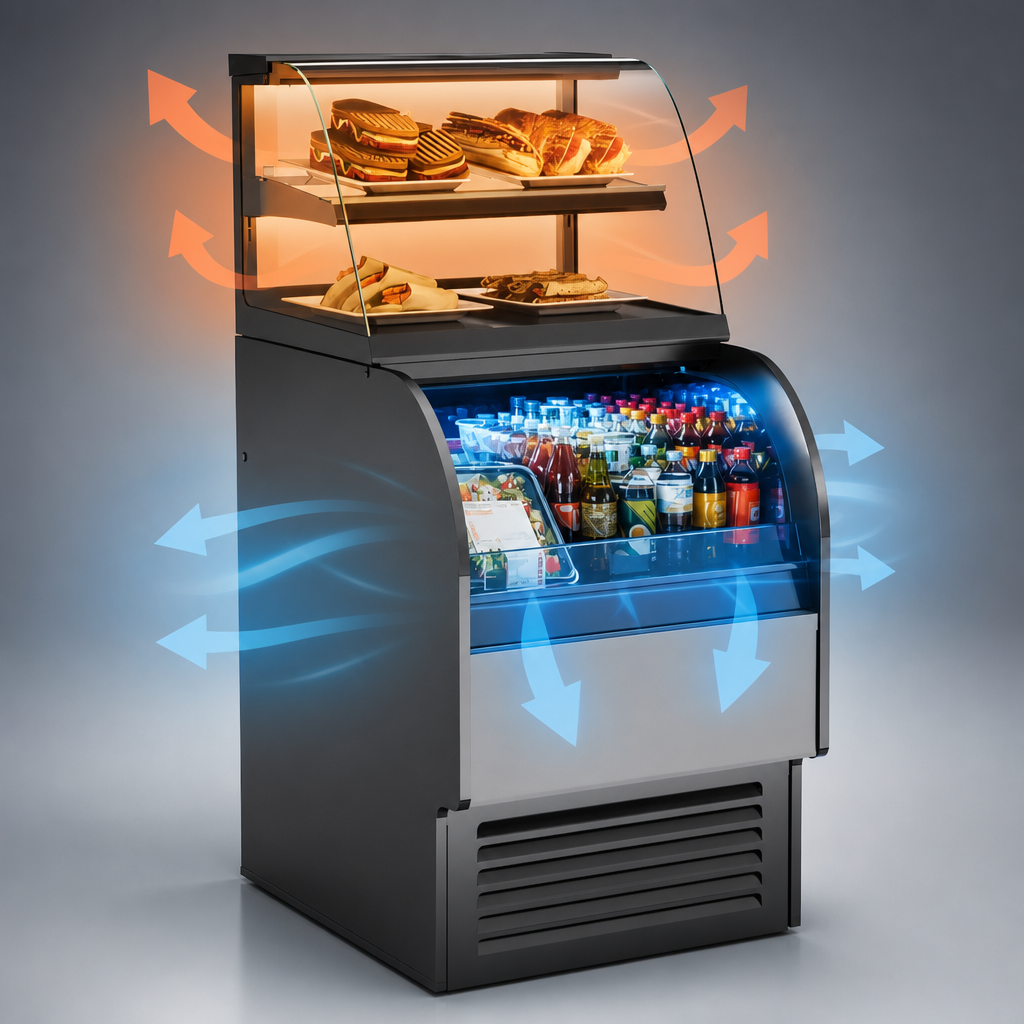

800.0 lbDual-temperature configuration
Provides an upper non-refrigerated service section and a lower refrigerated self-service section.
Upper service display
Uses curved single-pane fixed front glass, one lighted clear glass shelf, clear glass sliding rear doors, and top lighting.
Lower self-service section
Features an open front, refrigerated base, and angled deck.

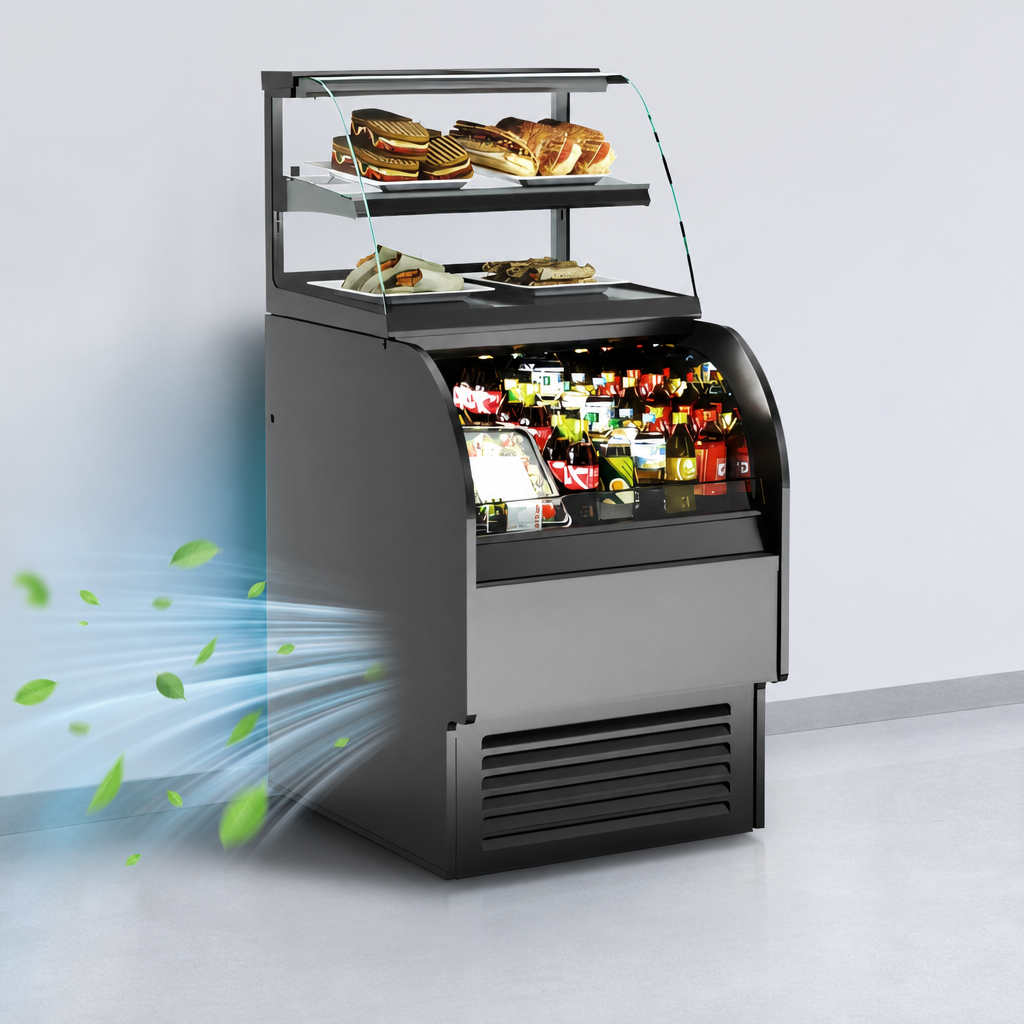

Self-contained refrigeration
Uses Breeze self-contained refrigeration with an R290 system.
LED lighting
Includes LED 3500K top and shelf lights.
Mirrored end panels
Full end panels include mirror surfaces.
Mobility
Casters are included.
Documentation
Cutsheet
PDF Download
Owner's manual
PDF Download
Spec guide
PDF Download
Warranty
PDF Download
Map policy
PDF Download
Scc product nomenclature
PDF Download
Exterior finishes and bumpers
PDF Download
Warranty
PDF Download
Certifications & Compliance
Frequently Asked Questions
Yes. The upper section is a non-refrigerated service display, while the lower section is an open-front refrigerated self-service base.
It uses Breeze self-contained refrigeration with an R290 system.
The case has curved single-pane fixed front glass, clear glass sliding rear doors, and one lighted clear glass shelf.
The product measures 27.5 in wide by 34.75 in deep by 57.75 in high and weighs 800 lb.
The self-contained system uses 110-120 V, single-phase, 60 Hz power, draws 10.43 A, uses 965 W, and is specified with a 5-15P or L5-15P plug.
The product includes one year of parts and labor coverage and a five-year motor compressor warranty.
