Oasis® CN53R-UC Low-Profile Refrigerated Self-Service Under Counter Display Case

59-5/8" W x 24-3/4" D x 32-1/4" H, Self-Contained R290 Refrigeration, Black Finish

A compact undercounter merchandiser that keeps packaged refrigerated products visible and chilled at 40°F or below.

  • Low-profile 59-5/8-inch wide undercounter refrigerated self-service case for packaged foods.
  • Self-contained Breeze~E refrigeration with R290 hydrocarbon refrigerant simplifies installation.
  • LED 4000K top light and mirrored stainless end panels enhance product presentation.
  • Non-locking casters with levelers make positioning and leveling easier.
  • Includes a condensate pan, magnetic air filter, E-coated evaporator coil, and one-piece ABS plastic tub.
  • Designed for a warmest average product temperature of 40°F or less and Type II ambient conditions.

Overall Dimensions:

59.63"W x 24.75"D x 32.25"H

Product Weight:

700.0 lb

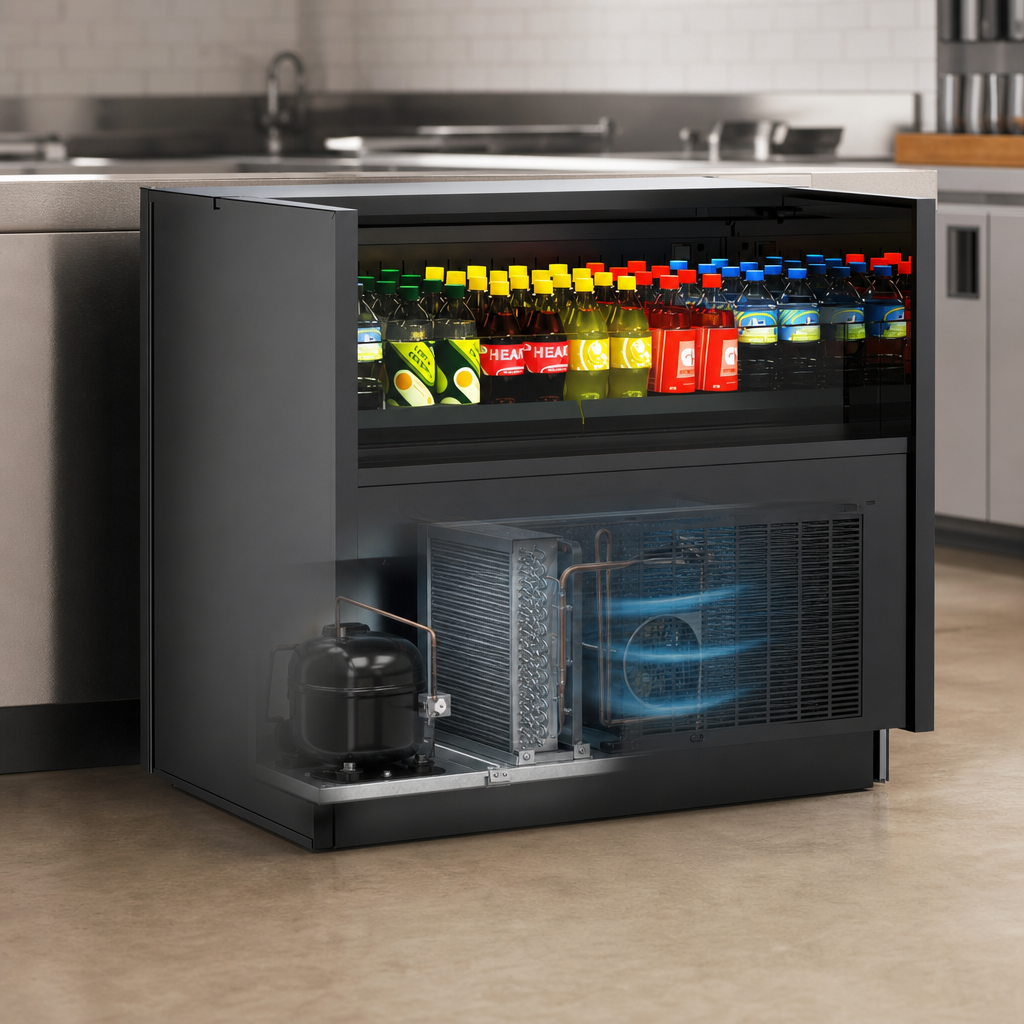

Self-Contained Breeze~E Refrigeration

Rear-access self-contained refrigeration system using R290 hydrocarbon refrigerant and an E-coated evaporator coil.

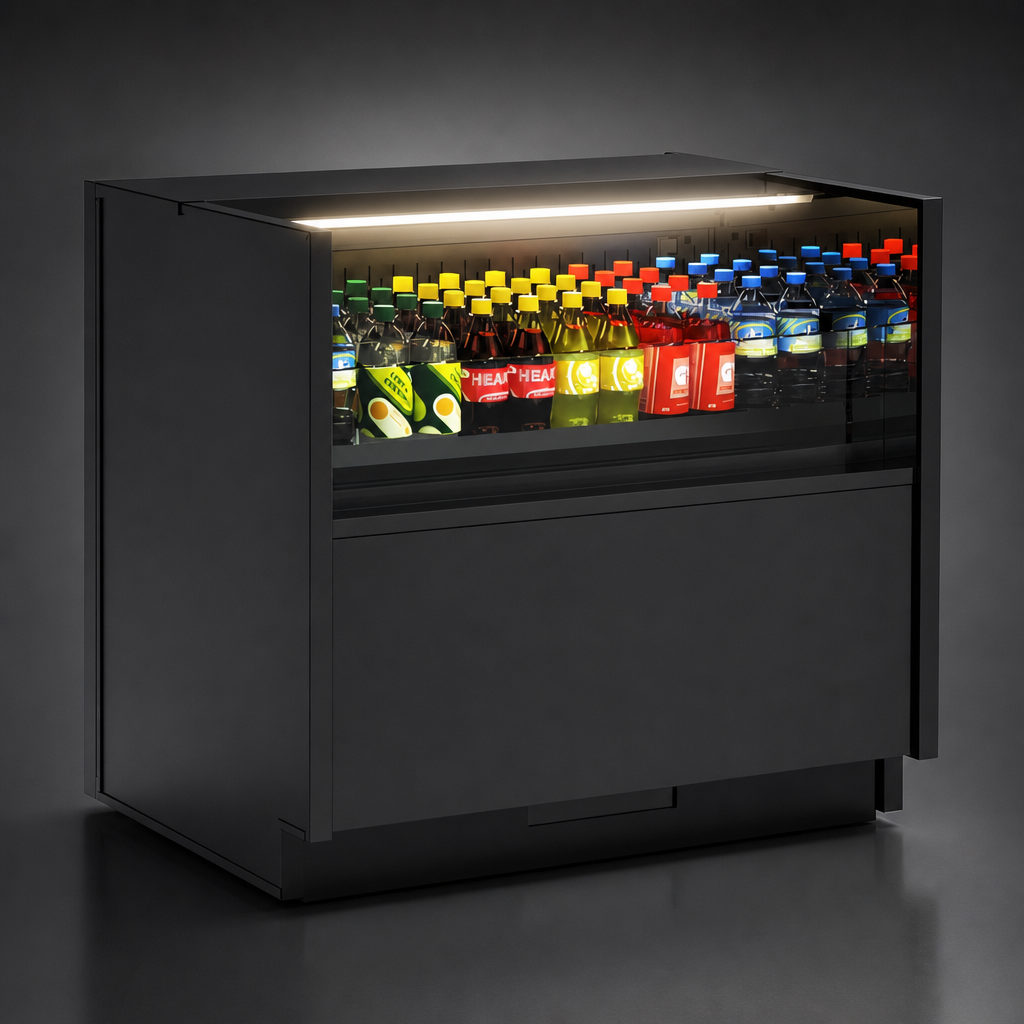

LED Top Light

4000K LED lighting helps illuminate merchandise in the display area.

40°F Maximum Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less.

Non-Locking Casters with Levelers

Provides mobility for placement and levelers for stable installation.

Magnetic Air Filter and Condensate Pan

Helps simplify routine maintenance and moisture management.

One-Piece Formed ABS Plastic Tub

Durable formed tub provides the display surface for refrigerated products.

Mirrored Stainless End Panels

Reflective end panels help improve presentation and visibility.

Black Powder-Coated Exterior and Interior

Sleek black finish supports a clean merchandising appearance.

Type II Ambient Design

Built to operate in ambient conditions up to 80°F and 55% relative humidity.

Type Refrigerated Display Case
Style Self-Service
Installation Type Undercounter
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 40°F Maximum Product Temperature
Color Black
Finish Powder Coated
Voltage 110-120 Volts
Amps 15.70 Amps
Watts 1.531 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P or L5-20P
Cord Length 6 Feet
Shipping Width 60 Inches
Shipping Depth 25 Inches
Shipping Height 33 Inches
Shipping Weight 700 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Owner's manual PDF Download PDF Design guide PDF Download

Frequently Asked Questions

The warmest average product temperature is 40°F or less.
Yes. It uses Breeze~E self-contained refrigeration with R290 hydrocarbon refrigerant.
Standard items include non-locking casters with levelers, a condensate pan, magnetic air filter, E-coated evaporator coil, one-piece ABS plastic tub, and LED top light.
The case operates on 110-120 volts, 1 phase, 60 Hz, and 15.70 amps, with a 5-20P or L5-20P plug and a 6-foot cord.
Standard warranty is 1 year parts and labor with a 5-year compressor warranty.
It is intended for Type II environments up to 80°F ambient temperature and 55% relative humidity.
