Structural Concepts Oasis® CN53R-CH Counter-Height Refrigerated Self-Service Display Case, 59-5/8 in W, Self-Contained R290, Black

SKU: CN53R-CH
$12,132.50
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Refrigeration, Freezing & Ice Reach-In Refrigerators & Freezers Undercounter, Worktop & Countertop Refrigeration Refrigerated Prep Tables & Cold Food Stations Bar, Beverage & Wine Cooling Ice Machines & Ice Equipment Walk-In Coolers & Freezers Chest, Glass-Door & Specialty Freezers Blast Chillers & Specialty Cooling Frozen Dessert & Ice Cream Equipment

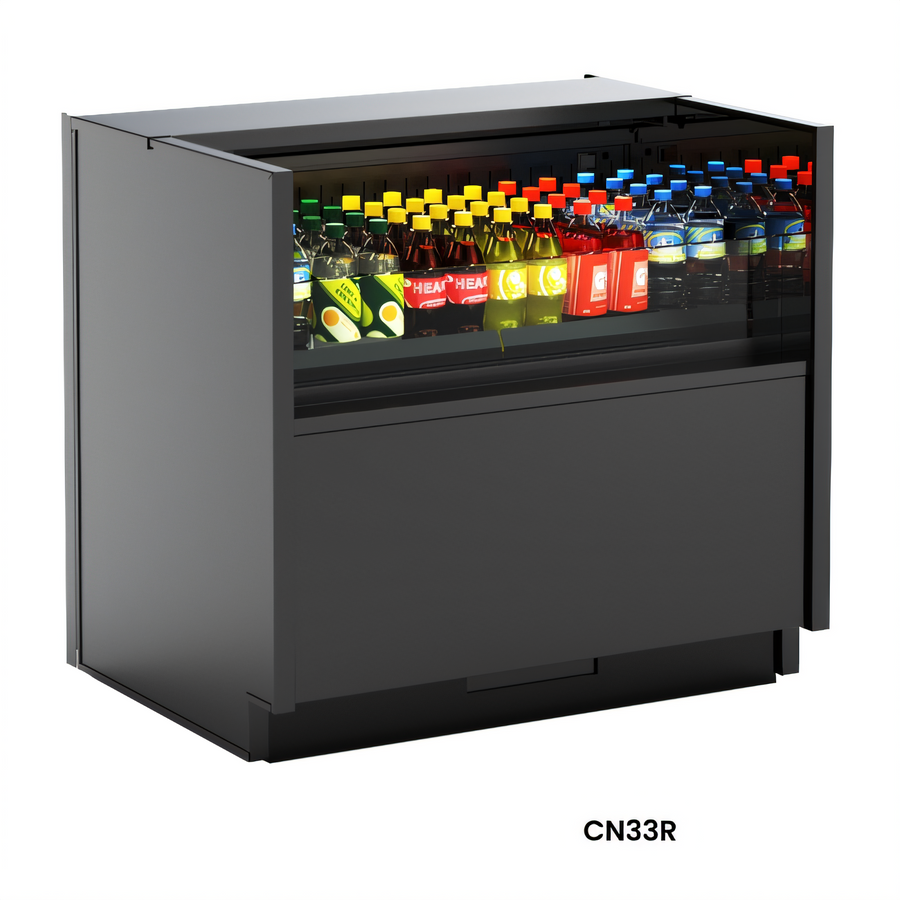

Oasis Counter Height Refrigerated Self-Service Display Case, 59-5/8 Inch W x 24-3/4 Inch D, Self-Contained R290, Black

LED Top Light, Mirrored Stainless End Panels, Non-Locking Casters

Deliver refrigerated packaged foods in a sleek, counter-height display case with self-contained R290 cooling and bright LED illumination.

  • 59-5/8-inch wide counter-height self-service case for refrigerated product presentation.
  • Self-contained Breeze~E refrigeration simplifies installation and daily operation.
  • Designed to maintain a warmest average product temperature of 40°F or less.
  • Includes an LED top light, condensate pan, magnetic air filter, and E-coated evaporator coil.
  • Non-locking casters with levelers help with positioning and stable setup.
  • Black powder-coated exterior with mirrored stainless steel end panels for a clean merchandising look.

Overall Dimensions:

59.63"W x 24.75"D x 33.75"H

Product Weight:

700.0 lb

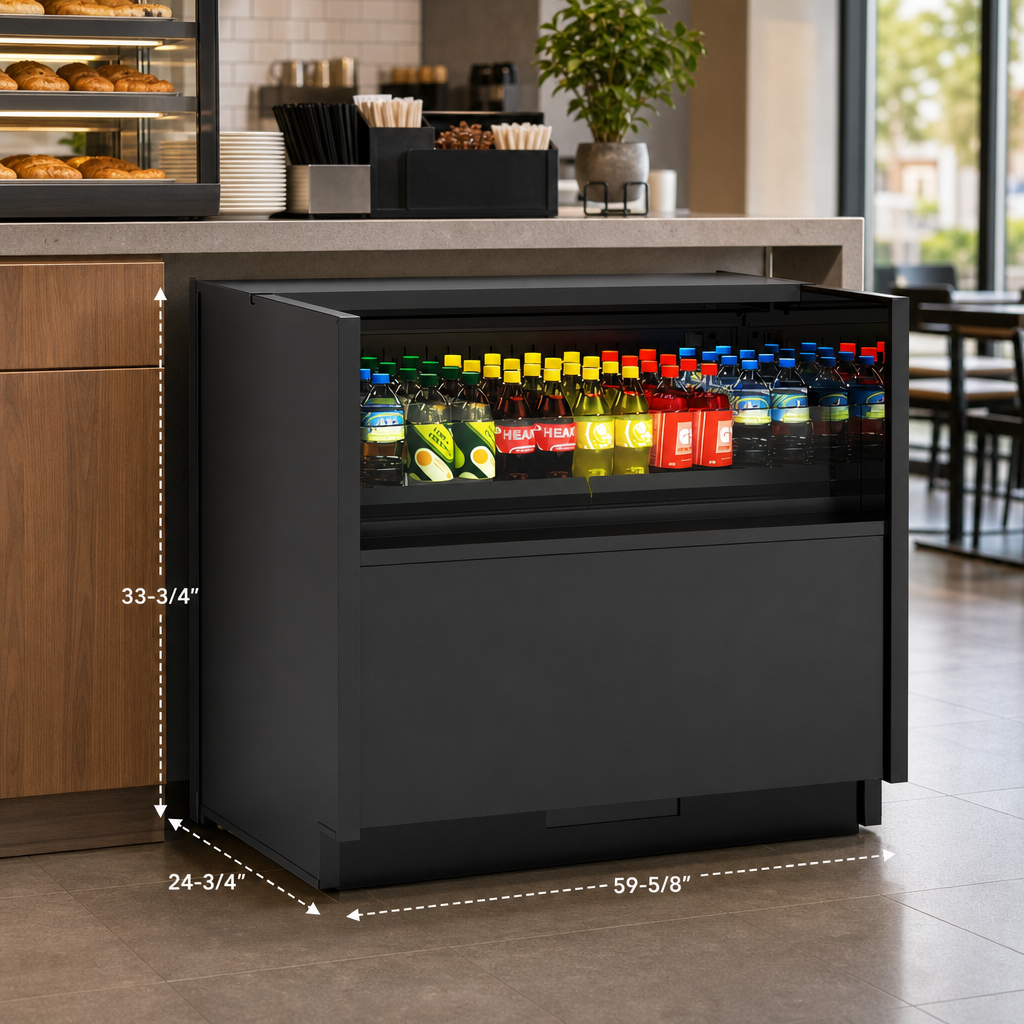

Counter-Height Display Design

Counter-height profile measures 59-5/8 inches wide, 24-3/4 inches deep, and 33-3/4 inches high for a compact self-service presentation.

Counter-Height Display Design

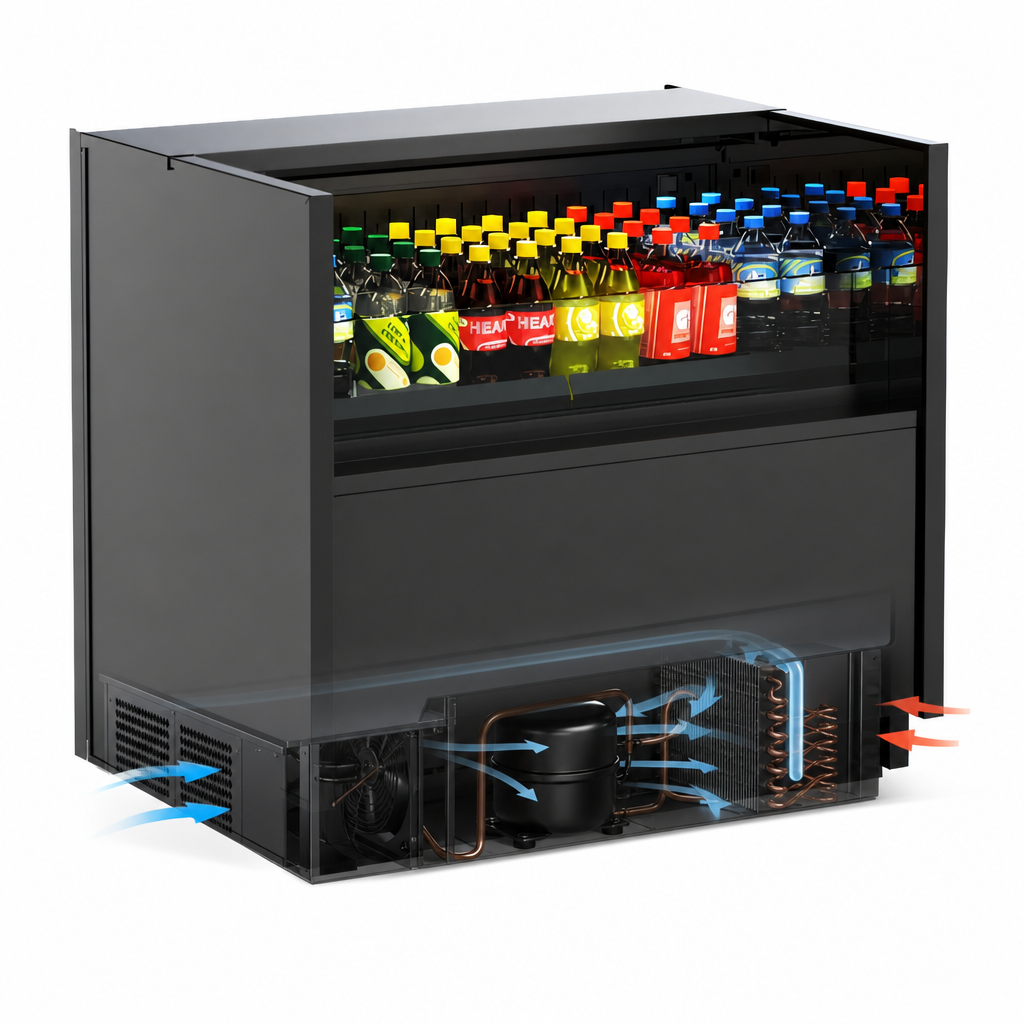

Breeze~E Self-Contained Refrigeration

Integrated self-contained refrigeration supports easier installation and service access.

Breeze~E Self-Contained Refrigeration

R290 Hydrocarbon Refrigerant

Uses R290 hydrocarbon refrigerant for the refrigeration system.

40°F Or Less Average Product Temperature

Designed for packaged refrigerated products prechilled to a warmest average product temperature of 40°F or less.

LED Top Light

4000K LED top light helps illuminate the display and improve product visibility.

Service-Friendly Components

Includes a condensate pan, magnetic air filter, and E-coated evaporator coil to support maintenance.

Mobility And Leveling

Non-locking casters with levelers make it easier to move the case into place and level it during installation.

Black Presentation Finish

Powder-coated black exterior with mirrored stainless steel interior end panels and a one-piece formed ABS plastic tub.

Type II Ambient Rating

Intended to operate in ambient conditions of 80°F and 55% relative humidity.

Type Refrigerated Self-Service Case
Style Counter Height
Installation Type Freestanding
Refrigeration Type Self-Contained Refrigeration
Refrigerant Type R290 Hydrocarbon
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 15.70 Amps
Watts 1.531 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P or L5-20P
Cord Length 6 Feet
Color Black
Finish Powder Coated
Interior Finish Black Powder Coated
Width 60 Inches
Depth 25 Inches
Height 34 Inches
Weight 700 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is designed for a warmest average product temperature of 40°F or less.
It uses Breeze~E self-contained refrigeration with R290 hydrocarbon refrigerant.
The model is listed at 110-120 Volts, 1-Phase, 60 Hz, and 15.70 Amps with a 5-20P or L5-20P plug type.
Standard features include an LED top light, condensate pan, magnetic air filter, E-coated evaporator coil, non-locking casters with levelers, and a one-piece formed ABS plastic tub.
Yes. The documentation lists a one-year parts and labor warranty plus a five-year compressor warranty.
