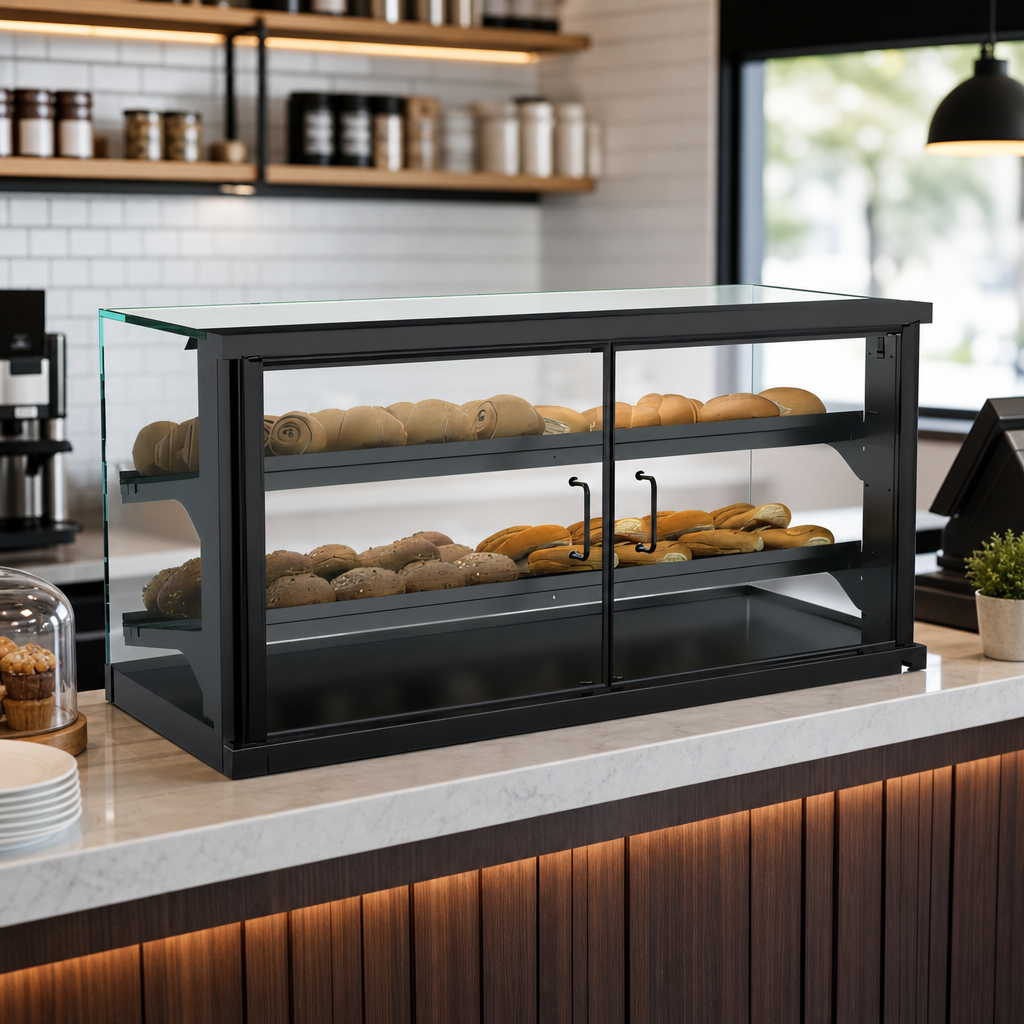

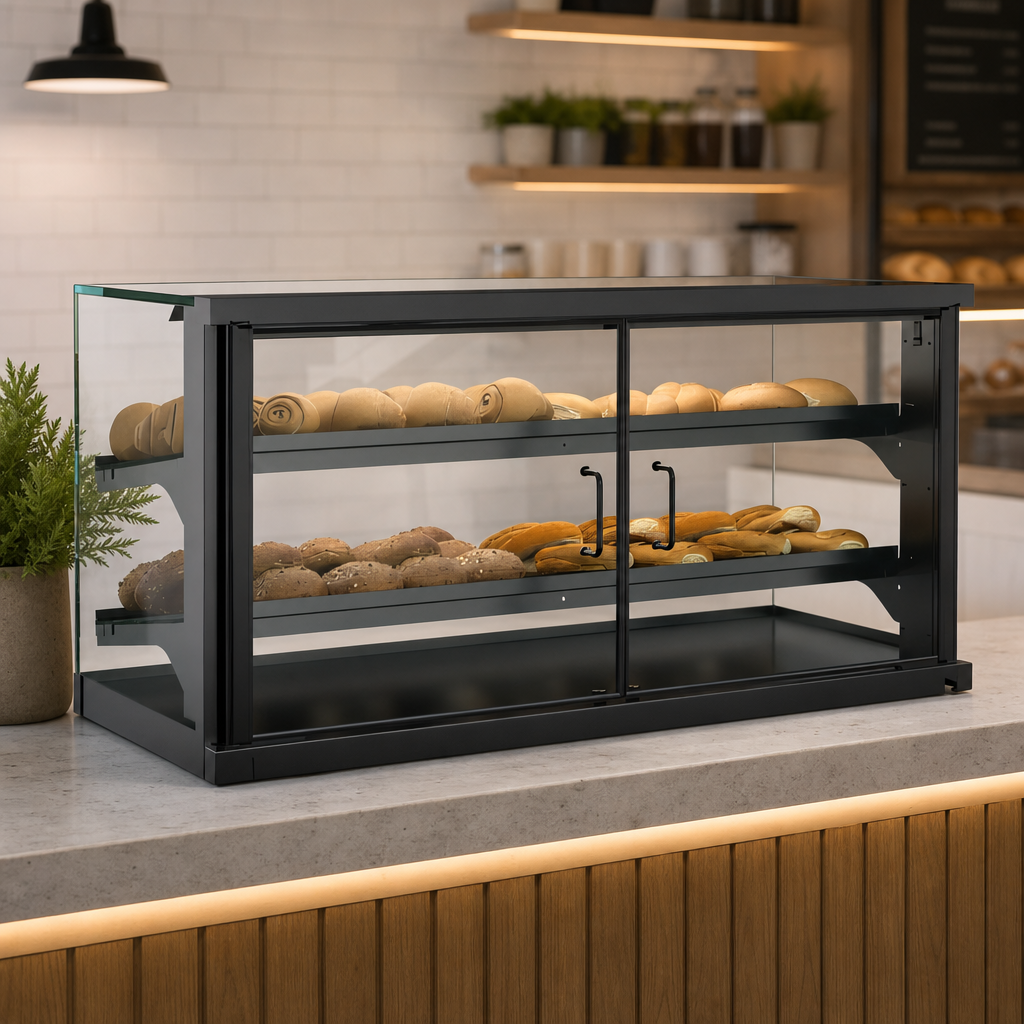

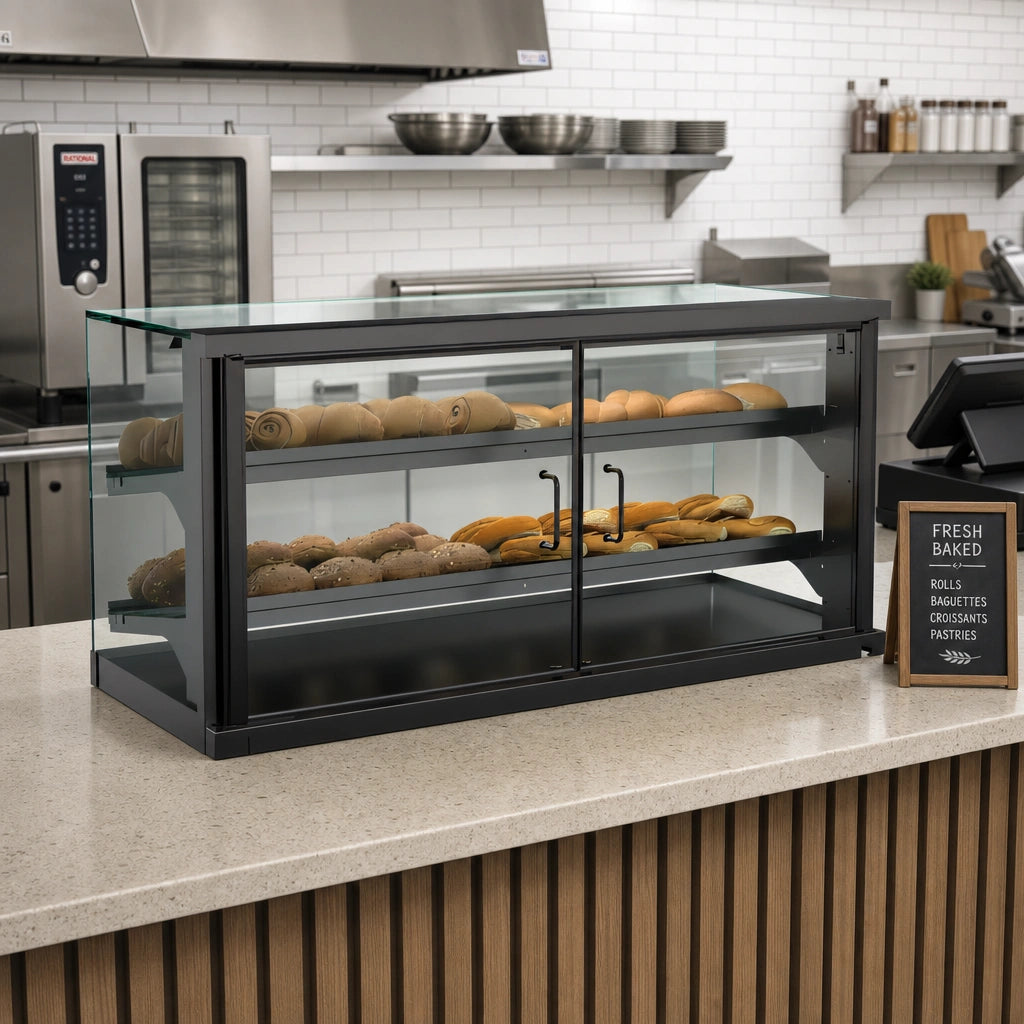

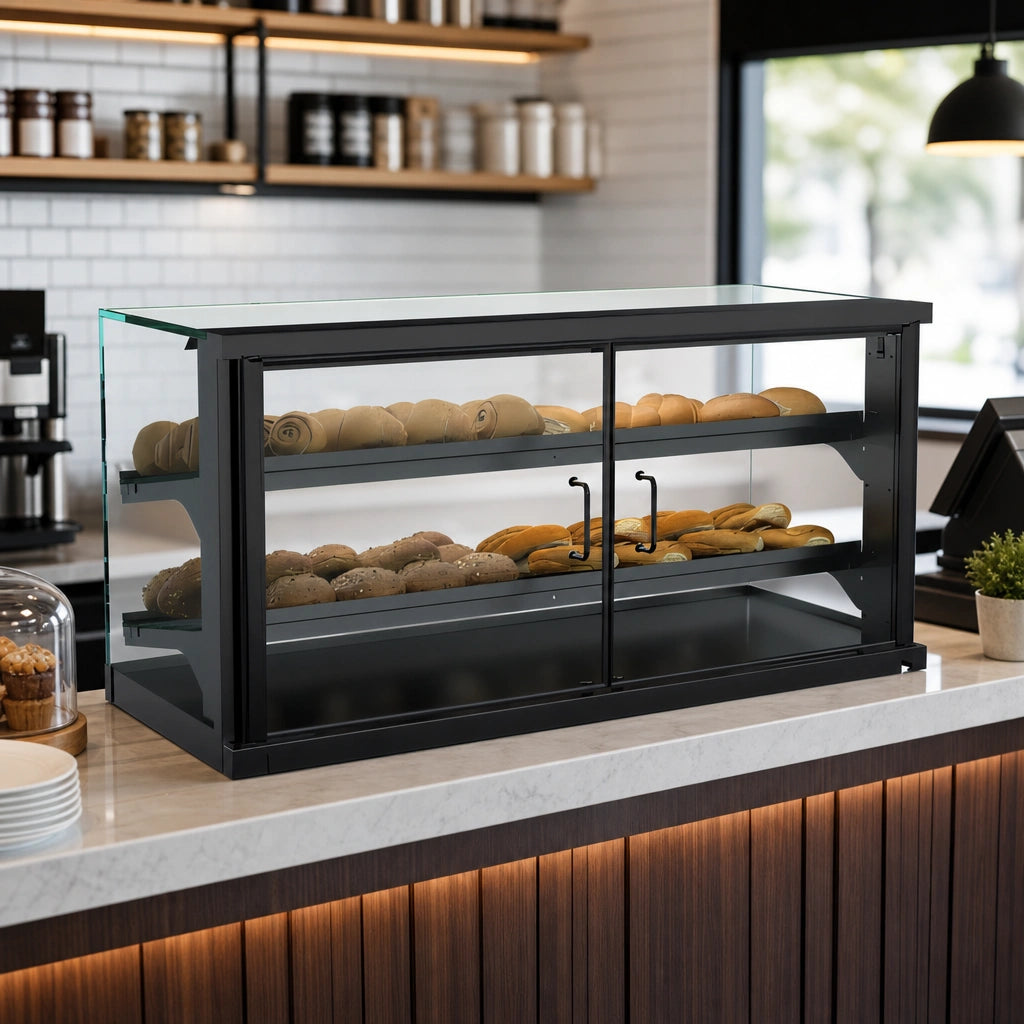

Structural Concepts Impulse® CGSV5722 57-Inch Countertop Non-Refrigerated Pastry Display Case, Service/Self-Service, Black, 3 Shelves
$6,327.50
/each
Ships in 16–19 business days
- Product type
- Non-refrigerated service/self-service countertop case
- Dimensions
- 57.0"W × 18.0"D × 22.0"H
- Front and end glazing
- Vertical front glass and glass ends
- Rear access
- Clear glass swinging doors; no lock
- Shelving
- 1 adjustable upper clear glass shelf with LED light; 1 lower glass shelf
- Shelf quantity
- 3
Specifications
Product type
Non-refrigerated service/self-service countertop case
Overall dimensions
57 in W x 18 in D x 22 in H
Front and end glazing
Vertical front glass and glass ends
Rear access
Clear glass swinging doors; no lock
Shelving
1 adjustable upper clear glass shelf with LED light; 1 lower glass shelf
Shelf quantity
3
Shelf adjustment
1 in centers; angles of 10°, 0°, or -10°
Bottom deck
Solid
Interior and exterior finish
Black
Electrical
110-120 V, 0.70 A, 60 Hz, single phase
Plug
5-15P; 2+G wires
LED light
3500 K
Estimated weight
400 lb
Description
The Structural Concepts CGSV5722 is a 57-inch countertop, non-refrigerated display case designed for service or self-service applications.
- Measures 57 in W x 18 in D x 22 in H.
- Features vertical front glass, glass ends, and clear glass rear swinging doors without a lock.
- Includes an adjustable upper clear glass shelf with LED lighting, a lower glass shelf, and a solid bottom deck.
- Black interior and exterior.
Overall Dimensions:
57.0"W x 18.0"D x 22.0"HProduct Weight:
400.0 lbNon-refrigerated operation
Designed to display packaged non-refrigerated products.
Service/self-service format
Designed for service or self-service applications.
Vertical front glazing
Features vertical front glass and glass ends.
Rear access
Includes clear glass swinging doors without a lock.
Adjustable shelving
Shelving is removable and adjustable on 1-inch centers, with positions that can be angled at 10°, 0°, or -10°.
LED shelf lighting
The upper clear glass shelf is lighted with LED 3500K lighting.
Solid bottom deck
Includes a solid bottom deck.
Black finish
The interior and exterior are black.
Documentation
Cutsheet
PDF Download
Owner's manual
PDF Download
Map policy
PDF Download
Warranty
PDF Download
Exterior finishes and bumpers
PDF Download
Scc product nomenclature
PDF Download
Spec guide
PDF Download
Warranty
PDF Download
Certifications & Compliance
Frequently Asked Questions
No. It is a non-refrigerated display case for packaged non-refrigerated products.
Yes. It is designed for service or self-service applications.
It includes one adjustable upper clear glass shelf with LED lighting, one lower glass shelf, and a solid bottom deck.
Shelving is removable and adjustable on 1-inch centers, with positions that can be angled at 10°, 0°, or -10°.
The case uses 110-120 V, 60 Hz, single-phase power, draws 0.70 A, and uses a 5-15P plug with 2+G wires.
The cutsheet lists a one-year parts and labor warranty.
