Structural Concepts Oasis® C63R-UC Refrigerated Self-Service Undercounter Display Case, 71-5/8-Inch Wide, Self-Contained R290, Black
$12,990.00
/each
Ships in 16–19 business days
- Product Type
- Refrigerated self-service undercounter display case
- Refrigeration
- Breeze-E Type II self-contained refrigeration
- Refrigerant
- R290 hydrocarbon
- Overall Width
- 71-5/8 in
- Overall Depth
- 34-1/4 in
- Overall Height
- 32-3/4 in
Specifications
Product Type
Refrigerated self-service undercounter display case
Refrigeration
Breeze-E Type II self-contained refrigeration
Refrigerant
R290 hydrocarbon
Overall Width
71-5/8 in
Overall Depth
34-1/4 in
Overall Height
32-3/4 in
Warmest Average Product Temperature
40°F or less
Intended Product
Packaged refrigerated products
Exterior Finish
Black exterior
Top Light
LED, 4000K
Electrical Supply
110-120 V, single phase, 60 Hz
Current
15.74 A
NEMA Plug
5-20P or L5-20P
Wires
2+G
Estimated Weight
850 lb
Intended Environment
Type II; 80°F ambient temperature and 55% relative humidity
Description

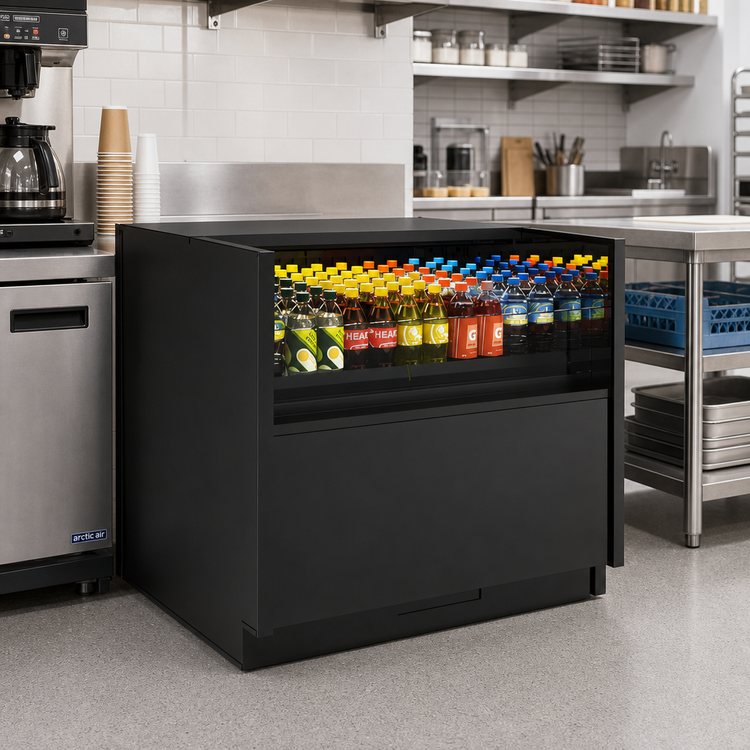

The Structural Concepts Oasis® C63R-UC is a refrigerated self-service undercounter display case with a 71-5/8-inch width, self-contained R290 refrigeration, black exterior, and LED top light.
- Designed for packaged refrigerated products with a warmest average product temperature of 40°F or less.
- Includes non-locking casters with levelers, a condensate pan, magnetic air filter, and one-piece formed ABS plastic tub.
- Features end panels with mirrored stainless interiors and a 4000K LED top light.
Overall Dimensions:
71.63"W x 34.25"D x 32.75"HProduct Weight:

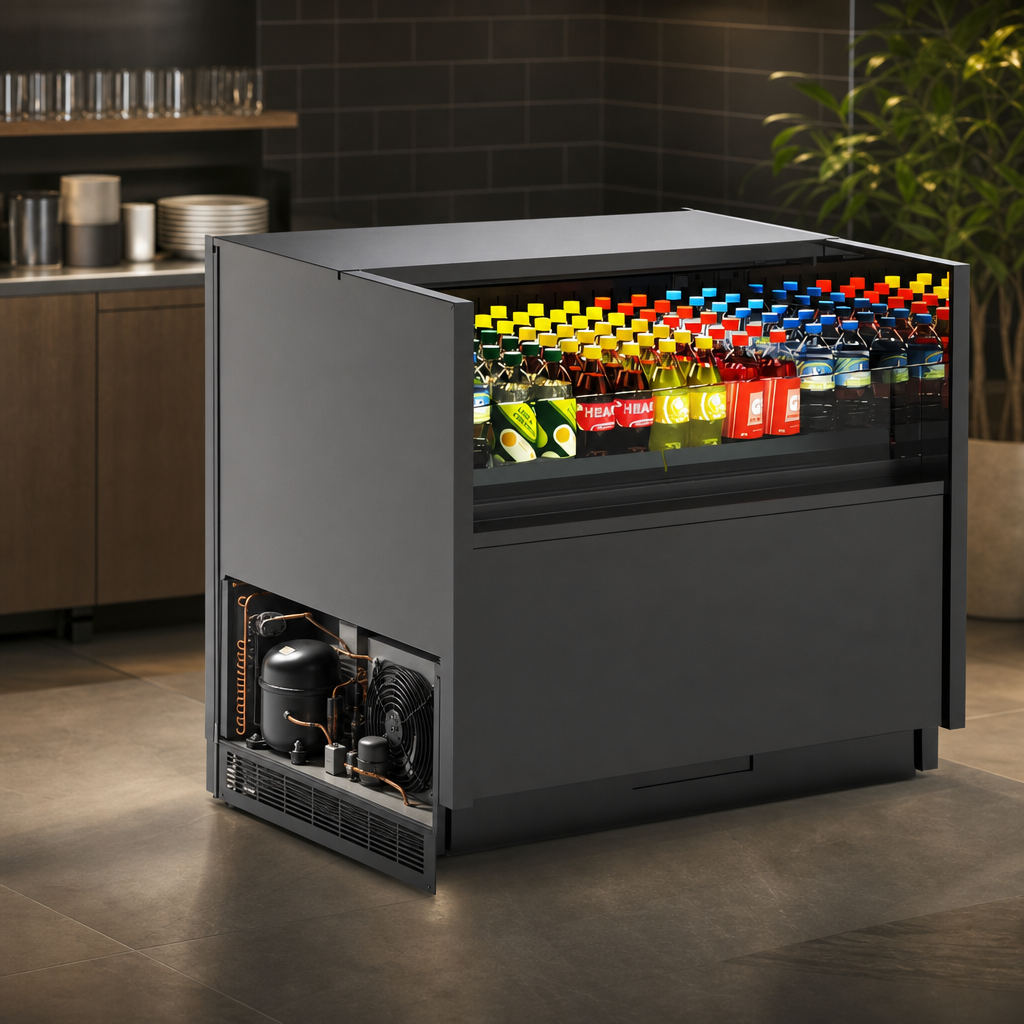

850.0 lbSelf-contained refrigeration
Breeze-E Type II self-contained refrigeration system using R290 hydrocarbon refrigerant.

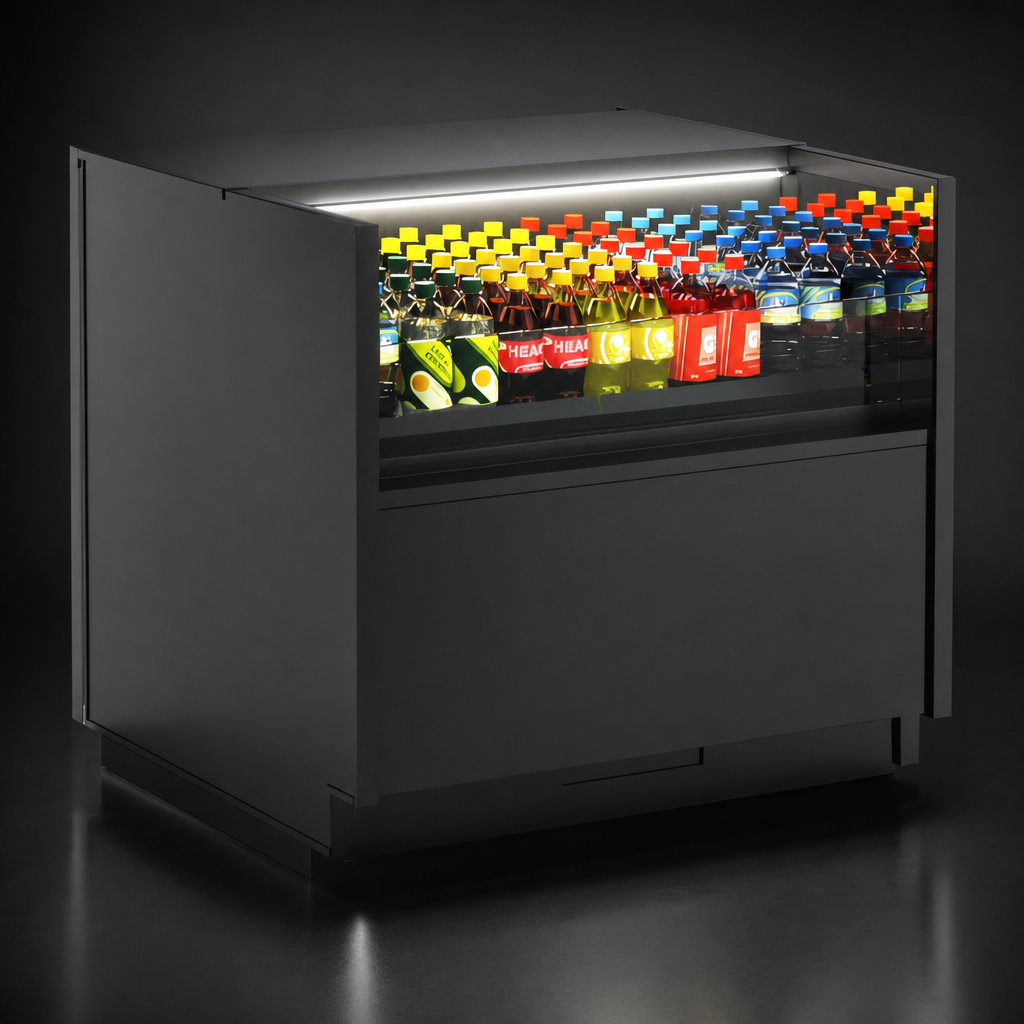

LED top light
Top light with a 4000K LED.
Black exterior
Black exterior finish.
Mirrored stainless end panels
End panels have mirrored stainless interiors.
Casters with levelers
Non-locking casters with levelers are included.
Condensate pan
A condensate pan is included.
Magnetic air filter
A magnetic air filter is included.
Formed ABS tub
One-piece formed ABS plastic tub.
Documentation
Cutsheet
PDF Download
Cutsheet
PDF Download
Cutsheet
PDF Download
Cutsheet
PDF Download
Cutsheet
PDF Download
Cutsheet
PDF Download
Spec guide
PDF Download
Design guide
PDF Download
Owner's manual
PDF Download
Certifications & Compliance
Frequently Asked Questions
It is intended for packaged refrigerated products prechilled to the specified warmest average product temperature.
The warmest average product temperature is 40°F or less.
It uses Breeze-E Type II self-contained refrigeration with R290 hydrocarbon refrigerant.
The case is 71.63 inches wide, 34.25 inches deep, and 32.75 inches high.
The case is specified for 110-120 V, single phase, 60 Hz service, draws 15.74 A, and uses a 5-20P or L5-20P plug.
The included warranty is one year for parts and labor and five years for the compressor.
The listed certifications are cETLus and ETL-Sanitation.
