Oasis Low-Profile Refrigerated Self-Service Undercounter Display Case, 59-5/8 Inch Wide, Black Exterior

Self-Contained R290 Refrigeration, LED Top Light, 110-120 Volts

Keep packaged refrigerated products cold and highly visible in a compact undercounter case built for self-service merchandising.

  • Low-profile undercounter design fits self-service food display applications.
  • Holds packaged refrigerated products at a warmest average product temperature of 40°F or less.
  • Self-contained Breeze~E refrigeration uses R290 hydrocarbon refrigerant.
  • LED 4000K top light enhances product presentation.
  • Non-locking casters with levelers simplify positioning and installation.
  • Includes condensate pan, magnetic air filter, and removable rear wall spacer.
  • Mirrored stainless steel end-panel interior adds a polished display finish.

Overall Dimensions:

59.63"W x 32.75"D x 32.25"H

Product Weight:

750.0 lb

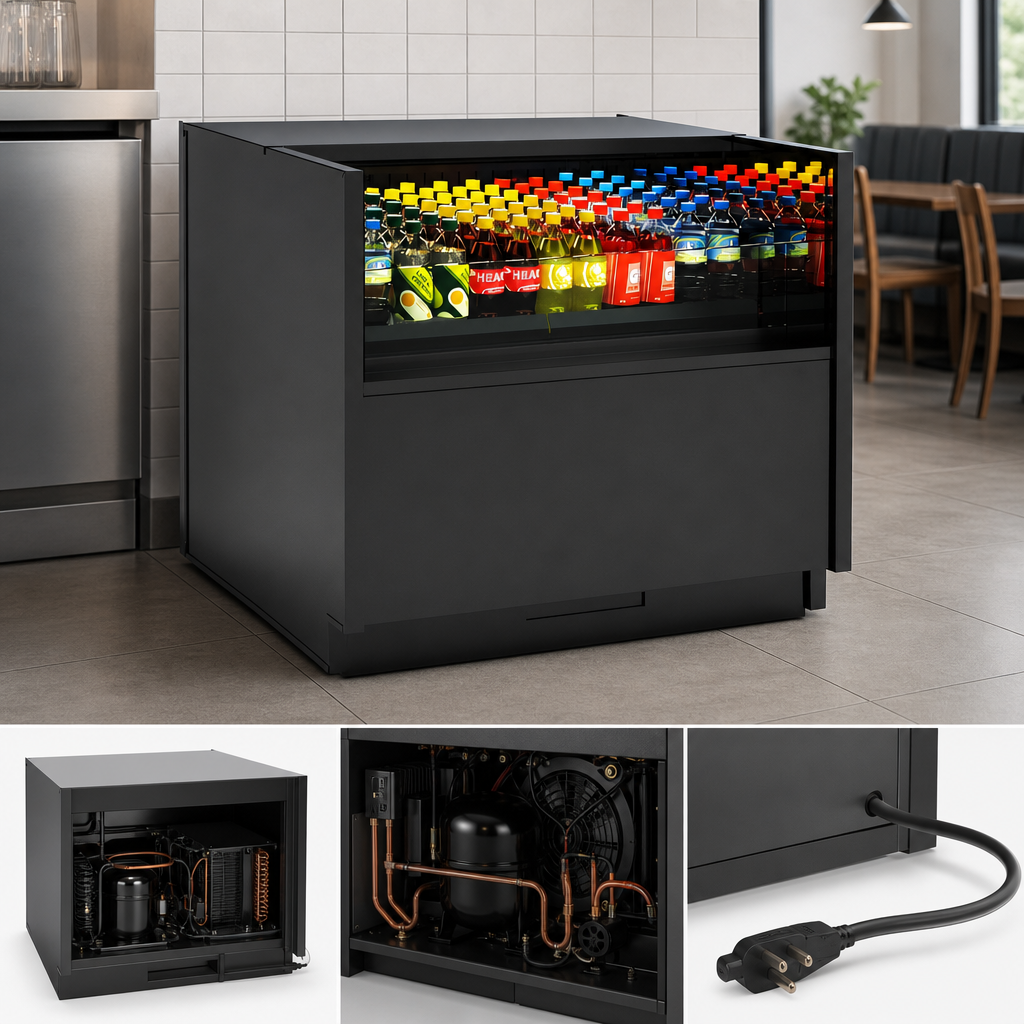

Self-Contained Breeze~E Refrigeration

All-in-one refrigeration system with R290 hydrocarbon refrigerant for simplified installation.

Self-Contained Breeze~E Refrigeration

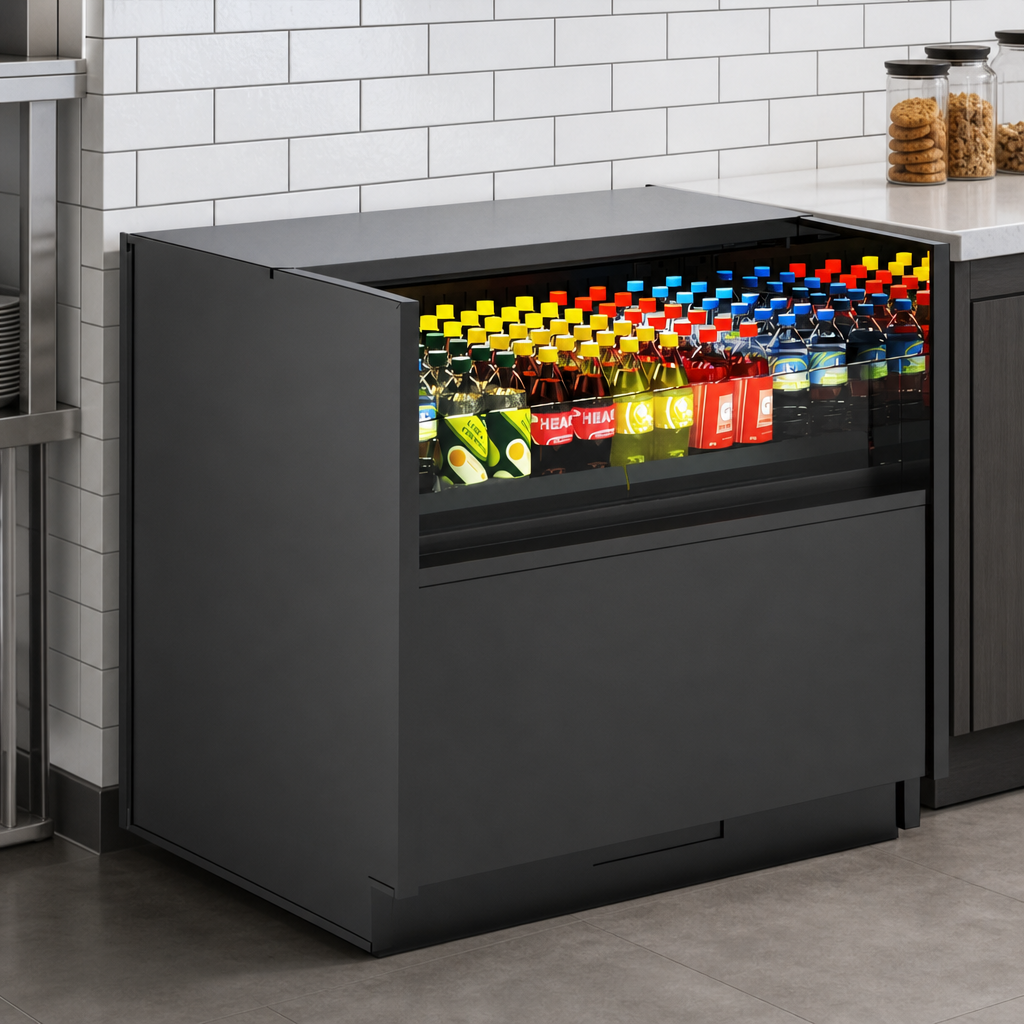

40°F Display Performance

Designed for packaged refrigerated products prechilled to a warmest average product temperature of 40°F or less.

40°F Display Performance

LED Top Light

4000K LED lighting helps merchandise stand out.

Non-Locking Casters with Levelers

Makes the case easier to move, position, and level.

Magnetic Air Filter

Helps support easier condenser maintenance.

Condensate Pan

Collects moisture from the refrigeration system.

Mirrored Stainless End Panels

Provides a polished look on the display ends.

One-Piece Formed ABS Plastic Tub

Durable display tub construction.

E-Coated Evaporator Coil

Helps resist corrosion.

Type II Ambient Rating

Designed to operate in 80°F and 55% relative humidity ambient conditions.

Removable Rear Wall Spacer

Helps the unit fit through door openings during installation.

Type Refrigerated Self-Service Case
Style Low Profile
Installation Type Undercounter
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 40°F or Less
Voltage 110-120 Volts
Amps 15.70 Amps
Watts 1.531 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-20P or L5-20P
Color Black
Finish Powder Coated
Interior Finish Black Powder Coated
Shipping Width 60 Inches
Shipping Depth 33 Inches
Shipping Height 33 Inches
Shipping Weight 750 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Owner's manual PDF Download PDF Design guide PDF Download

Frequently Asked Questions

It measures 59-5/8 inches wide, 32-3/4 inches deep, and 32-1/4 inches high.
It requires 110-120 volts, 1-phase, 60 Hz, and 15.70 amps, with a 5-20P or L5-20P plug type.
It is designed for a warmest average product temperature of 40°F or less.
It uses self-contained Breeze~E refrigeration with R290 hydrocarbon refrigerant.
The case includes a 1-year parts and labor warranty and a 5-year compressor warranty.
Included items listed in the documentation are non-locking casters with levelers, a condensate pan, an E-coated evaporator coil, R290 refrigerant, a magnetic air filter, a one-piece formed ABS plastic tub, an LED top light, and a removable rear wall spacer.
