Structural Concepts

Oasis 35-5/8-Inch Wide Refrigerated Self-Service Under-Counter Display Case

SKU: C33R-UC
$9,390.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

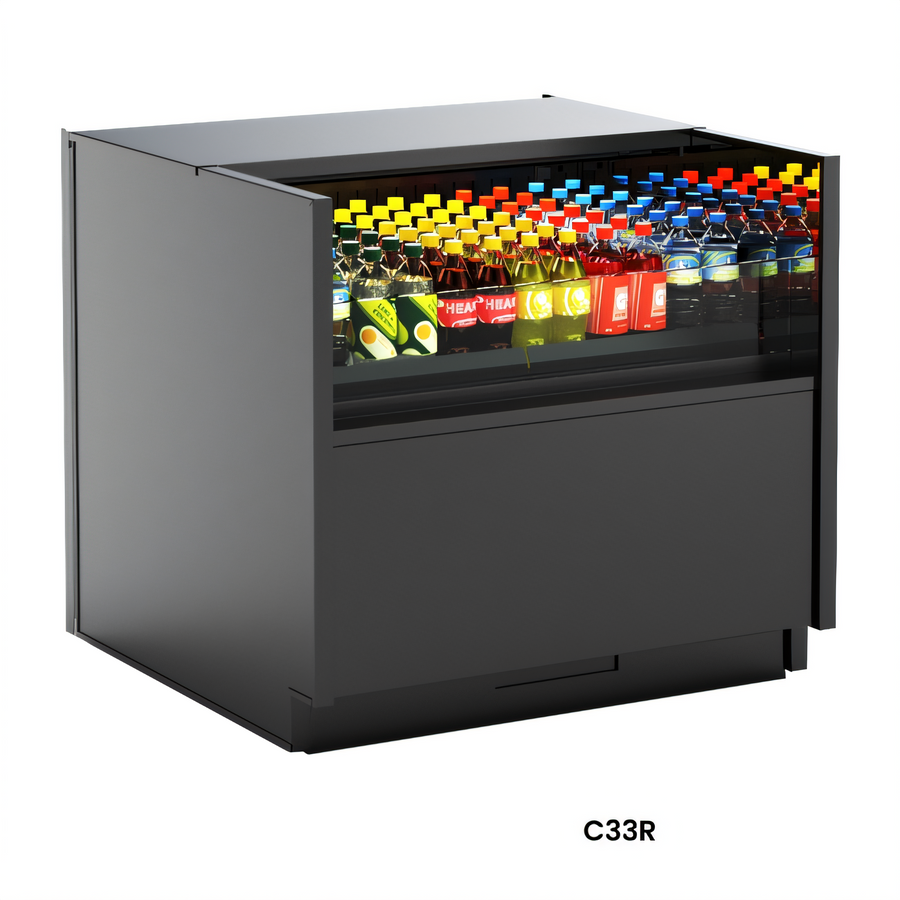

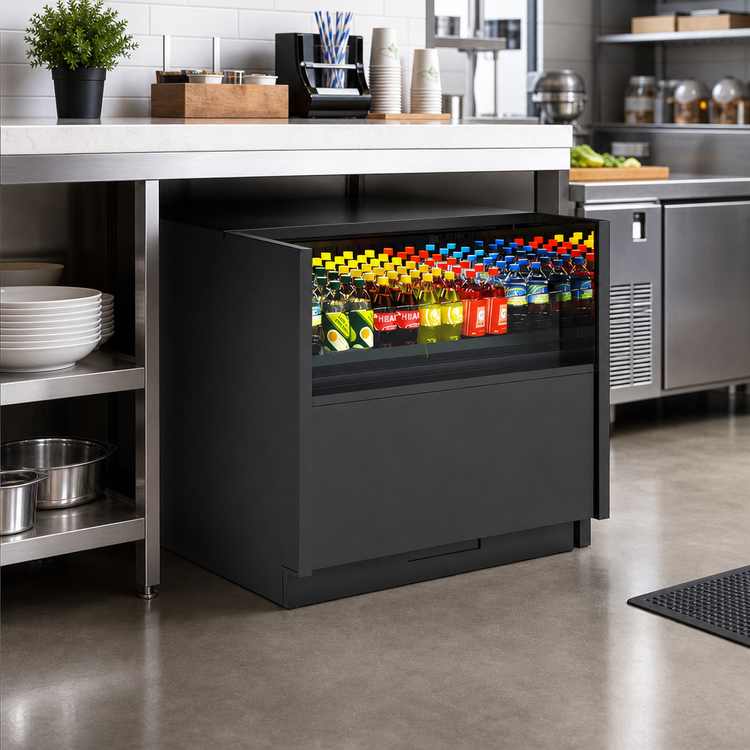

Oasis 35-5/8-Inch Wide Refrigerated Self-Service Under-Counter Display Case

Black exterior/interior with self-contained R290 refrigeration and LED top light

A compact under-counter merchandiser that keeps prechilled packaged products at 40°F or less while presenting them under bright LED lighting.

  • Under-counter self-service refrigerated case for packaged cold products.
  • Maintains a warmest average product temperature of 40°F or less.
  • Self-contained Breeze~E refrigeration uses R290 hydrocarbon refrigerant.
  • 4000K LED top light and mirrored stainless end panels enhance presentation.
  • Non-locking casters with levelers, condensate pan, and magnetic air filter support easy installation and maintenance.
  • Removable rear wall spacer helps the unit fit through doorway openings.
  • Backed by a 1-year parts and labor warranty and 5-year compressor warranty.

Overall Dimensions:

35.63"W x 32.75"D x 32.25"H

Product Weight:

650.0 lb

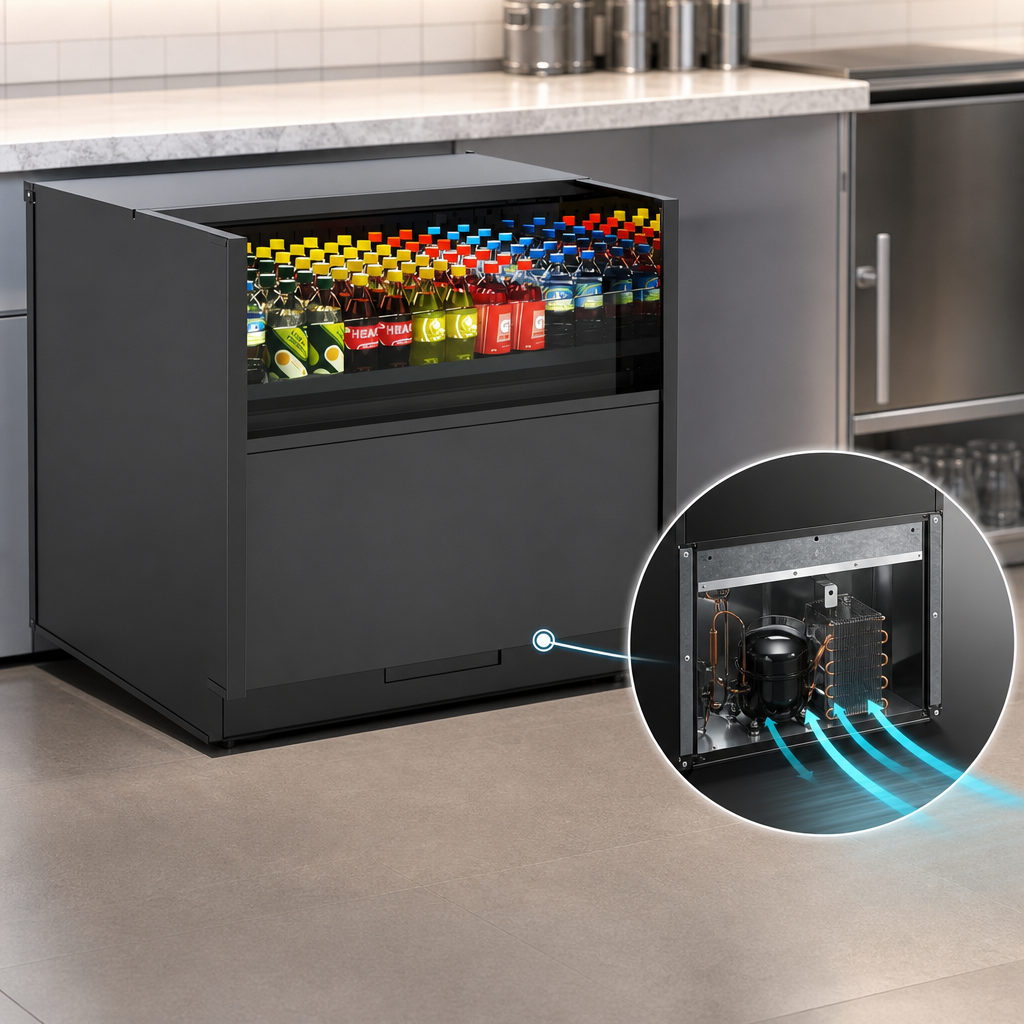

Self-Contained Breeze~E Refrigeration

Type-II self-contained refrigeration with rear access simplifies installation and service.

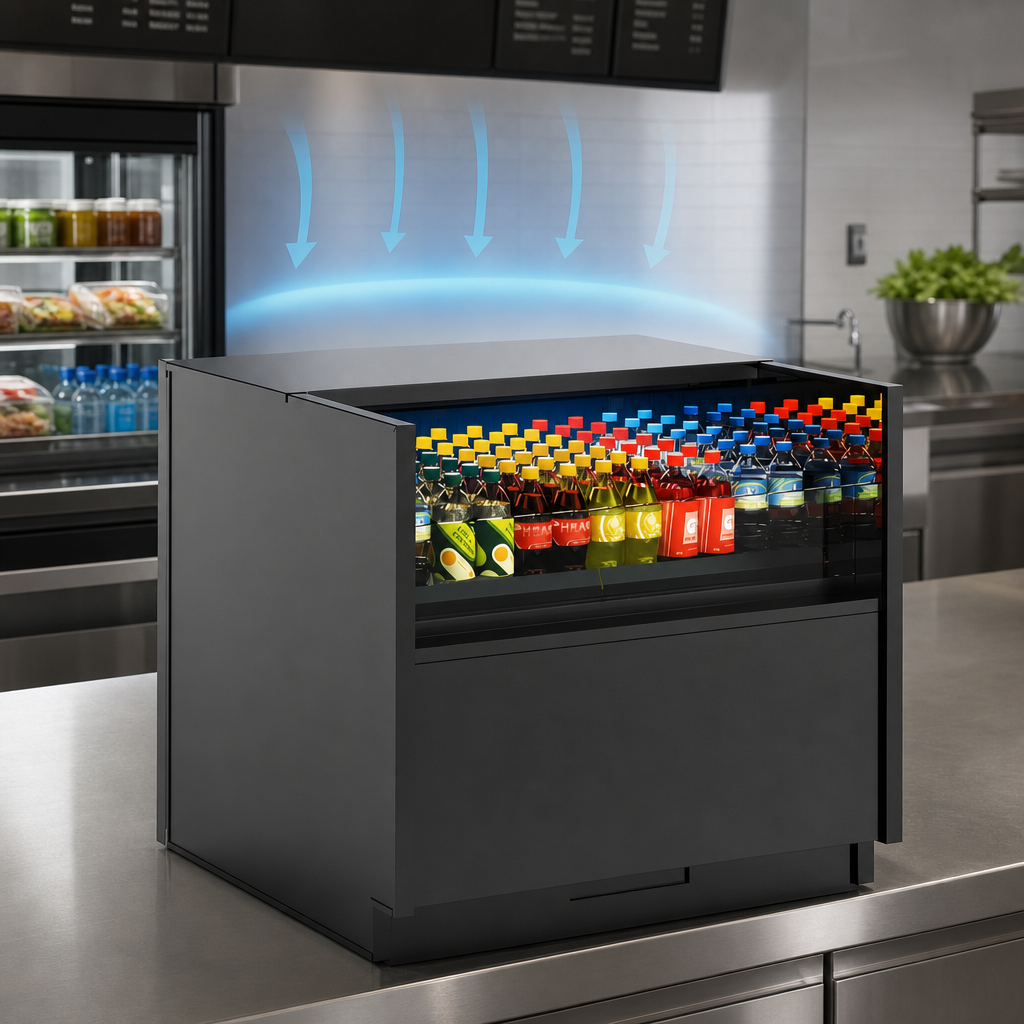

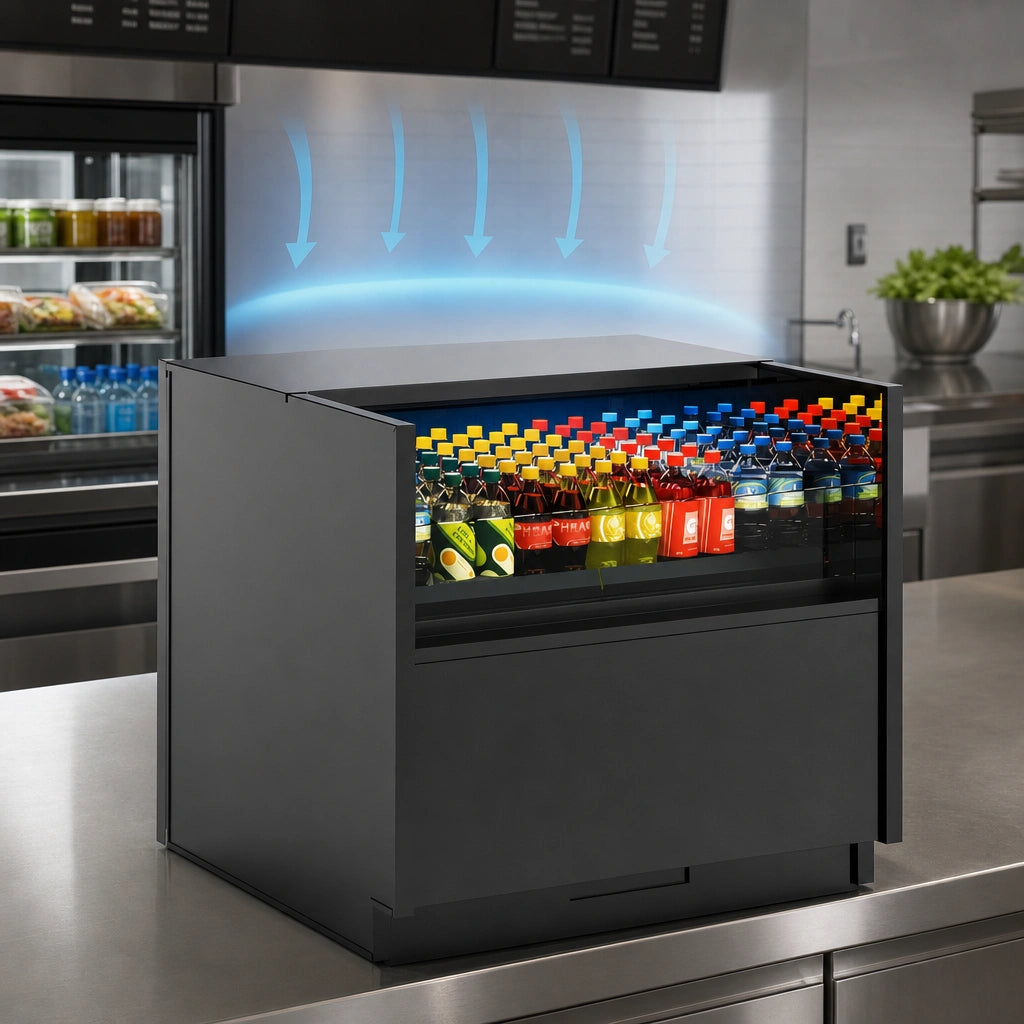

Temperature Performance

Designed to maintain a warmest average product temperature of 40°F or less for prechilled packaged refrigerated products.

LED Top Light

4000K LED illumination helps highlight merchandise inside the display.

Condensate And Filtration Package

Includes a condensate pan, E-coated evaporator coil, and magnetic air filter to support reliable operation.

Durable Display Tub

One-piece formed ABS plastic tub provides a clean and easy-to-maintain merchandising surface.

Mobility And Leveling

Non-locking casters with levelers make positioning and final setup easier.

Doorway-Friendly Design

Removable rear wall spacer helps the unit fit through door openings during installation.

Mirrored Stainless End Panels

Full end panels with mirrored stainless interiors create a polished display presentation.

Type Refrigerated Display Case
Style Self-Service
Installation Type Undercounter
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Temperature Range 40°F or Less
Color Black
Voltage 110-120 Volts
Amps 10.85 Amps
Watts 965 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-15P or L5-15P
Cord Length 6 Feet
Shipping Width 36 Inches
Shipping Depth 33 Inches
Shipping Height 33 Inches
Shipping Weight 650 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is intended for packaged refrigerated products prechilled to a warmest average product temperature of 40°F.
Yes. It uses Breeze~E Type-II self-contained refrigeration with rear access as standard, and front access is also listed as an option.
Included items include non-locking casters with levelers, a condensate pan, an E-coated evaporator coil, R290 refrigerant, a magnetic air filter, a one-piece ABS tub, and an LED top light.
The model is listed at 110-120V, 1-phase, 60 Hz, 10.85 amps, with a 5-15P or L5-15P plug and a 6-foot straight blade power cord.
Standard warranty is 1 year parts and labor, plus 5 years on the compressor.
Yes. The rear wall spacer is removable to help the unit fit through a door opening.
