Structural Concepts Oasis B65R Refrigerated Self-Service Display Case

SKU: B65R
$13,460.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Food Displays & Merchandisers Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Structural Concepts

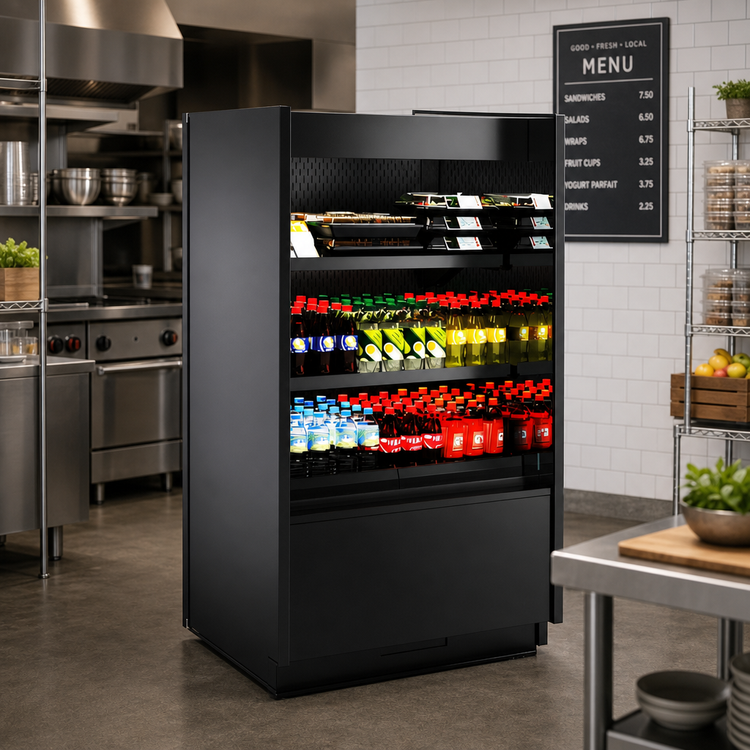

Structural Concepts Oasis B65R Refrigerated Self-Service Display Case

71-5/8 Inch W x 34-1/4 Inch D x 61-3/4 Inch H, Self-Contained R290, Black

A high-profile refrigerated merchandiser designed to keep packaged foods visible, organized, and at 40°F or below.

  • 71-5/8-inch-wide self-service case for packaged refrigerated products
  • Self-contained Breeze~E refrigeration uses R290 hydrocarbon refrigerant
  • Maintains a warmest average product temperature of 40°F or less
  • Includes LED top light, 2 metal shelves, condensate pan, and magnetic air filter
  • Black powder-coated exterior/interior with mirrored stainless end-panel interiors and casters with levelers

Overall Dimensions:

71.63"W x 34.25"D x 61.75"H

Product Weight:

1100.0 lb

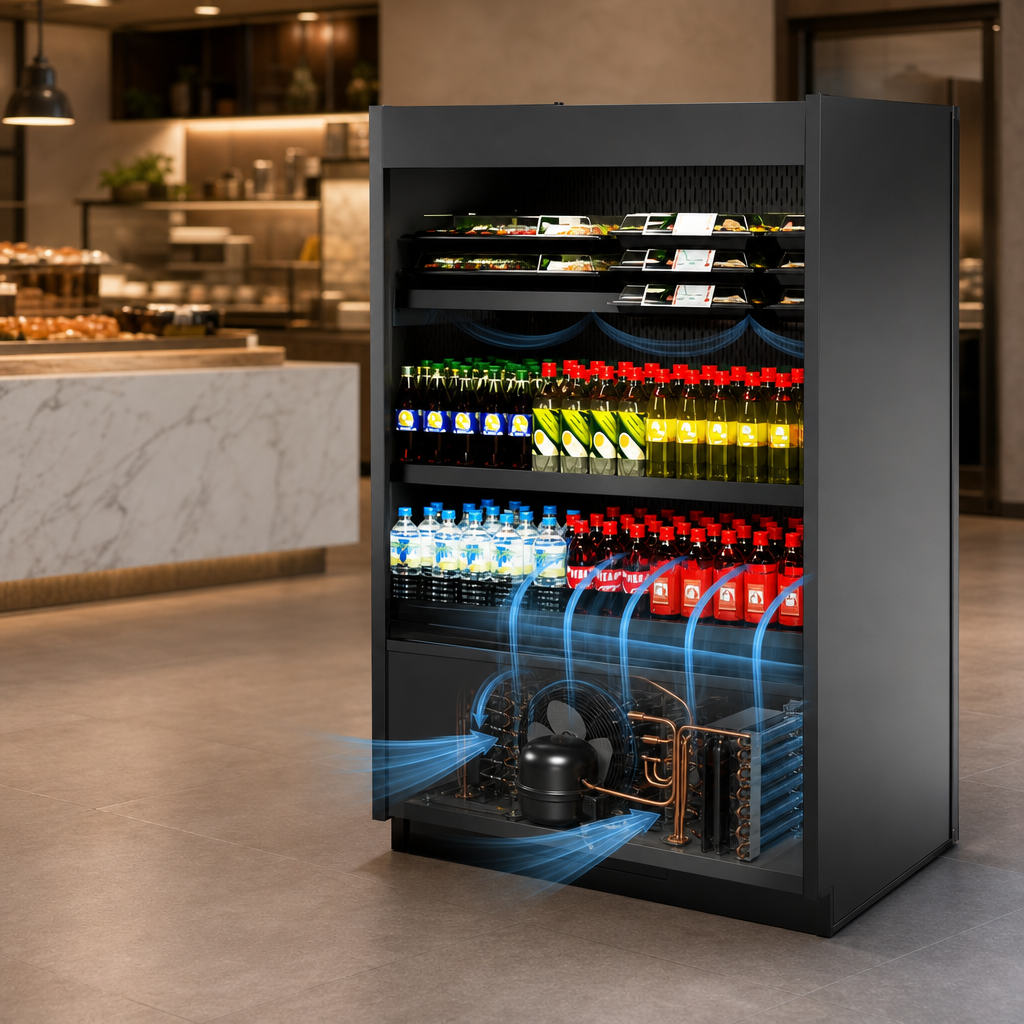

Breeze~E Self-Contained Refrigeration

Uses Breeze~E Type-II self-contained refrigeration for a streamlined installation.

Breeze~E Self-Contained Refrigeration

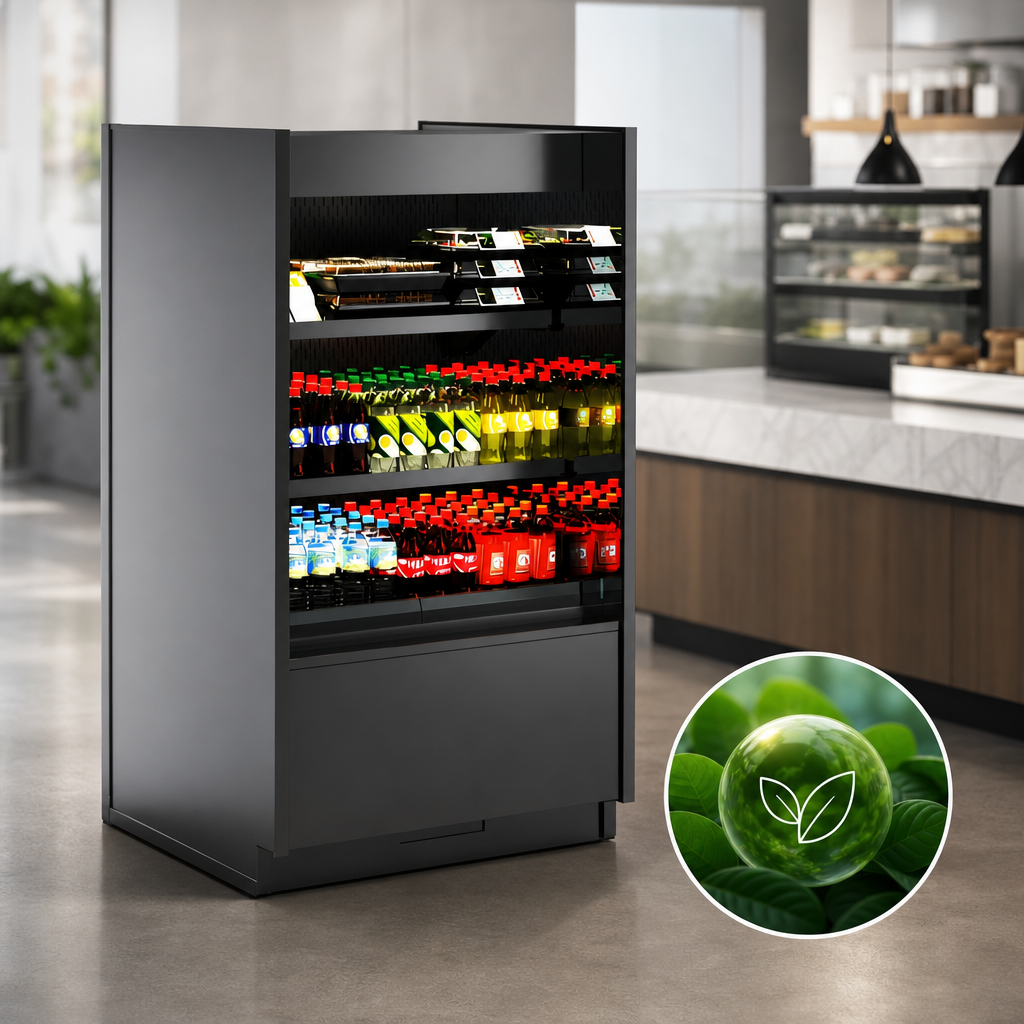

R290 Hydrocarbon Refrigerant

Employs R290 refrigerant for efficient refrigerated display operation.

R290 Hydrocarbon Refrigerant

40°F Or Less Product Temperature

Designed to maintain a warmest average product temperature of 40°F or less for packaged refrigerated products.

LED 4000K Top Light

Built-in LED top lighting helps brighten the display area and improve product visibility.

Two Metal Shelves Included

Comes standard with two non-lighted metal shelves for merchandising packaged items.

Non-Locking Casters With Levelers

Casters with levelers support easier positioning and installation.

Maintenance Components Included

Includes a condensate pan, magnetic air filter, and E-coated evaporator coil.

One-Piece ABS Plastic Tub

A formed ABS plastic tub provides a durable display base.

Mirrored Stainless End-Panel Interior

End panels feature a mirrored stainless interior for a polished presentation.

Removable Rear Wall Spacer

Rear wall spacer can be removed to help the case fit through a doorway during delivery or installation.

Type Refrigerated Self-Service Case
Style High Profile
Installation Type Floor Model
Color Black
Finish Powder Coated
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Voltage 208-240 Volts
Amps 16 Amps
Watts 2.838 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-20P or L6-20P
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1 year parts and labor; 5 year compressor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Spec guide PDF Download PDF Owner's manual PDF Download PDF Vinyl graphics requirements PDF Download PDF Vinyl graphics template & requirements PDF Download PDF Template and requirements PDF Download PDF Design guide PDF Download

Frequently Asked Questions

It is intended for packaged refrigerated products.
The warmest average product temperature is 40°F or less.
It uses Breeze~E Type-II self-contained refrigeration with R290 hydrocarbon refrigerant.
Standard items include an LED top light, 2 metal shelves, non-locking casters with levelers, a condensate pan, a magnetic air filter, and a removable rear wall spacer.
The case includes a 1-year parts and labor warranty and a 5-year compressor warranty.
