Structural Concepts Oasis® B55R Refrigerated Self-Service Display Case, 59-5/8-Inch Wide, Self-Contained R290, Black

SKU: B55R
$12,640.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Countertop Food Displays Countertop Refrigerated Display Cases Food Displays & Merchandisers Merchandising & Display Refrigeration New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Structural Concepts

Structural Concepts Oasis® B55R Refrigerated Self-Service Display Case, 59-5/8-Inch Wide, Self-Contained R290, Black

High-Profile Merchandiser with LED Top Light and Two Metal Shelves

Show packaged refrigerated products in a self-contained display case that keeps installation simple and maintains a warmest average product temperature of 40°F or less.

  • Breeze~E self-contained refrigeration with R290 hydrocarbon refrigerant simplifies setup.
  • Designed for packaged refrigerated products with a warmest average product temperature of 40°F or less.
  • Standard LED 4000K top light and two metal shelves improve merchandising visibility.
  • Includes non-locking casters with levelers, condensate pan, magnetic air filter, and a removable rear wall spacer.
  • Black powder-coated exterior with mirrored stainless interior end panels delivers a clean presentation.
  • Includes a 1-year parts and labor warranty with 5-year compressor coverage.

Overall Dimensions:

59.63"W x 34.25"D x 61.75"H

Product Weight:

950.0 lb

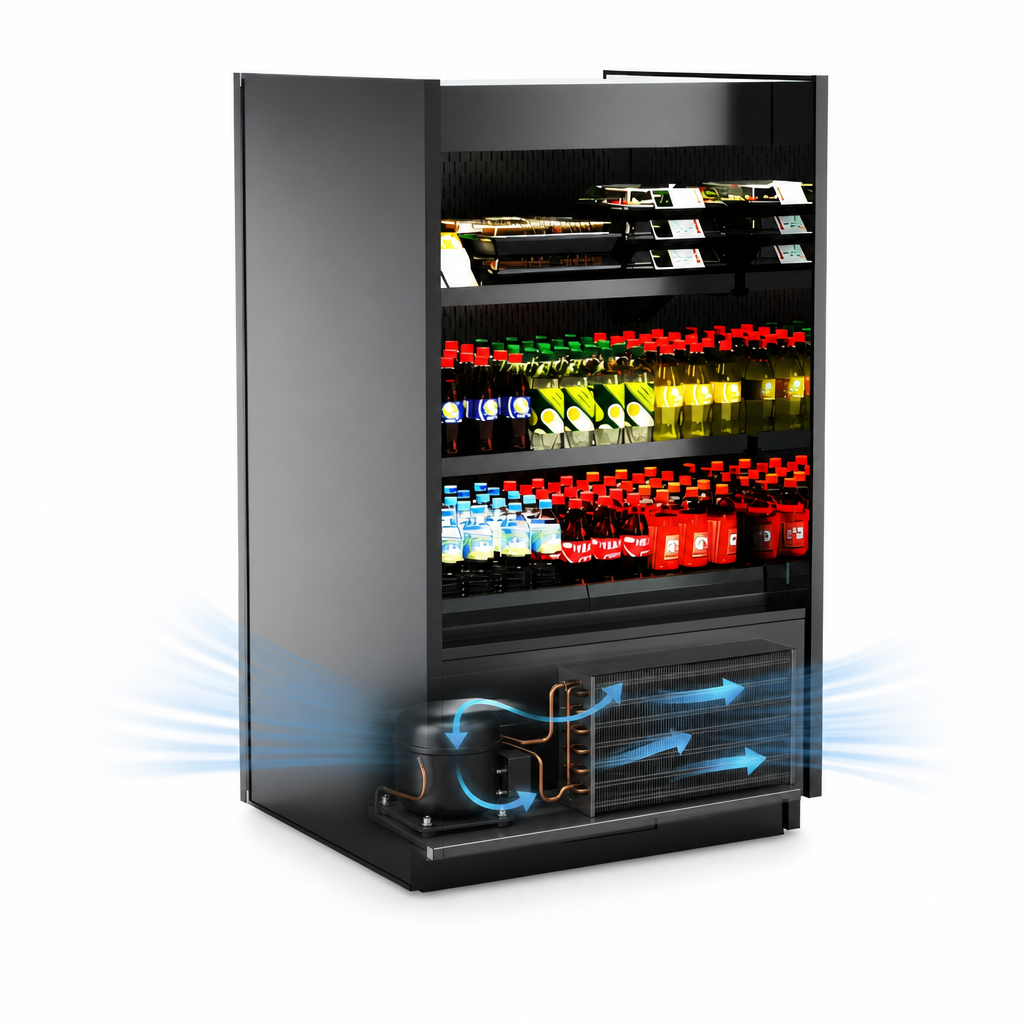

Self-Contained Breeze~E Refrigeration

Integrated Type-II refrigeration with R290 refrigerant reduces installation complexity and keeps the system contained in the case.

Self-Contained Breeze~E Refrigeration

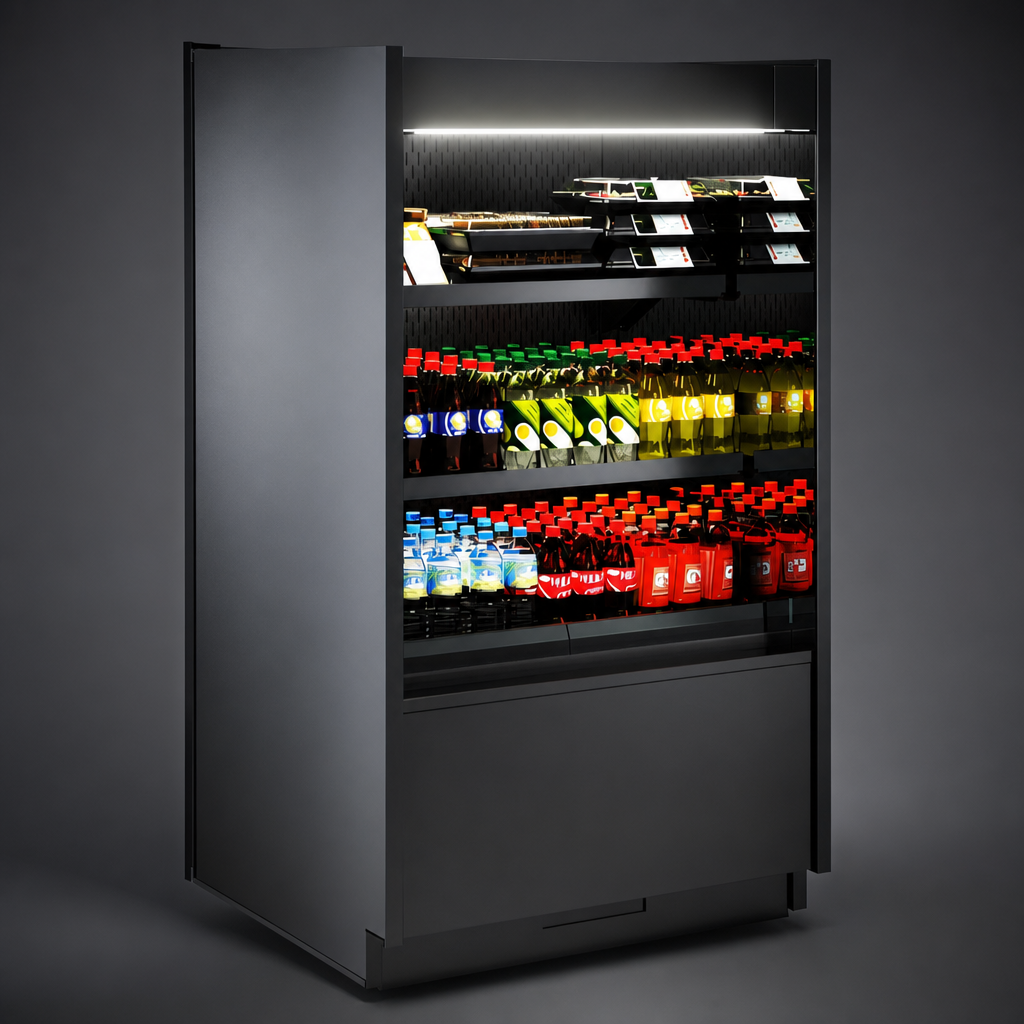

LED Top Light

A 4000K LED top light helps illuminate displayed products for better visibility.

LED Top Light

Two Metal Shelves

Standard non-lighted metal shelves provide refrigerated display space for packaged items.

Magnetic Air Filter

Helps support airflow management and simplifies routine maintenance.

Condensate Pan

Collects condensation from the refrigeration system.

Non-Locking Casters With Levelers

Provides mobility for placement and levelers for stable positioning during operation.

One-Piece Formed ABS Plastic Tub

Durable formed tub construction supports refrigerated merchandising.

Mirrored Stainless Interior End Panels

Reflective end panels improve presentation and help merchandise stand out.

Removable Rear Wall Spacer

Helps the case fit through door openings during installation.

40°F Maximum Average Product Temperature

Designed to display packaged refrigerated products at a warmest average product temperature of 40°F or less.

Type Refrigerated Self-Service Case
Style High Profile
Installation Type Freestanding
Refrigeration Type Self-Contained
Refrigerant Type R290
Temperature Range 40°F Max Average Product Temperature
Voltage 208-240 Volts
Amps 16 Amps
Watts 2.82 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-20P or L6-20P
Color Black
Finish Powder Coated
Shipping Width 60 Inches
Shipping Depth 35 Inches
Shipping Height 62 Inches
Shipping Weight 950 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor; 5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Template and requirements PDF Download PDF Vinyl graphics requirements PDF Download PDF Vinyl graphics template & requirements PDF Download PDF Owner's manual PDF Download PDF Spec guide PDF Download PDF Design guide PDF Download

Frequently Asked Questions

It is intended for packaged refrigerated products and is rated for a warmest average product temperature of 40°F or less.
It uses Breeze~E self-contained refrigeration with R290 hydrocarbon refrigerant.
Standard features include a 4000K LED top light, two metal shelves, condensate pan, magnetic air filter, non-locking casters with levelers, a one-piece ABS plastic tub, and mirrored stainless interior end panels.
The cutsheet lists a 1-year parts and labor warranty and a 5-year compressor warranty.
No. The standard configuration has a solid back panel, and rear loading hinged doors are available as an option.
Yes. It is intended for Type II operation in ambient conditions of 80°F and 55% relative humidity unless otherwise noted.
