Structural Concepts

Oasis Refrigerated & Heated Open-Front Self-Service Display Case, 39-Inch Wide

SKU: B3924RH
$18,737.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

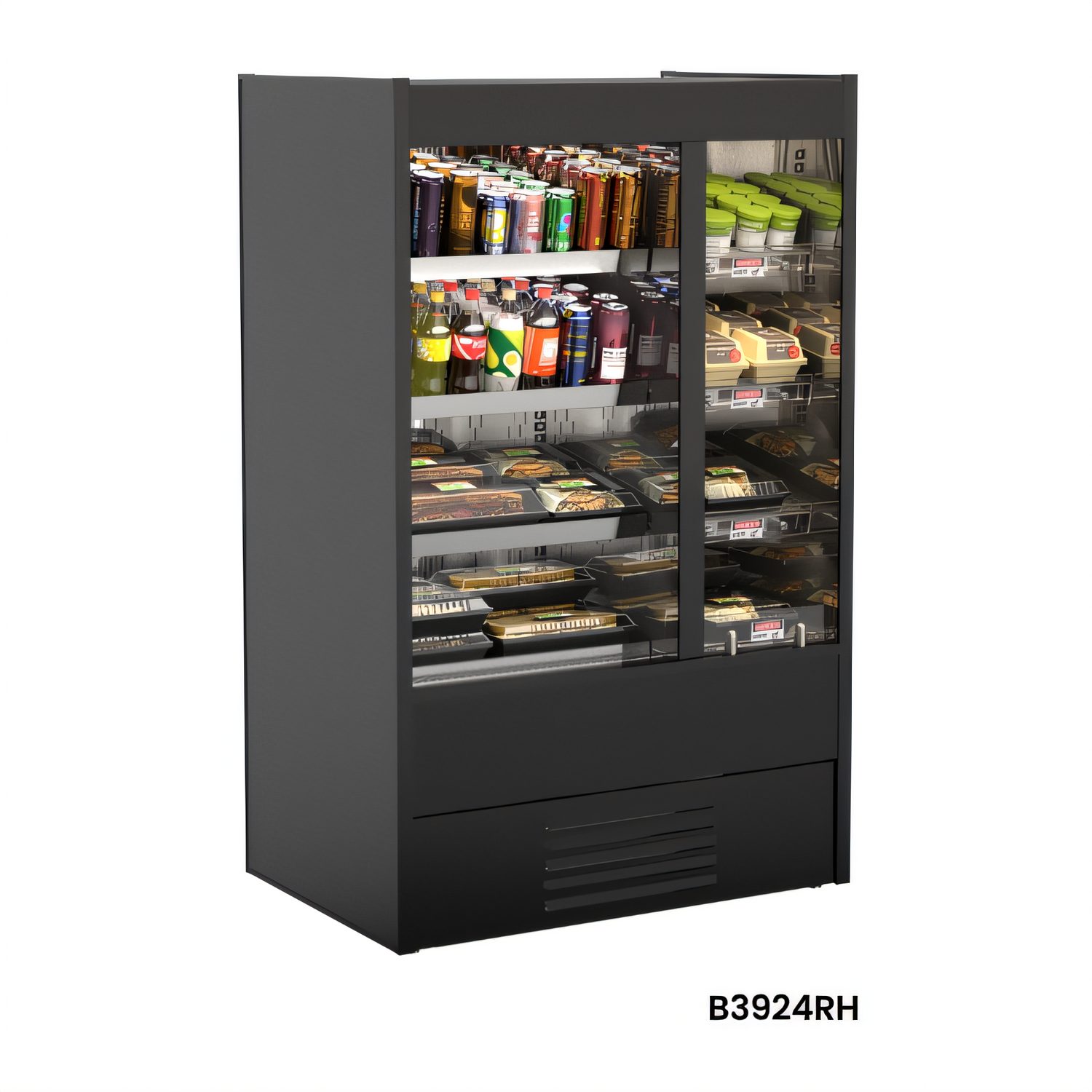

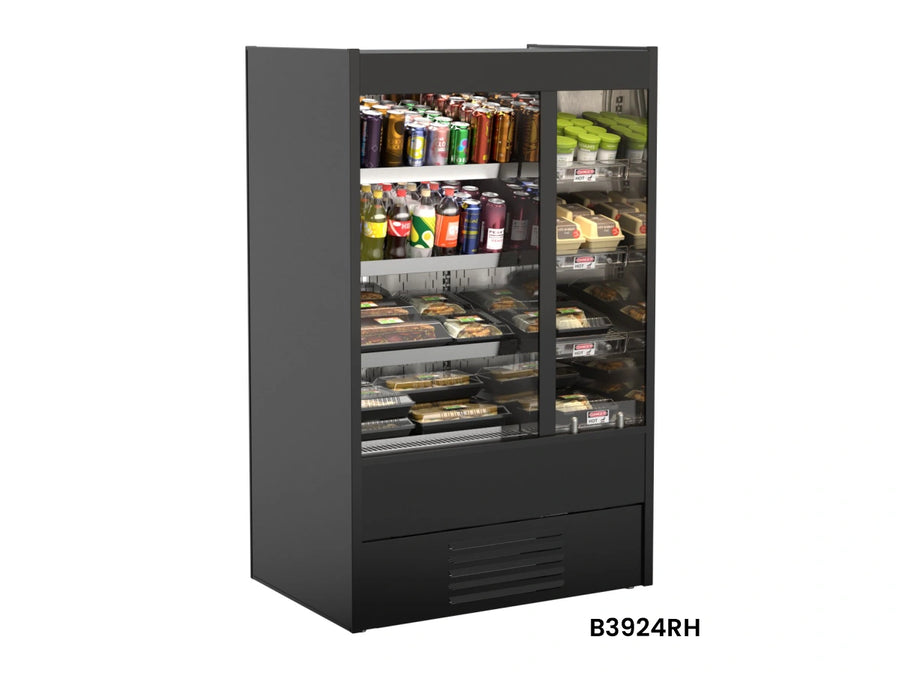

Oasis Refrigerated & Heated Open-Front Self-Service Display Case, 39-Inch Wide

Self-Contained R290 Refrigeration, Stainless Steel Interior, LED Lighting

Merchandise both chilled and hot packaged foods in one illuminated open-front case with self-contained refrigeration and adjustable shelving.

  • Dual-temperature design displays packaged refrigerated items and packaged heated items in one footprint.
  • Breeze self-contained refrigeration with R290 refrigerant simplifies installation and service.
  • Open-front merchandising with LED top and shelf lighting maximizes product visibility.
  • Removable shelving adjusts on 1-inch centers for flexible display setups.
  • Stainless steel interior and mirror-finish end panels support a clean, professional presentation.
  • Cold section holds 40°F or less while the heated section reaches a warmest average product temperature of 160°F.

Overall Dimensions:

39.0"W x 26.13"D x 63.37"H

Product Weight:

800.0 lb

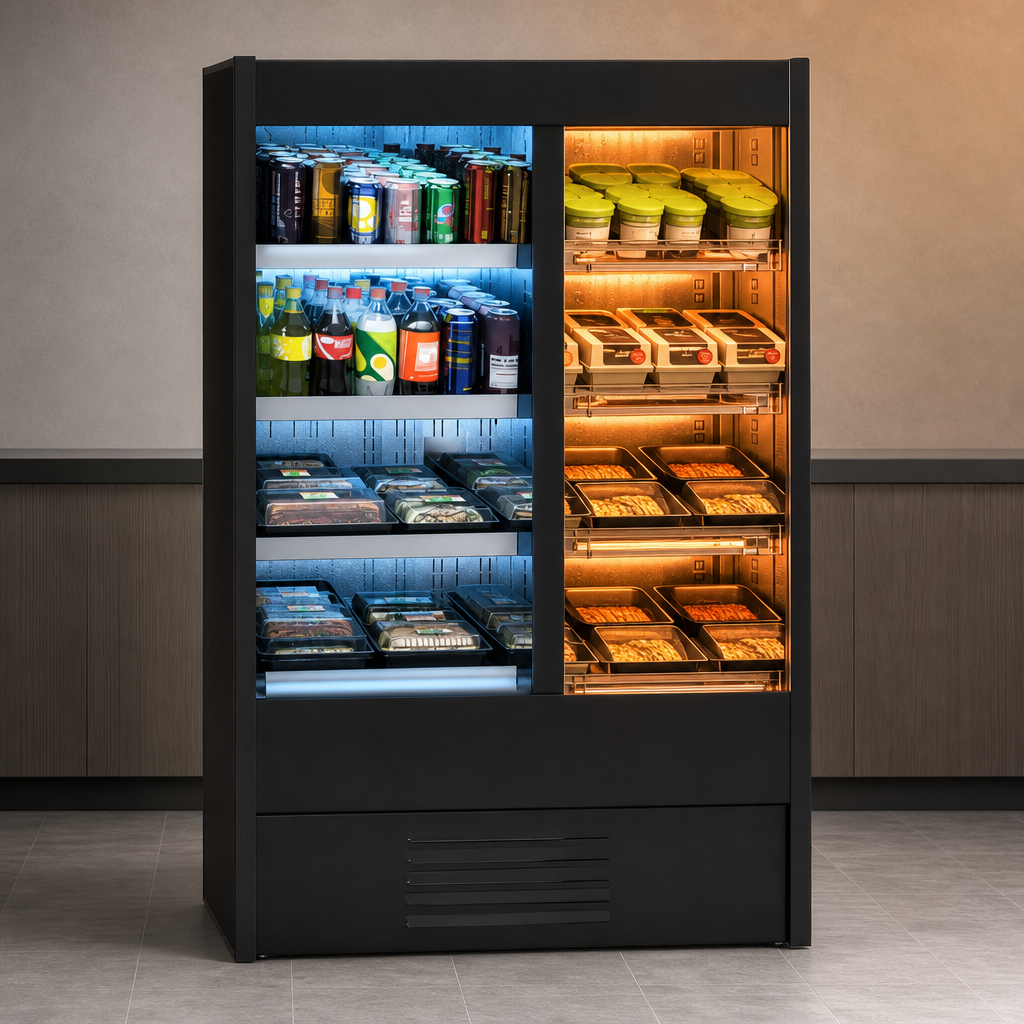

Dual-Temperature Merchandising

Combines a refrigerated side and a heated side so you can sell chilled and hot packaged products from one case.

Dual-Temperature Merchandising

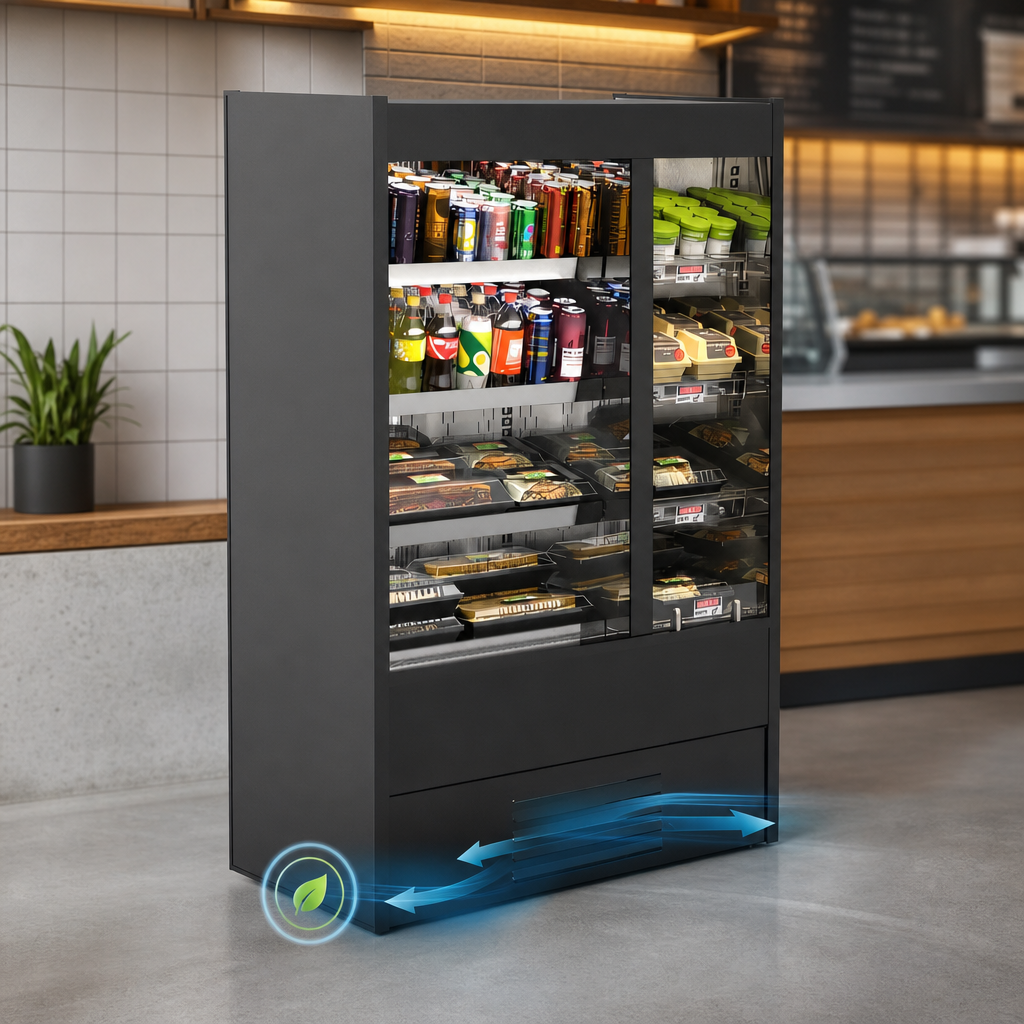

Self-Contained Breeze Refrigeration

Built-in refrigeration system uses R290 hydrocarbon refrigerant for simplified setup.

Self-Contained Breeze Refrigeration

Open-Front Self-Service Access

Open front design makes products easy for customers to see and reach.

Adjustable Shelving

Shelving is removable and adjusts on 1-inch centers; refrigerated side includes three metal shelves and heated side includes three individually controlled heated solid shelves.

LED Lighting Package

LED top and shelf lights brighten product presentation on both the refrigerated and heated sides.

Stainless Steel Interior and Mirror End Panels

Durable stainless steel interior with full end panels featuring stainless steel mirror interiors.

Condensate Pan Included

Includes a condensate pan to help manage moisture during operation.

Temperature Performance

Cold section maintains 40°F or less; hot section reaches a warmest average product temperature of 160°F.

Type Refrigerated & Heated Self-Service Case
Style Open Front
Refrigeration Type Self-Contained
Refrigerant Type R290
Interior Finish Stainless Steel
Voltage 110-120 Volts
Amps 21.36 Amps
Watts 2.25 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 Feet
Shipping Width 39 Inches
Shipping Depth 27 Inches
Shipping Height 64 Inches
Shipping Weight 800 lb.
Selling Unit Each
Units Per Case 1

Frequently Asked Questions

It is intended for packaged refrigerated products in the cold zone and packaged heated products in the hot zone.
Yes. The case uses a Breeze self-contained refrigeration system with R290 hydrocarbon refrigerant.
The cold section holds 40°F or less, and the hot section reaches a warmest average product temperature of 160°F.
Yes. Shelving is removable and adjustable on 1-inch centers.
The unit operates on 110-120 Volts, 1-Phase, 60 Hz power and uses a NEMA 5-30P plug.
The cutsheet lists a 1-year parts and labor warranty and a 5-year compressor warranty.
