Stoelting F231-309I2-2X Floor-Model Air-Cooled Gravity-Fed Soft Serve/Yogurt Machine, 2 Hoppers, 2 Flavors + Twist

SKU: F231-309I2-2X GTIN: 00671080622439
$47,743.84
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Cream Makers Frozen Dessert Equipment Ice Cream & Gelato Machine Equipment New Arrivals Refrigeration & Ice Restaurant Equipment Soft Serve Ice Cream Machines Soft-Serve & Frozen-Yogurt Machines Stoelting

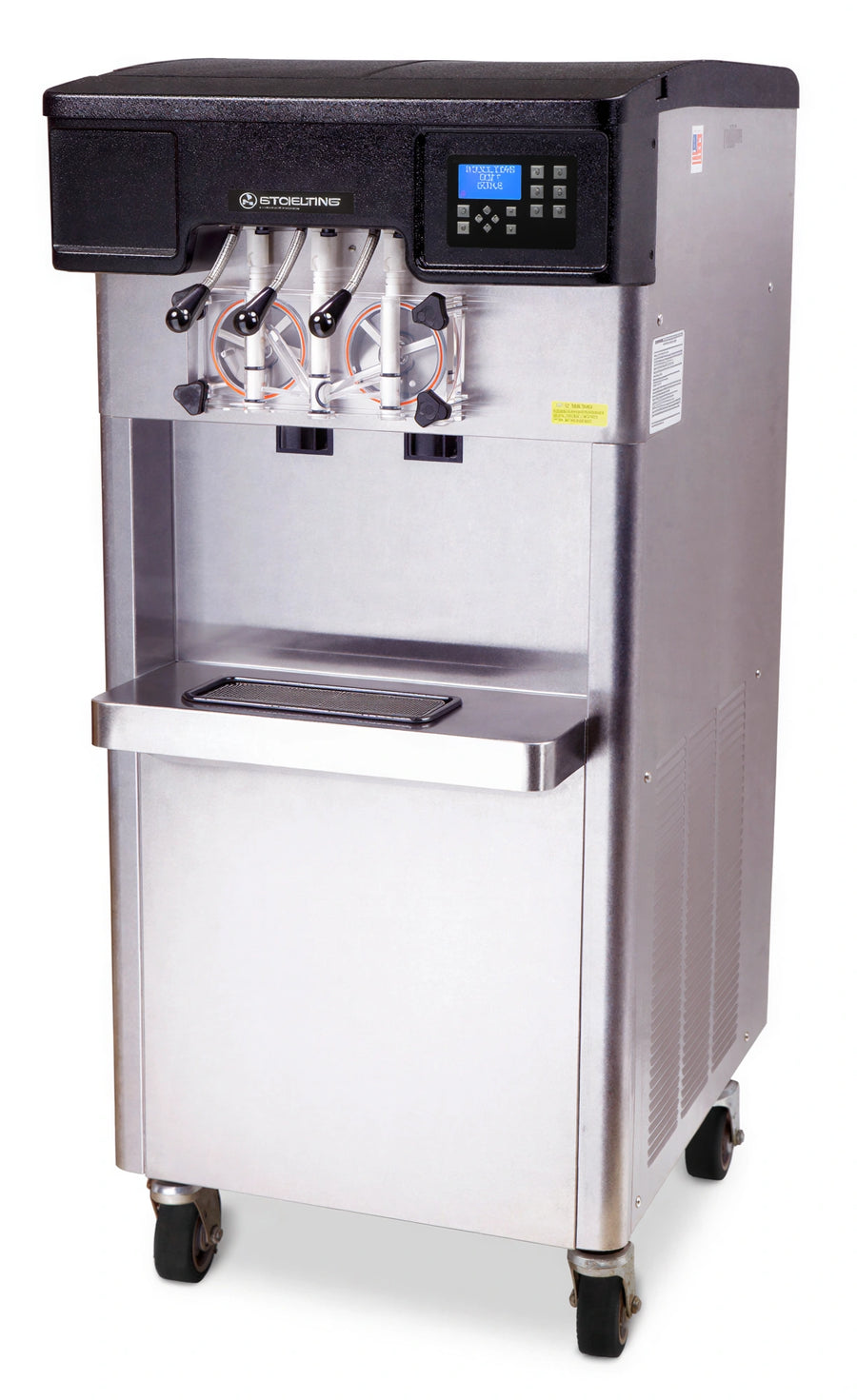

The Stoelting F231-309I2-2X is a floor-model, air-cooled, gravity-fed soft serve/yogurt freezer with two flavors plus twist.

It uses two 20 qt. hoppers and two 3.4 qt. freezing cylinders. IntelliTec2™ tamper-proof touchpad controls, self-closing spigots, an air plenum, and two 3/4 HP motors are specified for this three-phase model.

  • Dispensing: Serves two single flavors or combines them in a twin twist.
  • Controls: IntelliTec2™ tamper-proof touchpad controls support programmable operation, USB connectivity, performance and error logs, and standby and sleep modes.
  • Electrical: Uses 208-240 V, 60 Hz, three-phase power with 11.52 amps and a NEMA L15-20P plug.
  • Certifications and origin: Made in USA, NSF, and cUL.

Overall Dimensions:

25.62"W x 33.75"D x 57.75"H

Product Weight:

590.0 lb

Two flavors plus twist

Dispenses two single flavors or combines them in a twin twist.

20 qt. hoppers

Includes two 20 qt. hoppers.

Freezing cylinders

Includes two 3.4 qt. freezing cylinders.

Gravity-fed operation

Uses a gravity-fed product delivery design.

IntelliTec2™ controls

Tamper-proof touchpad controls support programmable and configurable operation, USB connectivity, performance and error logs, and standby and sleep modes.

Self-closing spigots

Self-closing spigots help eliminate waste and support portion control.

Air-cooled system

Air-cooled design with an air plenum.

Three-phase electrical configuration

Operates at 208-240 V, 60 Hz, three phase, with 11.52 amps and a NEMA L15-20P plug.

Drive motors and compressor capacity

Uses two 3/4 HP motors and has a 12,000 BTU/hr compressor capacity.

Product type Soft serve/yogurt freezer
Style Floor model
Cooling Air-cooled
Type Gravity fed
Flavor configuration 2 flavors + twist
Hopper quantity 2
Hopper capacity (each) 20 qt.
Freezing cylinder quantity 2
Freezing cylinder capacity (each) 3.4 qt.
Controls IntelliTec2™ tamper-proof touchpad controls
Carburetor Standard
Motor quantity 2
Motor power (each) 3/4 HP
Compressor capacity 12,000 BTU/hr
Voltage 208-240 V
Frequency 60 Hz
Phase 3-phase
Running amps 11.52 A
Plug NEMA L15-20P

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

The provided domestic limited warranty lists a five-year part warranty period and a 12-month labor warranty period for soft serve and shake/frozen uncarbonated beverage equipment requiring startup.

Documents

PDF Cutsheet PDF Download PDF F231-2x operators manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It dispenses two single flavors and can combine them in a twin twist.
The unit has two 20 qt. hoppers and two 3.4 qt. freezing cylinders.
It uses 208-240 V, 60 Hz, three-phase power, draws 11.52 amps, and uses a NEMA L15-20P plug. The cutsheet also specifies a dedicated electrical circuit.
Yes. It is an air-cooled unit with an air plenum.
The product is 25.62 in. wide, 33.75 in. deep, and 57.75 in. high, with a listed weight of 590.0 lb.
The cutsheet specifies 3 in. of air space on both sides for air-cooled units.
Yes. The cutsheet specifies indoor use only.
