Key specifications

Amps
24.9 Amps
Phase
3-Phase
Dimensions
28.75"W × 34.0"D × 66.5"H
Type
Door-Type Dishwasher
Style
Universal
Installation Type
Floor Model
Spec sheet
Stero SKU: SD3-1

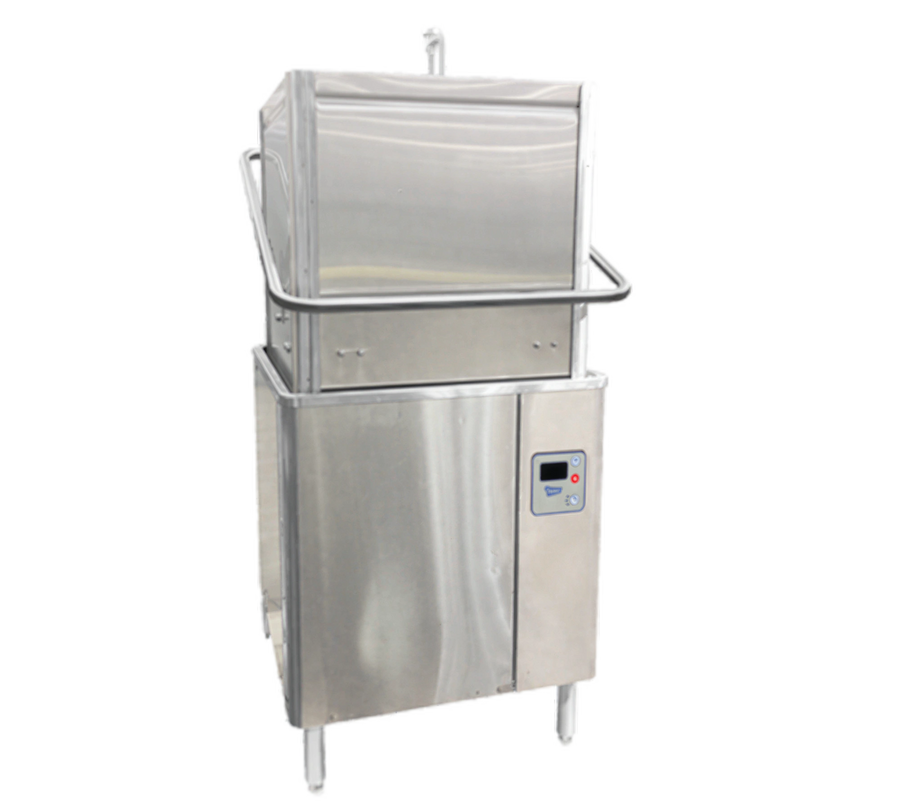

Stero SD3-1 Universal Door-Type Dishwasher, 58 Racks/Hour

$26,545.20
/each
Estimated to ship in 16–19 business days
Electrical
Feature
Booster heater
Included: Stero warranty One year from the date of initial startup or 18 months from the date of shipment from the factory, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,455/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Door-Type Dishwasher
Style Universal
Installation Type Floor Model
Material Stainless Steel
Operation Straight-Through or Corner
Capacity 58 Racks/Hour
Sanitization High Temperature
Final Rinse Temperature 180°F Minimum
Tank Heat Electric
Booster Heater Not Included
Wash Cycle 1, 2, or 4 Minutes
Controls Digital Control Status
Rack Configuration Single
Voltage 208/240 Volts
Amps 24.9 Amps
Watts 5 kW
Hertz 60 Hz
Phase 3-Phase
Wash Motor Power 2 HP
Exhaust Fan Control Included
Pressure Gauge Included
Energy Efficiency ENERGY STAR

Description

The Stero SD3-1 is a high-temperature door-type dishwasher with electric tank heat and stainless steel construction.

It supports straight-through or corner operation and is rated for 58 racks per hour with hot-water sanitizing when 180°F water is supplied.

  • Timed wash cycles of 1, 2, or 4 minutes.
  • Digital control status, error notification, and 180°F final-rinse assurance.
  • Interchangeable upper and lower wash and rinse arms.
  • Door-actuated start, automatic tank fill, and automatic drain closure.
  • Includes exhaust fan control and a pressure gauge.

Overall Dimensions:

28.75"W x 34.0"D x 66.5"H

Product Weight:

302.0 lb

Hot-Water Sanitizing

Rated for 58 racks per hour with high-temperature hot-water sanitizing when 180°F water is supplied.

Straight-Through or Corner Operation

The machine supports either straight-through or corner operation.

Timed Wash Cycles

Provides selectable 1-, 2-, or 4-minute wash cycles.

Digital Status and Error Notification

Provides digital control status and error notification.

Interchangeable Wash and Rinse Arms

Includes interchangeable upper and lower wash and rinse arms.

Automatic Fill and Drain Closure

Provides automatic tank fill and automatic drain closure.

Door-Actuated Start

The wash cycle starts through door actuation.

Pressure Gauge

A pressure gauge is included.

Frequently Asked Questions

It is rated for 58 racks per hour with hot-water sanitizing.
Yes. It supports straight-through or corner operation.
No. The specified configuration is without a booster heater and requires 180°F water for high-temperature sanitizing.
The dishwasher provides timed 1-, 2-, or 4-minute wash cycles.
The overall dimensions are 28.75 inches wide by 34 inches deep by 66.5 inches high.
The specified electrical service is 208/240 Volts, 60 Hz, 3-Phase, with a 24.9 Amp rating.
