Steel Works Stainless

Steel Works Stainless Two-Compartment Underbar Sink with Left and Right Drainboards, 48 Inch x 18-3/4 Inch

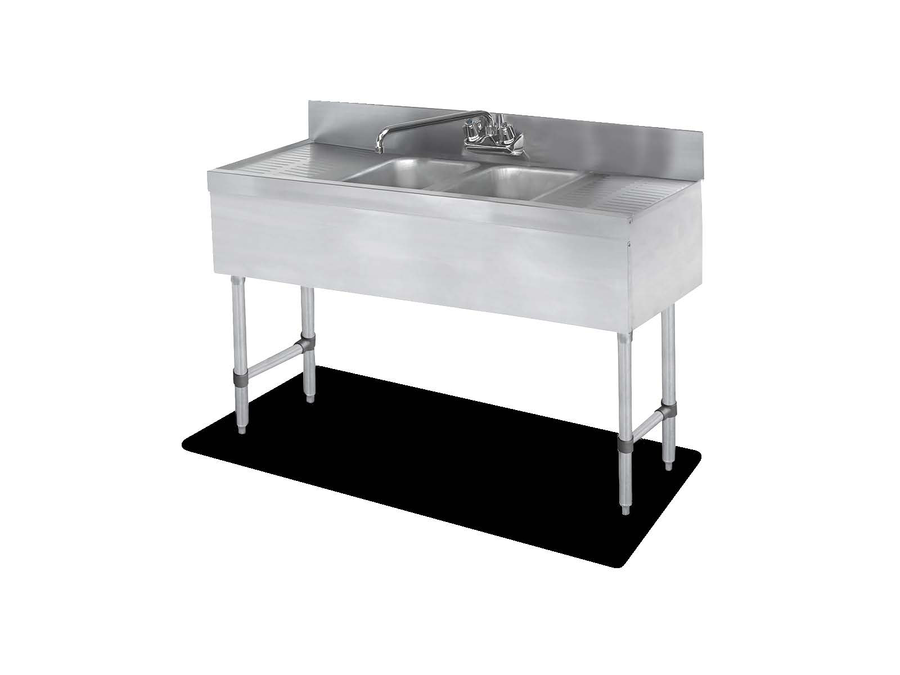

SKU: SWBAR2B48-LR
$688.46
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Restaurant Equipment Underbar Equipment

Steel Works Stainless Two-Compartment Underbar Sink with Left and Right Drainboards, 48 Inch x 18-3/4 Inch

304 Stainless Steel, 3 Inch Backsplash, Includes Faucet and Drain Baskets

Designed for busy bar and beverage stations, this underbar sink combines durable 304 stainless steel construction with dual drainboards and included accessories for efficient cleanup.

  • Two-compartment underbar sink sized 48 inches wide by 18-3/4 inches deep by 33 inches high.
  • 10 inch x 14 inch bowls with 10 inch depth for washing and rinsing glassware.
  • 13 inch drainboards on both the left and right sides provide convenient drying space.
  • 3 inch backsplash and 2 inch on-center splash-mount faucet holes help reduce mess.
  • Stainless steel apron, legs, side cross bracing, and bullet feet support heavy-duty use.
  • Includes two drain baskets and an included 10-inch faucet.

Overall Dimensions:

18.75"W x 48.0"D x 33.0"H

Product Weight:

70.0 lb

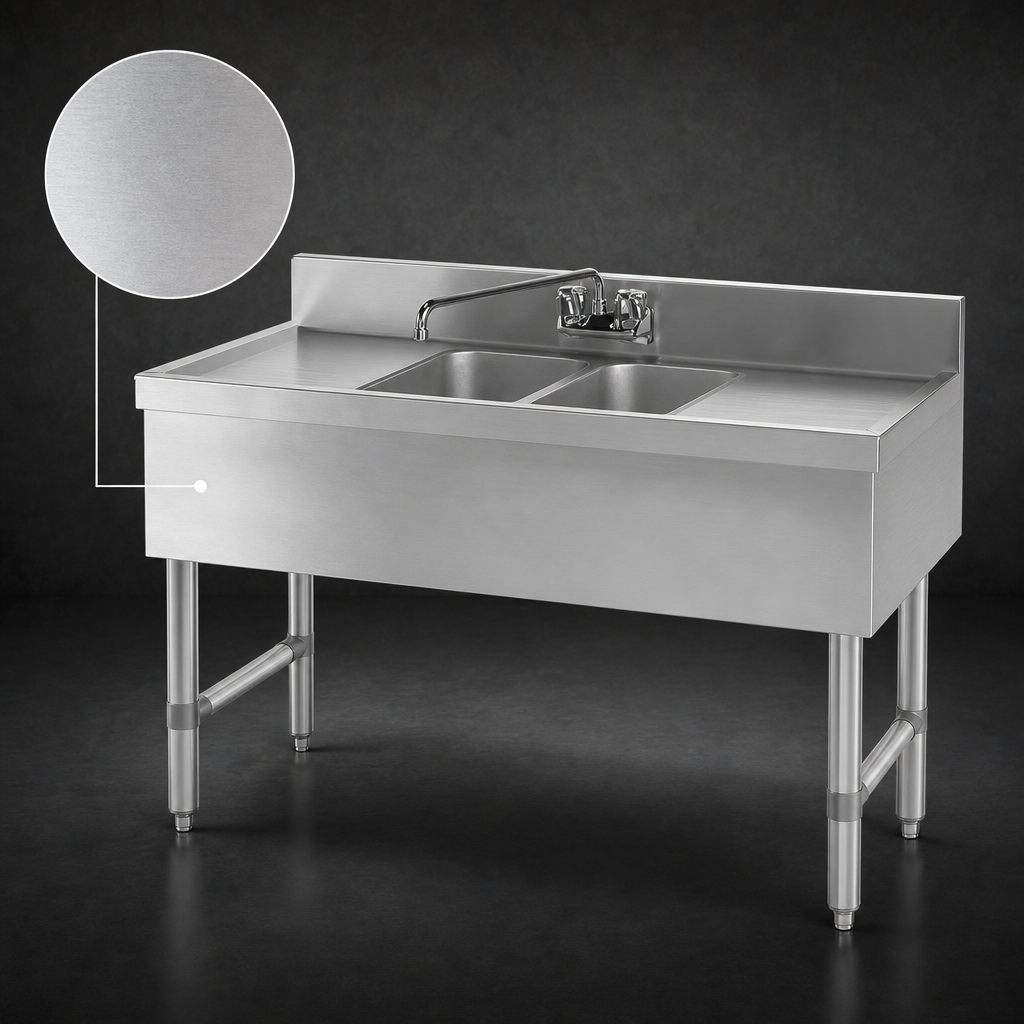

304 Stainless Steel Construction

Built with 18/304 stainless steel for durable, corrosion-resistant use in beverage and bar environments.

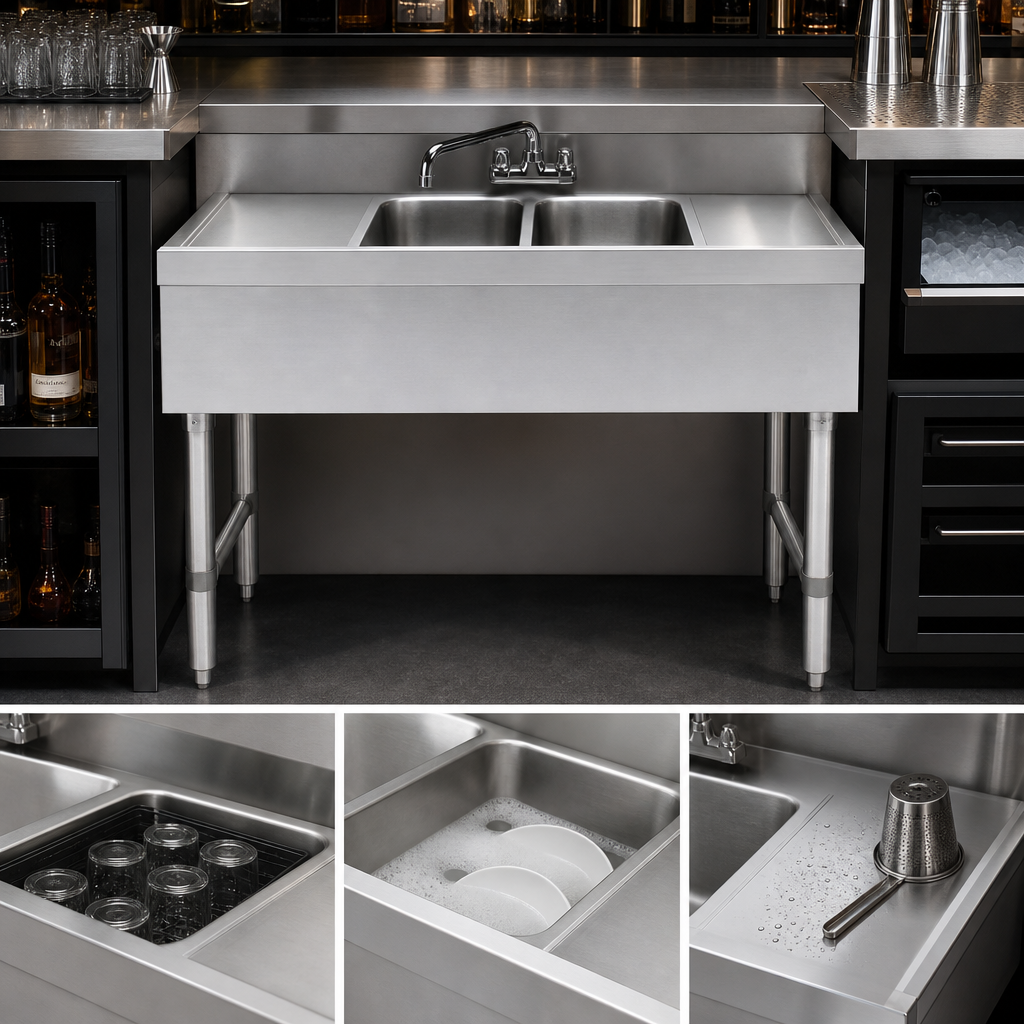

Two-Compartment Layout

Two sink compartments support separate wash and rinse tasks in a compact underbar footprint.

Left and Right Drainboards

13 inch drainboards on both sides provide landing space for wet glassware, tools, and prep items.

3 Inch Backsplash

The integrated backsplash helps contain splashes and keep the wall area cleaner.

Splash-Mount Faucet Holes

2 inch on-center faucet holes are provided for splash-mount faucet installation.

Heavy-Duty Support Structure

Features a stainless steel apron on the front and sides, gussets, side cross bracing, stainless steel legs, and bullet feet.

Included Accessories

Includes two drain baskets and a 10-inch faucet; the documentation also references SWFW-4-6LL.

Type Underbar Sink
Style Two-Compartment
Installation Type Freestanding
Material 304 Stainless Steel
Interior Finish Stainless Steel
Compartments 2
Bowl Size 10 Inches x 14 Inches Front-to-Back
Bowl Depth 10 Inches
Drainboard Length 13 Inches
Backsplash Height 3 Inches
Faucet Hole Spacing 2 Inches On Center
Shipping Width 19 Inches
Shipping Depth 48 Inches
Shipping Height 33 Inches
Shipping Weight 70 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has two compartments.
Each compartment measures 10 inches x 14 inches front-to-back and 10 inches deep.
Yes, it includes 13 inch drainboards on both the left and right sides.
Yes, it includes one 10-inch faucet, and the documentation also references SWFW-4-6LL.
The backsplash is 3 inches high.
Yes, the sink has 2 inch on-center splash-mount faucet holes.
