Star (Middleby) UM1850A Ultra-Max Conveyor Ovens
Description

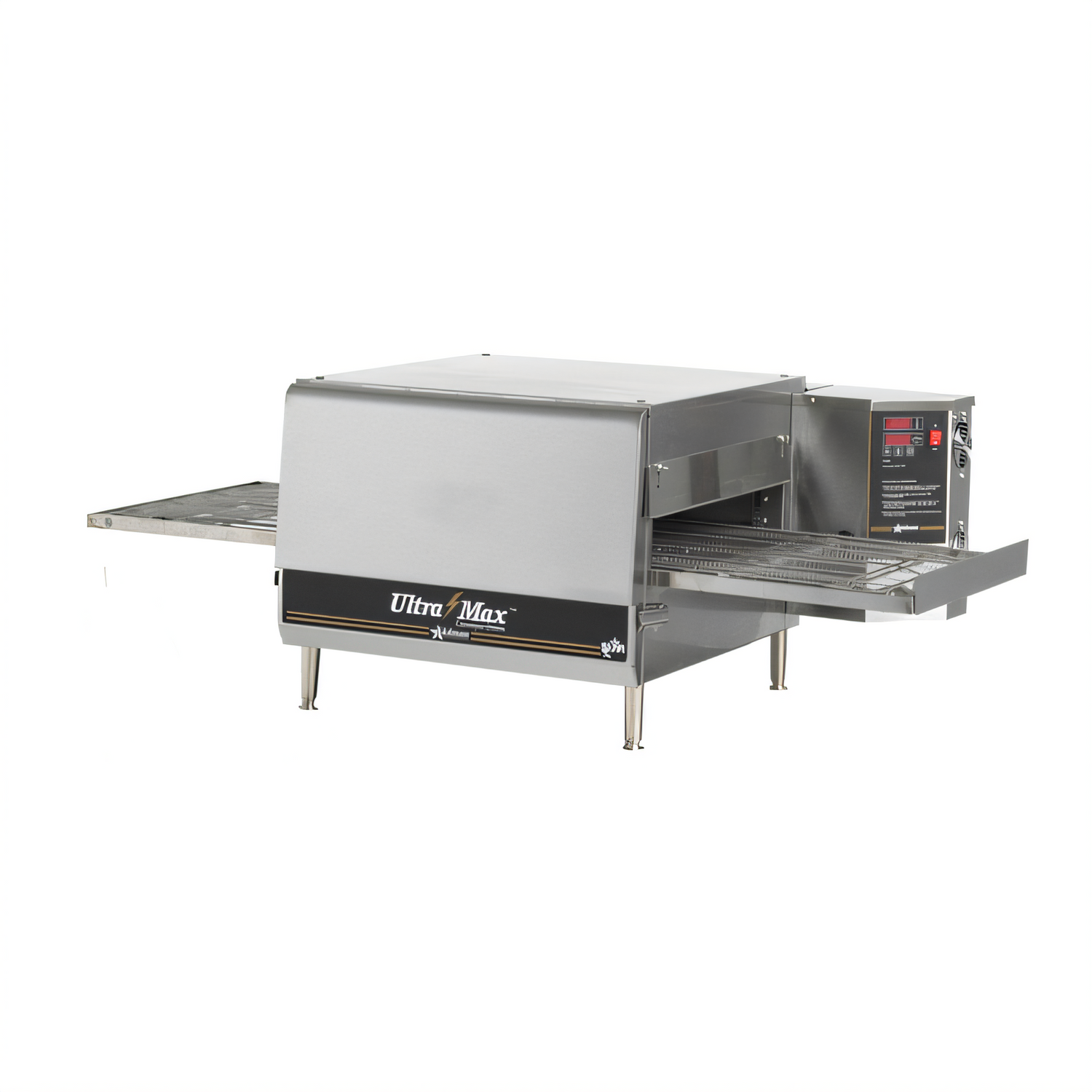

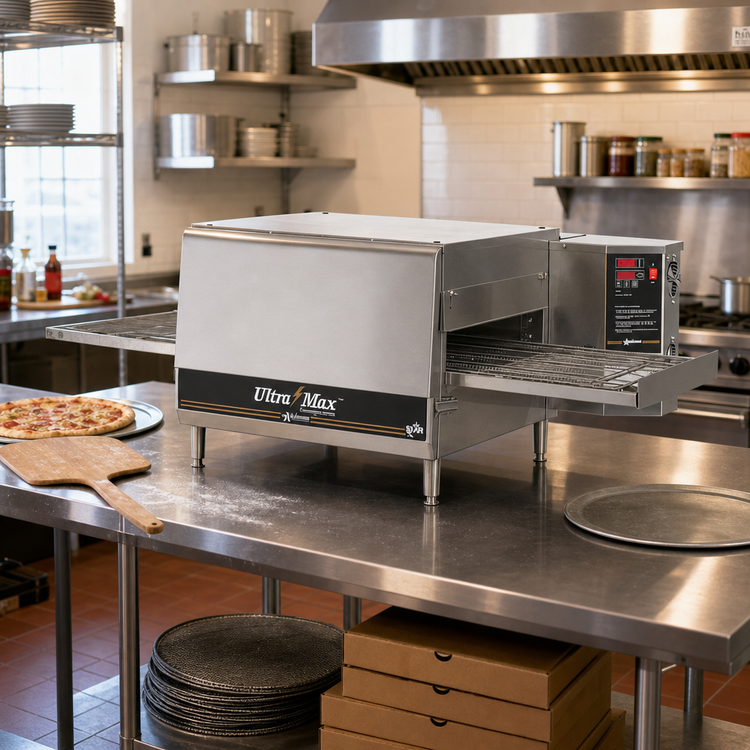

Star Ultra-Max® Electric Impingement Conveyor Oven – 50" Belt
Model UM1850A | 18" Wide Belt • Countertop • Single-DeckDrive more pies, pretzels and appetizers through your line—without giving up valuable floor space. The Ultra-Max® UM1850A delivers true impingement speed in a compact, stack-able countertop footprint that usually requires no dedicated hood.*
Why the Ultra-Max® Is a Smarter Oven

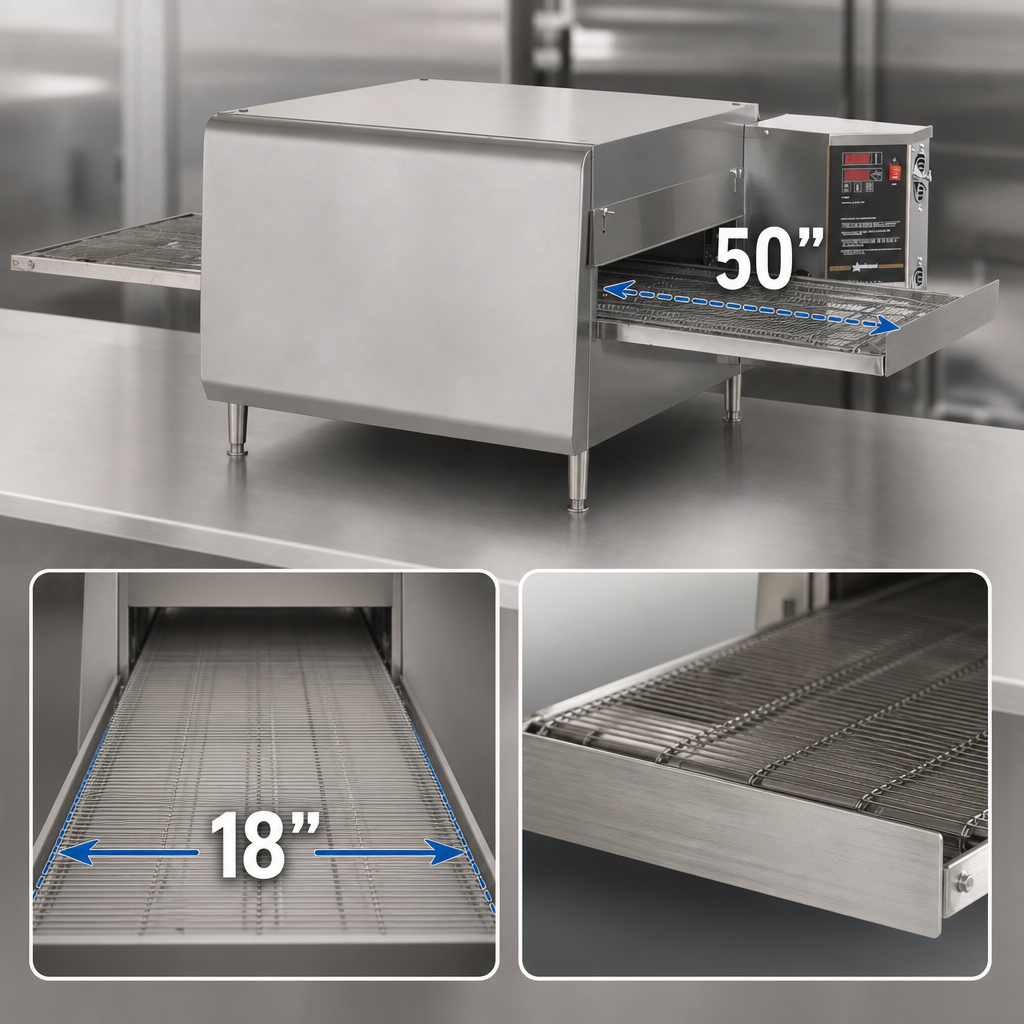

- High-capacity 50" conveyor moves product left-to-right (field convertible) on an 18" stainless steel belt.
- 24" bake chamber & 1.5–4" opening handle everything from thin-crust pizza to cookies and paninis.
- 6,000 W metal-sheath elements and a centrifugal blower blanket food with consistent impinged hot air for faster cook times and even browning.

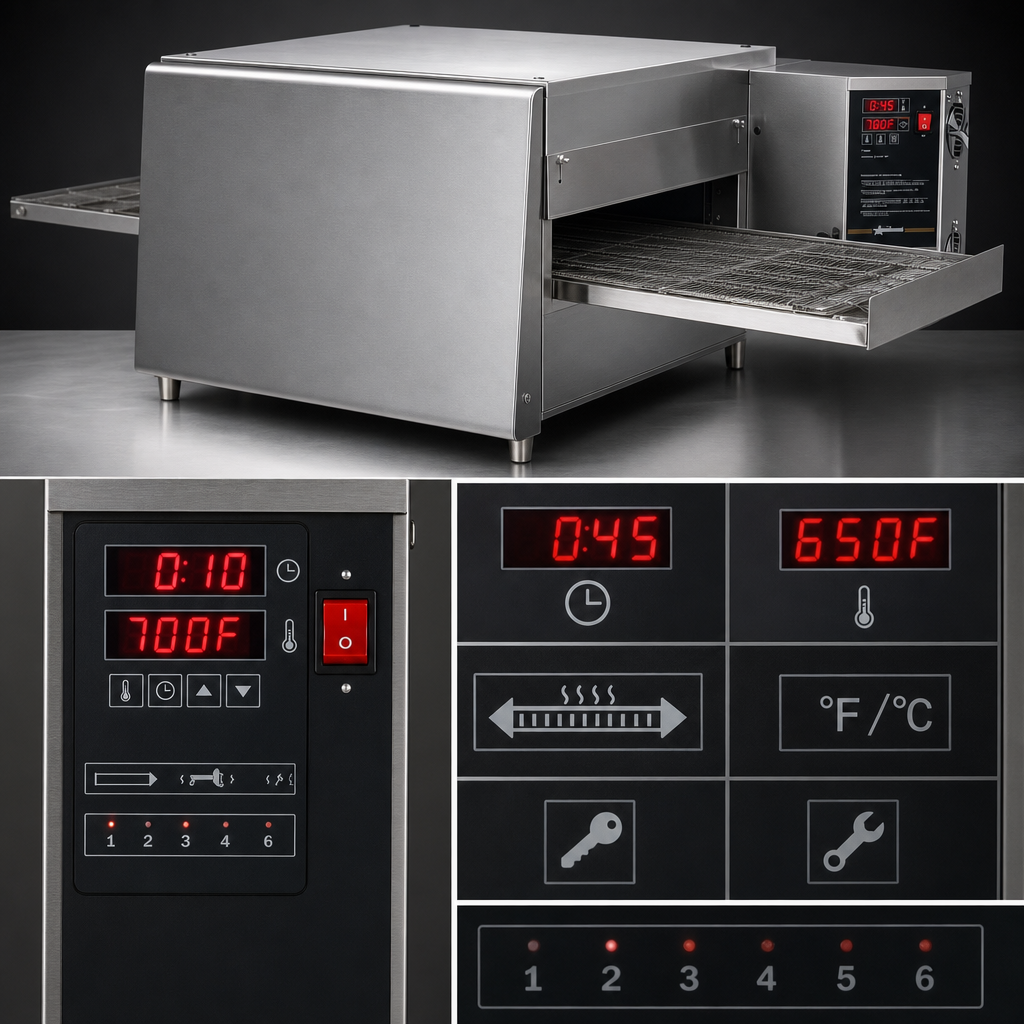

- One-touch digital control stores six (6) menu presets and lets you lock settings, flip belt direction, or toggle °F/°C at any time.
- Tool-less cleaning—front panel, conveyor, fingers and baffles lift out in seconds.
- Built to last with an all-stainless exterior, stainless bake chamber and brushless DC drive motor.
- Factory paid start-up by an authorized tech protects your investment and warranty (registration required).
- Made in the USA and fully certified cULus & UL EPH for commercial kitchens.
At-a-Glance Specifications
| Cook Chamber | 18" W × 24" L (457 × 610 mm) |
|---|---|
| Conveyor Belt | 18" W × 50" L stainless steel, removable exit stop |
| Product Opening | Adjustable 1.5"–4" H (38–102 mm) |
| Overall Dimensions | 50.0" W × 30.4" D × 20.0" H (1270 × 772 × 508 mm) |
| Electrical | 6,400 W | 208 V / 31 A or 240 V / 27 A | 1-Ph | NEMA 6-50P, 6' cord 400/230 V WYE field-wire option |
| Shipping / Installed Weight | 225 lb / 195 lb (102 / 88 kg) |
| Certifications | cULus • UL EPH • NSF/ANSI 4 • Made in USA |
| Warranty | 1 year parts & labor (with completed start-up) |
Operational Advantages
- Stackable two-high to double throughput on the same footprint.
- Integrated cooling fan pulls ambient air across the control box, protecting sensitive electronics.
- Optional shelves (entry & exit) keep your make-table organized—ask about kits UMENTRY6, UMEXIT8 & UMEXIT11.
Installation Note: Maintain 6" clearance from each end to combustible surfaces. Always follow local codes regarding ventilation requirements—even though Ultra-Max units are typically approved for ventless operation.
*Ventilation exemptions vary by jurisdiction—confirm with your local authority having jurisdiction (AHJ).
