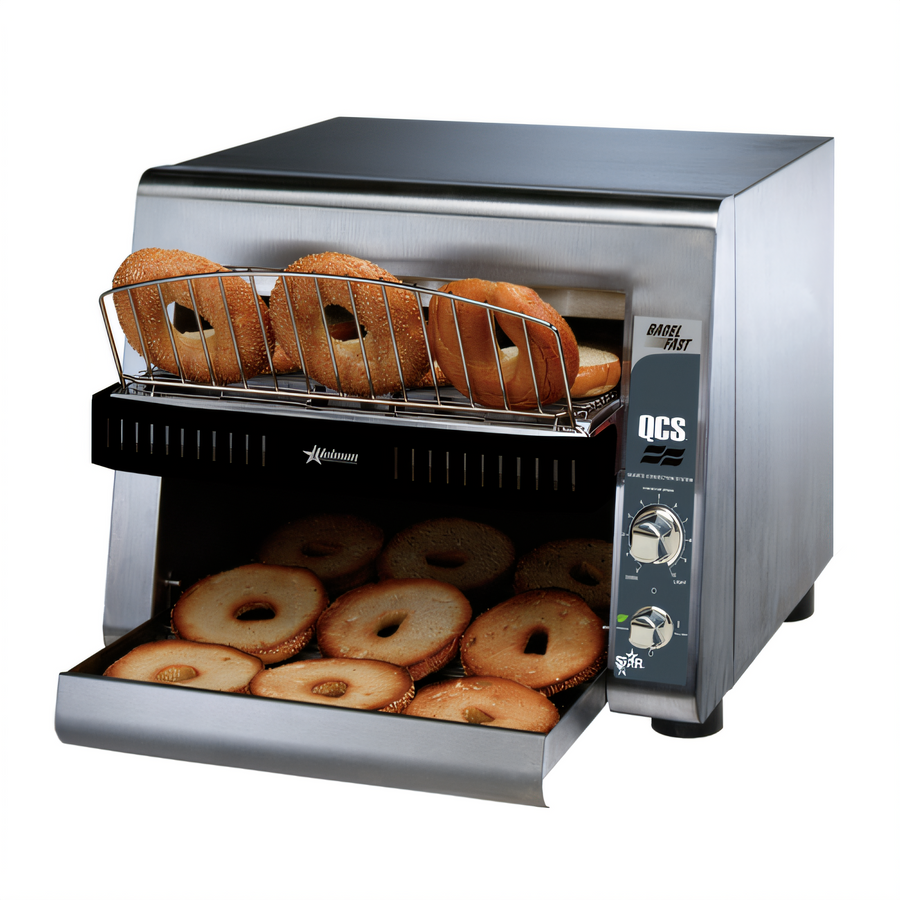

Holman QCS3-160BC High-Volume Horizontal Conveyor Toaster, 3-Inch Opening, 1600 Slices/Hour

Analog controls, quartz infrared heaters, stainless steel construction

Built for nonstop service, this high-volume conveyor toaster combines fast quartz heating, cool-touch convection cooling, and simple analog controls for consistent results.

  • Up to 1,600 slices per hour for high-volume breakfast and sandwich service.
  • 3-inch opening and 14-inch belt accommodate bagels, bread, and three slices side-by-side.
  • Forced convection cooling helps keep the exterior cool to the touch while improving throughput.
  • Quartz infrared heaters deliver fast, even heating with reliable results.
  • Analog controls provide belt-speed adjustment, standby mode, and heat intensity settings.
  • Stainless steel construction, burn guard, and hi-limit protection support safe daily operation.

Overall Dimensions:

18.5"W x 22.38"D x 15.63"H

Product Weight:

68.0 lb

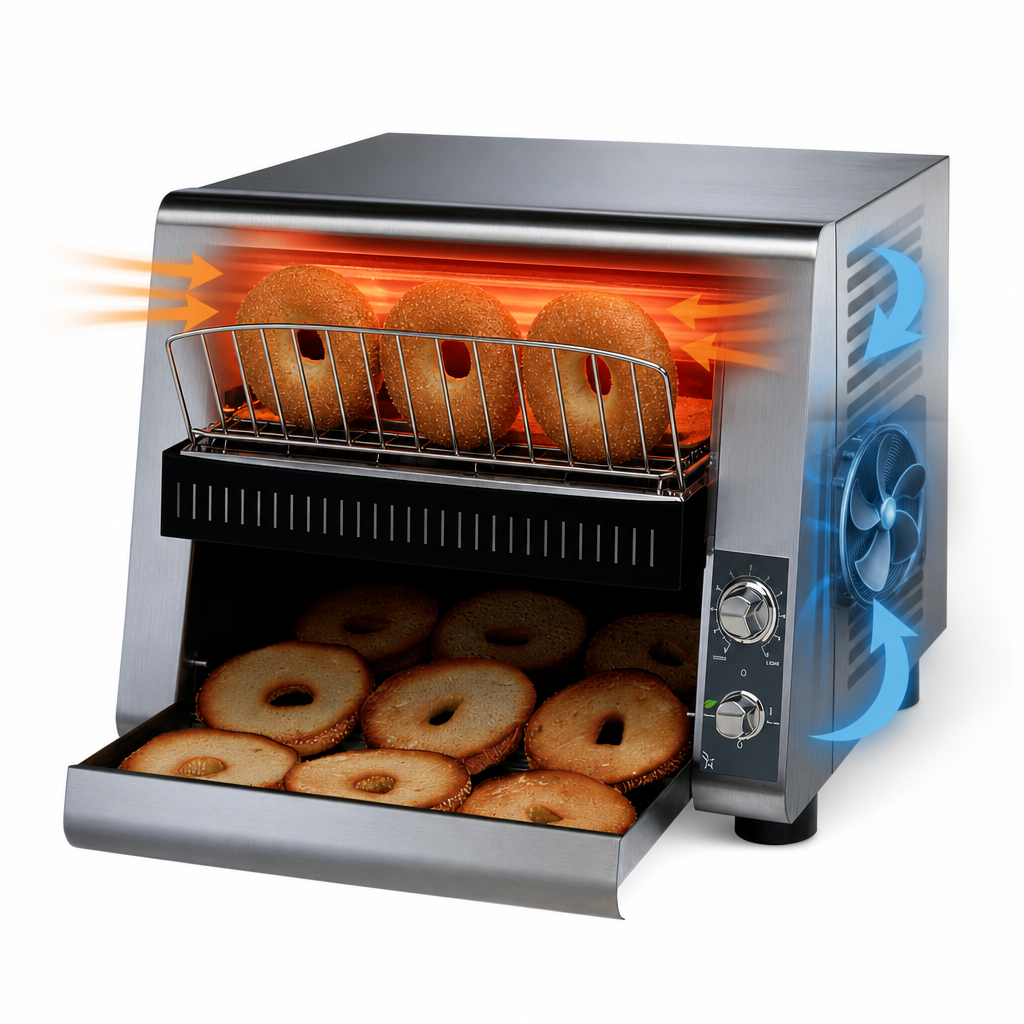

Forced Convection Cooling System

Circulates pre-heated air through the toasting chamber to improve productivity and help keep the exterior cool-to-the-touch.

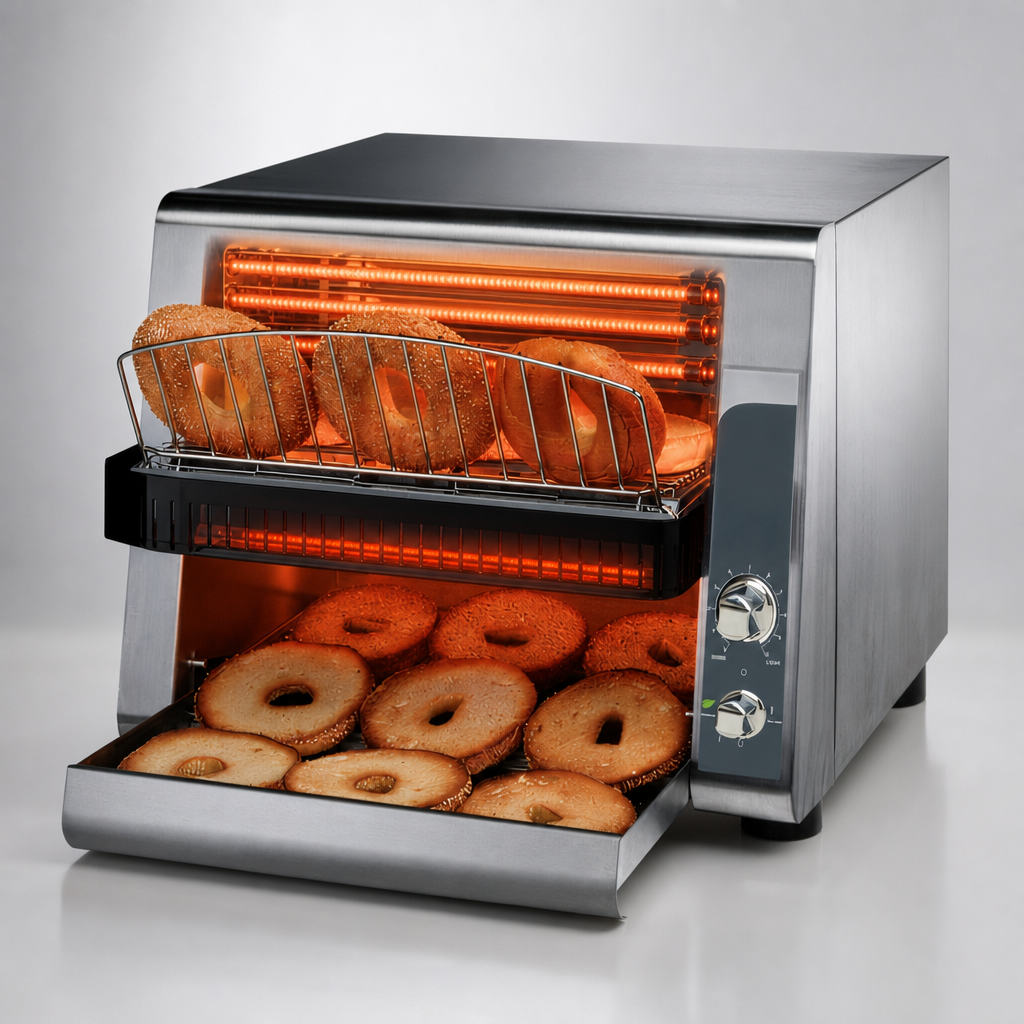

Quartz Infrared Heating

Delivers fast, consistent heating performance for dependable toasting results.

Analog Speed and Heat Controls

Allows operators to adjust belt speed, standby mode, and heat intensity for both heating elements.

Power Saver Switch

Reduces electricity consumption by up to 75% during lighter-demand periods.

14-Inch Wide Conveyor Belt

Provides a generous loading area and accommodates three slices of bread side-by-side.

Safe Load-Up Area

Includes a full-width coated front burn guard and a cool-to-the-touch exterior to help protect staff.

Heated Holding Area

Keeps toast at serving temperature after it exits the chamber.

Hi-Limit Switch Protection

Helps prevent overheating and protects critical component parts.

Easy-Clean One-Piece Cover

Simplifies disassembly for cleaning and service access.

Heavy-Duty Drive Components

Built with a heavy-duty motor, drive chain, and conveyor speed control for reliable daily use.

Type High-Volume Conveyor Toaster
Style Horizontal Conveyor
Installation Type Countertop
Controls Analog
Opening 3 Inches
Belt Width 14 Inches
Production Per Hour 1600 Slices Per Hour
Material Stainless Steel
Voltage 208/240 Volts
Amps 17.3 Amps at 208 Volts / 15.0 Amps at 240 Volts
Watts 3.6 kW
Hertz 60 Hz
Plug Type NEMA 6-30P
Cord Length 4 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 19 Inches
Shipping Depth 23 Inches
Shipping Height 16 Inches
Shipping Weight 68 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed to toast bread, bagels, English muffins, and more.
This model is rated for up to 1,600 slices per hour.
The 14-inch-wide belt accommodates three slices side-by-side.
It uses analog controls with belt speed adjustment, standby mode, and heat intensity settings.
The unit includes a one-year warranty for parts and labor.
Yes, it has an easy-to-disassemble one-piece cover for cleaning and service access.
