Description

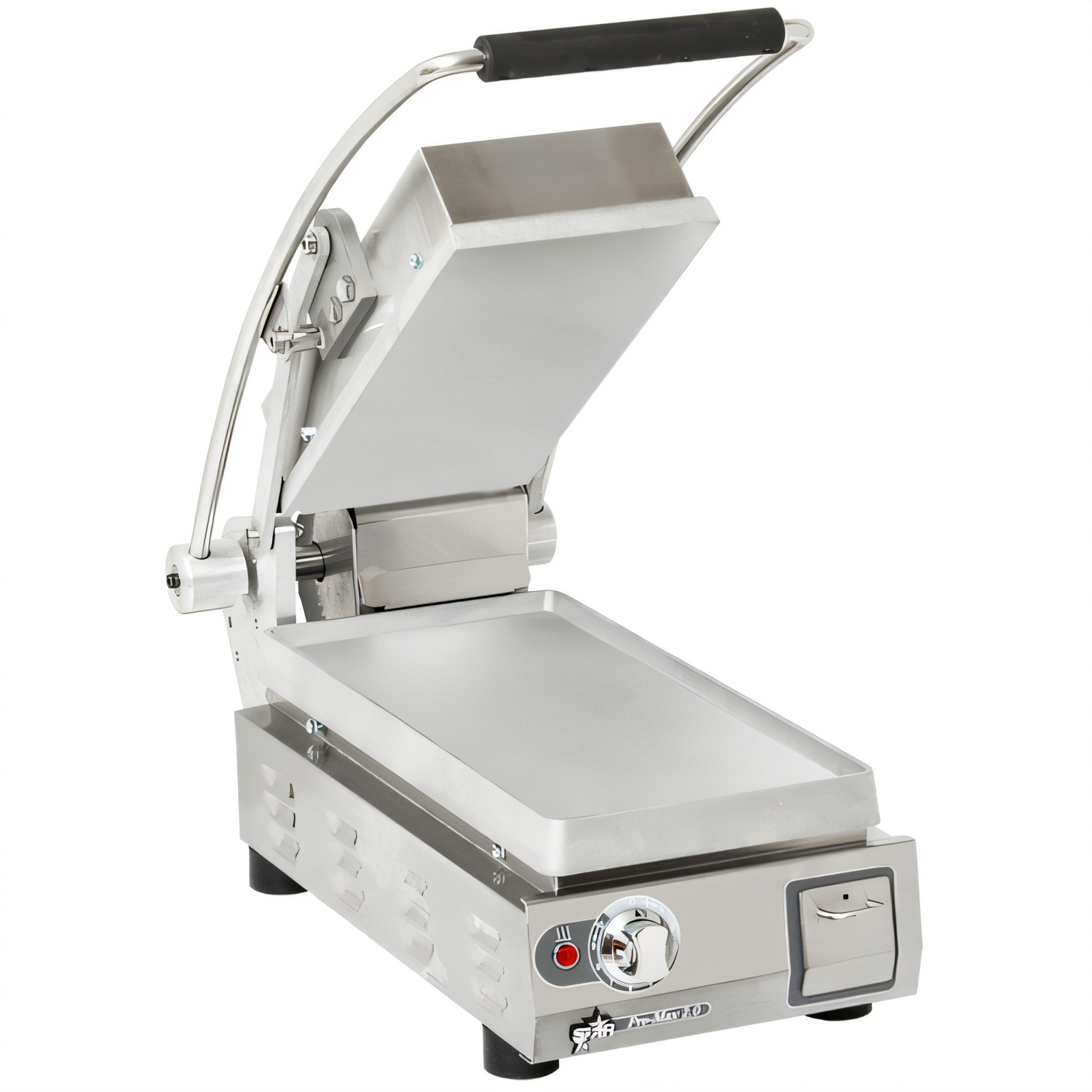

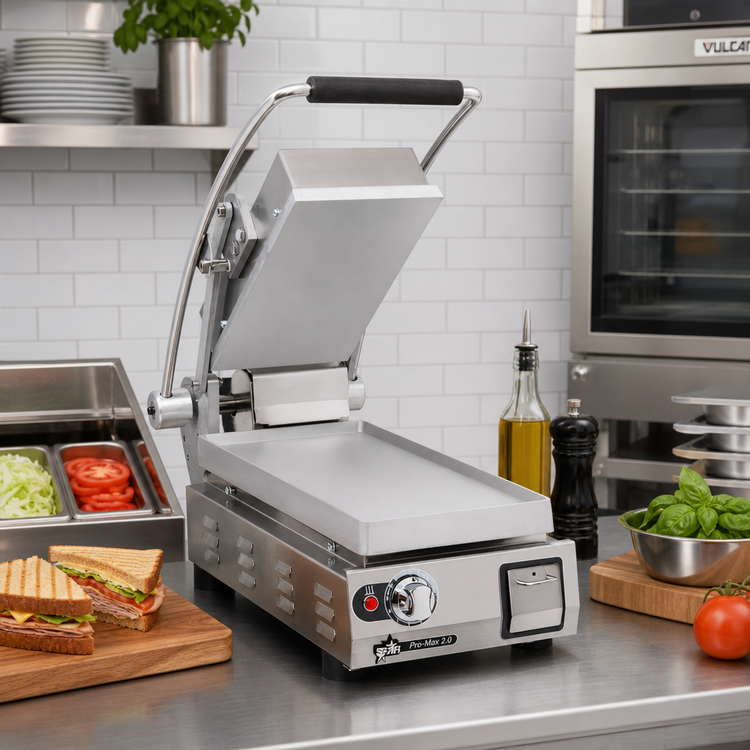

Star Pro-Max 2.0® 7" Smooth Sandwich Grill – Electronic Controls, 120 V

Model PST7E | Made in USA

Turn out perfectly toasted paninis, wraps and breakfast sandwiches—fast. The compact Pro-Max 2.0® delivers big-league performance in a 7-inch footprint, thanks to its ultra-responsive aluminum platens and industry-leading torsion spring hinge.

Key Features

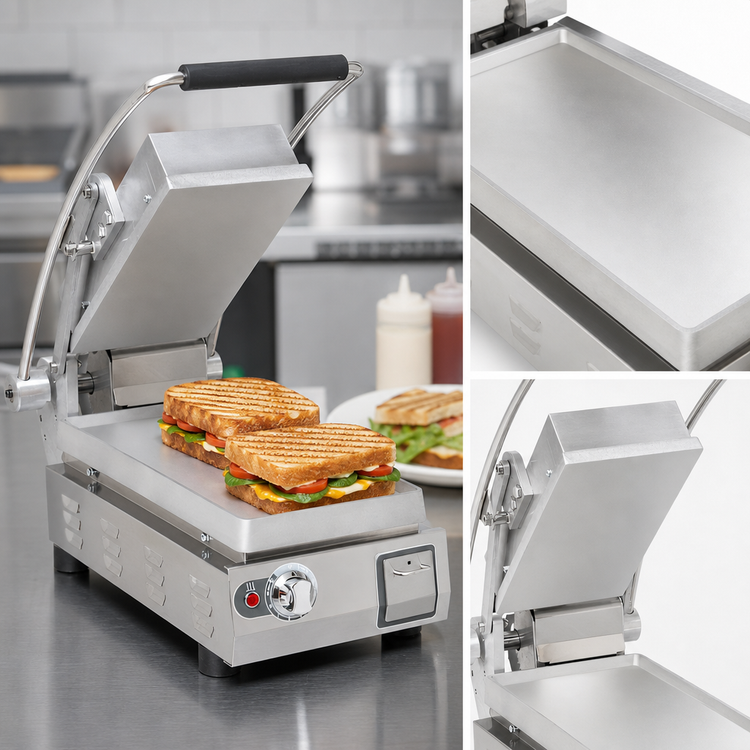

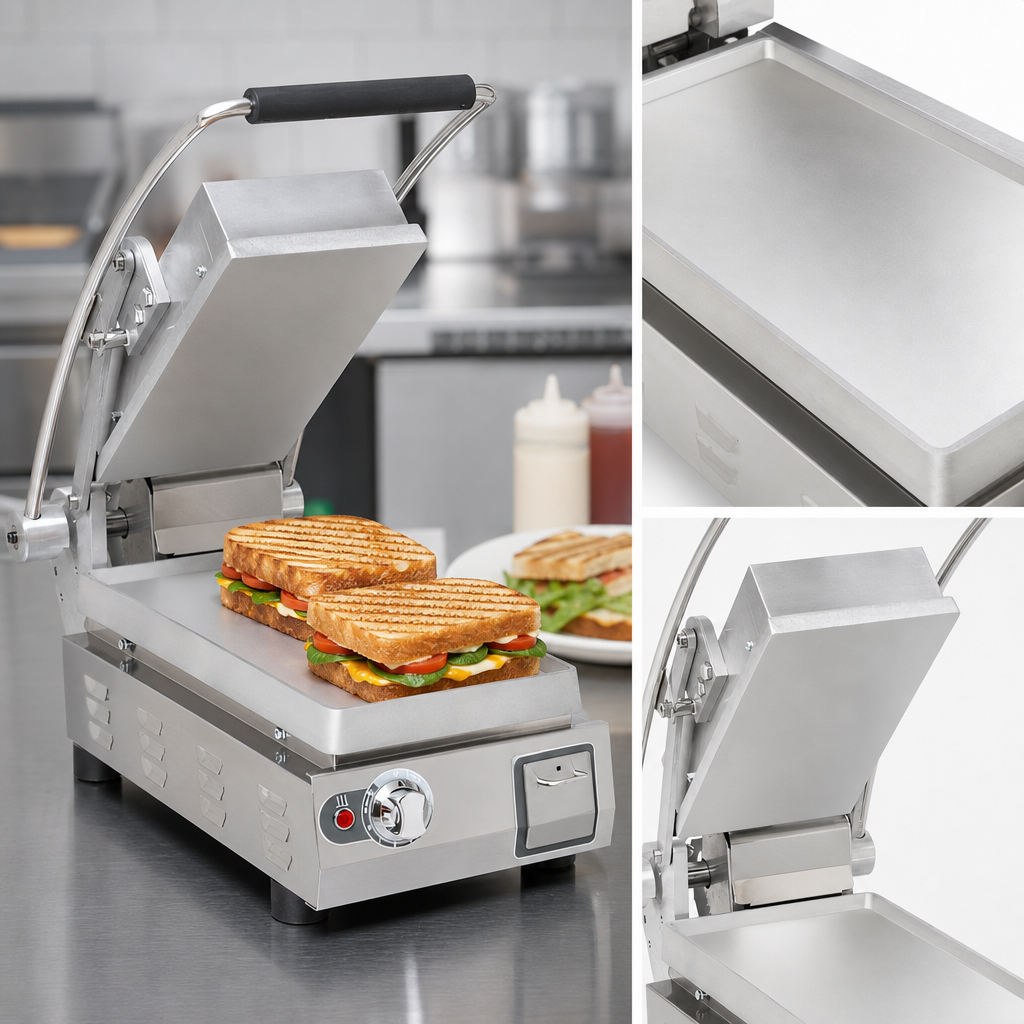

  • Smooth aluminum cooking surface—7.5" × 14.2" lower platen wipes clean in seconds.

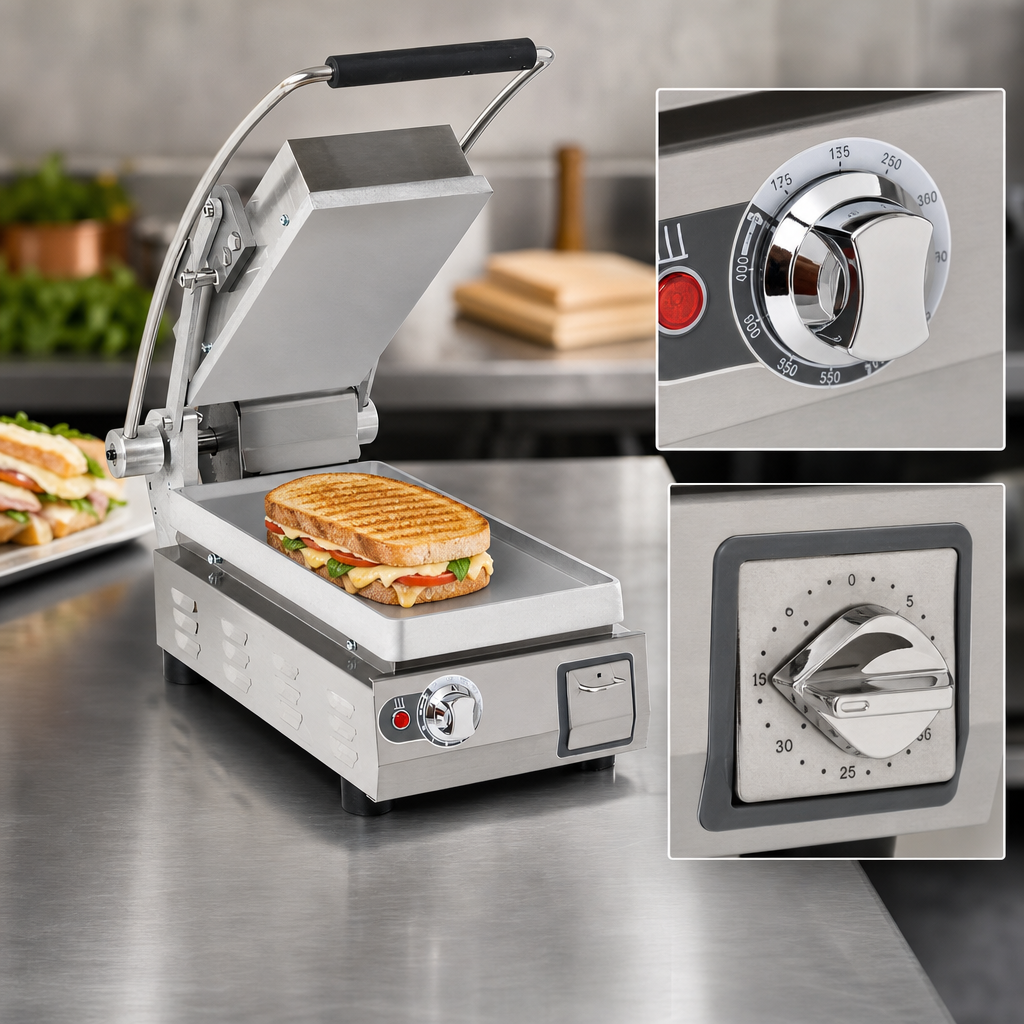

  • Electronic thermostat (175–550 °F) with built-in countdown timer for repeatable results.
  • Heavy-duty torsion spring hinge tested beyond 4 million cycles provides even pressure without crushing product.
  • Ergonomic curved handle stays cool and comfortable during rush periods.
  • Low-profile, all-stainless exterior maximizes hood clearance and resists corrosion.
  • Front-mount, dishwasher-safe grease drawer for simple daily maintenance.
  • 6 ft power cord with NEMA 5-15P plug—draws only 1.43 kW (11.9 A) on a standard 120 V outlet.
  • Non-skid feet keep the unit stable on busy prep counters.
  • cULus & UL EPH Classified for electrical and sanitation safety.
  • Backed by a 1-year parts & labor warranty and proudly built in Smithville, TN.
Why Aluminum Platens?

Aluminum transfers heat up to 5 × faster than cast iron, giving you quicker recovery and consistent browning—while still operating on an everyday 120 V circuit.

Specifications
Cooking surface (lower) 7.5" W × 14.2" D (191 × 361 mm) smooth aluminum
Upper platen 13.4" W × 6.5" D (340 × 165 mm) smooth aluminum
Temperature range 175 °F – 550 °F (79 °C – 288 °C)
Controls Electronic thermostat + digital timer
Hinge Performance torsion spring with 3" flat-landing opening
Exterior construction Stainless steel
Grease management Removable front grease drawer
Electrical 120 V / 50-60 Hz / 1 ph, 1.43 kW, 11.9 A, NEMA 5-15P
Footprint (W × D) 10.38" × 23.30" (264 × 592 mm)
Height 10" closed • 26.6" open
Shipping weight Approx. 55 lb (25 kg)
Certifications cULus, UL EPH Classified
Warranty 1-year parts & labor

Looking for a grooved or higher-power model? Explore the full Pro-Max 2.0® line or contact us for expert help.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Pro-Max 2.0

Certifications

cULus, UL EPH Classified, Made in USA

Height

10.0in

Width

10.38in

Depth

23.3in

Shipping Weight

55.0lbs

Cooking Surface Width (side - side)

7" - 10"

Cooking Surface Depth (front - back)

11" - 14"

Plate Configuration

smooth top & bottom

Plate Construction

aluminum

Temperature Controls

electronic controls

Top Plate

single

Specifications

Pro-Max 2.0® Sandwich Grill, 7.5" W x 14.2"D smooth aluminum cooking surface, performance torsion spring hinge with ergonomic curved handle, electronic 175-550°F thermostat controls with timer, low profile, removable grease drawer, stainless steel exterior, non-skid feet, 120v/50/60/1-ph, 1.43 kW, 11.9 amps, cord, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
