Star (Middleby)  |  Pro-Max 2.0  |  SKU: PST14D

Star (Middleby) PST14D Pro-Max 2.0 Sandwich & Panini Cooking Equipment

$7,241.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation manual Buying guide Warranty sheet
Related Searches
Sandwich & Panini Cooking Equipment Specialty Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

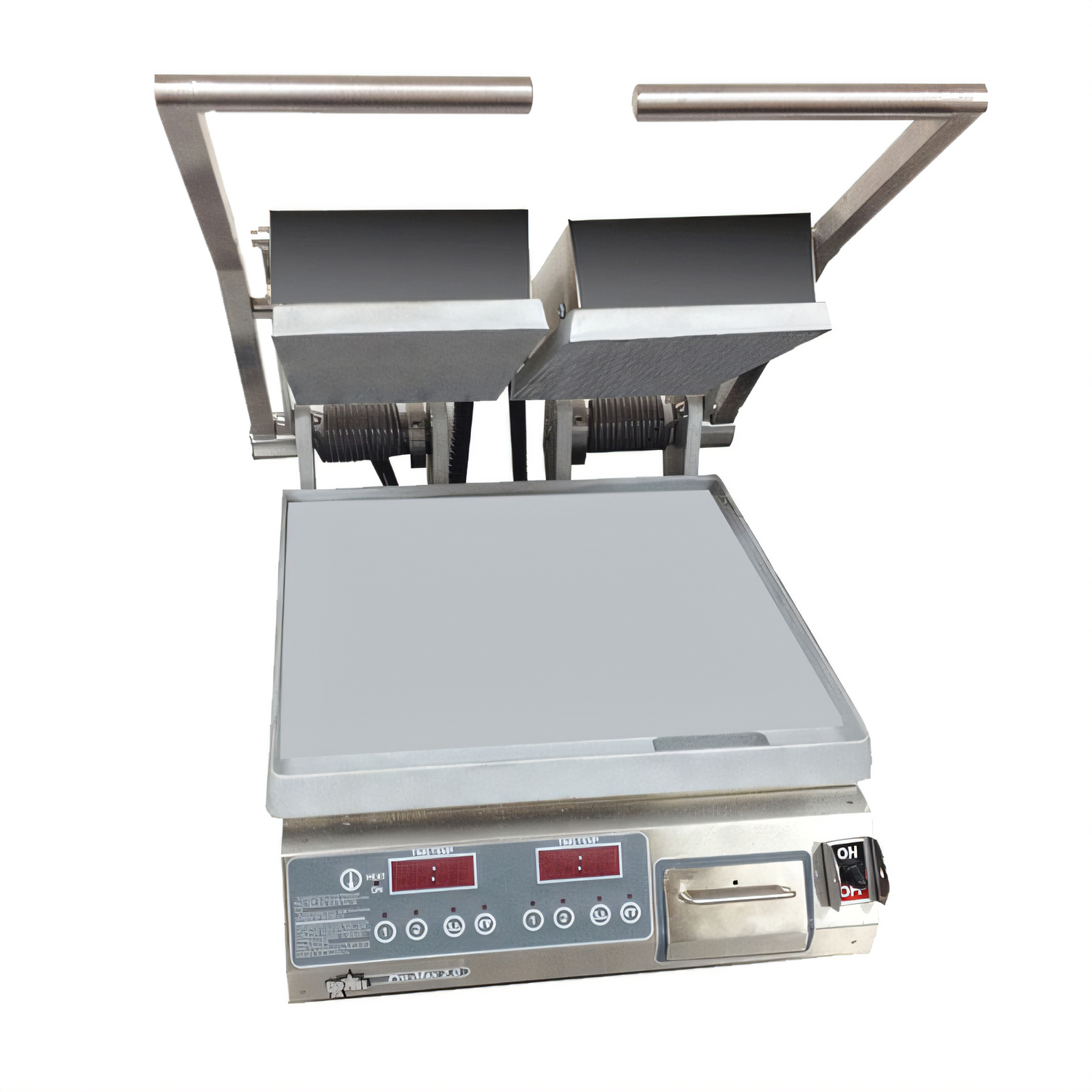

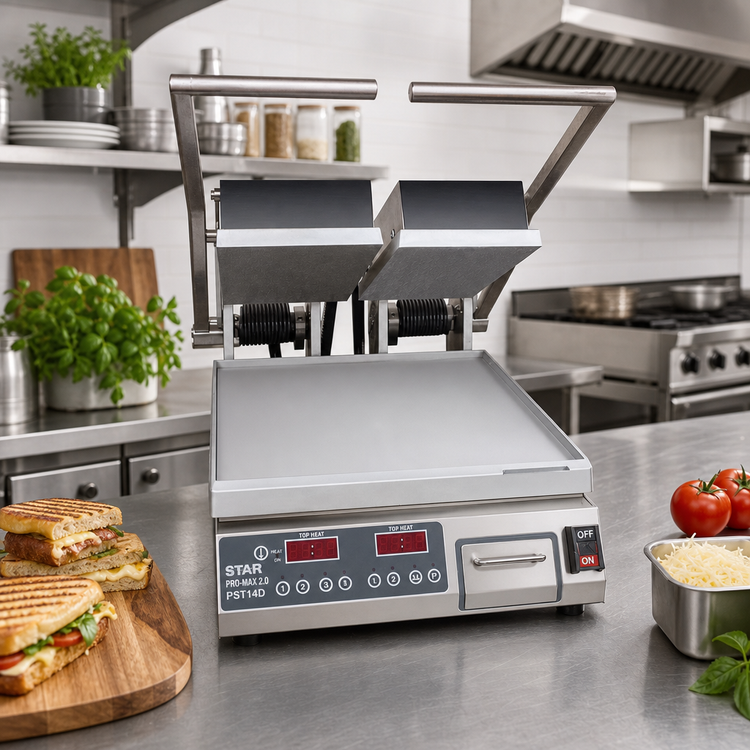

Star Pro-Max 2.0® Split-Top Sandwich Grill – 14" Smooth Aluminum

Replaces legacy model GR14SPTA

Elevate your sandwich station, breakfast line or grab-and-go program with Star’s flagship Pro-Max 2.0®. Dual independent top platens, precision electronic controls and a lifetime-tested torsion hinge deliver fast, repeatable results without crushing fillings or flavor.

Why you’ll love it

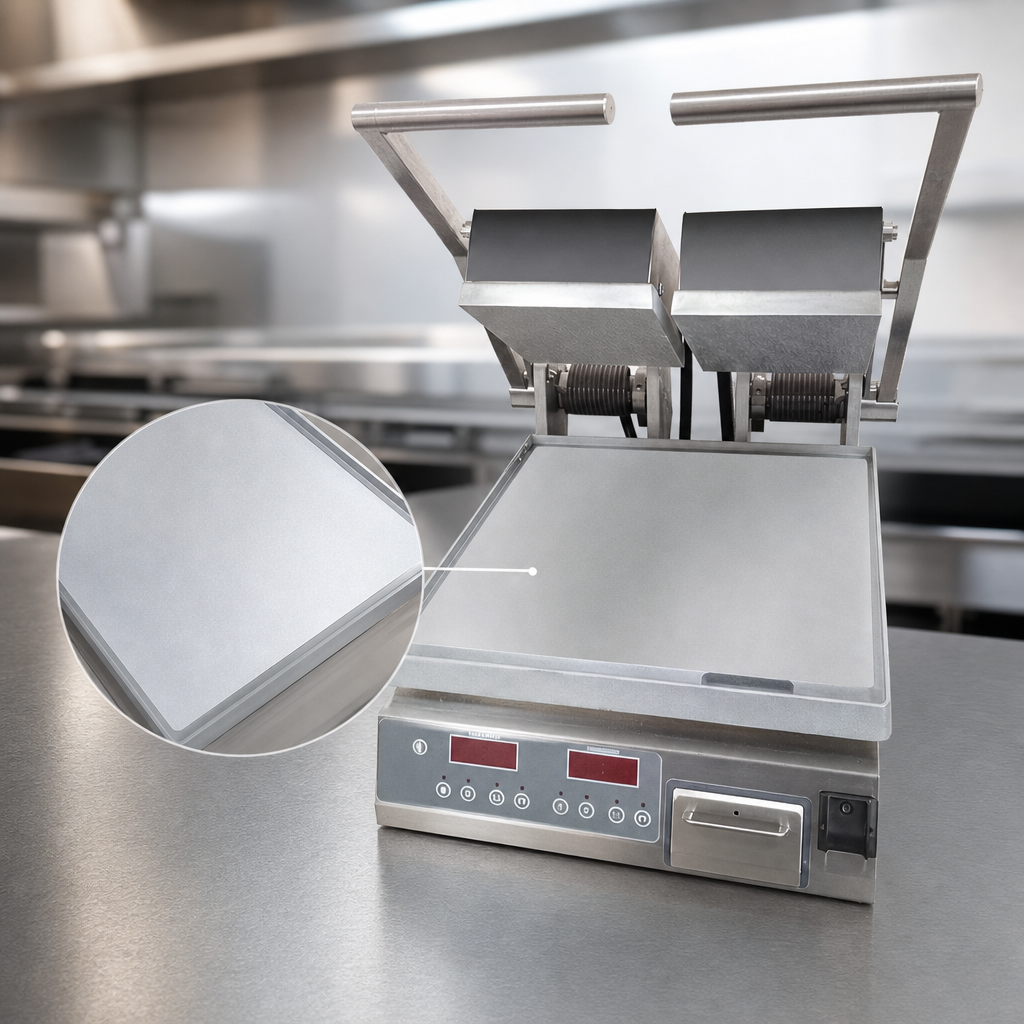

  • Generous 14.5" × 14.2" smooth aluminum lower platen – 200+ sq in of even heat distribution.

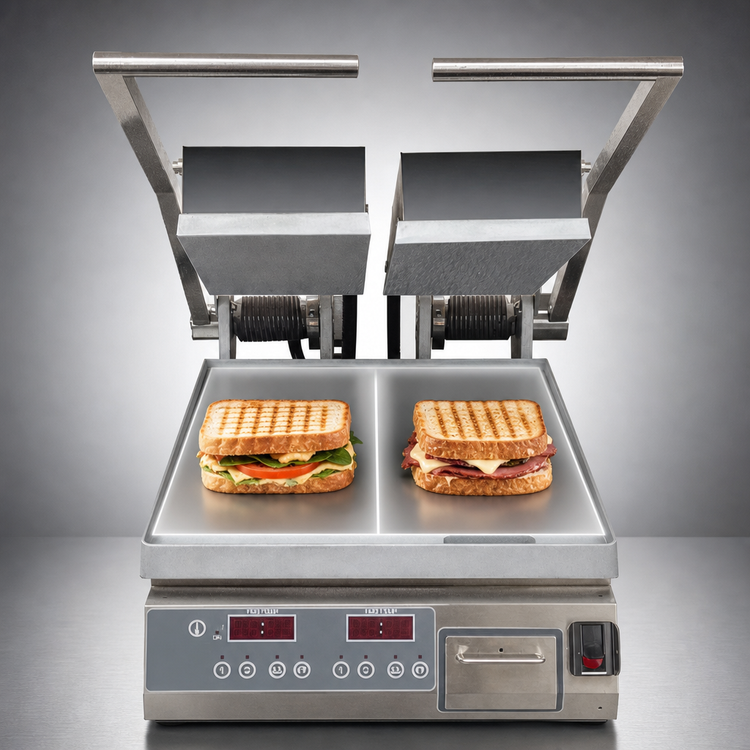

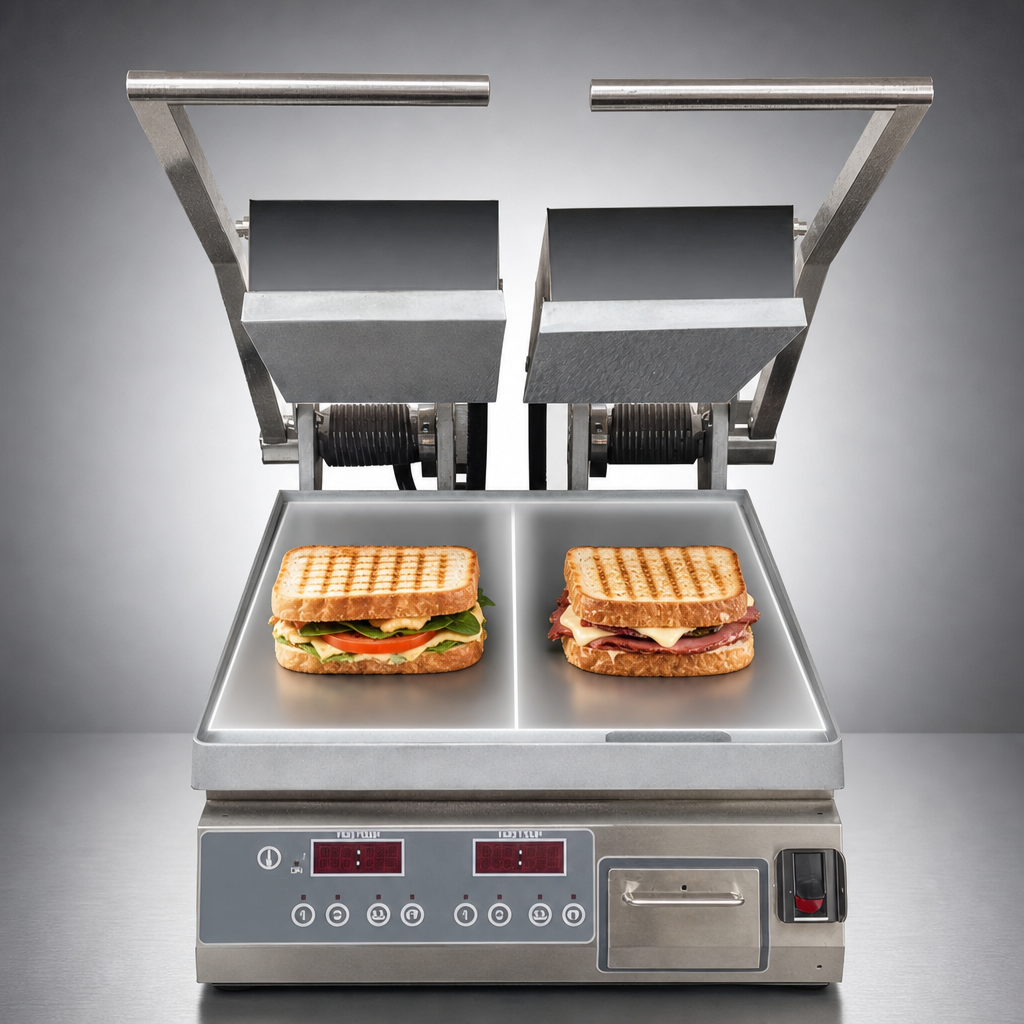

  • Split-top design with two independently controlled 7" platens for true menu flexibility.
  • Electronic thermostat & countdown timer (175–550 °F) ensure consistent cook cycles and easy training.
  • Performance torsion spring hinge applies uniform pressure and is cycle-tested beyond 4 million lifts.
  • Low-profile silhouette (only 10.5" closed) keeps the cooking line open and ergonomic.
  • Removable front-load grease drawer, stainless steel exterior and non-skid feet speed up daily cleanup.
  • cULus & UL EPH Classified, NSF/ANSI compliant – safe for any commercial kitchen.
  • Made in the USA and backed by a full 1-year parts & labor warranty.

Specifications

Cooking surface 14.5 in W × 14.2 in D (368 mm × 361 mm) smooth aluminum
Top platens Dual 7 in W split platens with independent controls
Temperature range 175–550 °F (79–288 °C)
Controls Electronic thermostat with programmable timer & audible alert
Hinge system Heavy-duty torsion spring; 3" “flat-landing” clearance
Construction Stainless steel chassis; ergonomic curved handle
Electrical (standard) 120 V / 1 ph / 2,300 W / 19.2 A, 6 ft cord, NEMA 5-20P
Dimensions (W × D × H) 16.5" × 23.3" × 10.5" closed (419 × 592 × 267 mm)
Shipping weight Approx. 75 lb (34 kg)
Certifications cULus, UL EPH Classified
Warranty 1-year parts & labor

Ideal menu items

  • Panini, melts & pressed sandwiches
  • Breakfast burritos & quesadillas
  • Chicken breasts, burgers & veggie patties
  • Tortillas, flatbreads & naan
Electrical notice: This grill draws up to 19.2 A on a 120 V circuit. Confirm that your outlet and breaker match the listed NEMA configuration before installation.

Financing available through Middleby Equipment Financing – ask your representative for details.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Pro-Max 2.0

Certifications

cULus, UL EPH Classified, Made in USA

Height

10.5in

Width

16.5in

Depth

23.3in

Shipping Weight

94.0lbs

Plate Configuration

smooth top & bottom

Cooking Surface Depth (front - back)

11" - 14"

Top Plate

dual

Plate Construction

aluminum

Cooking Surface Width (side - side)

11" - 14"

Temperature Controls

electronic controls

Specifications

Pro-Max 2.0® Sandwich Grill, 14.5" W x 14.2"D smooth aluminum cooking surface, dual top platens with independent controls, performance torsion spring hinge with ergonomic curved handle, electronic 175-550°F thermostat controls with timer, low profile, removable grease drawer, stainless steel exterior, non-skid feet, cULus, UL EPH Classified, Made in USA (old model reference: GR14SPTA
