Star (Middleby) 872TA Ultra-Max Gas Griddles
Description
Ultra-Max® 72" Countertop Gas Griddle – 872TA
180,000 BTU | Snap-Action Thermostats | Made in USAEngineered for the busiest commercial kitchens, Star Manufacturing’s Ultra-Max® 872TA delivers a full 6 feet of responsive, high-output cooking power in a space-saving countertop footprint. Six independent burners, each paired with an embedded snap-action thermostat, lock in temperatures from 150 °F to 550 °F so every burger, pancake, or stir-fry hits the plate perfectly cooked—every time.
Key Features
- Expansive 72" W × 24" D, 1" thick polished steel plate retains heat and recovers fast.
- Snap-action thermostat sensor positioned just 3⁄16" beneath the surface for ±10 °F accuracy.
- Six 30,000 BTU aluminized burners with standing pilots (total 180,000 BTU).
- 4-3/8" wrap-around splash guard plus 3-1/2" wide front trough → effortless cleanup via twin removable grease drawers.
- Heavy-duty metal control knobs mounted on a welded steel frame with full stainless exterior.
- 4" adjustable stainless legs keep the unit level and clear of counter debris.
- cULus & UL EPH Classified for gas-fired food-service equipment.
- Proudly designed, engineered & built in Smithville, Tennessee — USA.

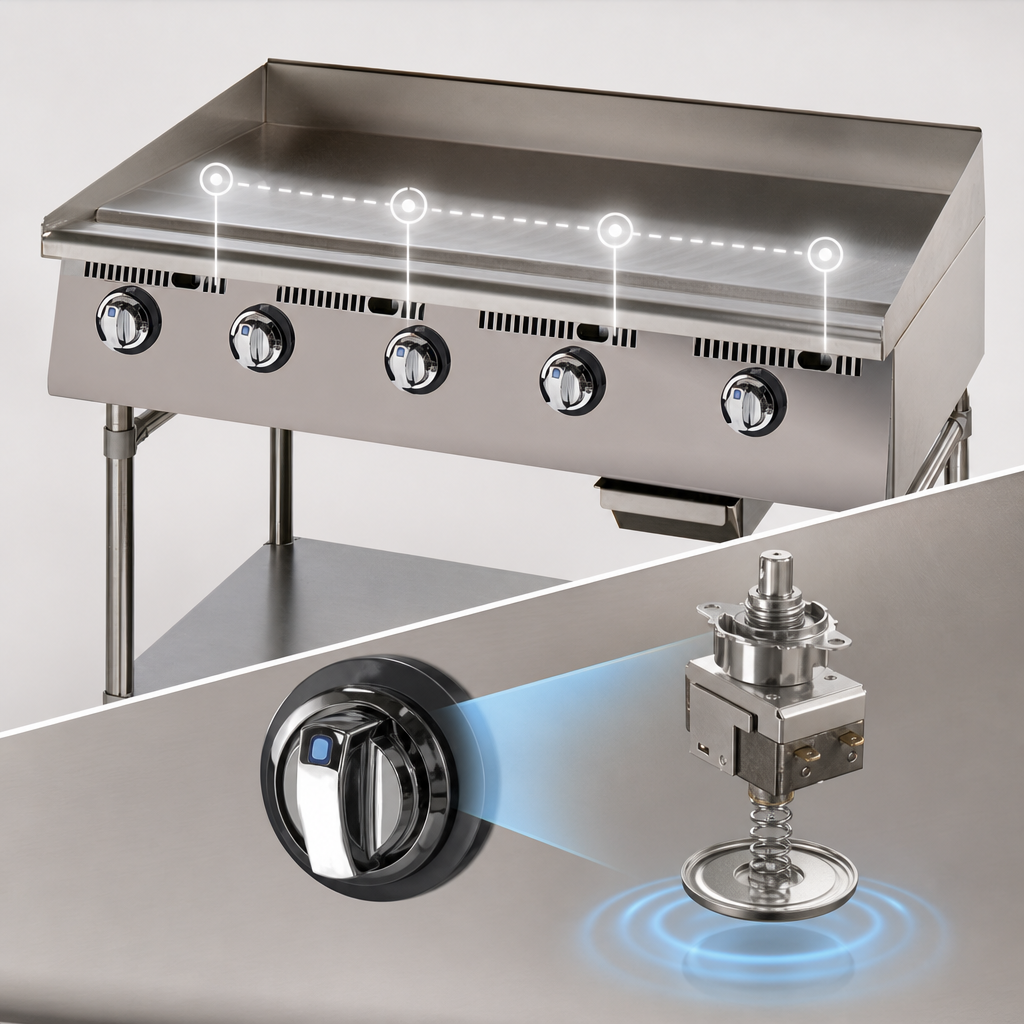

Why Snap-Action?
Traditional throttling thermostats drift; Star’s snap-action system doesn’t. It instantly powers burners fully on or off the moment the set point changes, eliminating hot-cold swings and giving you consistent sears, golden browns and reduced food waste.
Specifications
| Model | Ultra-Max® 872TA (gas, steel plate) |
|---|---|
| Cooking surface | 72" W × 24" D (1829 × 610 mm) |
| Plate thickness | 1" (25 mm) polished steel |
| Thermostat range | 150 °F – 550 °F (66 °C – 288 °C) |
| Total heat input | 180,000 BTU/hr (6 × 30,000 BTU) |
| Controls | 6 independent snap-action thermostats with metal knobs |
| Splash guard | 4-3/8" rear & side, tapered |
| Grease management | 3-1/2" trough with 2 removable drawers |
| Overall dimensions | 18" H × 72" W × 34.2" D (457 × 1829 × 869 mm) |
| Gas connection | 3/4" NPT male (right rear) |
| Shipping / installed weight | 787 lb / 642 lb (357 kg / 291 kg) |
| Clearances | 6" (152 mm) sides & rear from combustible surfaces |
| Certifications | cULus Listed, UL EPH Classified |
| Warranty | 2 years parts & labor (Ultra-Max® series) |

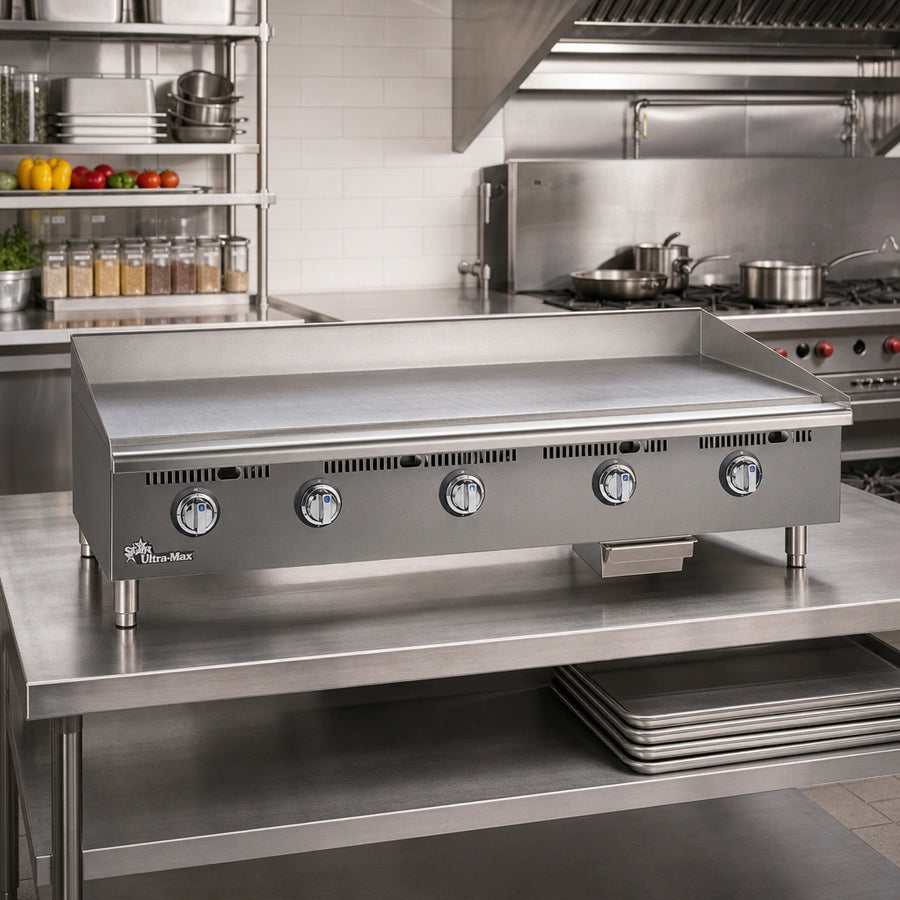

Perfect For
- High-volume diners and brunch concepts
- Hotel & resort kitchens serving 24/7 menus
- Steak houses & burger bars requiring consistent sear zones
- Commissary, catering and ghost-kitchen production lines
Looking for a chrome-plated surface or a matching equipment stand? Ask our team for factory-installed options and accessories.
Elevate your cookline with the power, precision and durability of Star’s flagship griddle. Add the Ultra-Max® 872TA to your cart today or call us for expert assistance.
