Star (Middleby) 860TCHSA Ultra-Max Gas Griddles
Description

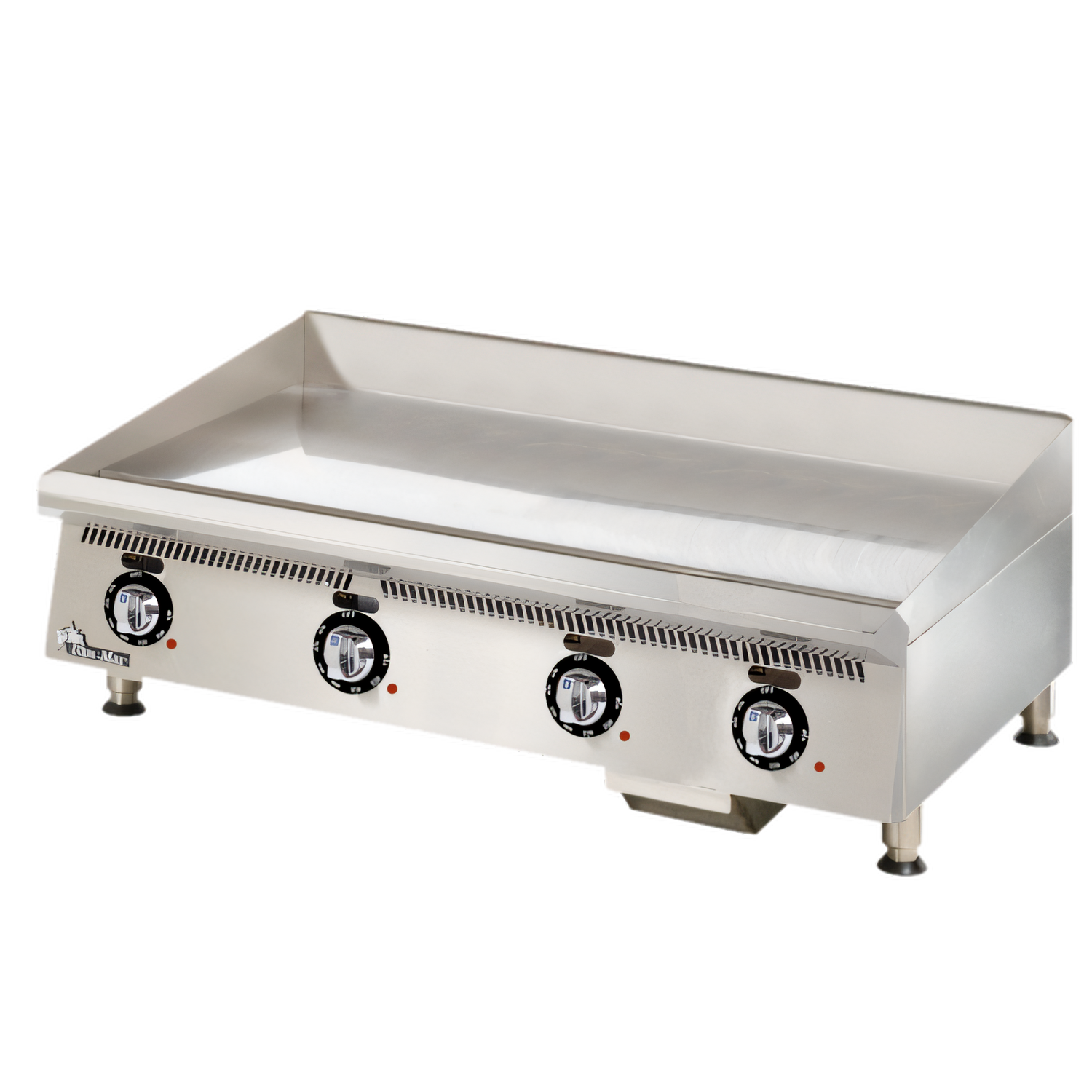

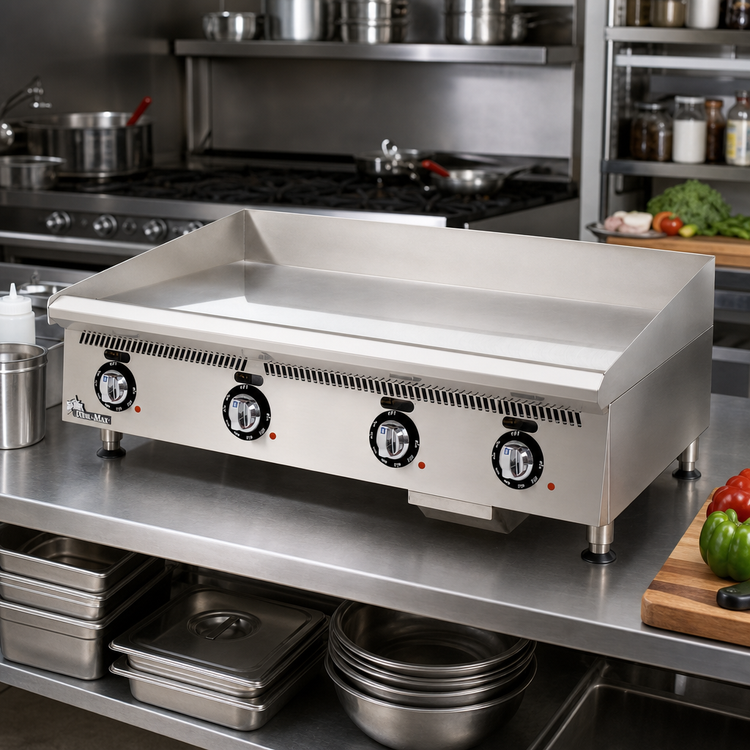

Star Ultra-Max® 60" Chrome Gas Griddle – Model 860TCHSA
Countertop | 150,000 BTU | Made in USAEngineered for high-volume kitchens that refuse to compromise, the Ultra-Max® 860TCHSA pairs a massive 60" cooking surface with precise snap-action controls and an easy-clean chrome finish. From delicate breakfast favorites to all-day searing, you get rock-solid temperature accuracy and rugged construction that keeps pace with the rush.
Key Features & Benefits

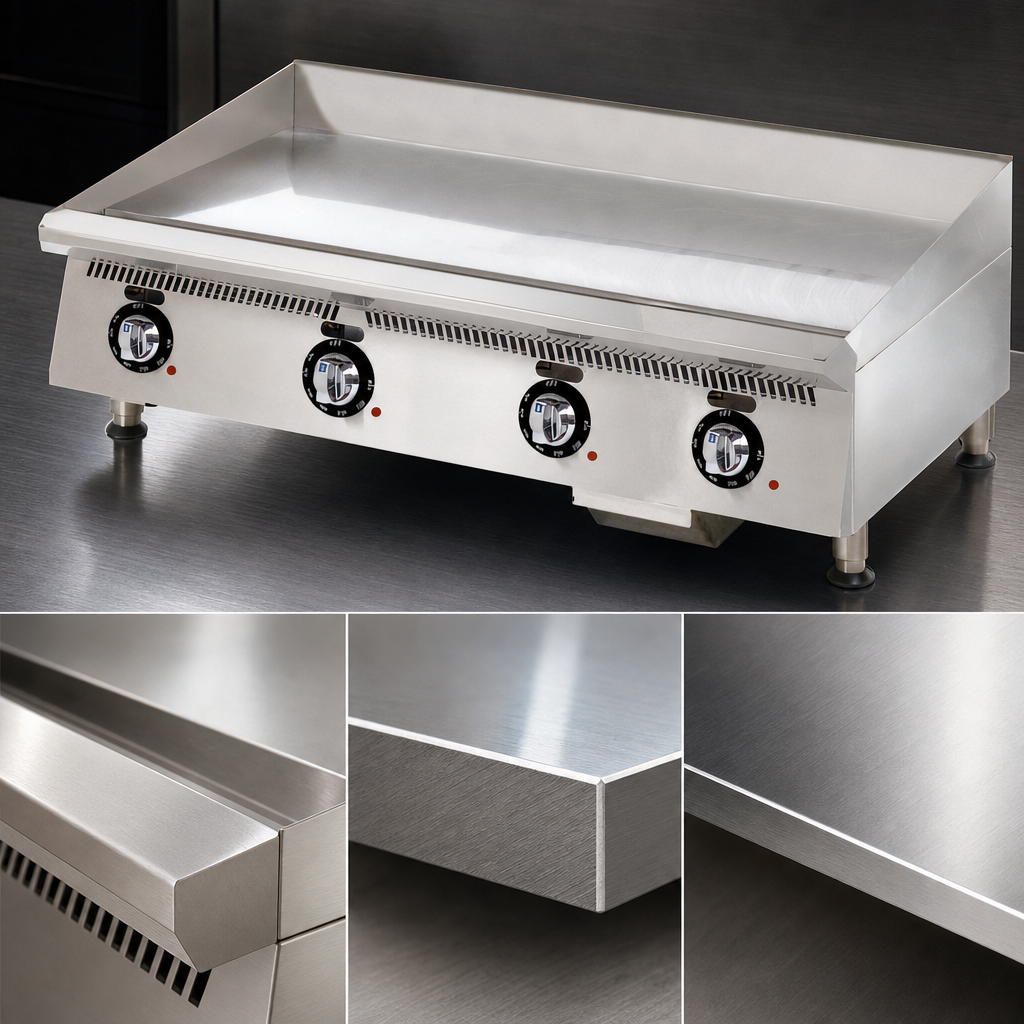

- 1" (25 mm) thick T1 steel griddle plate with a 0.001" hexavalent chrome surface—retains heat, lowers radiant heat in the kitchen, and wipes clean fast.
- Five independent heat zones (one every 12") powered by 30,000 BTU burners for a total of 150,000 BTU.
- Embedded mechanical snap-action thermostats mounted just 0.1875" below the surface hold set temps from 150–550 °F (66–288 °C) within a tight ±10 °F band.
- 4 3⁄8" wrap-around splash guard plus an extra-wide 3 1⁄2" front trough direct grease to two large, easy-pull drawers for fast cleanup.
- Rugged welded steel frame with full stainless-steel exterior—built for years of heavy commercial use.
- Cool-touch, heavy-duty metal control knobs and standing pilots for instant, reliable ignition.
- 4" stainless-steel legs with 1 3⁄8" adjustment let you level the unit on any countertop.
- cULus & UL EPH Classified for gas-fired foodservice equipment.
Technical Specifications
| Model | 860TCHSA |
|---|---|
| Cooking surface | 60" W × 24" D (1,524 × 610 mm) |
| Plate material | 1" T1 steel with 0.001" chrome finish |
| Heat zones / controls | 5 zones – snap-action thermostat every 12" |
| Temperature range | 150–550 °F (66–288 °C) |
| Total input | 150,000 BTU /hr (30,000 BTU per zone) |
| Ignition | Standing pilot (one per burner) |
| Grease management | 3 1⁄2" front trough with dual removable drawers |
| Overall dimensions | 60" W × 34.2" D × 18" H (1,524 × 869 × 457 mm) |
| Gas connection | 3⁄4" NPT male (rear) |
| Adjustable legs | 4" stainless (±1 3⁄8") |
| Installed weight | 556 lb (252 kg) |
| Shipping weight | 656 lb (298 kg) |
| Certifications | cULus, UL EPH, Made in USA |
| Warranty | 2-year parts & labor |
Minimum clearance: 6" (152 mm) on back & sides. Use supplied legs on non-combustible countertops or a 27" (686 mm) stand on combustible floors.
