Star (Middleby) 860TA Ultra-Max Gas Griddles
Description

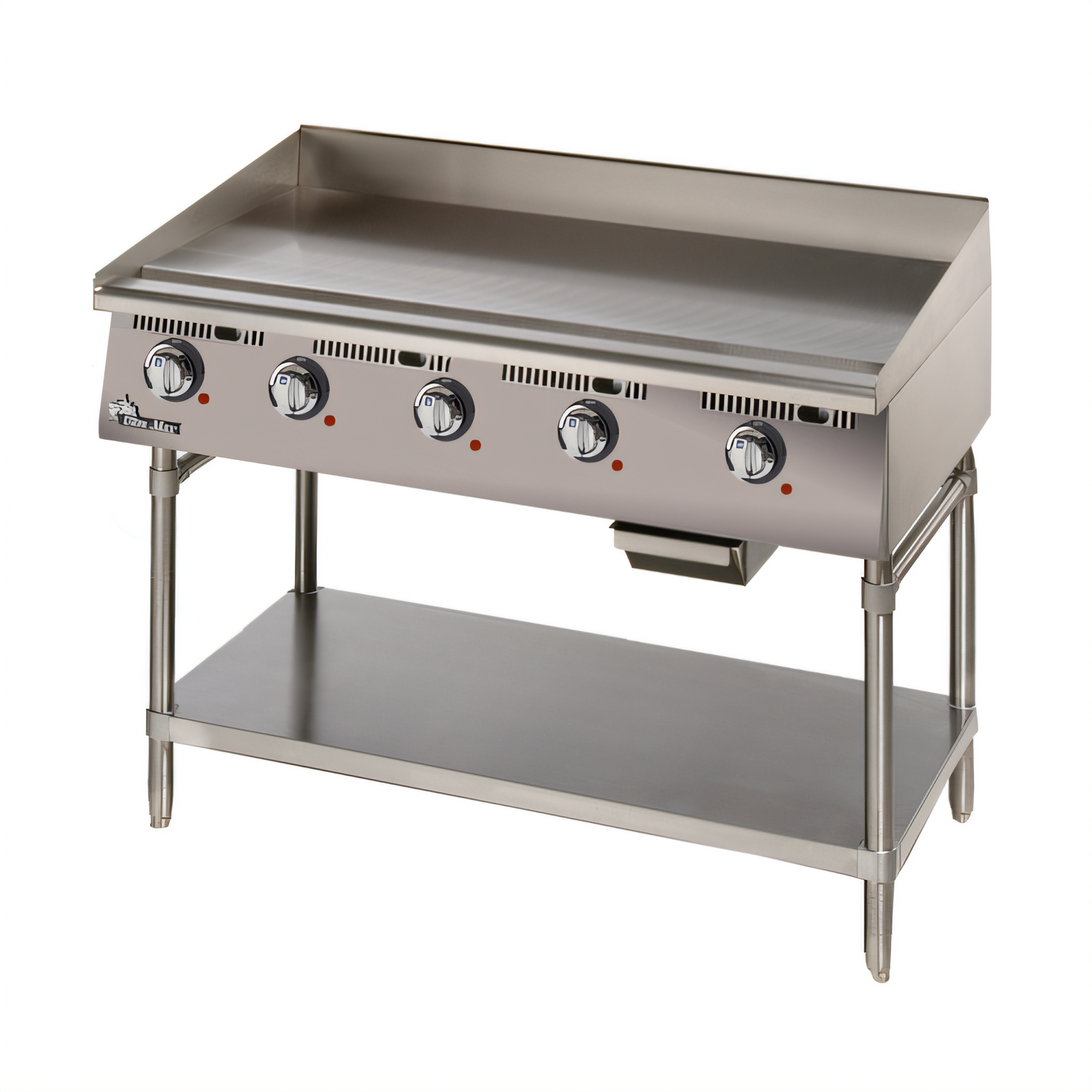

Star Ultra-Max® 60" Gas Countertop Griddle
Model 860TA • Mechanical Snap-Action Thermostat • 150,000 BTUBuilt for the busiest diners, hotels, and QSRs, the 60-inch Ultra-Max® delivers the power of a full-size range in a space-saving countertop design. A 1-inch polished steel plate and embedded snap-action thermostats ensure lightning-fast recovery and pinpoint temperature accuracy from 150°–550 °F, so every burger, breakfast item, or stir-fry leaves the kitchen perfectly cooked.
Chef-Tuned Performance
- Five 30,000 BTU burners (one every 12") with standing pilots for instant ignition.
- Mechanically embedded snap-action thermostats 0.19" below the plate sense surface temperature—not air temperature—for unmatched accuracy.

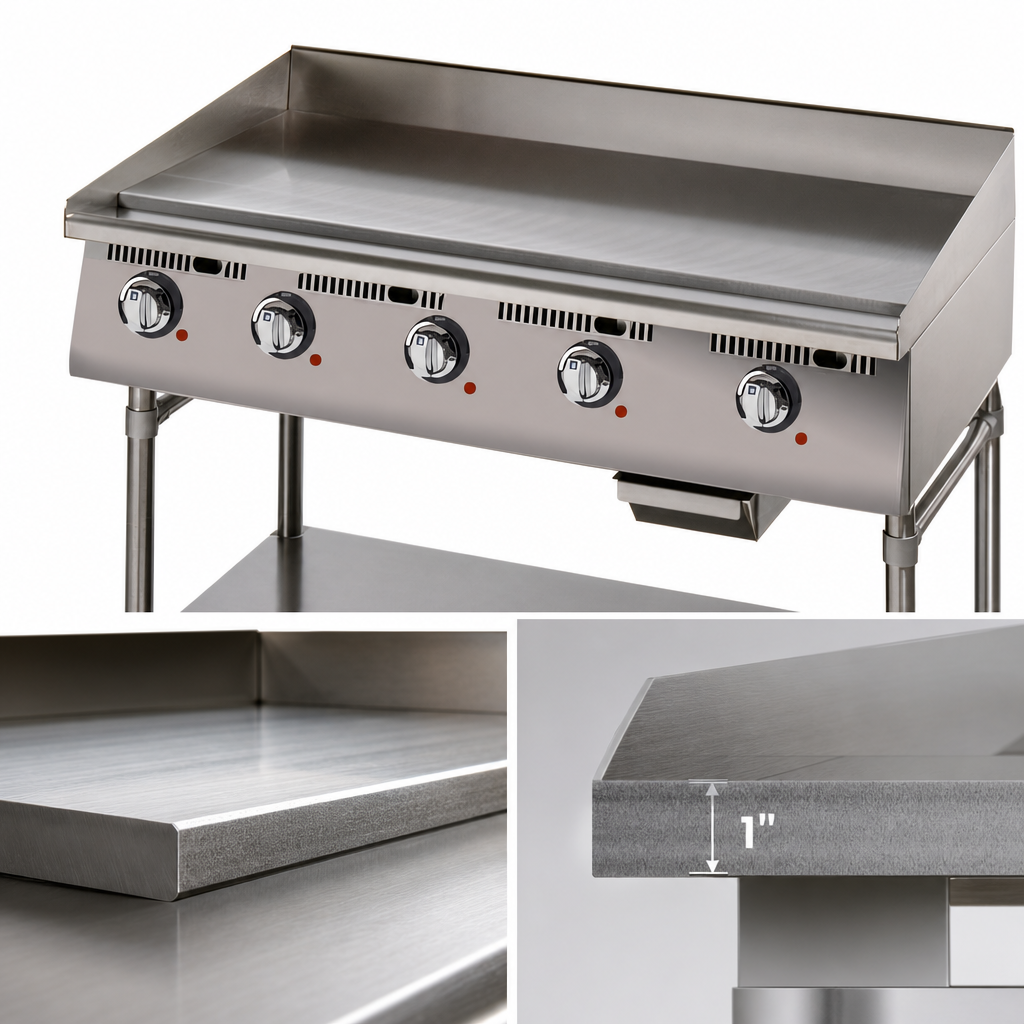

- Extra-thick 1" (25 mm) polished steel plate spreads heat evenly and holds it during peak rushes.
- Wide 150°–550 °F range lets you sear steaks, caramelize onions, or hold delicate items on low.
Operator-Focused Design
- 4 ⅜" wrap-around splash guard keeps grease contained on all sides.
- 3 ½" front trough guides runoff to two easy-pull stainless grease drawers for quick clean-outs.
- Heavy-duty metal control knobs stand up to constant use and cleaning chemicals.
- 4" stainless legs adjust 1 ⅜" for quick leveling on uneven counters.
- Welded steel chassis with full stainless exterior—rugged enough for 24/7 operations.
Technical Specifications
| Cooking Surface | 60" W × 24" D (1524 × 610 mm) |
|---|---|
| Overall Dimensions | 60" W × 34.2" D × 18" H (1524 × 869 × 457 mm) |
| Plate Thickness / Material | 1" polished steel |
| Heat Output | 150,000 BTU/hr (natural or LP gas) |
| Temperature Range | 150 °F – 550 °F (66 °C – 288 °C) |

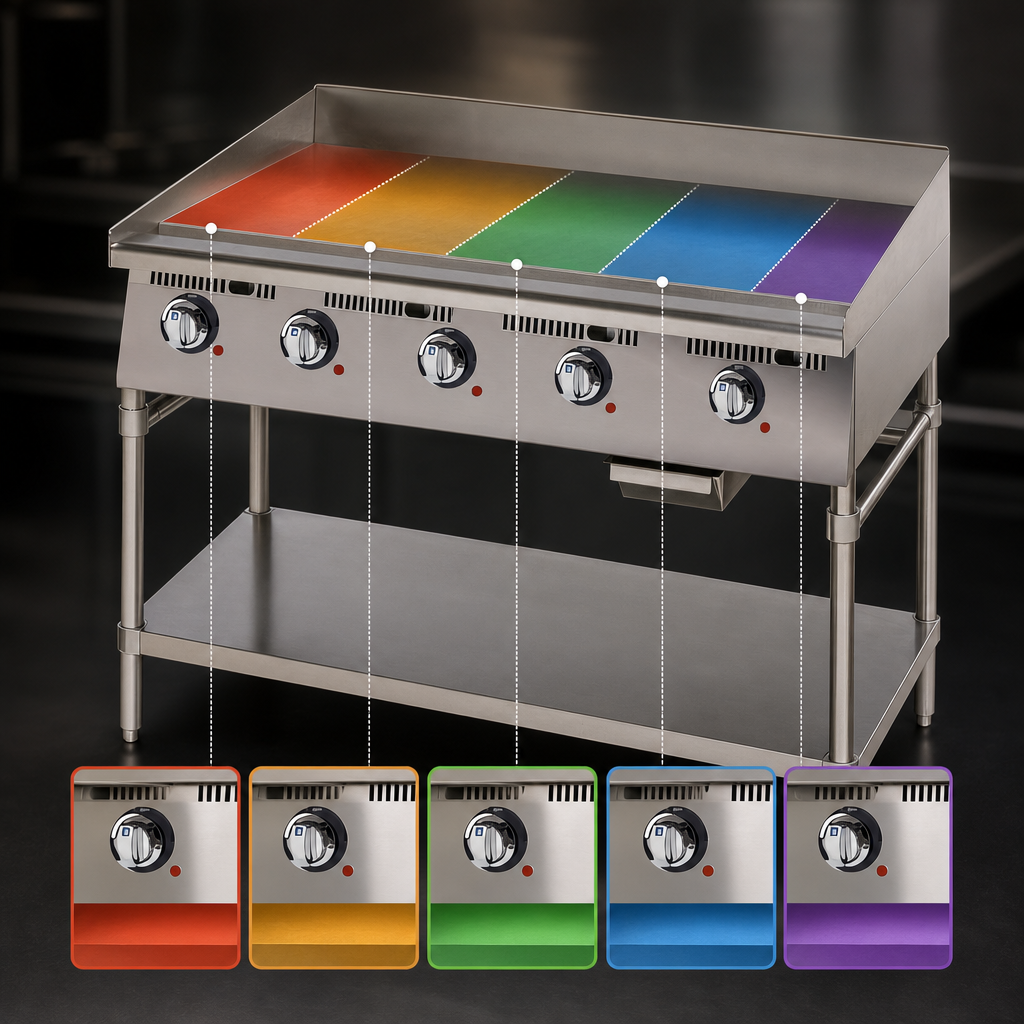

| Controls | 5 snap-action thermostats (one per 12") |
| Gas Connection | ¾" NPT male, rear |
| Installed Weight | 556 lb (252 kg) |
| Certifications | cULus Listed, UL EPH Classified, Made in USA |
| Warranty | 2 years parts & labor |
Popular Accessories (Sold Separately)
- 24" steel equipment stand with adjustable legs or locking casters
- Quick-disconnect hose & restraining kit
- Chrome-finished plate upgrade for delicate proteins
- Gas pressure regulator (¾" × ¾")
Specifications are subject to change without notice. Always consult the installation manual and local codes before connecting utilities.
