Star (Middleby)  |  Ultra-Max  |  SKU: 860MA

Star (Middleby) 860MA Ultra-Max Gas Griddles

$8,418.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Star Ultra-Max® 60" Countertop Gas Griddle

Model 860MA • Polished Steel Plate • 150,000 BTU

Give your line the fire-power it deserves. The Ultra-Max® 860MA couples a massive 60" x 24" cooking surface with five independently-controlled burners, delivering rock-solid performance shift after shift in diners, hotel kitchens, QSRs and high-volume concession operations.

Key Features

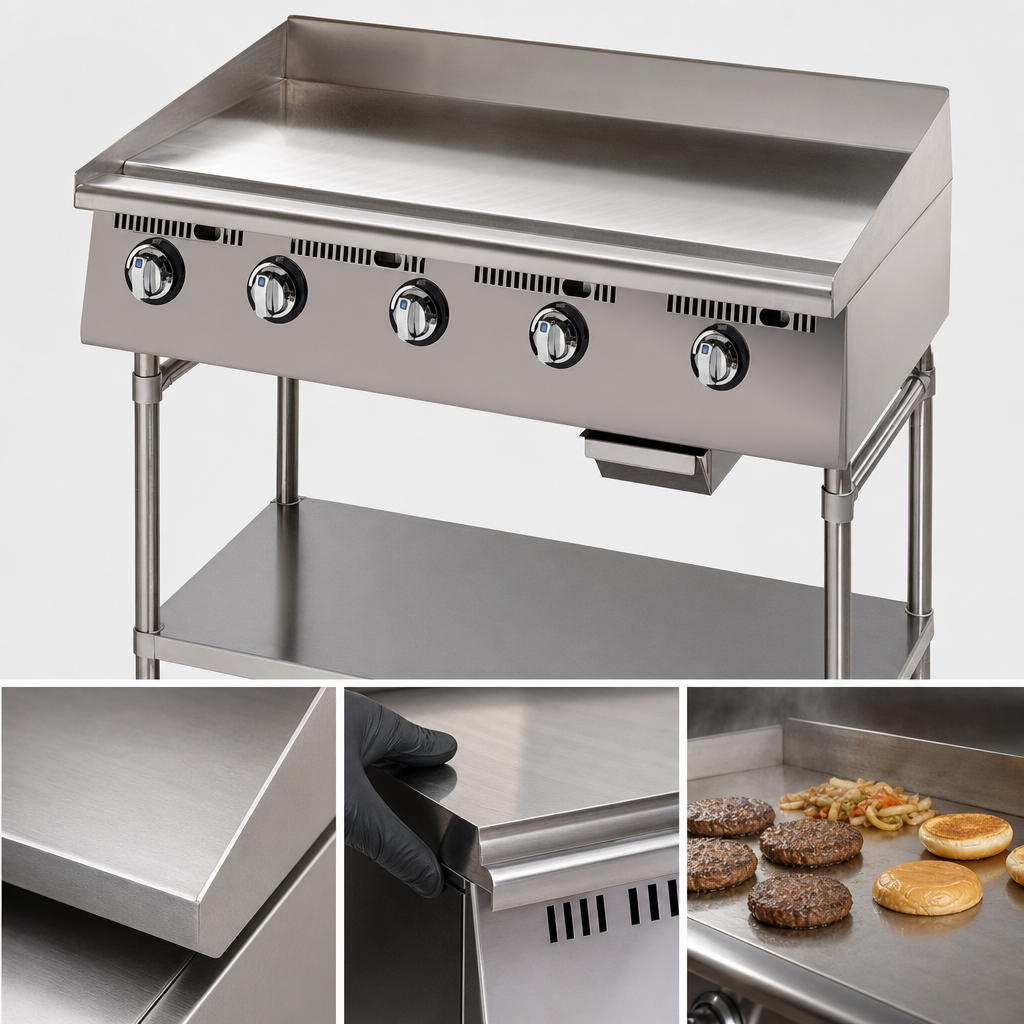

  • 1" (25 mm) thick polished steel griddle plate for superior heat retention & recovery
  • Five burners @ 30,000 BTU each – a full 150,000 BTU of searing power
  • Individual manual controls every 12" for true multi-zone cooking versatility
  • Standing pilot ignition for instant start-up in every zone
  • 4-3/8" (111 mm) tapered wrap-around splash guard contains splatter on three sides
  • 3-1/2" (89 mm) wide front grease trough feeds dual pull-out drawers (easy, mess-free clean-up)
  • Heavy-duty metal knobs and welded steel chassis with stainless steel exterior panels
  • 4" (102 mm) stainless legs with 1-3/8" adjustment for fast leveling
  • cULus & UL EPH Classified • NSF compliant for foodservice use
  • Made in the USA & backed by a 2-year parts & labor warranty

Specifications

Cooking surface 60" W × 24" D (1524 × 610 mm)
Plate material / thickness Polished steel, 1" (25 mm)
Heat controls 5 manual valves, heavy-duty metal knobs
Input rating 150,000 BTU /hr (30,000 BTU per 12" section)
Ignition Standing pilots (one per burner)
Grease management 3 ½" front trough & 2 pull-out grease drawers
Splash guard height 4 ⅜" (111 mm)
Overall dimensions (W×D×H) 60" × 34.2" × 18" (1524 × 869 × 457 mm)
Gas connection ¾" NPT male (specify Natural Gas or LP at order)
Shipping / installed weight 656 lb (298 kg) / 556 lb (252 kg)
Warranty 2 years parts & labor
Important: Allow a minimum 6" (152 mm) clearance at sides and rear. Unit must be installed on a non-combustible countertop using the supplied 4" legs, or on the optional 27" equipment stand for combustible floors. Follow all local gas codes.

Perfect for

  • All-day breakfast menus that demand rapid recovery and even heating
  • Steak, burger & quesadilla programs needing multiple temperature zones

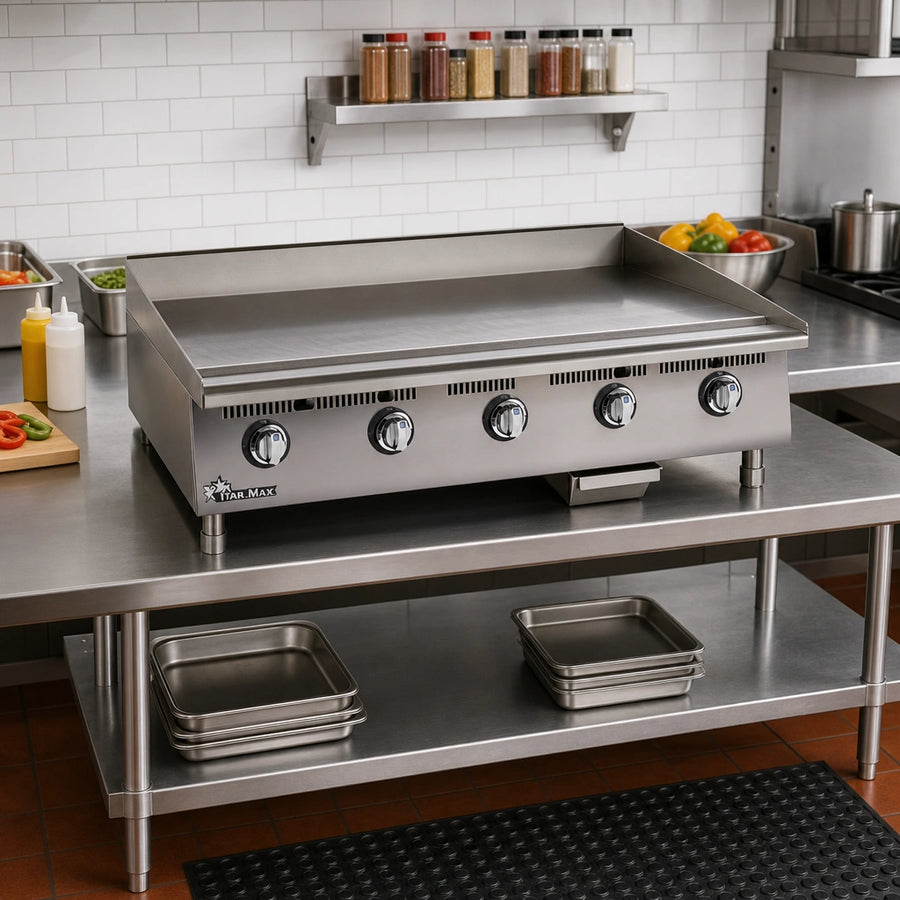

  • C-store, stadium and catering operations where countertop space is at a premium

Need financing? Ask about Middleby Equipment Financing to turn this purchase into low, fixed monthly payments.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

18.0in

Width

60.0in

Depth

34.2in

Shipping Weight

656.0lbs

Cooking Surface Width (side - side)

55" - 60"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

manual controls

Exterior Finish

all stainless steel exterior

Plate Thickness

1"

Specifications

Ultra-Max® Griddle, countertop gas, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, (5) manual controls, 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 150,000 BTU, cULus, UL EPH Classified, Made in USA
