Star (Middleby) 848TCHSA Ultra-Max Gas Griddles
Description

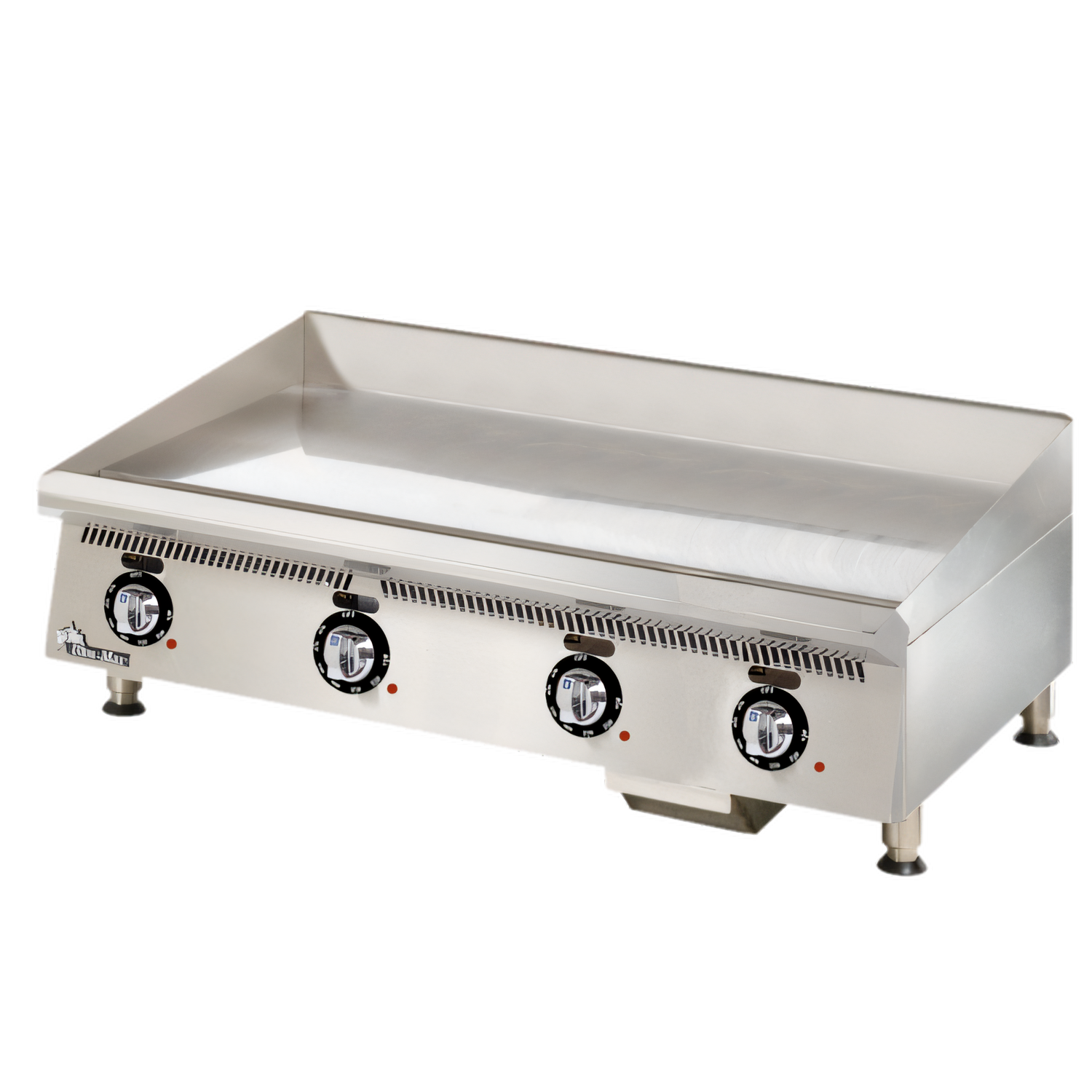

Star Ultra-Max® 48" Gas Countertop Griddle – Chrome Plate
Model 848TCHSA | 120,000 BTUEngineered for the busiest cooklines, the Ultra-Max® 48-inch gas griddle pairs a rugged stainless chassis with a premium 1" T1 steel plate coated in 0.001" hexavalent chrome. Four independent snap-action thermostats lock each 12-inch zone between 150°F and 550°F, giving you precise control, lightning-fast recovery, and an easy-to-clean surface that keeps energy costs in check.
Key Features

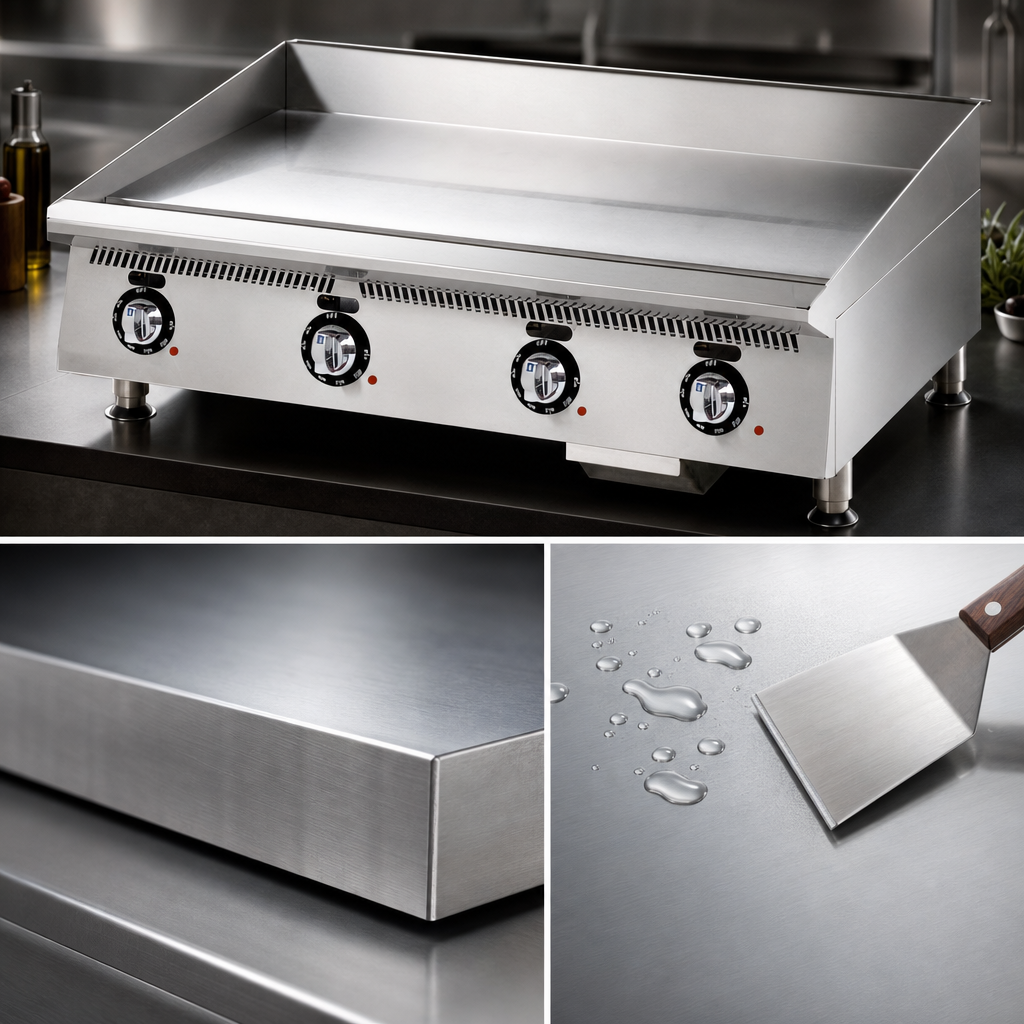

- 48" W × 24" D, 1"-thick chrome-plated T1 steel cooking surface for exceptional heat retention & release

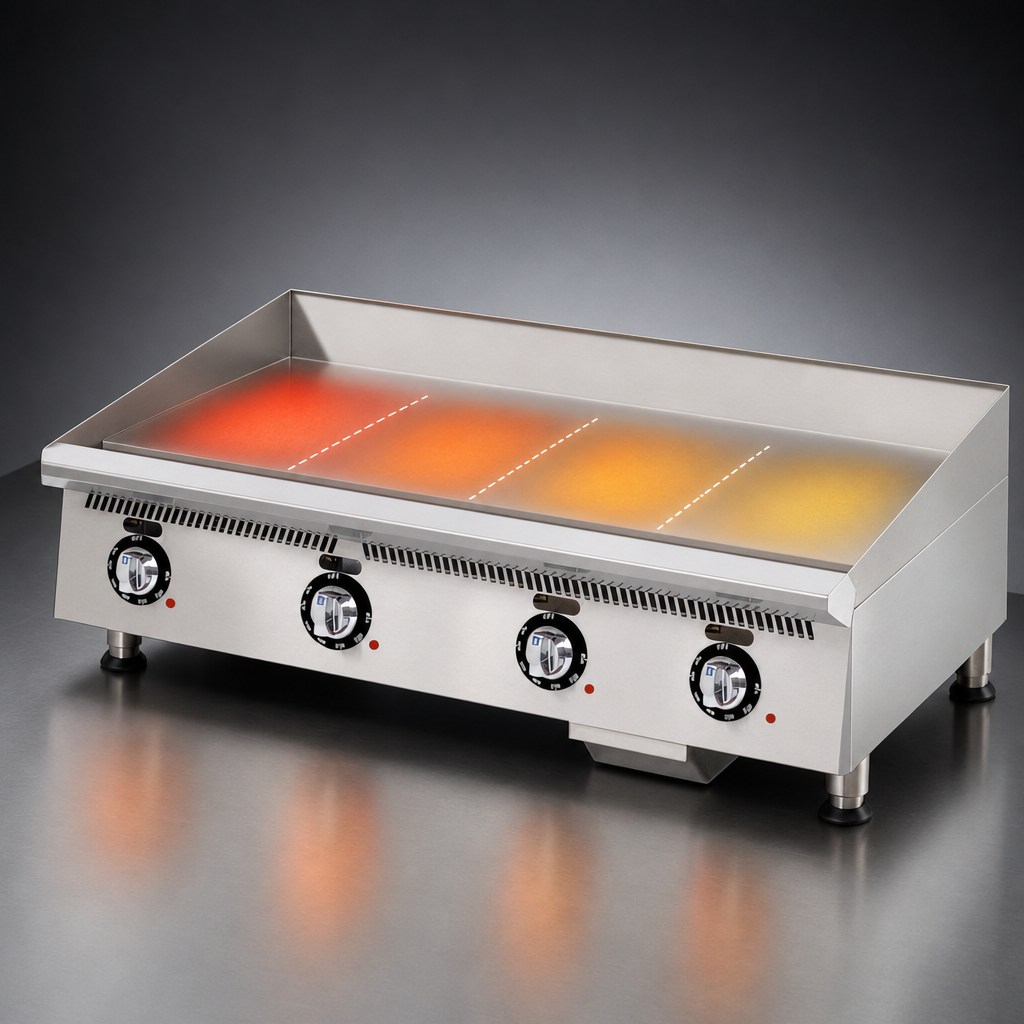

- Embedded mechanical snap-action thermostat every 12" senses temperature just ⅛" from the surface for ±10°F accuracy
- 30,000 BTU burner beneath each zone; total output 120,000 BTU/hr
- Wide 150°F – 550°F range handles everything from delicate pancakes to steakhouse searing
- 4-⅜" wrap-around splash guard plus 3-½" × 1" front trough channel grease to a full-width drawer
- Heavy-duty metal control knobs with standing pilot for instant ignition
- Welded steel frame and all-stainless exterior built for demanding, high-volume use
- (4) 4" stainless legs with 1-⅜" adjustment simplify leveling under any hood
- Made in the USA and listed cULus & UL EPH for gas-fired foodservice equipment
At-a-Glance Specs
| Cooking surface | 48" W × 24" D (1,219 × 610 mm) |
|---|---|
| Plate material | 1" (25 mm) T1 steel with 0.001" hexavalent chrome |
| Controls | (4) mechanical snap-action thermostats, one per 12" section |
| Temp. range | 150°F – 550°F (66°C – 288°C) |
| Total BTU | 120,000 BTU/hr (natural or LP, field-convertible) |
| Gas connection | 3/4" NPT male, left rear |
| Overall size | 48" W × 34.2" D × 18" H |
| Ship weight | Approx. 520 lb (236 kg) |
| Certifications | cULus, UL EPH Classified |
| Origin | Smithville, Tennessee, USA |
Clearance & Installation
- Maintain minimum 6" clearance at sides & rear from any surface (combustible or non-combustible).
- Unit must rest on supplied 4" legs when used on non-combustible countertops.
- Use a 27" stand when installing on combustible floors.
Included With Your Griddle
- Full-width removable grease drawer
- (4) adjustable stainless steel legs
- Factory-installed standing pilots & burners (natural gas standard)
- 2-year parts & labor warranty
Ideal For
- Diners & breakfast operations
- Burger or steak concepts requiring zone cooking
- Hotel, resort & institutional kitchens
- Catering commissaries & ghost kitchens
