Description

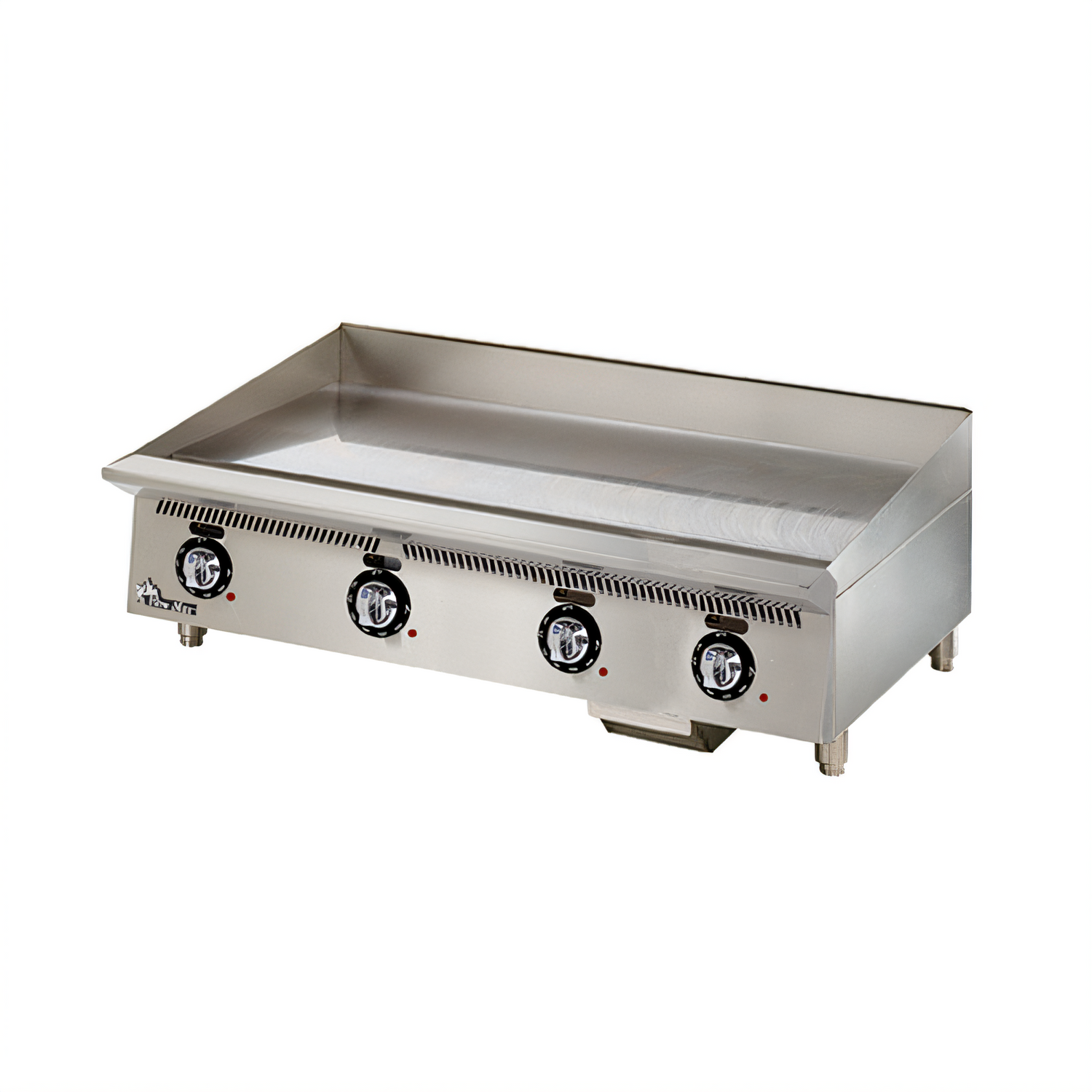

Star Ultra-Max® 48" Countertop Gas Griddle
Model 848TA • 120,000 BTU • Made in USABuilt for the busiest kitchens, Star’s Ultra-Max 48" gas griddle delivers zone-by-zone precision, rapid recovery, and rock-solid durability—all in a compact countertop footprint.
Why you’ll love it
- 48" W × 24" D (1,152 in²) surface handles breakfast, lunch and dinner menus at once.
- 1" thick polished steel plate holds heat for perfect sears and faster ticket times.

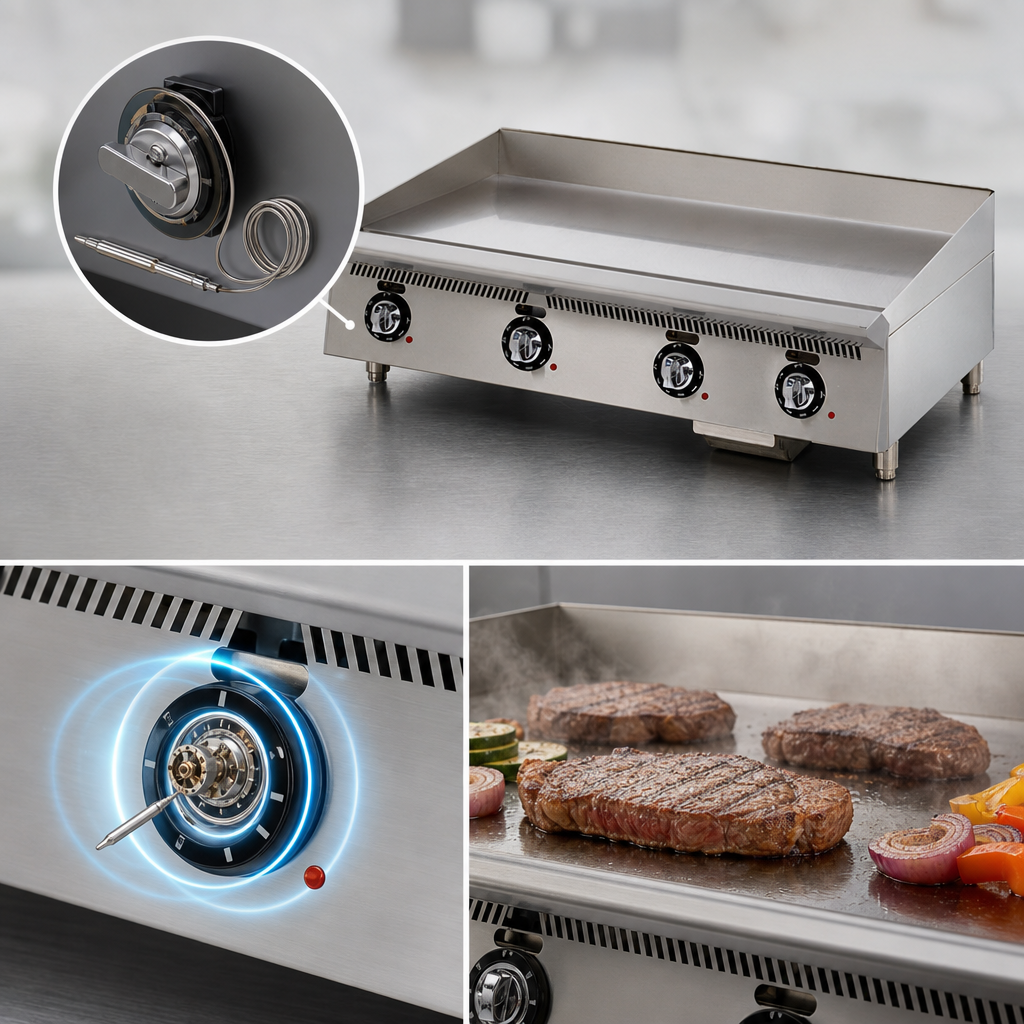

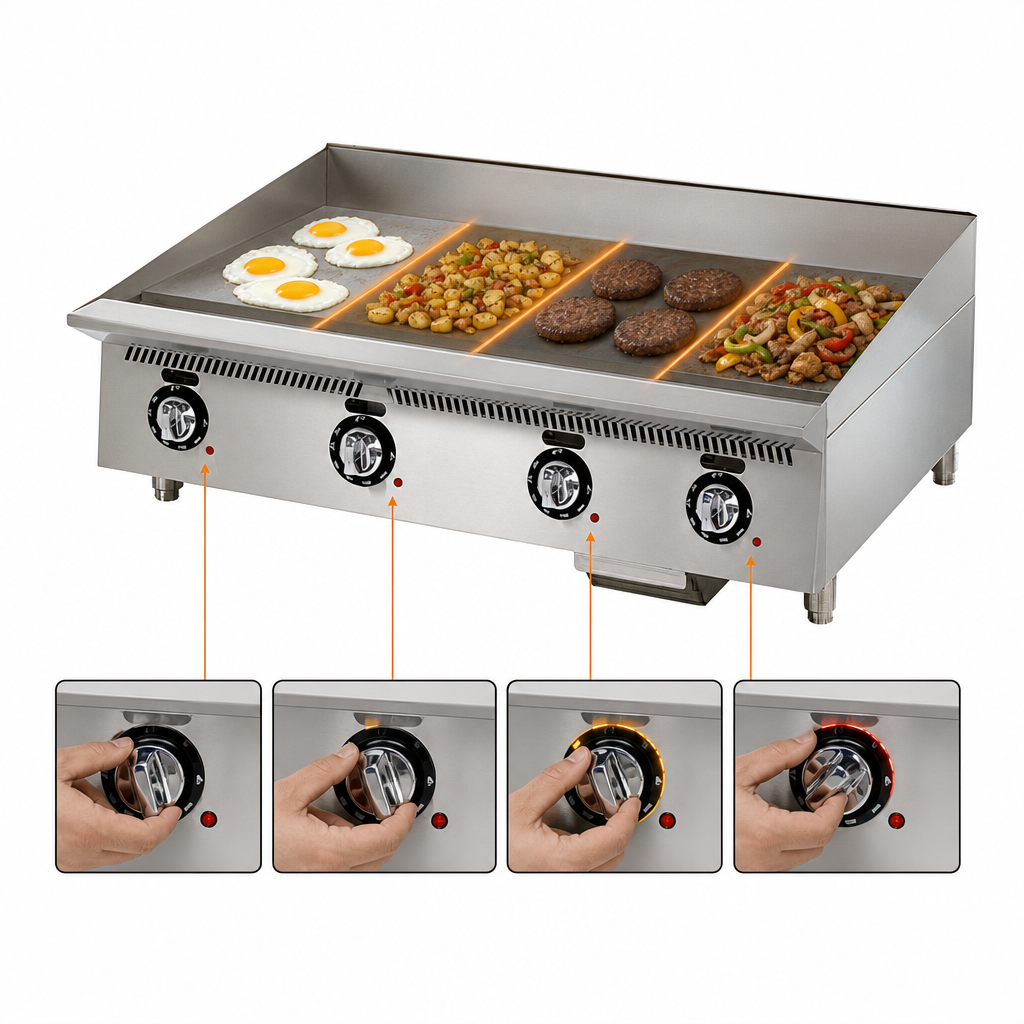

- Four embedded snap-action thermostats (one every 12") keep temps within a few degrees of set point.
- Wide 150 – 550 °F range—ideal for everything from delicate eggs to sizzling steaks.
- 4-⅜" wrap-around splash guard contains splatter; 3-½" trough & large grease drawer speed clean-up.
- Heavy-duty metal control knobs and welded stainless frame stand up to daily punishment.
- Standing pilots provide instant ignition throughout the rush.
- 4" stainless legs adjust 1-⅜" for perfect leveling on any counter.
- cULus & UL EPH Classified for safe, sanitary operation.
At-a-glance specs
| Cooking surface | 48" W × 24" D (1,152 in²) |
|---|---|
| Plate material / thickness | Polished steel, 1" (25 mm) |
| Heat input | 120,000 BTU/hr (30,000 BTU per 12" zone) |
| Temperature range | 150 – 550 °F (66 – 288 °C) |
| Controls | 4 × mechanical snap-action thermostats, embedded 0.1875" below surface |
| Ignition | Standing pilot |
| Gas connection | 3/4" NPT male (rear) |
| Splash guard | 4-⅜" rear & side, tapered, wrap-around |
| Grease management | 3-½" front trough & removable grease drawer |
| Exterior construction | Stainless steel front, sides & bull-nose; welded steel frame |
| Overall dimensions (HxWxD) | 18" × 48" × 34.2" |
| Legs | 4" stainless, 1-⅜" adjustable |
| Ship / installed weight | 520 lb / 428 lb |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2 years parts & labor (Ultra-Max series) |
Perfect for
- Full-service & fast-casual restaurants
- Breakfast diners & brunch spots
- Food trucks & ghost kitchens needing high BTU in minimal space
- Cafeterias, concessions & C-stores
Installation note: Maintain at least 6" clearance at the back and sides.
Use provided legs on non-combustible countertops, or a 27" stand (sold separately) on combustible floors.
Looking for budget-friendly payments? Ask about Middleby Equipment Financing and turn this purchase into fixed monthly installments.
Features & Specs
Features & Specs
Manufacturer
Star (Middleby)
Brand_name
Ultra-Max
Certifications
cULus, UL EPH Classified, Made in USA
Height
18.0in
Width
48.0in
Depth
34.2in
Shipping Weight
520.0lbs
Cooking Surface Width (side - side)
43" - 48"
Controls
thermostat / solid state controls
Cooking Surface Depth (front - back)
24" - 29"
Griddle Plate Finish
smooth steel
Exterior Finish
all stainless steel exterior
Plate Thickness
1"
Specifications
Ultra-Max® Griddle, countertop gas, 48" W x 24" D cooking surface, 1" thick steel griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 120,000 BTU, cULus, UL EPH Classified, Made in USA
