Star (Middleby) 836TCHSA Ultra-Max Gas Griddles
Description

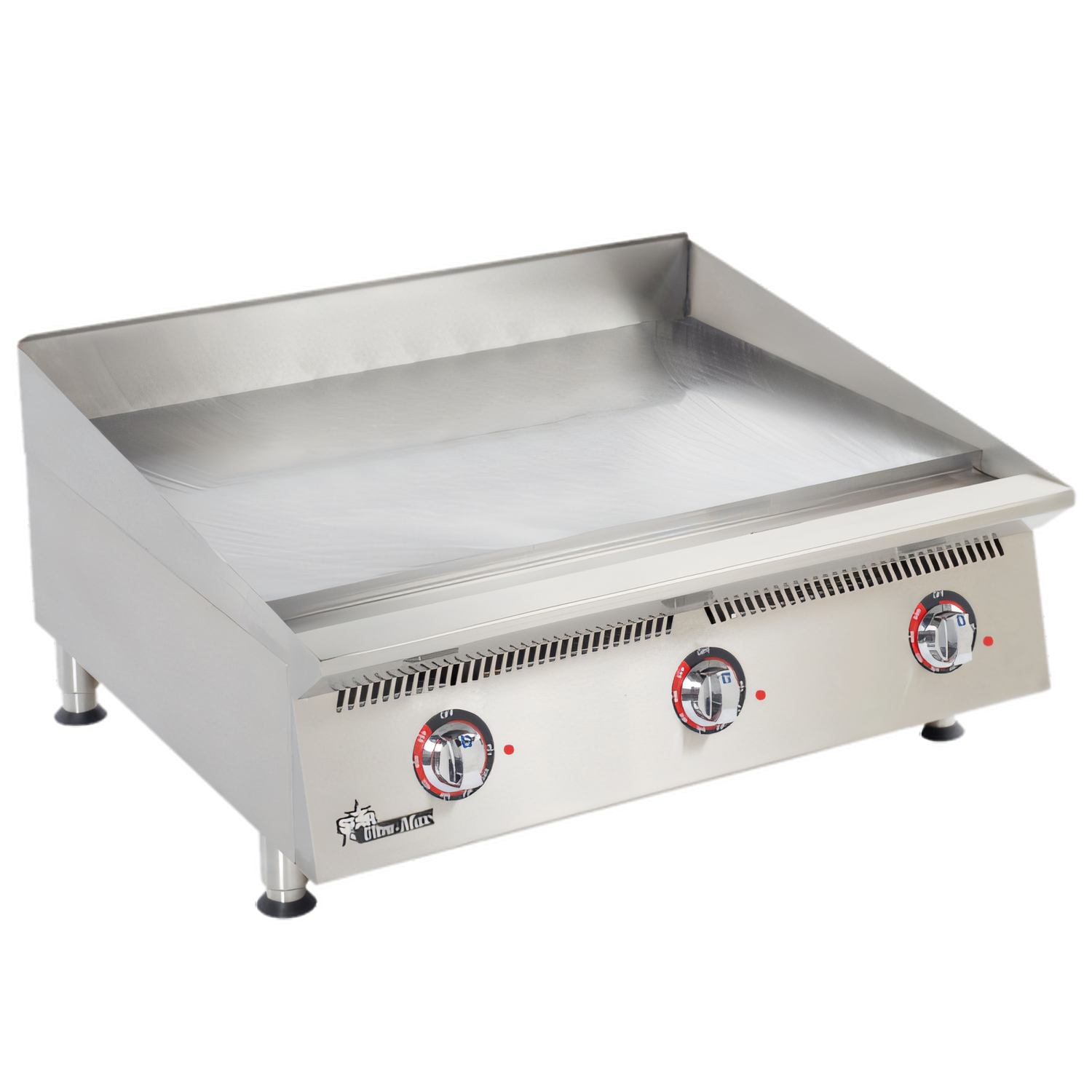

Star Ultra-Max® 36" Chrome Gas Griddle
Model 836TCHSA • 90,000 BTU countertop powerhouseBuilt in Smithville, Tennessee, the Ultra-Max® 836TCHSA delivers the speed, precision and durability busy kitchens demand. Three independent 30,000 BTU burners heat a mirror-smooth 1" T1 steel plate coated with 0.001" hexavalent chrome, providing lightning-fast recovery and an easy-to-clean cooking surface that keeps flavor where it belongs—on your food, not in the air.
Why you’ll love it

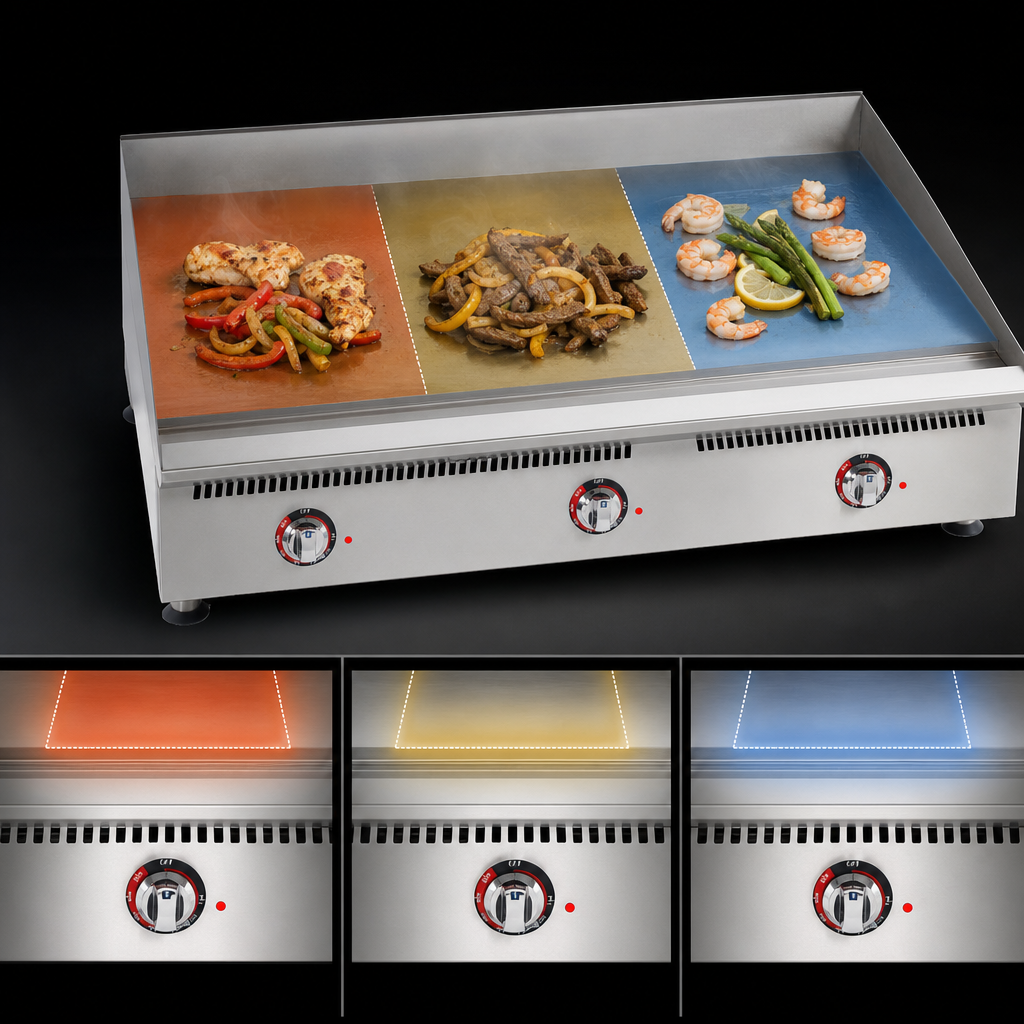

- Embedded mechanical snap-action thermostats every 12" for ±10 °F accuracy from 150 °F–550 °F.

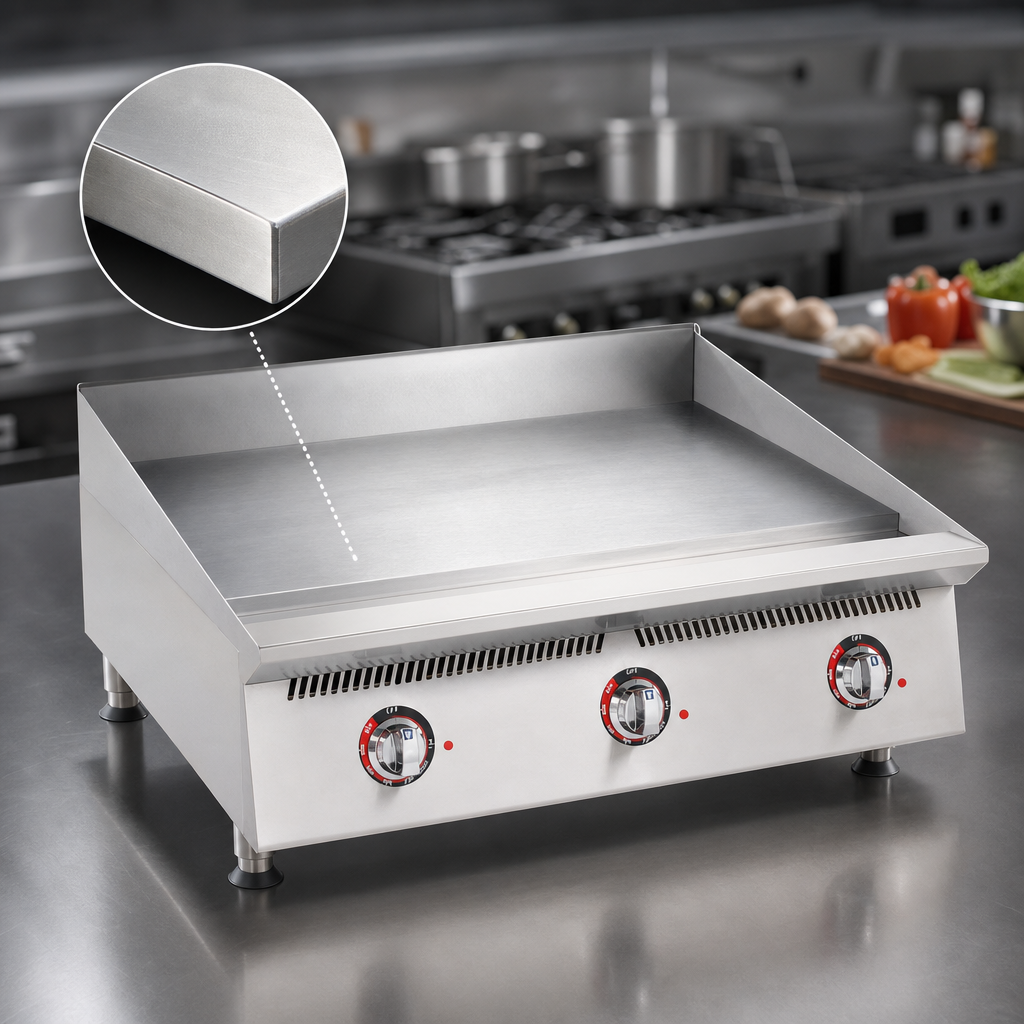

- 1" thick chrome plate slashes flavor transfer & simplifies nightly cleanup.
- Heavy-duty welded steel chassis with stainless exterior stands up to high-volume abuse.
- 4 3⁄8" tapered wrap-around splash guard keeps grease inside the cook zone.
- Extra-wide 3 1⁄2" front trough & large removable drawer handle peak rushes with ease.
- Standing pilots with manual shut-off for safe, instant ignition.
- 4" stainless legs adjust 1 3⁄8" for perfect leveling on any countertop.
- cULus & UL EPH Classified for gas-fired foodservice equipment; Made in USA.
Technical specifications
| Cooking surface | 36" W × 24" D (864 in²) |
|---|---|
| Plate material | 1" T1 steel with 0.001" hexavalent chrome |
| Heat zones / controls | 3 zones • snap-action thermostats (150 - 550 °F) |
| Total input | 90,000 BTU/hr (30,000 BTU per 12") |
| Ignition | Standing pilot (one per burner) |
| Grease management | 3 ½" trough, single front drawer |
| Overall dimensions | 18" H × 36" W × 34.2" D |
| Gas connection | ¾" NPT male (right-rear) |
| Shipping / installed weight | 409 lb / 331 lb |
| Clearances | 6" sides & back from combustible or non-combustible surfaces |
| Certifications | cULus • UL EPH • NSF (components) |
| Origin | Made in USA |
Rock-solid warranty
Star backs every Ultra-Max® griddle with a 2-year parts & labor warranty, serviced by a coast-to-coast network of authorized technicians.
