Description

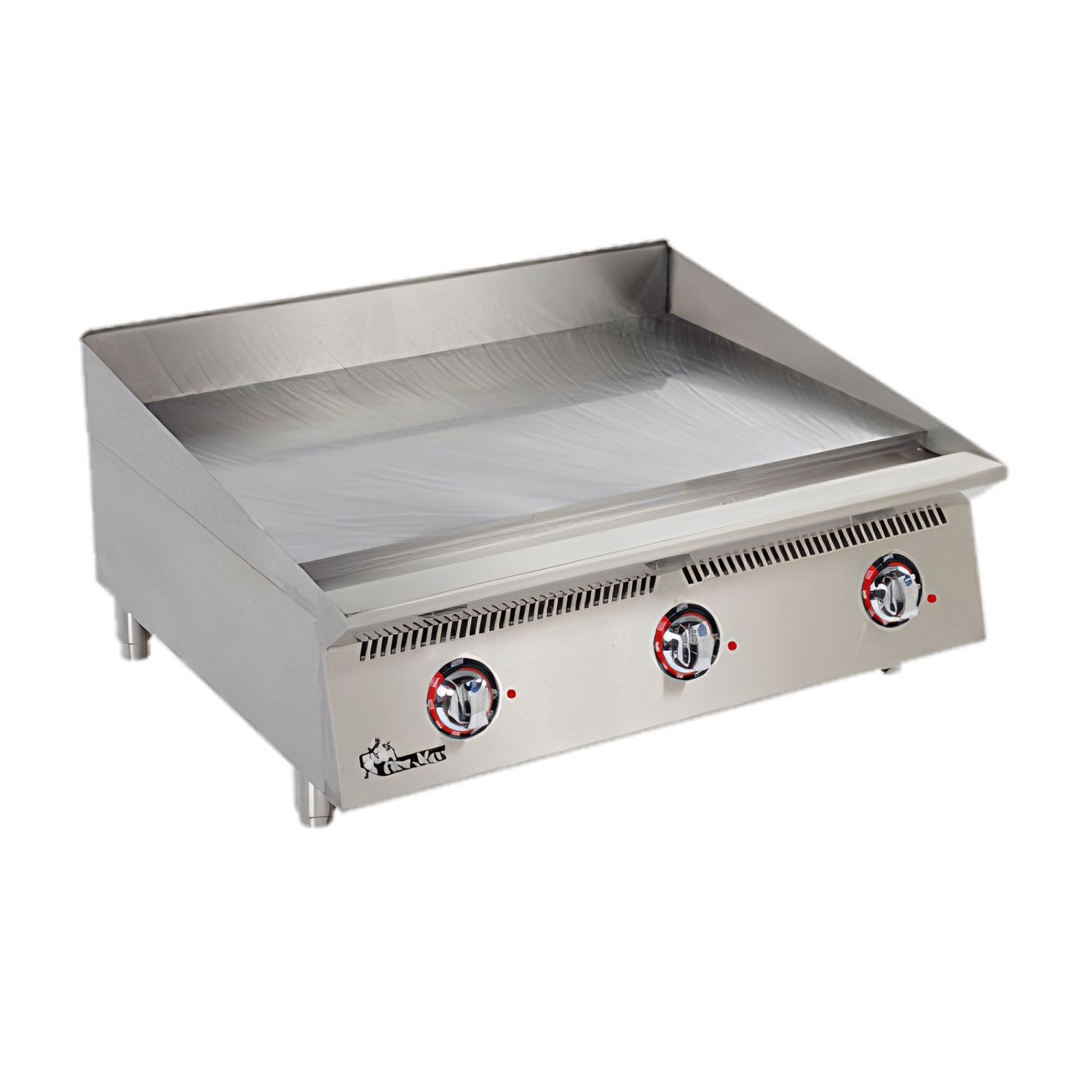

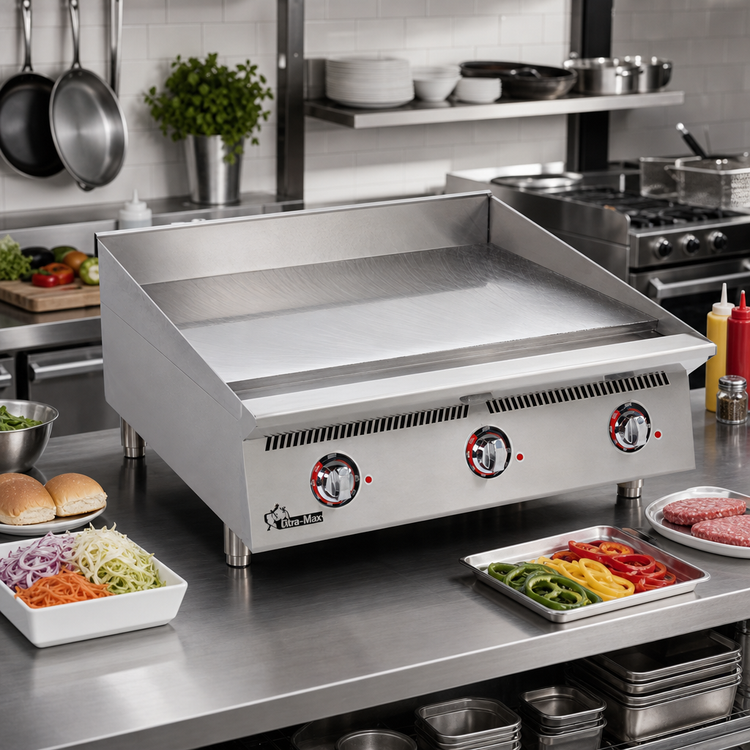

Star Ultra-Max® 36" Countertop Gas Griddle – 90,000 BTU

Model 836TA | Natural Gas Quick-Ship

Built for the busiest diners, cafés and concession lines, the Ultra-Max 36" gas griddle delivers rock-solid temperature accuracy, lightning-fast recovery and the rugged construction you expect from Star (Middleby). Three independently controlled zones let you sear, sauté and hold — all on the same surface.

Key features

  • 1" (25 mm) thick polished steel plate stores heat for fast recovery & even temps
  • 90,000 BTU total — 30,000 BTU per 12" section with standing pilots

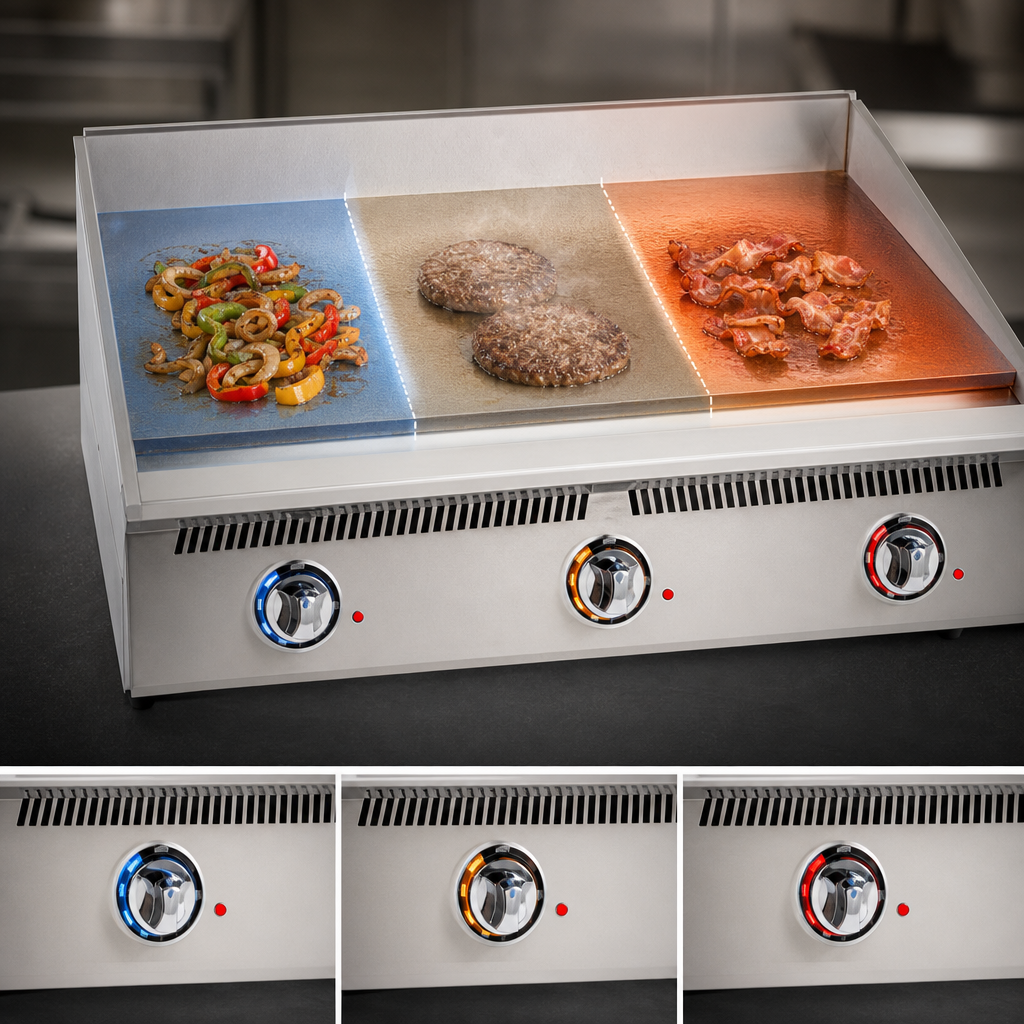

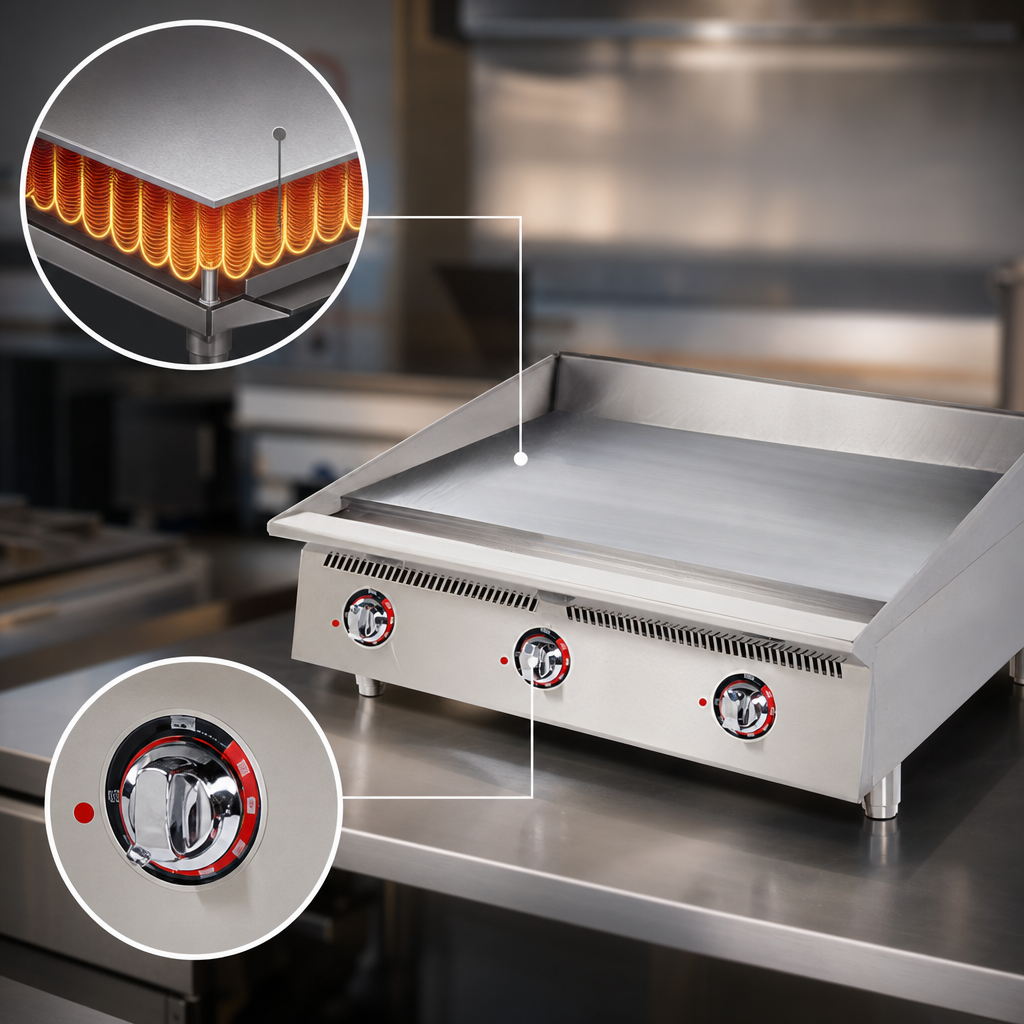

  • Embedded mechanical snap-action thermostats every 12" maintain 150 – 550 °F with ± 5 °F accuracy
  • 4-⅜" tapered wrap-around splash guard contains splatter on three sides
  • Extra-wide 3-½" front grease trough & full-width drawer speed clean-up
  • Heavy-duty metal control knobs built to survive high-traffic kitchens
  • Welded steel frame with all-stainless exterior — Made in Smithville, TN USA
  • 4" stainless legs with 1-⅜" height adjustment; approved for countertop use
  • cULus, UL EPH Classified for gas-fired food-service equipment

Specifications

Cooking surface 36" W × 24" D (914 × 610 mm)
Plate 1" thick polished steel
Controls / zones 3 snap-action thermostats (one per 12" zone), 150 – 550 °F
Total BTU 90,000 BTU /hr
Gas connection 3/4" NPT male (rear)
Ships Natural Gas – field convertible to LP
Overall dimensions 18" H × 36" W × 34.2" D (457 × 914 × 869 mm)
Ship / installed weight 409 lb / 331 lb (186 kg / 150 kg)
Clearances 6" (152 mm) back & sides from combustible or non-combustible surfaces
Certifications cULus, UL EPH, Made in USA
Warranty 2 years parts & labor
Quick-Ship: In-stock units leave our warehouse within 5 business days. Natural Gas configuration only. Maximum 2 units per order.

Need LP gas or a custom stand? Contact our equipment team for lead-times and freight quotes.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH, Made in USA

Height

18.0in

Width

36.0in

Depth

34.2in

Shipping Weight

409.0lbs

Cooking Surface Width (side - side)

31" - 36"

Controls

thermostat / solid state controls

Cooking Surface Depth (front - back)

24" - 29"

Griddle Plate Finish

smooth steel

Exterior Finish

all stainless steel exterior

Plate Thickness

1"

Specifications

Ultra-Max® Griddle, countertop gas, 36" W x 24" D cooking surface, 1" thick steel griddle plate, 150° - 550° F embedded mechanical snap-action thermostat every 12", 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 90,000 BTU, cULus, UL EPH (Note: Quick ship is only available with Natural Gas) Classified, Made in USA (Ships within 5 days. Max qty - 2 per order)
