Star (Middleby)  |  Ultra-Max  |  SKU: 836MA

Star (Middleby) 836MA Ultra-Max Gas Griddles

$5,322.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

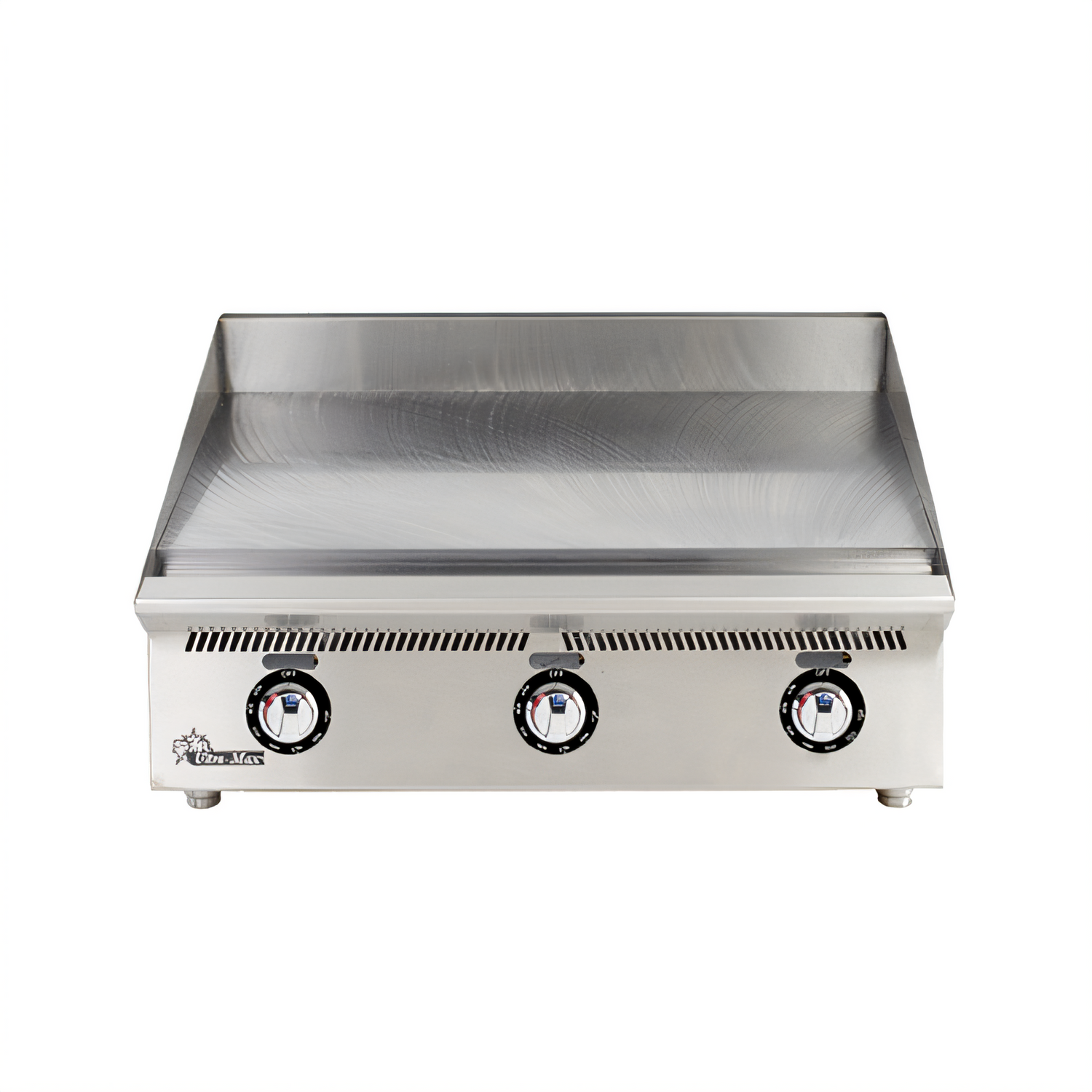

Star Ultra-Max® 36" Countertop Gas Griddle

Model 836MA | Polished 1" Steel Plate | 90,000 BTU

Engineered for volume cooking and built to thrive in the toughest kitchens, the Ultra-Max® 36" manual-control griddle delivers even heat, rock-solid durability, and effortless cleanup—so you can keep tickets moving and profits climbing.

Performance & Convenience

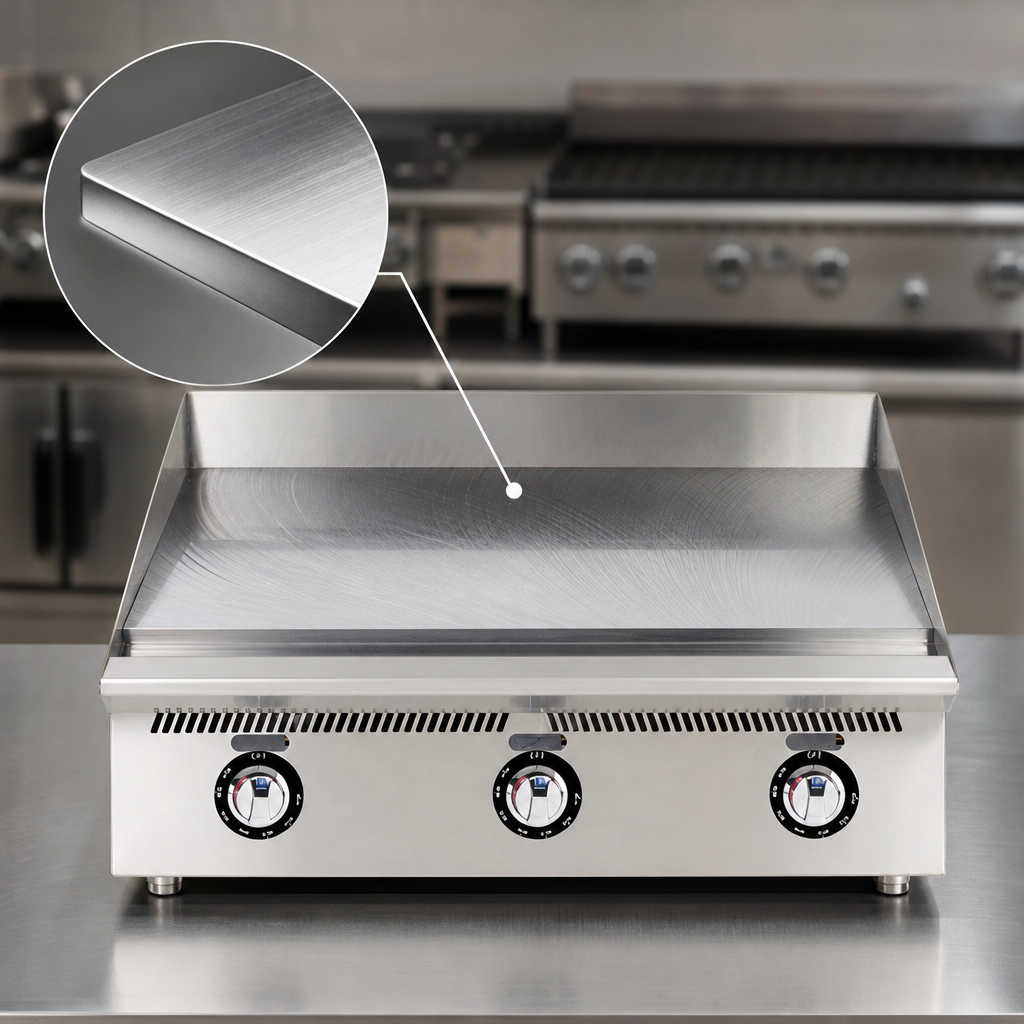

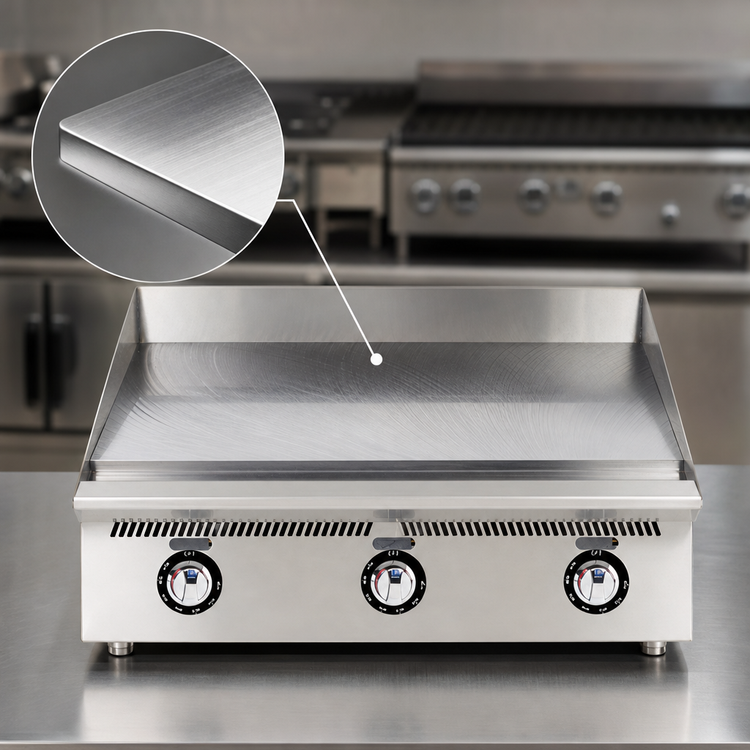

  • 1" (25 mm) polished steel plate maximizes heat retention for fast recovery and uniform surface temps.

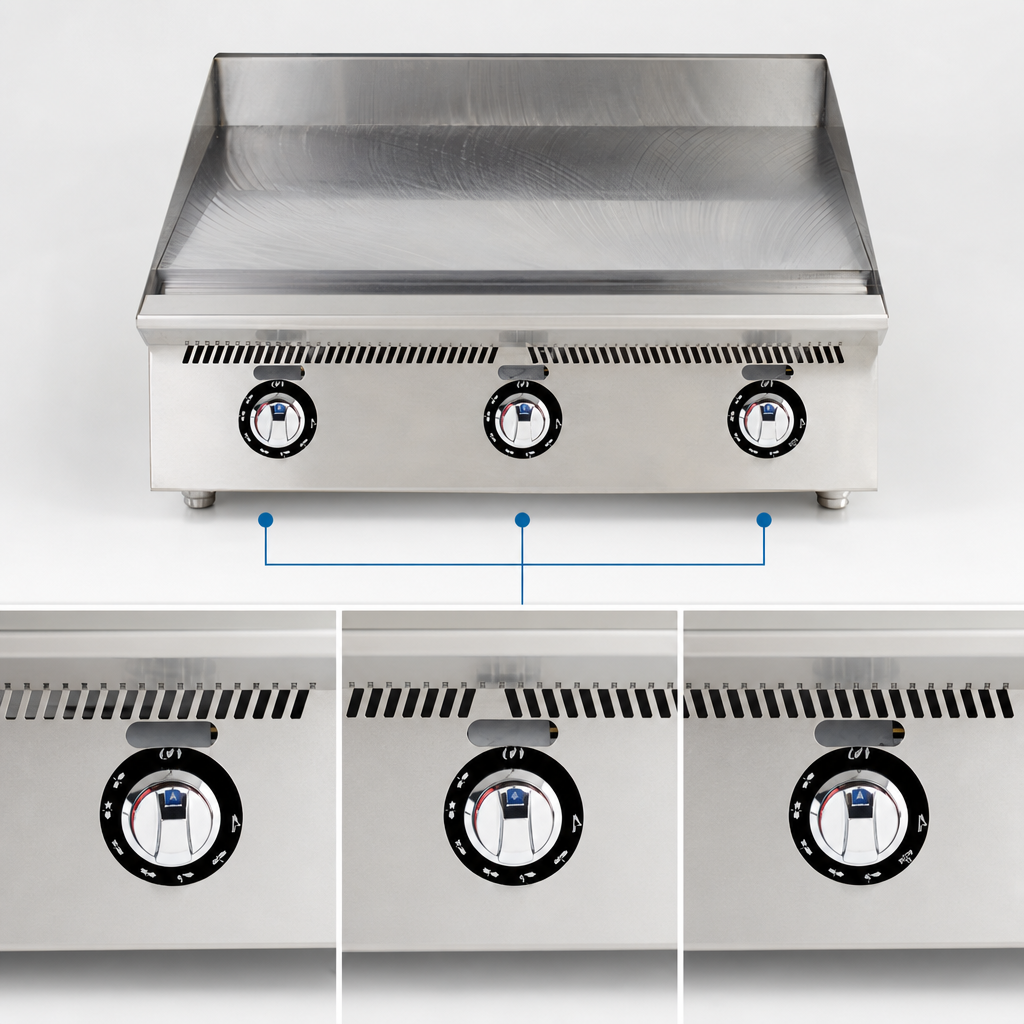

  • Three 30,000 BTU “H” burners (one every 12") with independent manual controls—fine-tune zones for eggs, burgers, or tortillas simultaneously.
  • 150 °F – 550 °F operating range handles everything from delicate breakfast items to high-heat searing.
  • Standing pilot ignition keeps each section ready to cook without relighting.
  • 4⅜" wrap-around splash guard contains grease and food debris on all sides.
  • Extra-wide 3½" front trough & large-capacity drawer speed up end-of-shift cleanup.
  • Heavy-duty metal control knobs and a welded steel frame with stainless exterior stand up to daily commercial abuse.
  • 4" stainless legs adjust 1⅜" to level on any countertop.
Specifications
Cooking surface 36" W × 24" D (914 mm × 610 mm)
Overall dimensions 36" W × 34.2" D × 18" H (914 mm × 869 mm × 457 mm)
Heat output 90,000 BTU/hr (3 × 30,000 BTU sections)
Energy type & connection Natural or LP gas, ¾" NPT male
Controls 3 manual gas valves with standing pilots
Plate material 1" thick polished steel
Grease management 3½" front trough & slide-out drawer
Clearances 6" sides & rear from combustibles; supplied legs required on countertop
Ship / installed weight 409 lb / 331 lb (186 kg / 150 kg)
Origin Made in the USA
Certifications
  • cULus Listed – Gas-Fired
  • UL EPH Classified – Sanitation
Warranty

Backed by Star’s 2-year parts & labor warranty for Ultra-Max® griddles.

Installation required: This unit must be hard-piped by a licensed professional. Provide adequate ventilation and maintain the stated clearances to avoid fire hazards.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

18.0in

Width

36.0in

Depth

34.2in

Shipping Weight

409.0lbs

Cooking Surface Width (side - side)

31" - 36"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

manual controls

Exterior Finish

all stainless steel exterior

Plate Thickness

1"

Specifications

Ultra-Max® Griddle, countertop gas, 36" W x 24" D cooking surface, 1" thick polished steel griddle plate, (3) manual controls, 4-3/8" tapered wrap-around splash guard, 3-1/2" front grease trough, heavy-duty metal knobs, standing pilot, welded steel frame with stainless steel exterior, 4" stainless steel legs with 1-3/8" adjustment, 90,000 BTU, cULus, UL EPH Classified, Made in USA
