Star (Middleby)

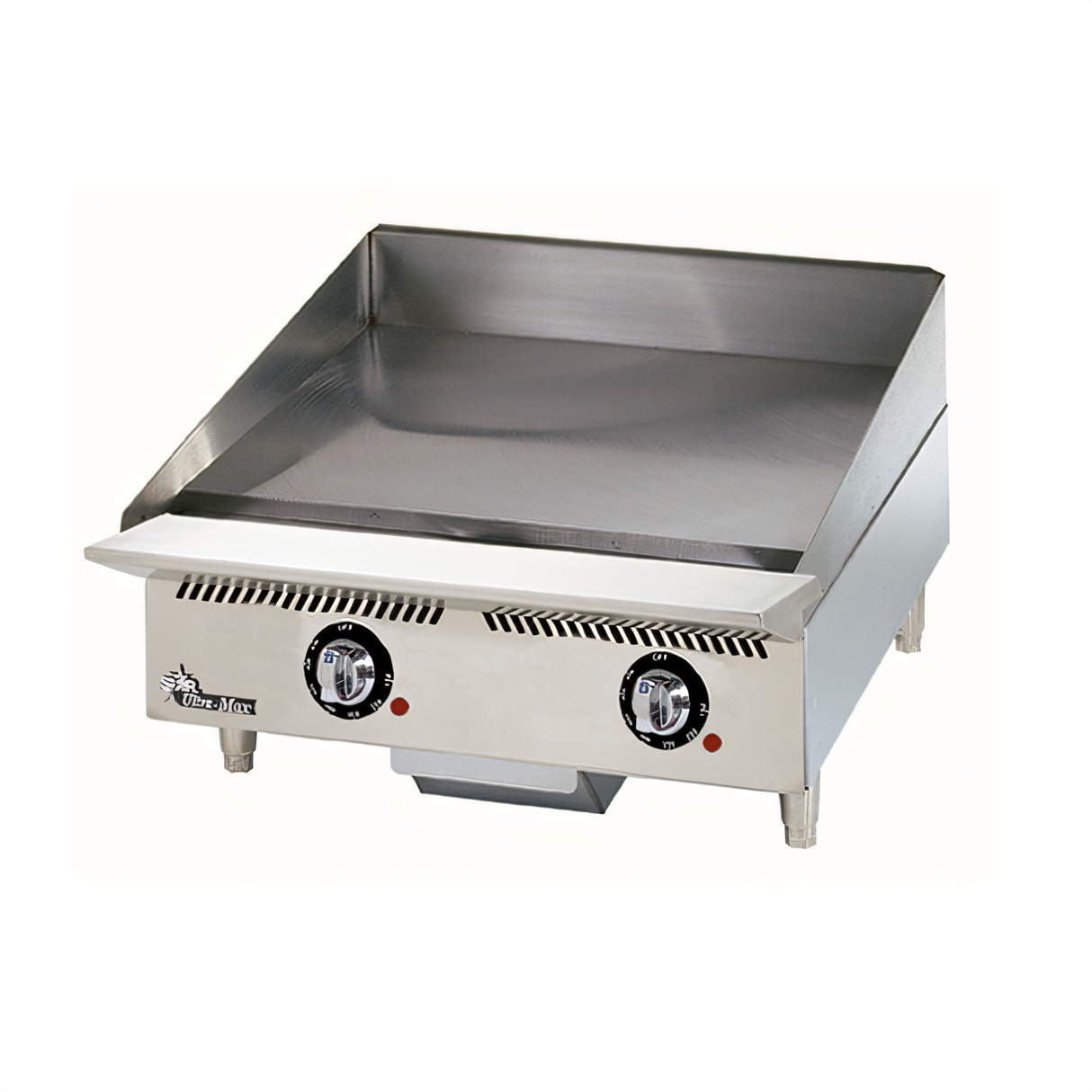

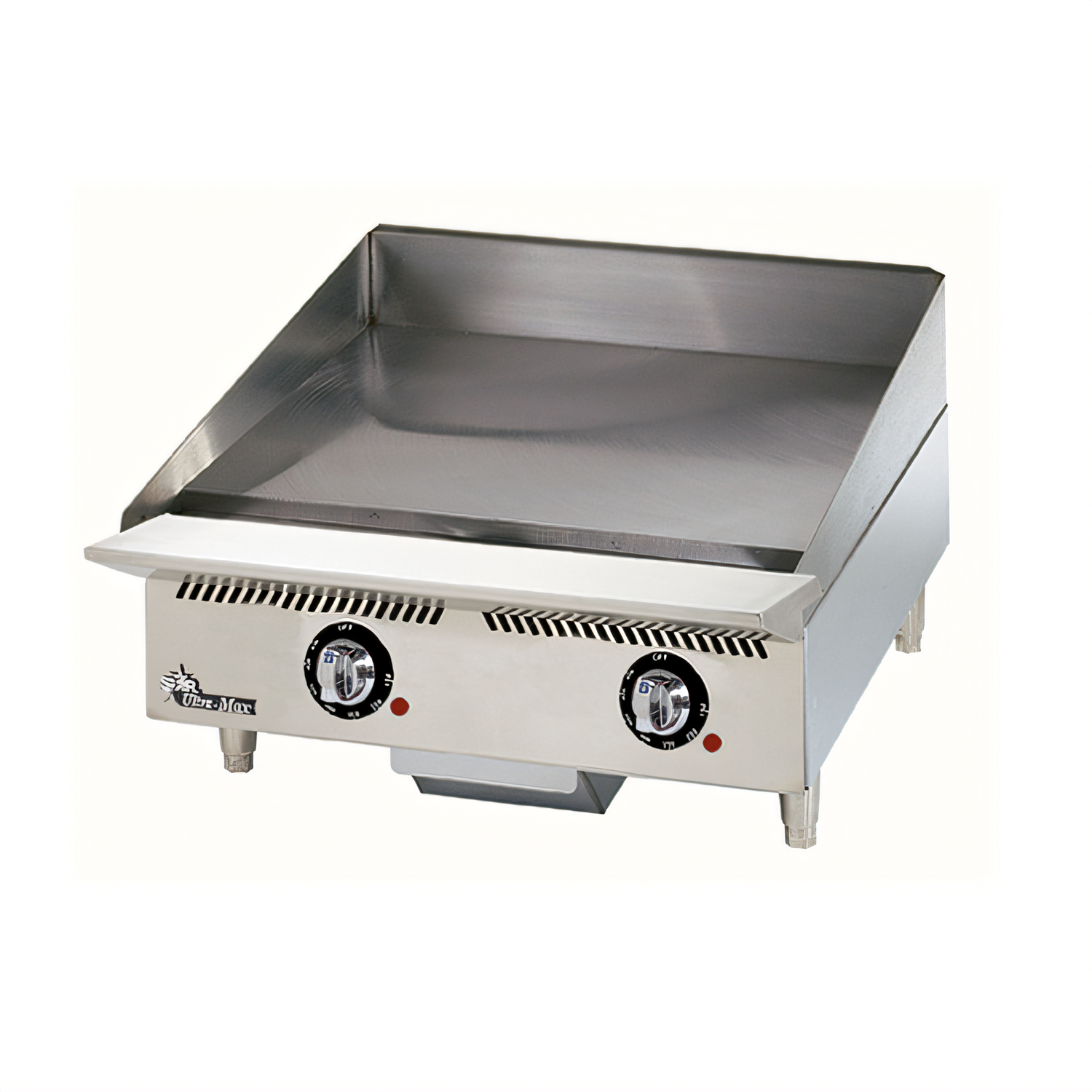

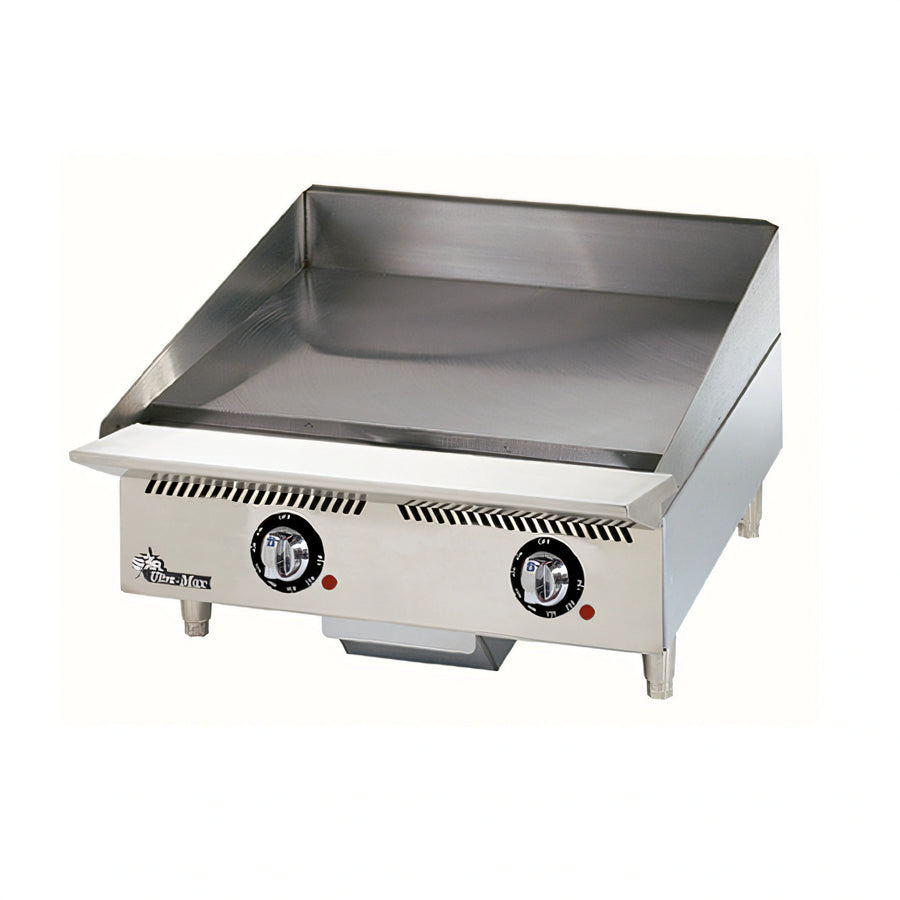

Ultra-Max 24-Inch Countertop Gas Griddle with Mechanical Snap-Action Thermostat and Steel Plate

SKU: 824TA
$5,263.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Star (Middleby)

Ultra-Max 24-Inch Countertop Gas Griddle with Mechanical Snap-Action Thermostat and Steel Plate

24" W x 24" D Cooking Surface, 60,000 BTU, Standing Pilot

Precise zone-by-zone heat control and a thick steel cooking plate deliver reliable griddling in a compact countertop footprint.

  • 24" x 24" cooking surface fits a compact countertop installation.
  • 1" thick steel plate promotes even heat distribution and recovery.
  • Independent 12" heat zones with snap-action thermostat control help maintain consistent results.
  • Standing pilot ignition and 60,000 BTU output support dependable daily service.
  • Wrap-around splash guard and front grease trough simplify cleanup.
  • Stainless steel exterior and adjustable legs add durability and leveling flexibility.

Overall Dimensions:

24.0"W x 34.2"D x 18.0"H

Product Weight:

300.0 lb

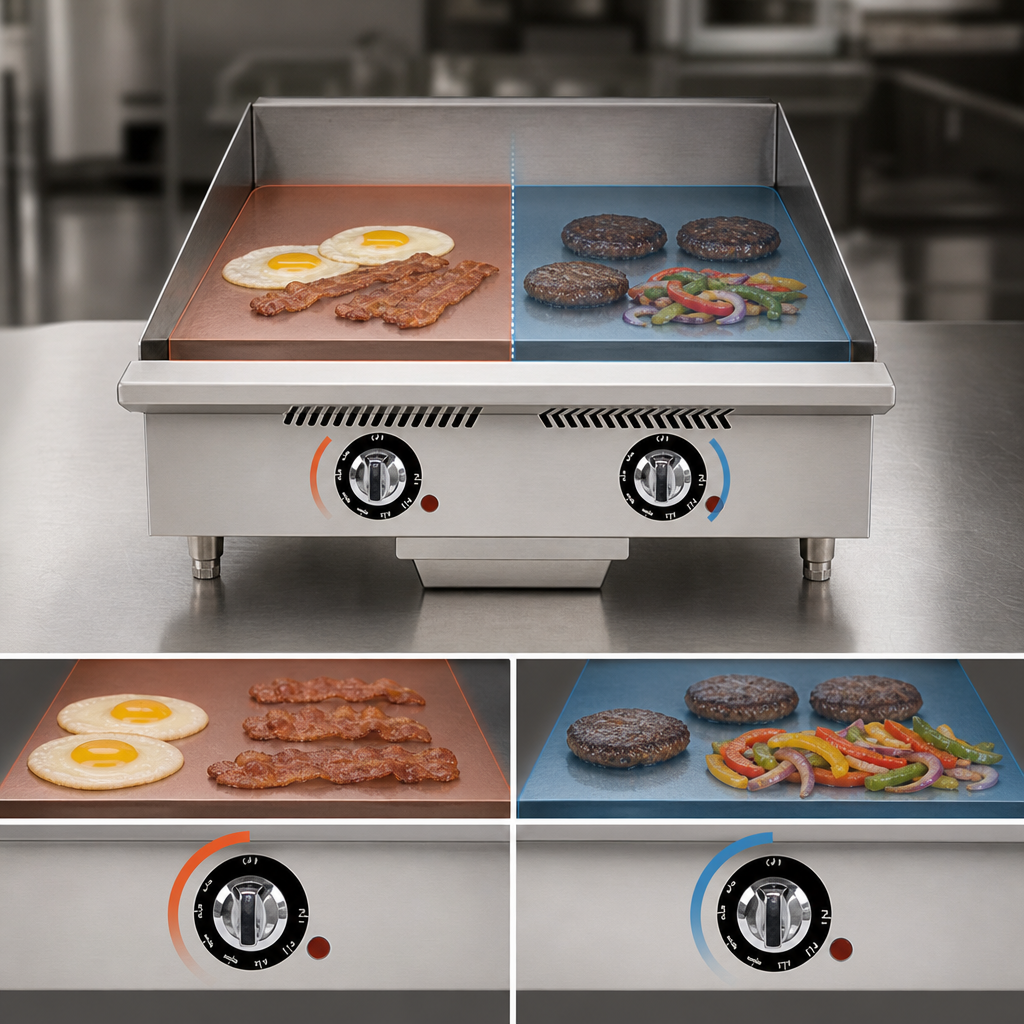

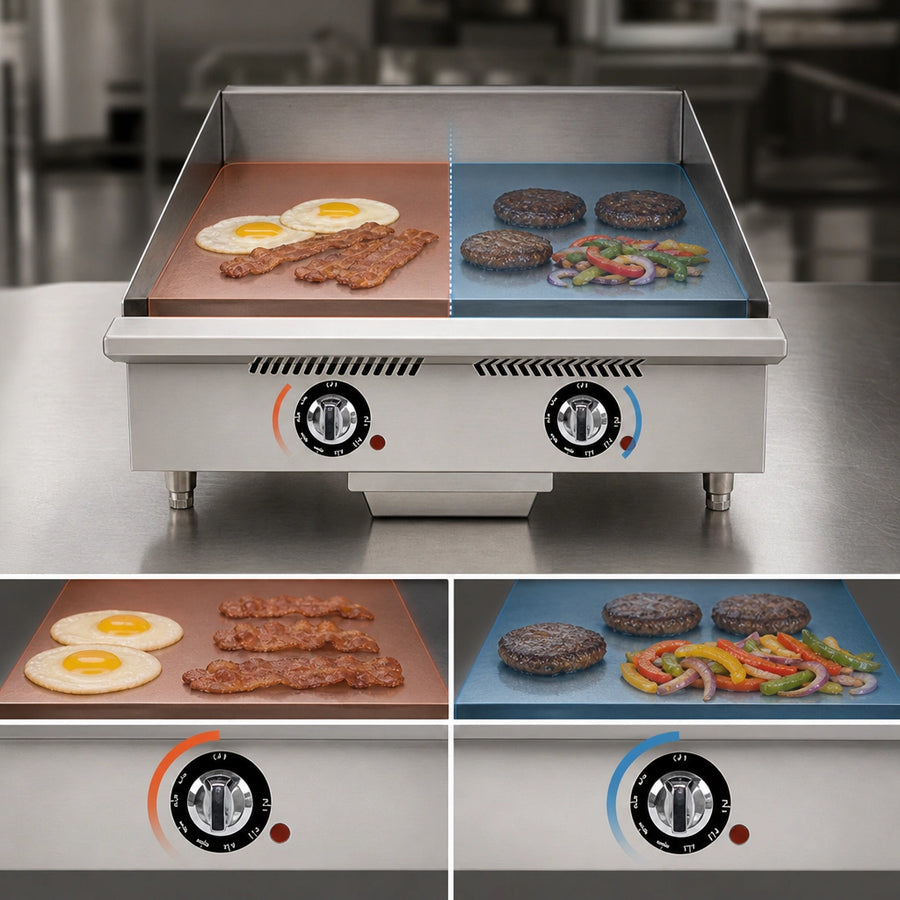

Independent 12-Inch Heat Zones

Each 12-inch section has its own temperature control for flexible, multi-item cooking.

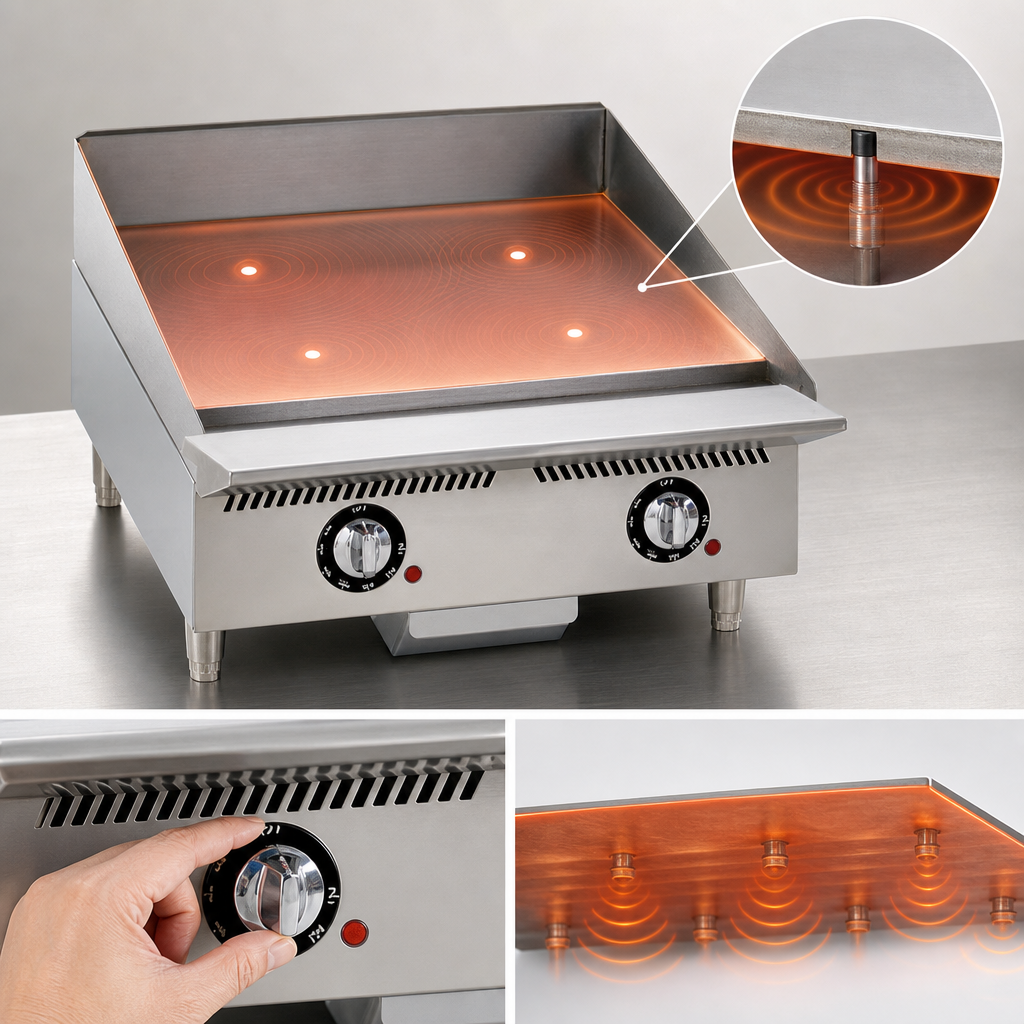

Mechanical Snap-Action Thermostat Control

Embedded sensors provide responsive temperature control across the cooking surface.

1-Inch Steel Griddle Plate

Heavy-duty plate construction helps deliver even heat and reliable recovery.

Wide Operating Temperature Range

Operates from 150°F to 550°F for low-heat holding through high-heat searing.

Standing Pilot Ignition

Provides dependable startup and continuous readiness for busy kitchens.

Easy-Clean Splash and Grease Management

A 4-3/8" wrap-around splash guard and 3-1/2" front grease trough help contain messes.

Stainless Steel Construction

Welded steel frame with stainless steel exterior is built for durability and easy cleaning.

Adjustable Legs Included

Supplied with 4" stainless steel legs that adjust up to 1-3/8" for leveling.

Type Gas Griddle
Style Mechanical Snap-Action
Installation Type Countertop
Cooking Surface Width 24 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
Controls Mechanical Snap-Action Thermostat
Temperature Range 150°F to 550°F
BTU 60,000 BTU
Gas Connection Size 3/4 Inch NPT Male
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 35 Inches
Shipping Height 18 Inches
Shipping Weight 300 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 24" W x 24" D.
It uses embedded mechanical snap-action thermostats, with one temperature control for each 12-inch section.
The griddle operates from 150°F to 550°F.
It uses a 3/4-inch NPT male gas connection.
The sides and back must be at least 6 inches from any wall or surface.
Ultra-Max units come with a two-year warranty for parts and labor.
