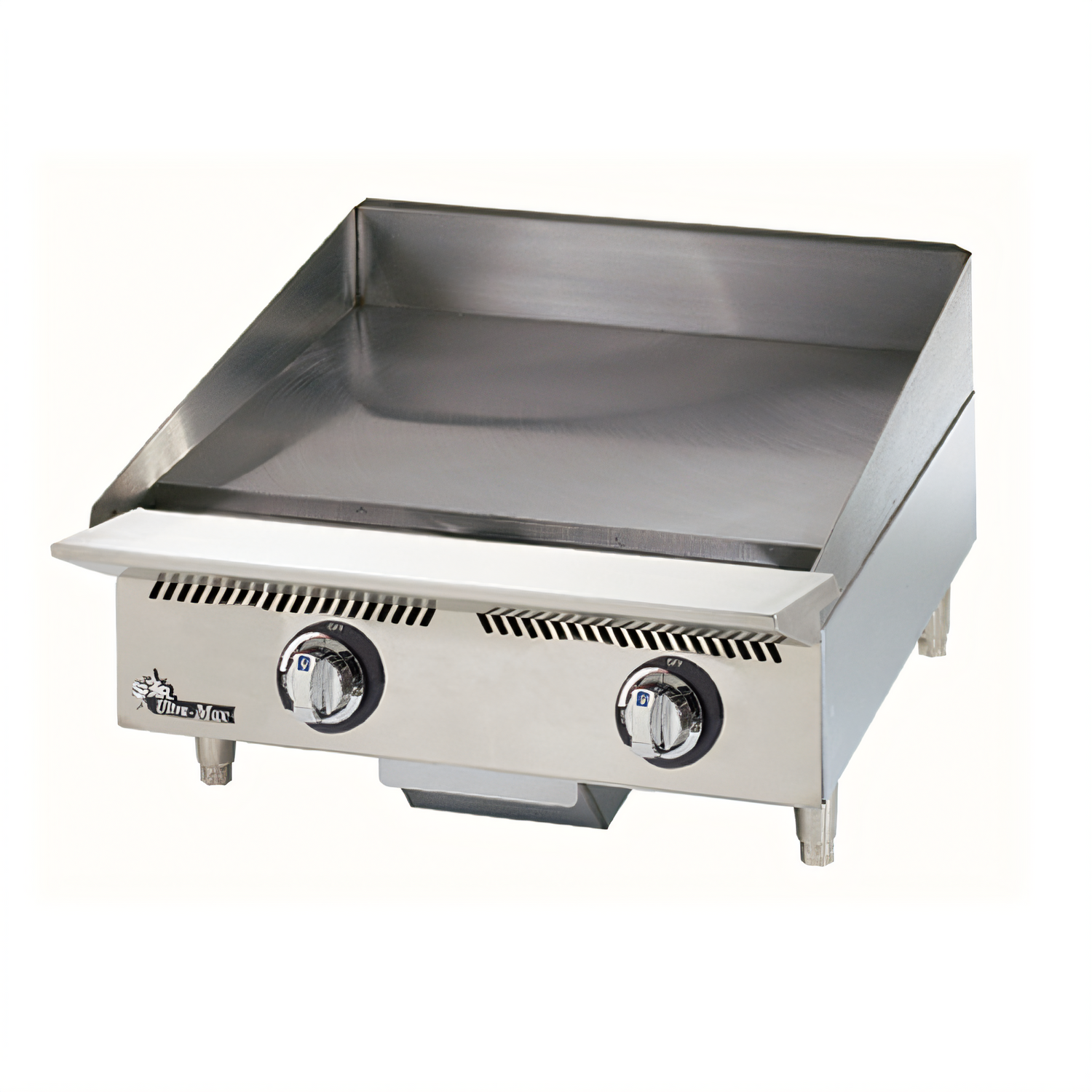

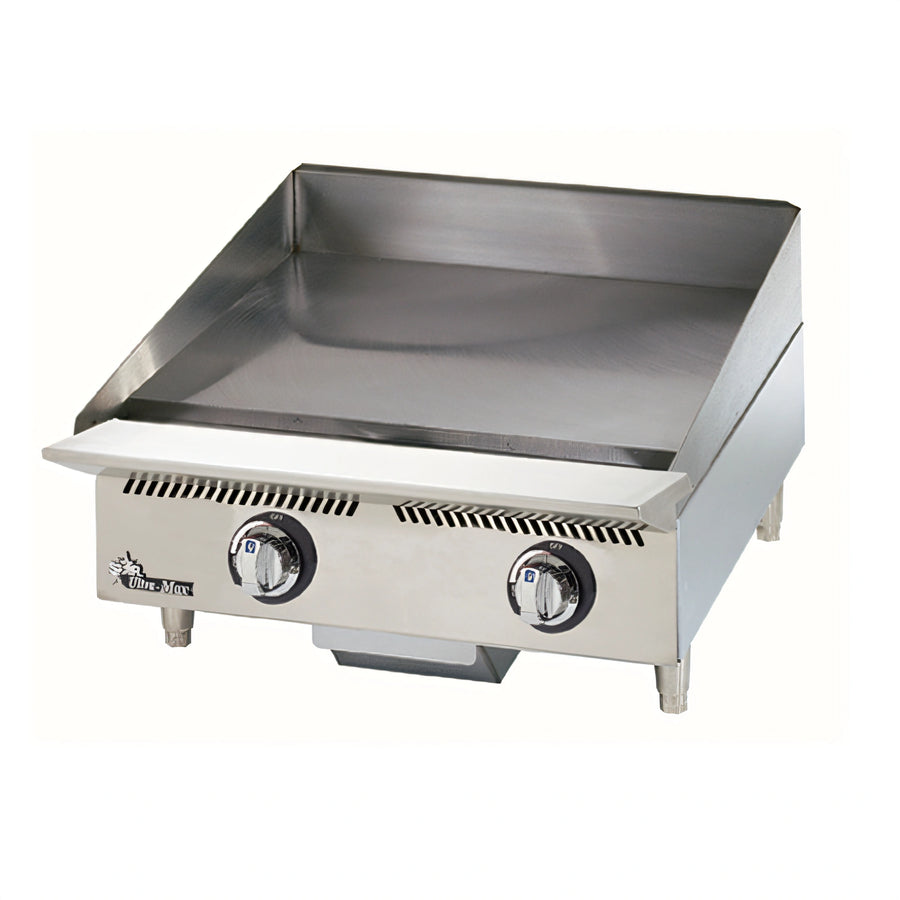

Ultra-Max 24-Inch Countertop Gas Griddle with Manual Controls and Polished Steel Plate

SKU: 824MA
$3,986.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Star (Middleby)

Ultra-Max 24-Inch Countertop Gas Griddle with Manual Controls and Polished Steel Plate

24" x 24" Cooking Surface, 1" Thick Plate, Standing Pilot

Built for dependable, high-output cooking, this 24-inch gas griddle combines a thick polished steel plate, independent manual zones, and rugged stainless steel construction.

  • 24" x 24" countertop gas griddle with a 1" thick polished steel cooking plate.
  • Two manual controls provide independent heat control across the 12" sections.
  • 60,000 BTU output and a standing pilot support consistent day-to-day service.
  • Stainless steel exterior and welded steel frame are built for commercial durability.
  • 4-3/8" tapered wrap-around splash guard and front grease trough help contain messes.
  • Includes 4" stainless steel legs with 1-3/8" adjustment for leveling.

Overall Dimensions:

24.0"W x 34.2"D x 18.0"H

Product Weight:

300.0 lb

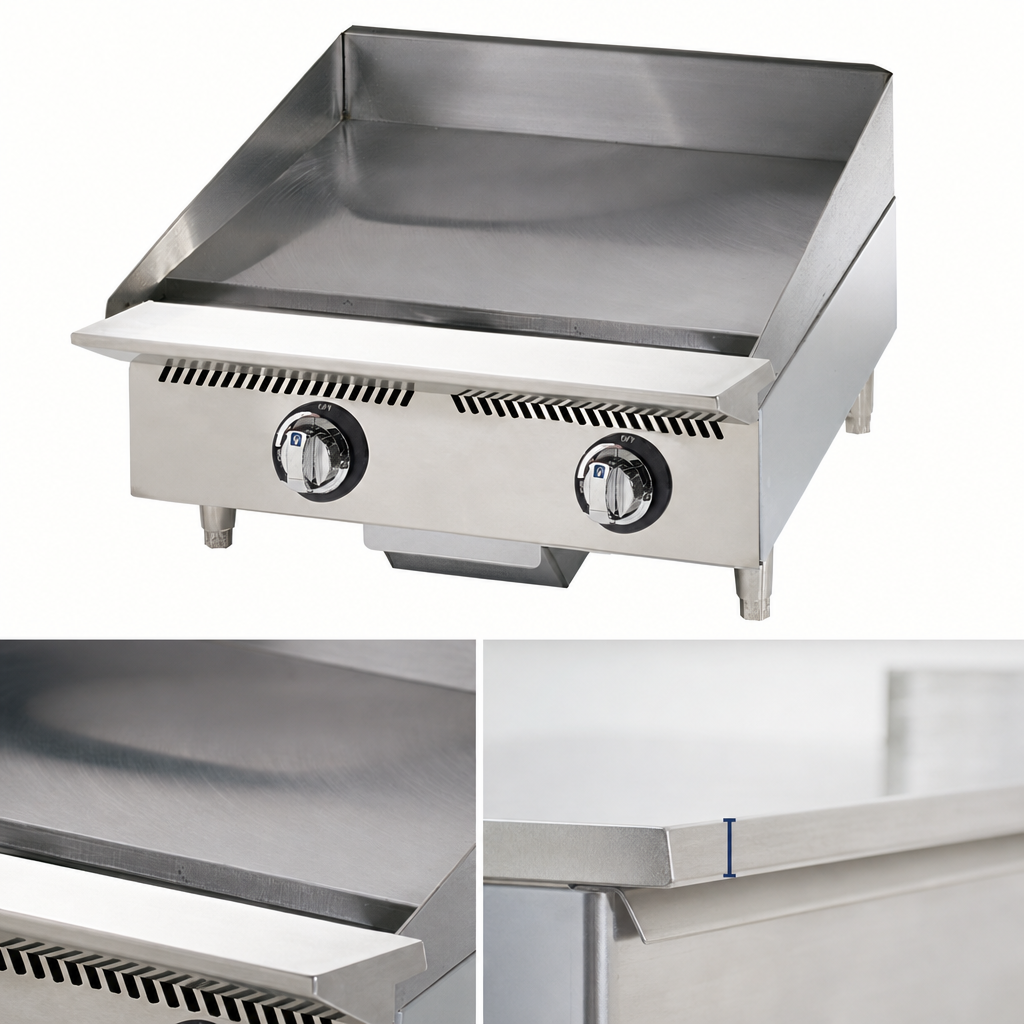

1-Inch Polished Steel Griddle Plate

Thick polished steel cooking surface promotes even heat distribution and reliable cooking performance.

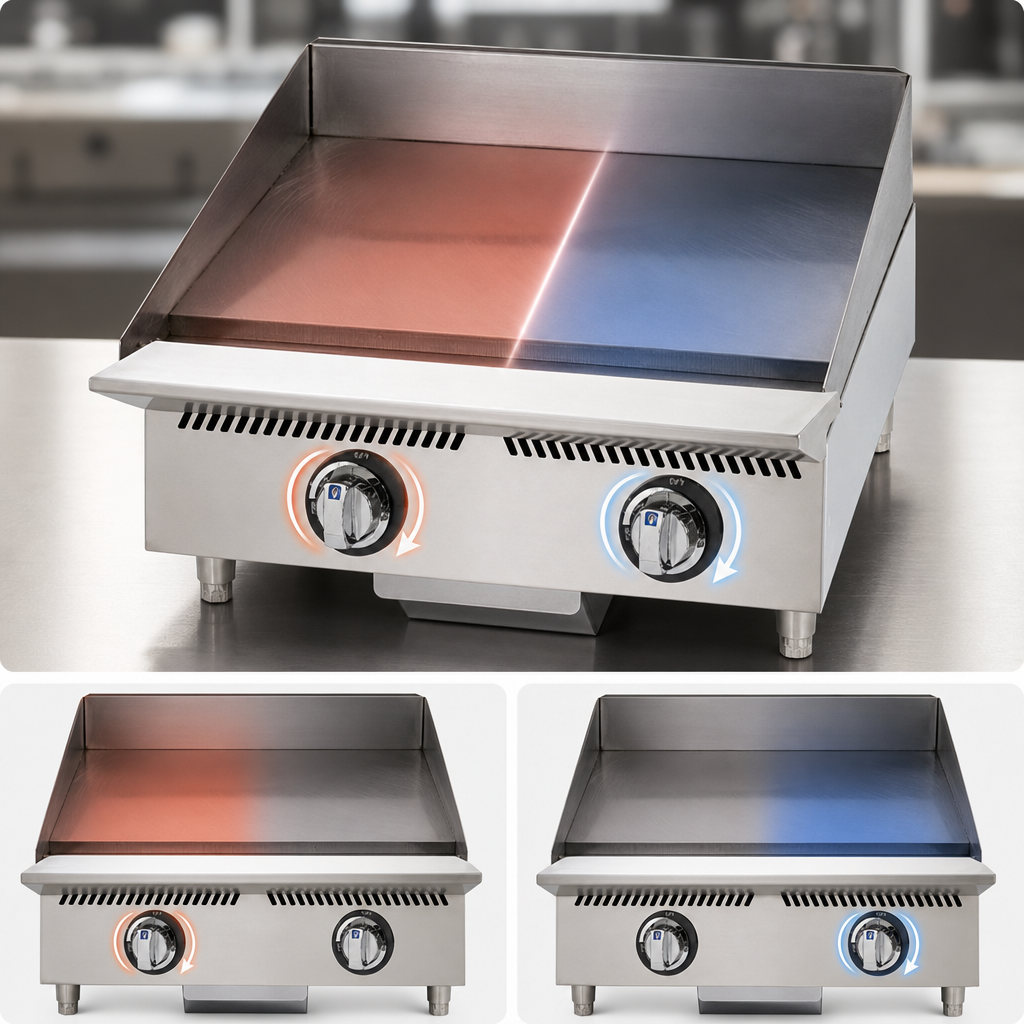

Independent 12-Inch Heating Sections

Two manual controls let operators manage heat separately across each 12-inch section.

Standing Pilot Ignition

Helps provide consistent flame readiness for dependable startup and service.

High-Output Gas Performance

60,000 BTU output delivers strong heat for busy commercial cooking applications.

Wrap-Around Splash Guard

The 4-3/8-inch tapered splash guard helps contain grease and food splatter.

Front Grease Trough

A 3-1/2-inch front grease trough supports easier cleanup and grease management.

Durable Stainless Steel Construction

Welded steel frame with stainless steel exterior is designed for long-term commercial use.

Adjustable Stainless Steel Legs

Supplied with 4-inch legs that offer 1-3/8 inches of adjustment for leveling.

Type Gas Griddle
Installation Type Countertop
Controls Manual
Cooking Surface Width 24 Inches
Cooking Surface Depth 24 Inches
Temperature Range 150°F to 550°F
BTU 60,000 BTU
Material Stainless Steel
Finish Polished Steel
Gas Connection Size 3/4 Inch NPT Male
Country of Origin USA
Shipping Width 24 Inches
Shipping Depth 35 Inches
Shipping Height 18 Inches
Shipping Weight 300 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The griddle has a 24" W x 24" D cooking surface.
It uses two manual controls, with one control for each 12-inch section.
This model is rated at 60,000 BTU.
It uses a 3/4-inch NPT male gas connection.
The sides and back must be at least 6 inches from walls or other surfaces. Use the provided legs on non-combustible countertops, or use a 27-inch stand on combustible floors.
Ultra-Max units come with a 2-year warranty for parts and labor.
