Star (Middleby) 8172RCBB Ultra-Max Gas Charbroilers
Description

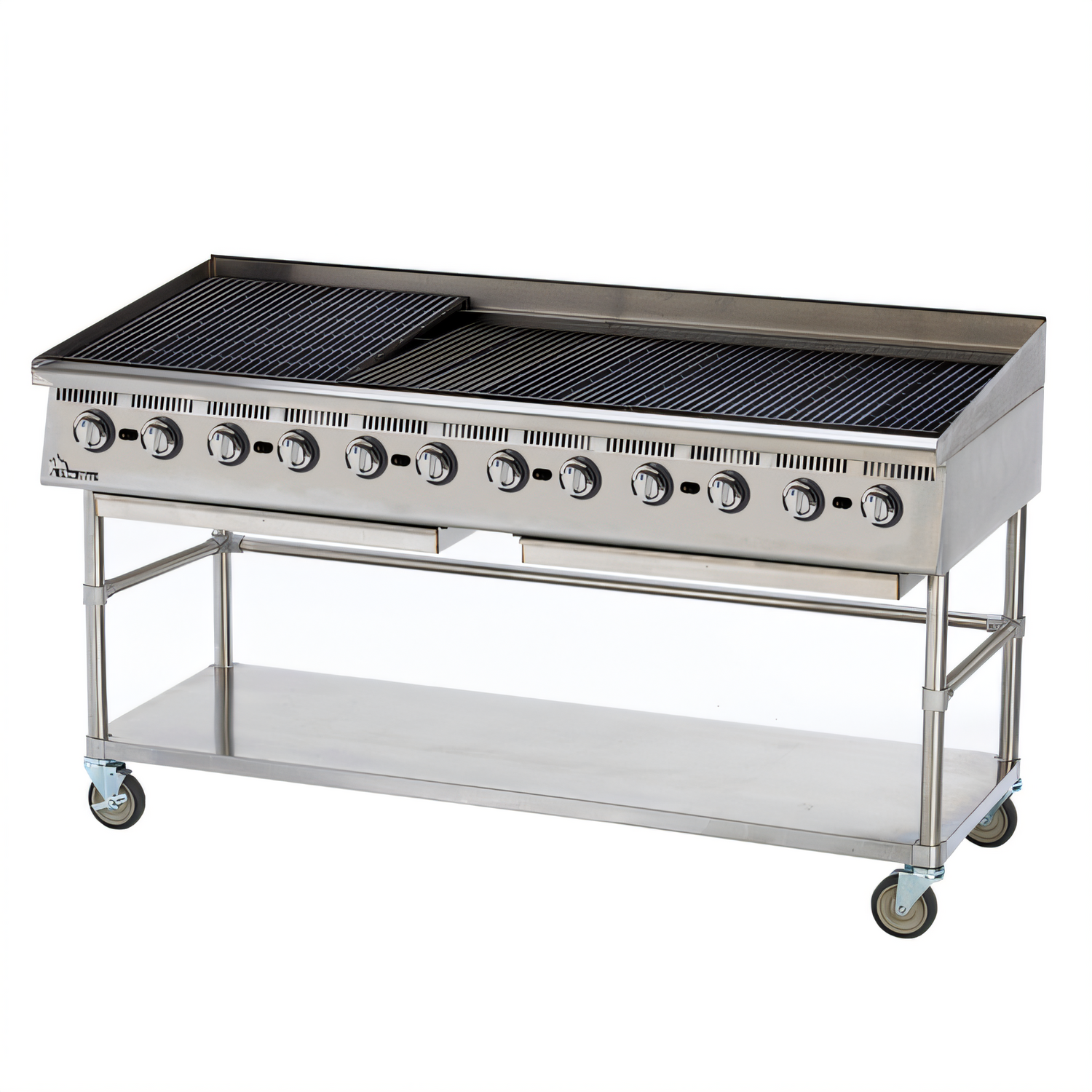

Star Ultra-Max® 72" Gas Radiant Charbroiler
Model 8172RCBB | 240,000 BTU | Made in USAEngineered for the busiest kitchens, the Star Ultra-Max® 8172RCBB delivers steak-house sear and rock-solid reliability across a massive 72-inch cooking surface. With heavy-duty steel radiants, cast-iron components and 240,000 BTU of even, adjustable heat, this countertop powerhouse keeps up with rush-hour tickets while serving consistent, flame-kissed flavor all day long.
Why You’ll Love It

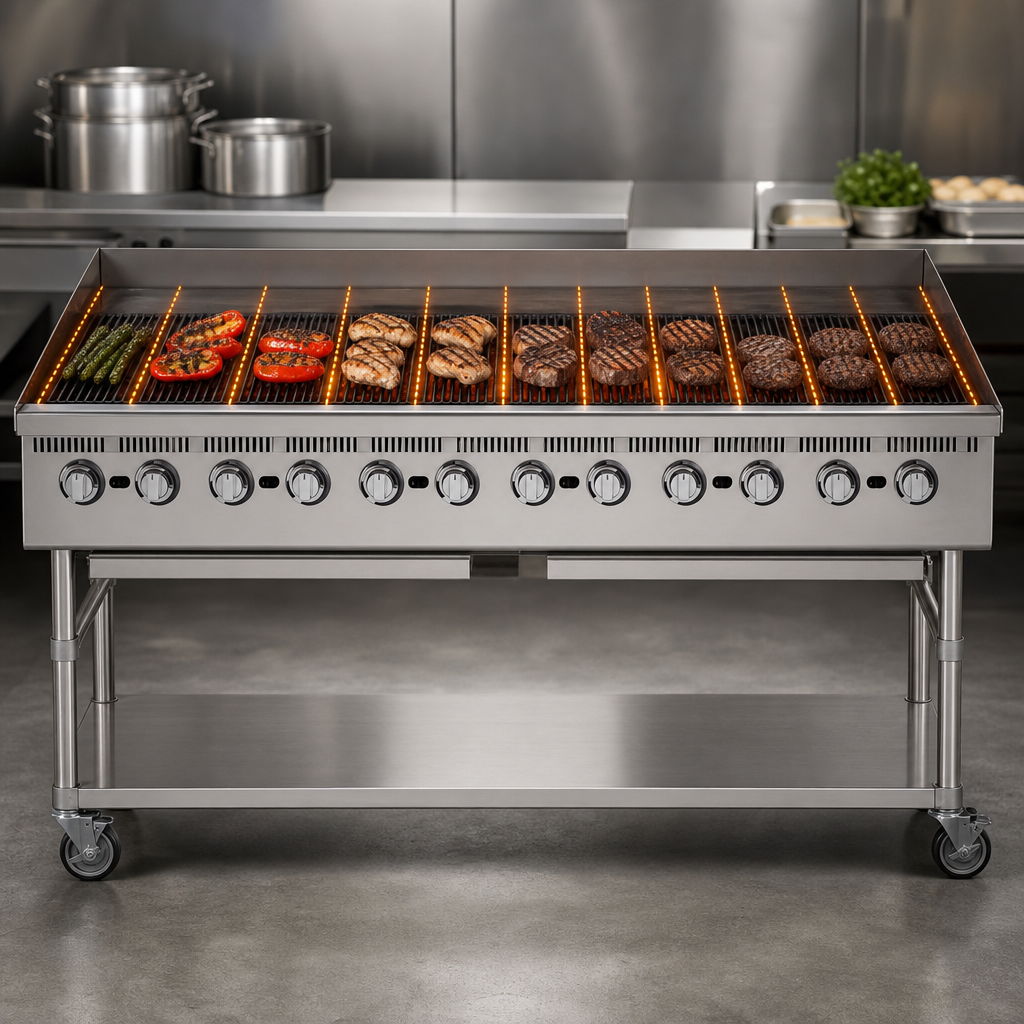

- 12 independent heat zones – manual controls every 6" give pinpoint command over each menu item.
- High-capacity 1,815 sq in grate – turn out up to 180 burgers (8 oz) per load.

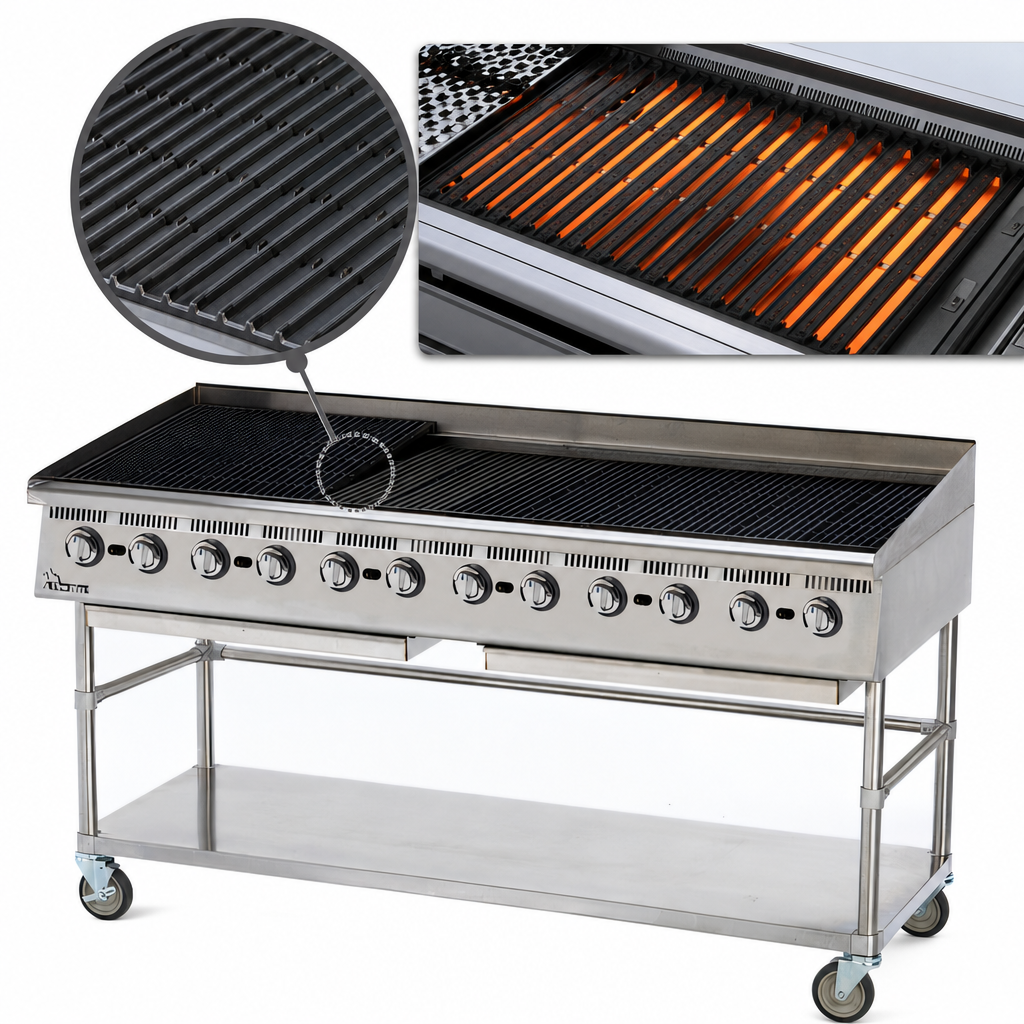

- Steel alloy radiants – provide rapid recovery, protect burners and channel heat for uniform results.
- Cast-iron burners & grates – outlast sheet-metal designs and hold heat for that perfect sear.
- Adjustable grate positioning – lay flat or incline each 6" section to control char marks & drainage.
- Cool-to-the-touch bullnose – protects valves and keeps the cookline comfortable.
- 5" tapered stainless splash guard, full-width water/drip pan & front grease trough speed clean-up.
- 4" adjustable legs and welded stainless frame for rock-solid countertop installation.
- Field convertible from natural gas to LP (3/4" NPT regulator included).
- cULus & UL EPH Classified for safety and sanitation.
At-a-Glance Specs
| Cooking Width | 72 in (1,829 mm) |
|---|---|
| Overall Depth | 35.2 in (894 mm) |
| Overall Height | 18 in (457 mm) | legs adjust +1.6 in |
| Grate Area | 1,815 sq in (11,710 sq cm) |
| Burners / Controls | 12 cast-iron burners | 12 manual valves |
| Total Input | 240,000 BTU/hr (20,000 BTU per 6") |
| Gas Connection | 3/4" NPT rear inlet | convertible NG/LP regulator supplied |
| Ship / Installed Weight | 731 lb / 596 lb (332 kg / 270 kg) |
| Clearances | 3" sides & back from combustibles |
| Certifications | cULus, UL EPH Classified, ANSI Z83.11 / CSA 1.8 |
| Warranty | 3-year parts & labor |
Ideal For
- High-volume steakhouses & burger concepts
- Resort, hotel and institutional food courts
- Catering kitchens requiring a powerful yet mobile char solution
What’s in the Box
- Star Ultra-Max 8172RCBB charbroiler (preset for Natural Gas)
- Convertible gas pressure regulator
- 4 adjustable 4" stainless steel legs
- Water / drip pan, splash guard & grease trough (factory installed)
- Owner’s manual & quick-start guide
Need a matching equipment stand or 7" plate shelf? Ask your rep about factory-approved accessories.
