Star (Middleby) 8160RCBB Ultra-Max Gas Charbroilers
Description

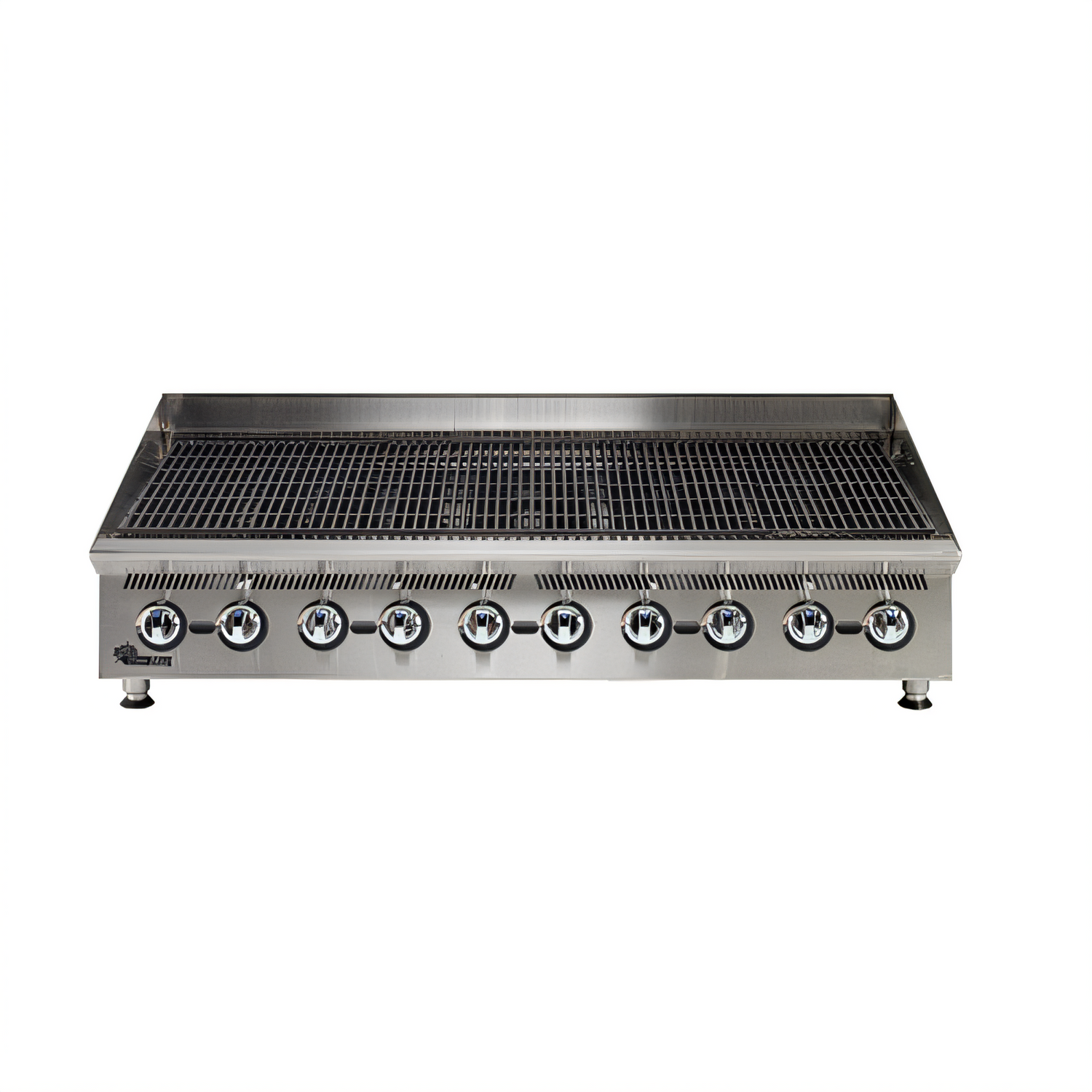

Star Ultra-Max® 60" Gas Radiant Charbroiler – Model 8160RCBB
200,000 BTU • 10-Zone Precision Control • Made in USAEngineered for the busiest kitchens, the 60" Ultra-Max® delivers steak-house sear marks, even heat distribution and day-in, day-out reliability. Ten independent 20,000 BTU burners, heavy-duty steel radiants and adjustable cast-iron grates give you the flexibility to crank out everything from burgers to kabobs with perfect results.
Why You’ll Love It

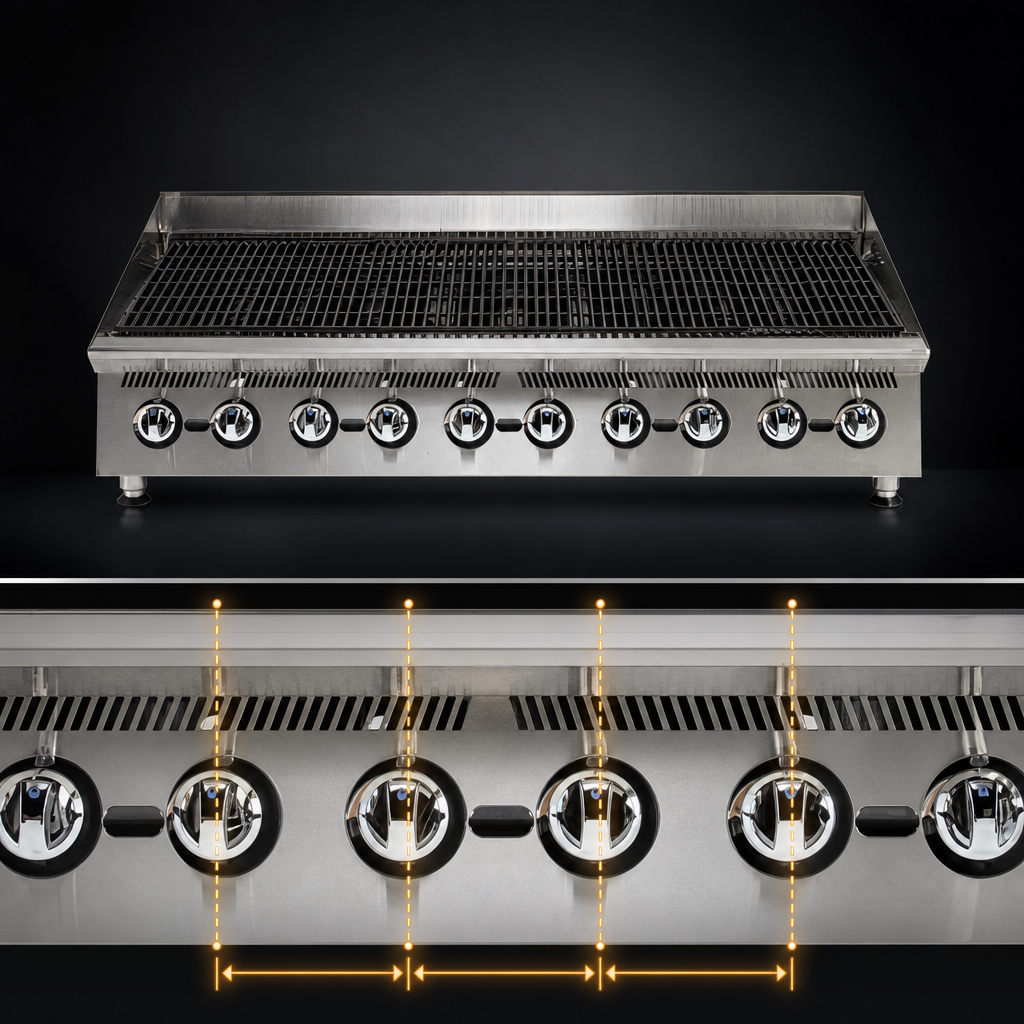

- Massive cooking power – 200,000 BTU from 10 cast-iron burners (one every 6").

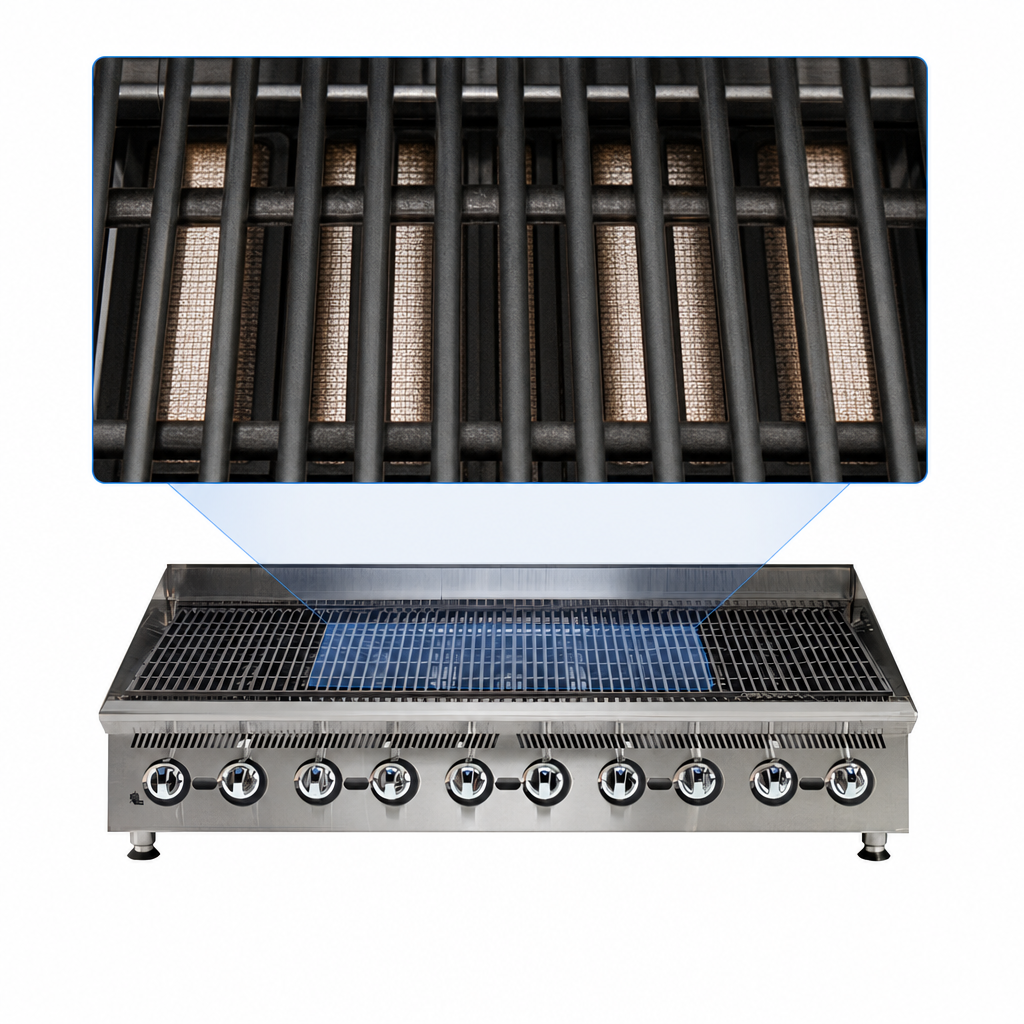

- Steel-alloy radiants protect burners and ensure a uniform heat profile.
- Adjust-on-the-fly grates tilt flat or inclined in 6" sections for perfect branding or grease runoff.
- Cool-to-the-touch bullnose keeps operators comfortable and shields durable metal knobs.
- Oversized splash guard & water pan team up with a full-width grease trough for fast clean-ups.
- Built to last – welded steel frame, stainless exterior and 4" adjustable legs.
- Field convertible for natural gas or LP; ¾" NPT rear gas connection.
- cULus & UL EPH Classified for sanitation and safety.
- Backed by a 3-year parts & labor warranty.
At-a-Glance Specs
| Model | 8160RCBB (Radiant Charbroiler) |
|---|---|
| Cooking surface | 1,512 sq in / 9,754 sq cm |
| Overall width | 60" / 1524 mm |
| Overall depth | 35.2" / 894 mm |
| Overall height | 18" / 457 mm (legs adjustable +1.625") |
| Total BTU | 200,000 BTU /hr |
| Burners / Controls | 10 cast-iron burners with independent manual valves & standing pilots |
| Grates | Cast iron, reversible, adjustable flat or inclined (6" sections) |
| Radiants | Heavy-duty steel alloy |
| Gas connection | ¾" NPT (rear), shipped for specified gas type |
| Construction | Stainless steel exterior, welded steel frame, 5" splash guard |
| Certifications | cULus, UL EPH Classified |
| Origin | Made in USA |
| Warranty | 3 years parts & labor |
Perfect for
- High-volume steakhouses and burger concepts
- Catering commissaries & ghost kitchens
- College, corporate & hospital foodservice lines
Popular Accessories (sold separately)
- 7" stainless steel plate shelf
- Heavy-duty equipment stand (27" max height for combustible floors)
- Lava-rock conversion kit
