Star (Middleby) 8148RCBB Ultra-Max Gas Charbroilers
Description

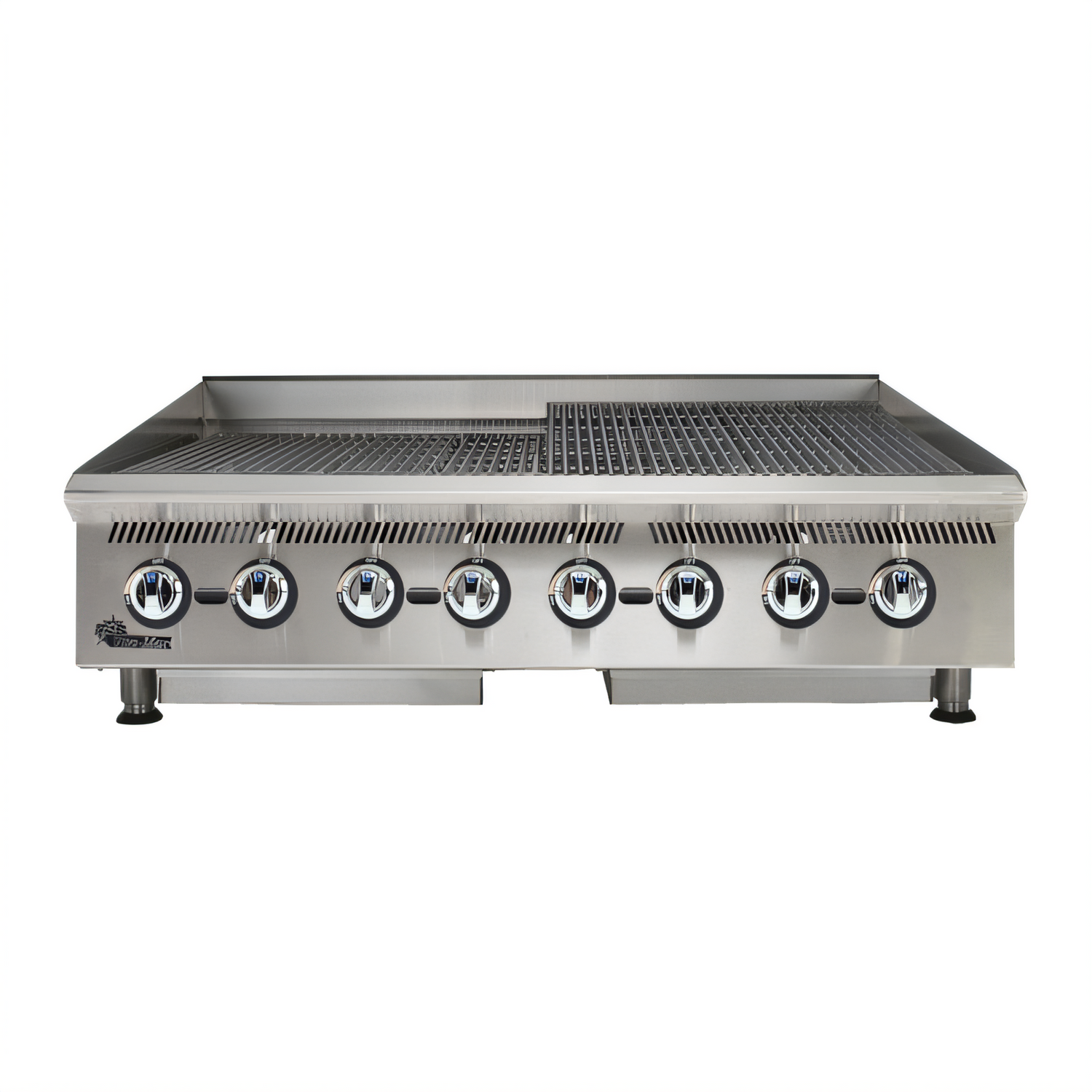

Star Ultra-Max® 48" Gas Radiant Charbroiler – Model 8148RCBB
160,000 BTU • 8 independent burners • Made in the USABuilt for the busiest kitchens, the Ultra-Max 8148RCBB puts 48 inches of heavy-duty grilling power on your countertop. Eight cast-iron burners and steel radiants deliver a blistering 20,000 BTU per 6" section, while individually adjustable cast-iron grates give you the precision to sear steaks, burgers, vegetables – anything on your menu – exactly the way you want.
Why you’ll love it

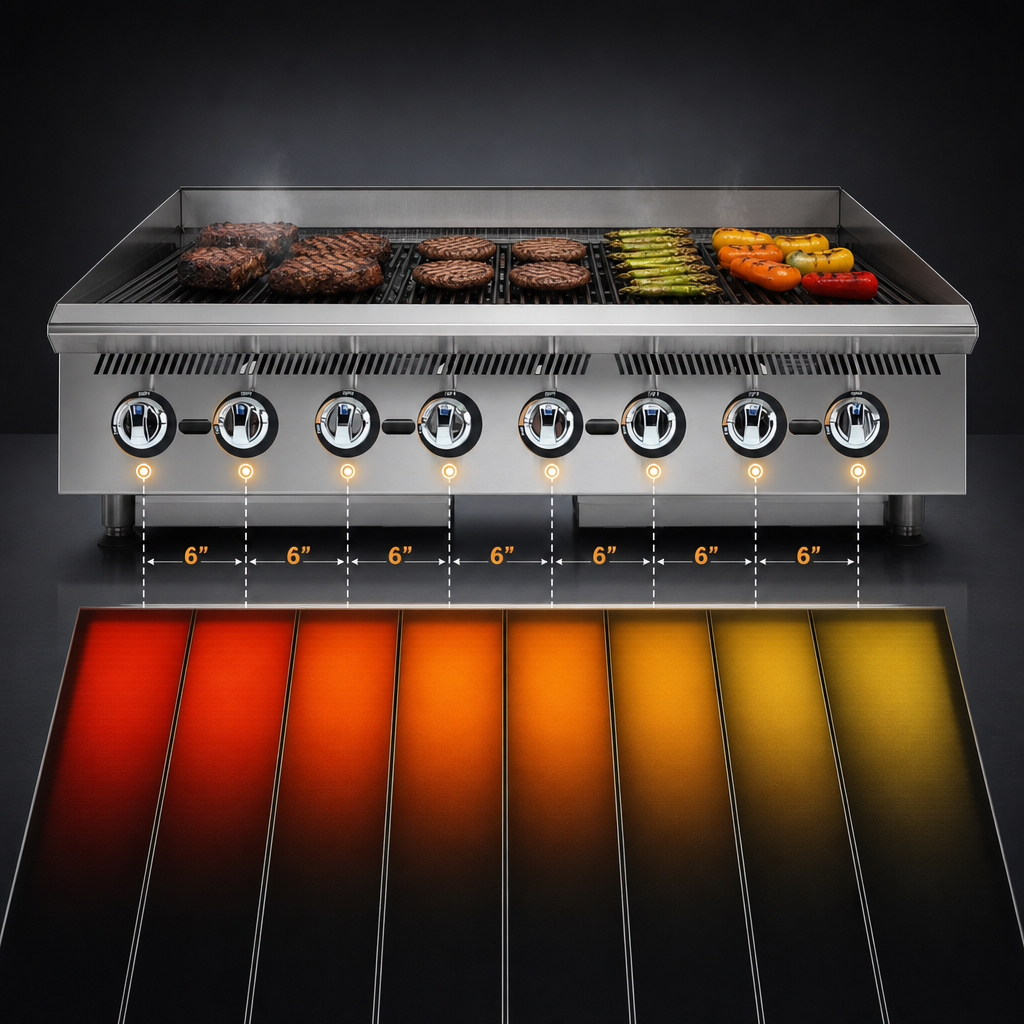

- Independent 6" zones – manual valves let you set each section for high-heat searing or gentle holding.
- Cast-iron burners & grates withstand extreme temps and resist warping or corrosion.

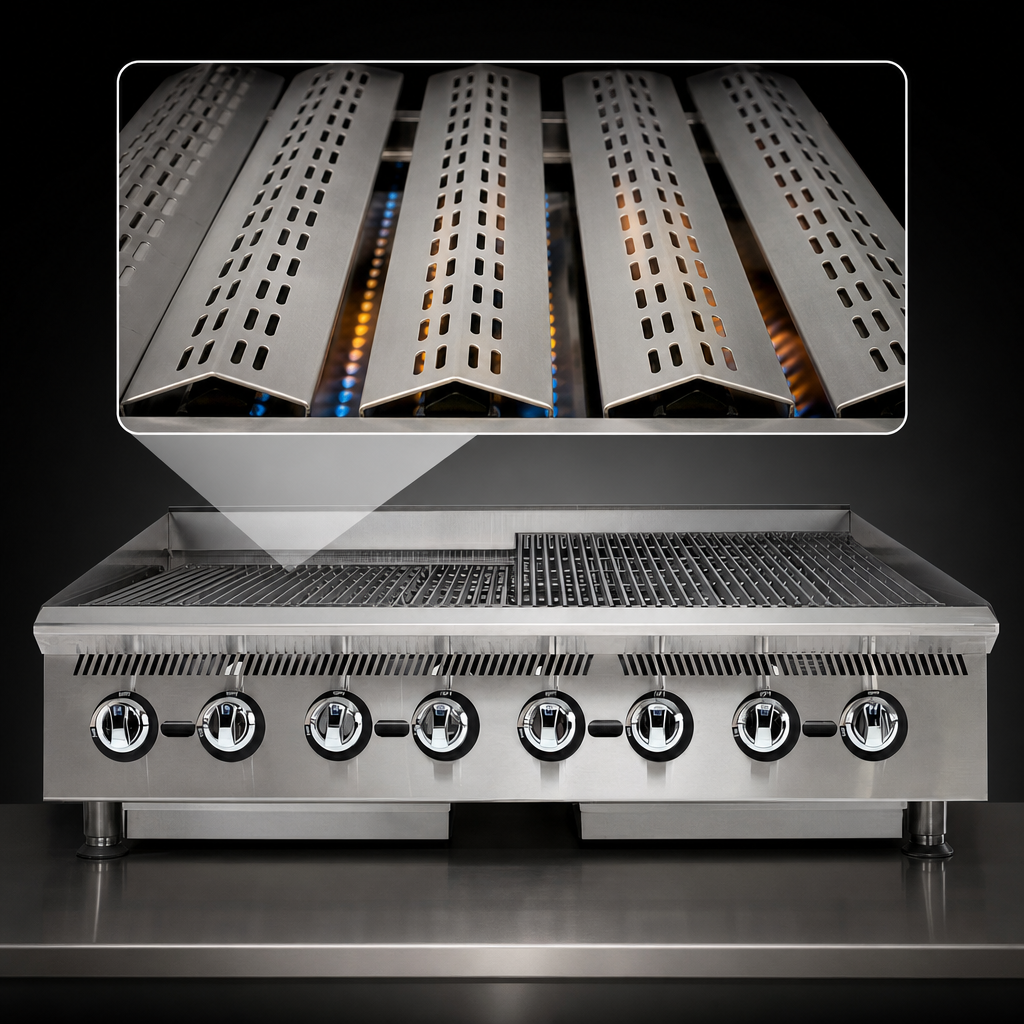

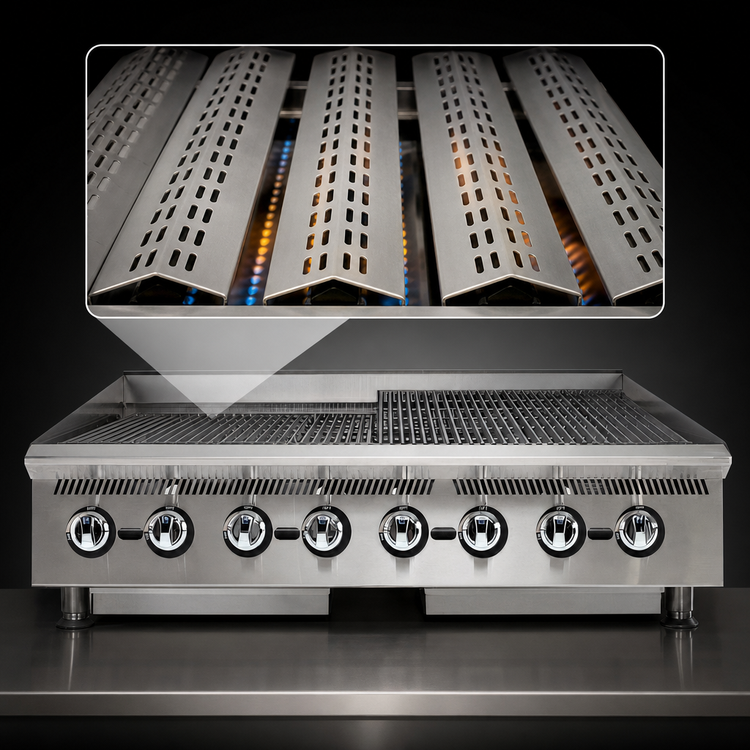

- Durable steel radiants concentrate heat on the food, not the burners, for faster recovery and longer component life.
- Grates adjust flat or inclined for perfect grill marks or grease runoff.
- 5" tapered splash guard, full-width water/drip pan and front grease trough keep your line clean.
- Cool-to-the-touch stainless bull-nose protects valves and your crew.
- Welded steel frame with all-stainless exterior cleans up fast and looks great.
- Ships ready for Natural Gas and includes convertible pressure regulator for simple LP changeover.
- cULus & UL EPH Classified for gas and sanitation compliance.
Technical specs
| Model | 8148RCBB (Radiant) |
|---|---|
| Cooking surface | 1,209 in² (7,800 cm²) cast-iron grates |
| Overall width | 48" / 1,219 mm |
| Overall depth | 35.2" / 894 mm |
| Overall height | 18" / 457 mm (+1.6" adjustable legs) |
| Burners / Controls | 8 cast-iron burners – manual valves every 6" |
| Total input | 160,000 BTU/hr (46.9 kW) |
| Gas connection | 3/4" NPT rear, convertible NG/LP |
| Shipping weight | ≈ 399 lb / 181 kg |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2-year parts & labor |
| Manufactured | Smithville, Tennessee USA |
Options & accessories
- 7" stainless plate shelf (adds handy plating space).
- 48" stainless equipment stand with or without casters.
- Replacement radiants and grates.
- High-altitude or LP orifice kits (factory or field conversion).
Install on a non-combustible surface using the included 4" legs. Maintain 3" rear/side clearance to combustibles and connect under a properly sized exhaust hood. Always follow local codes and the Star installation manual.
