Star (Middleby)

Star Ultra-Max 36-Inch Radiant Gas Charbroiler, 120,000 BTU, Manual Controls

SKU: 8136RCBB
$7,293.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers New Arrivals Restaurant Equipment Star (Middleby)

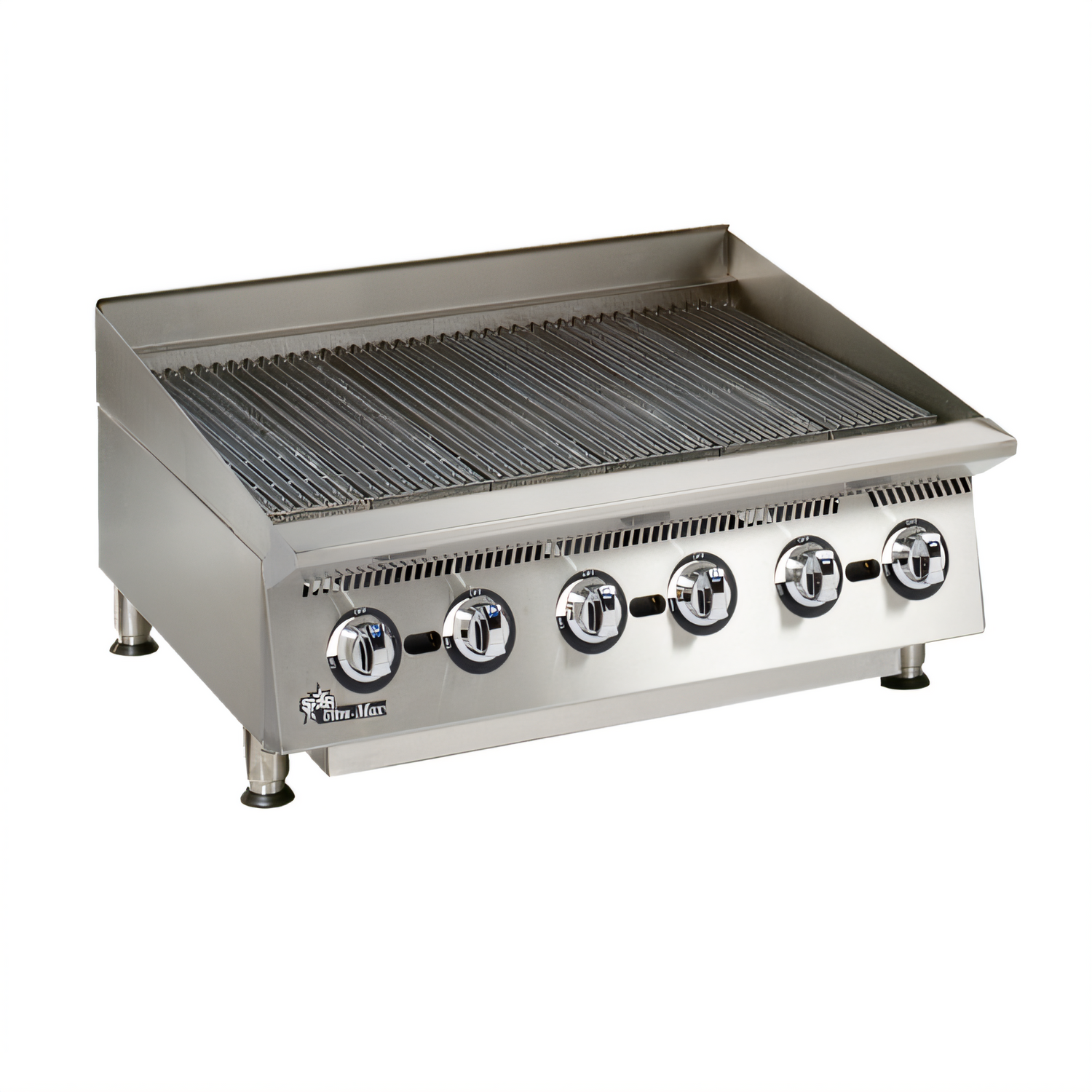

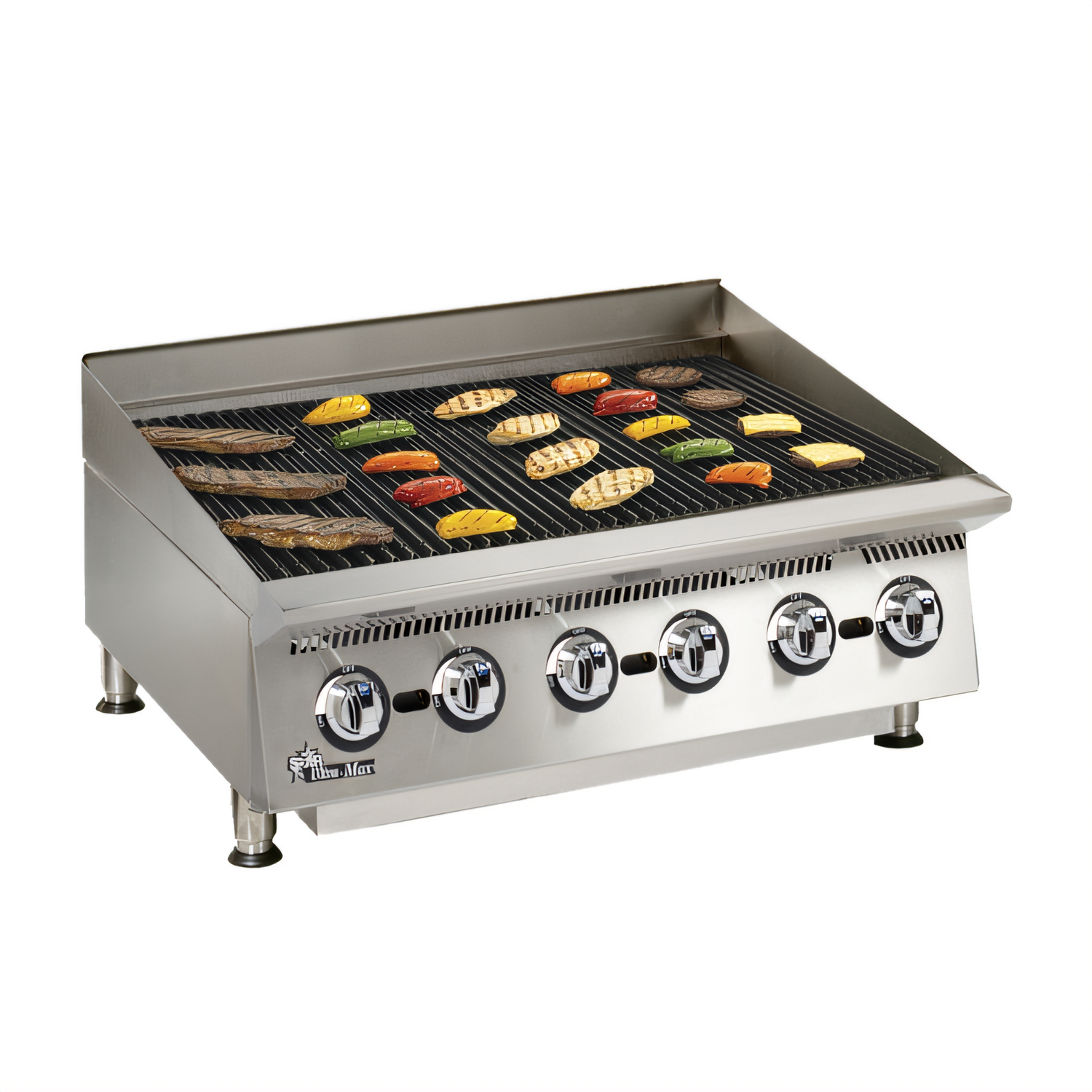

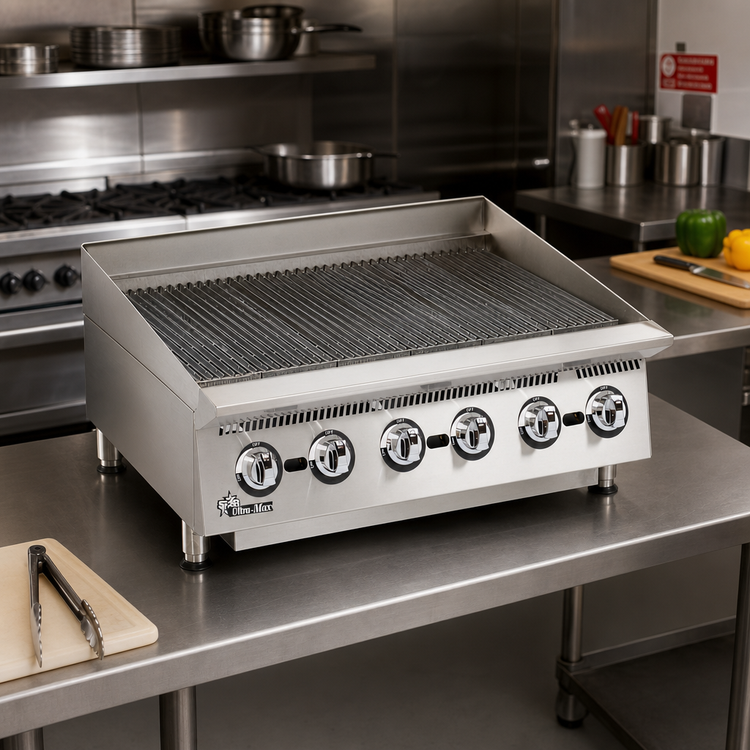

Star Ultra-Max 36-Inch Radiant Gas Charbroiler, 120,000 BTU, Manual Controls

Ships Natural Gas; Convertible to Propane, Steel Radiants, Cast Iron Grates, 4-Inch Legs

Built for heavy-duty grilling, this 36-inch radiant charbroiler combines even heat, manual zone control, and rugged commercial construction.

  • 36-inch radiant gas charbroiler with 120,000 BTU for high-output grilling.
  • Manual high-low controls every 6 inches help create searing and finishing zones.
  • Steel radiants and cast iron broiling grates promote even heat and durable performance.
  • Welded steel frame with stainless steel exterior stands up to commercial use.
  • Includes drip pan, splash guard, grease trough, and water pan for grease control.
  • Ships set for natural gas and can be converted to propane; 4-inch legs are included.

Overall Dimensions:

36.0"W x 35.2"D x 18.0"H

Product Weight:

337.0 lb

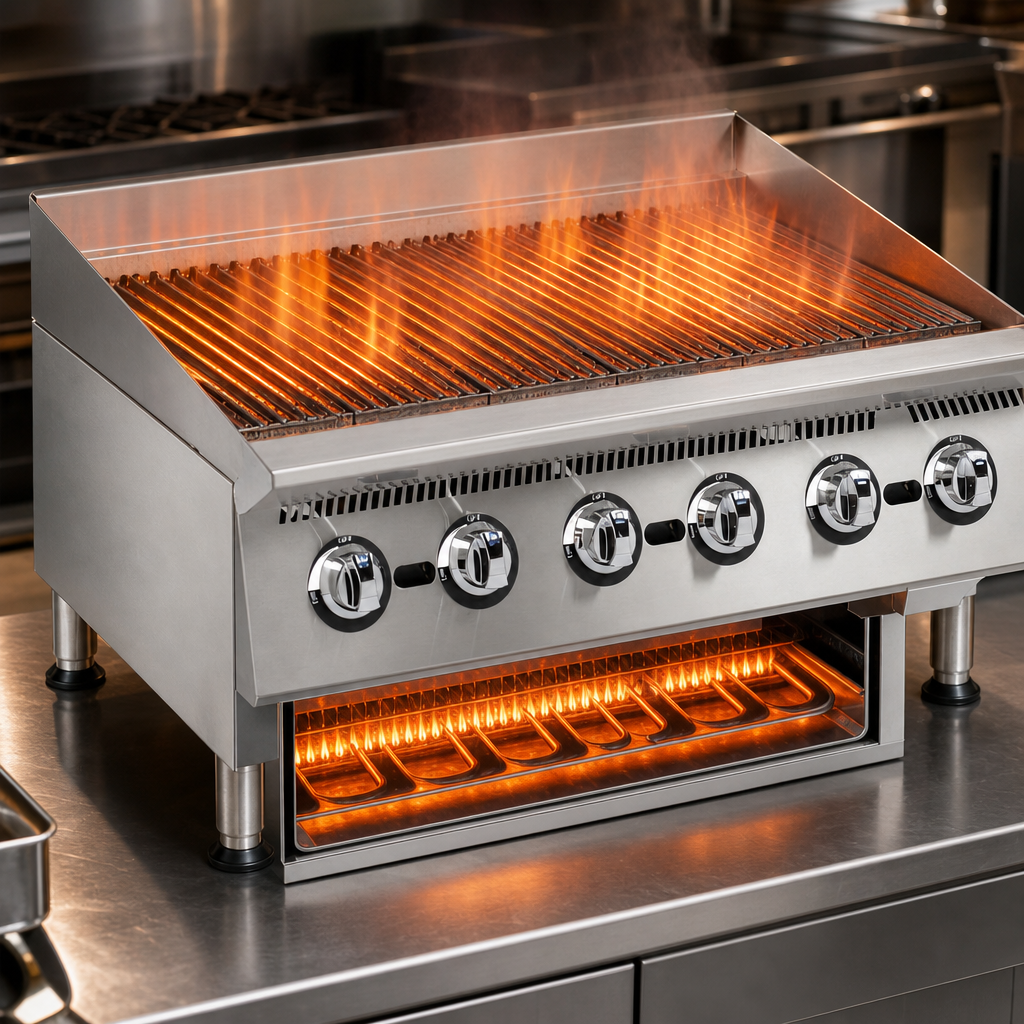

High-Output Burner System

120,000 BTU total output supports fast preheat and strong searing performance.

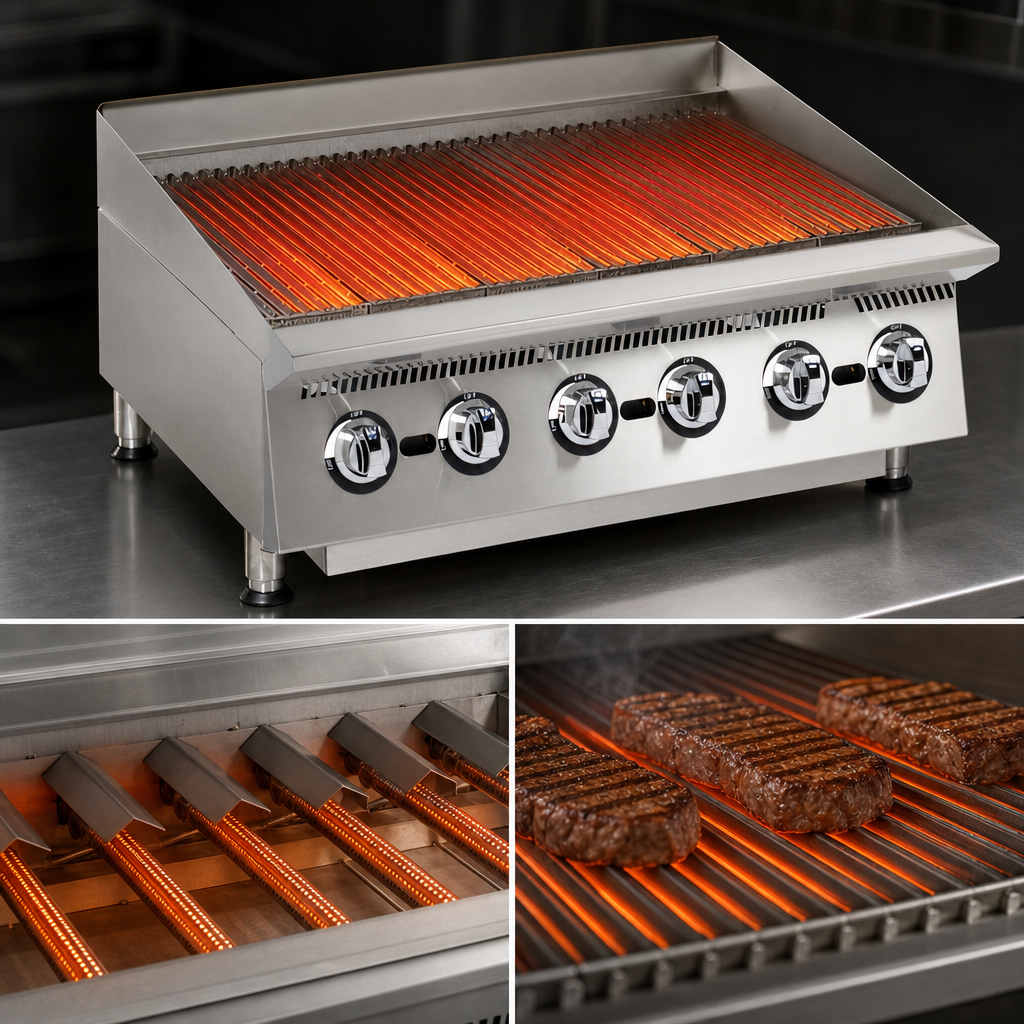

Steel Radiant Heat Distribution

Radiants sit above each burner to help deliver even, predictable heat across the cooking surface.

Manual Zone Controls

Individual high-low burner controls every 6 inches let you create separate searing and finishing zones.

Cast Iron Broiling Grates

Heavy-duty cast iron grates are built for commercial grilling and long service life.

Durable Steel Cabinet

Welded steel frame with a stainless steel exterior is designed for demanding kitchen use.

Grease Management Package

Drip pan, splash guard, grease trough, and water pan help manage drippings and reduce flare-ups.

Countertop Legs

4-inch legs are included for countertop installation and leveling.

Convertible Fuel Setup

Ships for natural gas and can be converted to propane with the proper conversion parts.

Type Charbroiler
Style Radiant
Installation Type Countertop
Controls Manual High-Low
Capacity 906 Square Inches
BTU 120,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 5 Inches W.C.
Cooking Surface Width 36 Inches
Cooking Surface Depth 24 Inches
Material Steel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 36 Inches
Shipping Height 18 Inches
Shipping Weight 337 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Guideline conversion PDF Download PDF Owner's manual PDF Download PDF Installation & operation PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It ships set for natural gas and can be converted to propane with the proper conversion parts.
Each burner has an individual manual high-low on-off control, with controls spaced every 6 inches.
The unit has 906 square inches of grid area and a 24-inch grate depth.
It includes a drip pan, splash guard, grease trough, and a water pan.
The Ultra-Max buying guide shows a 3-year parts and labor warranty.
