Description

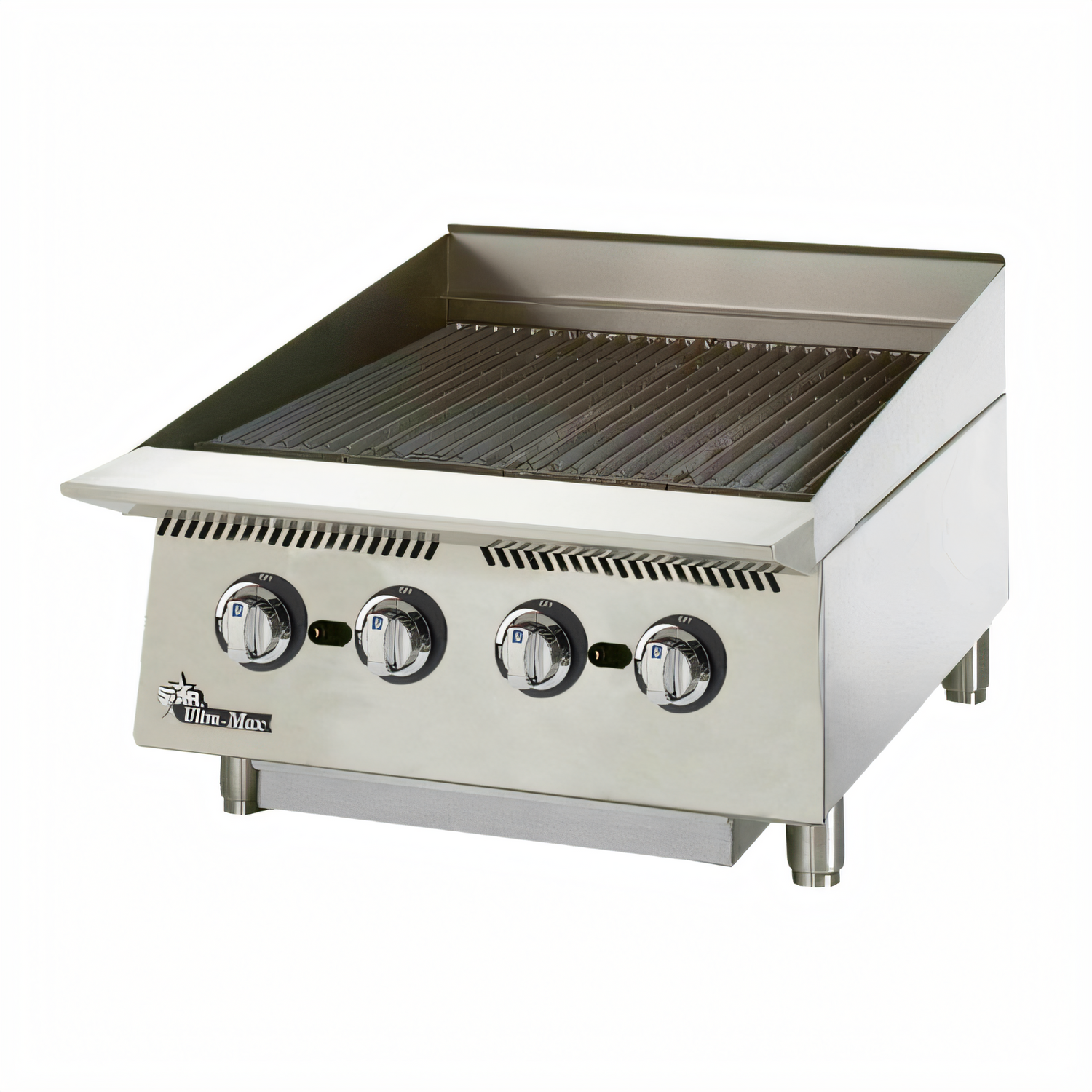

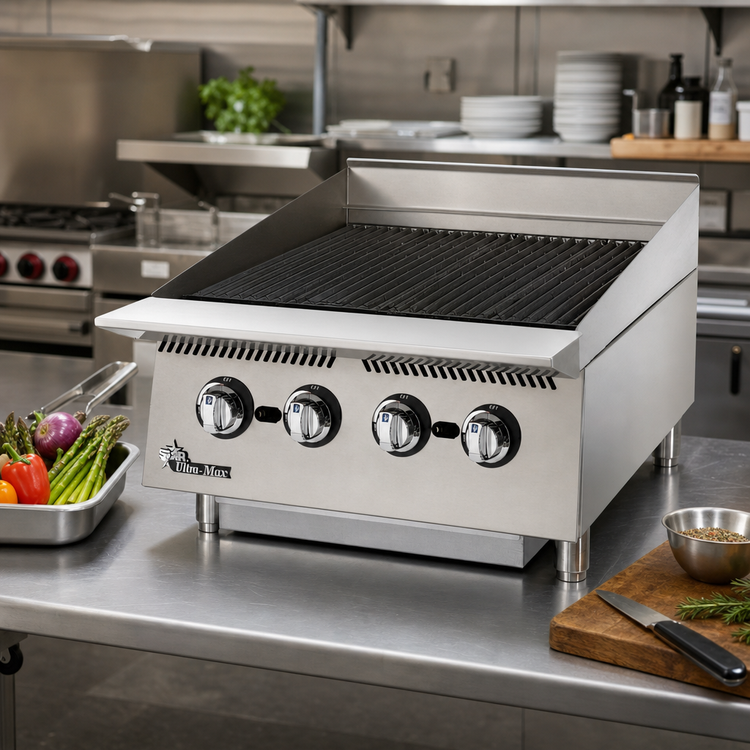

Star Ultra-Max® 24" Radiant Gas Charbroiler – 80,000 BTU

Model 8124RCBB | Made in the USA

Bring steak-house sear and smoky flavor to any prep line with Star’s heavy-duty Ultra-Max® countertop charbroiler. Four cast-iron burners and long-life steel-alloy radiants blanket the full 24 inch grill with even, responsive heat—perfect for burgers, chops, seafood and veggies during the busiest rush.

Key performance features

  • 80,000 BTU total output (20,000 BTU every 6" section) for rapid recovery and high-volume production

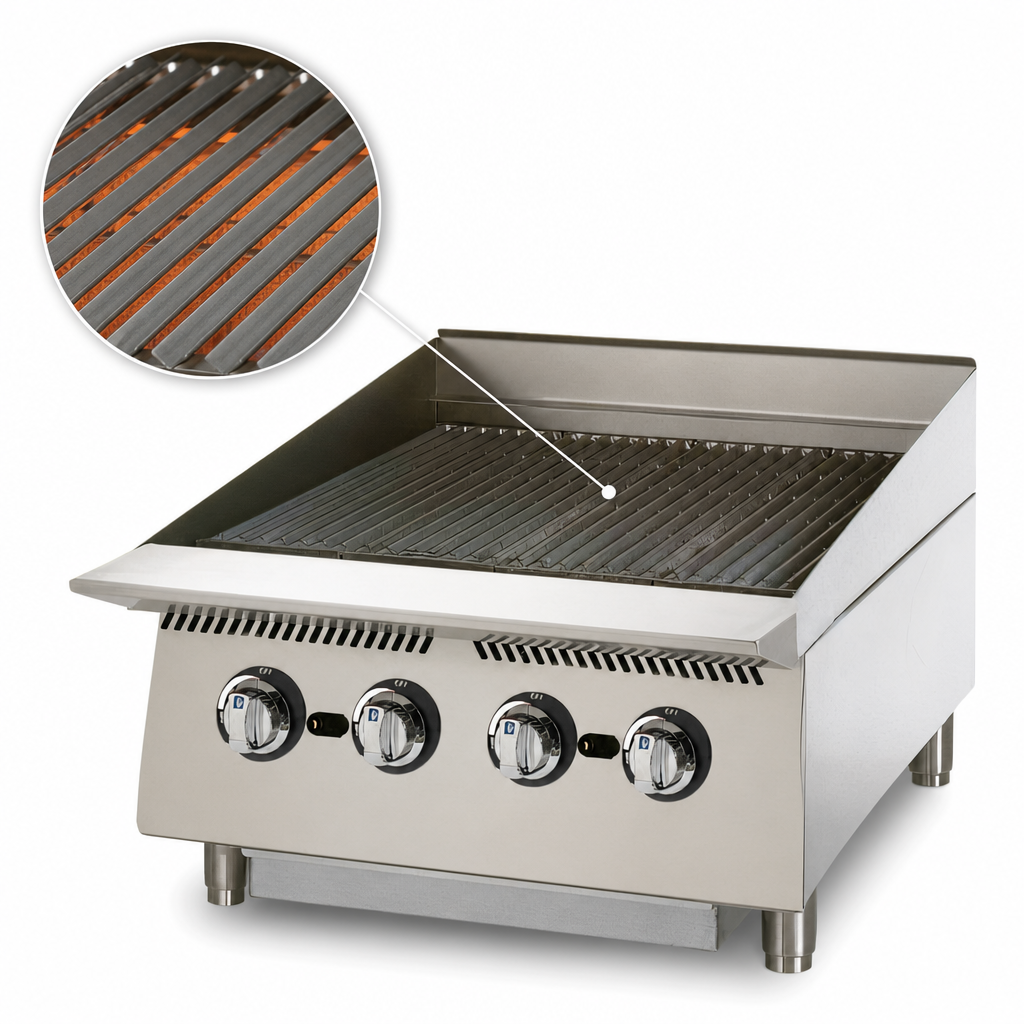

  • Steel-alloy radiants protect burners and deliver a consistent temperature profile across the grate

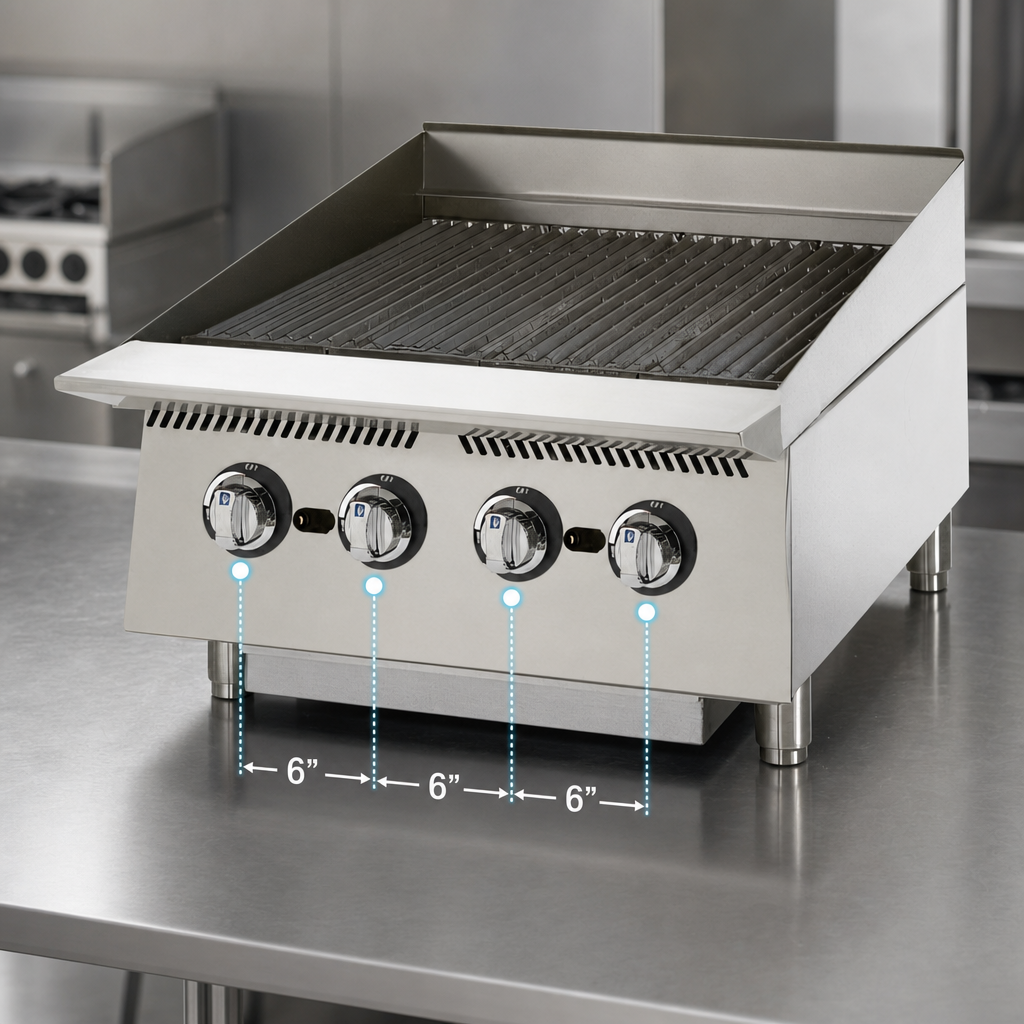

  • Individually-controlled cast-iron burners (4 total) give you zone-to-zone control for mixed loads
  • Reversible, heavy-duty cast-iron grates adjust flat or inclined to handle everything from delicate fish to thick steaks
  • 5" tapered splash guard, full-width grease trough + drip pan for easier cleanup
  • Cool-to-the-touch stainless bull-nose keeps operators comfortable and protects the valve knobs
  • Welded steel frame with all-stainless exterior stands up to relentless kitchen abuse
  • Factory-set for Natural Gas – simple conversion kit available for LP

Perfect for

  • Steakhouses & chophouses
  • Fast-casual grill lines
  • Hotel banquets & catering kitchens
  • Food trucks and ghost-kitchen build-outs needing maximum BTU in minimum space

Specifications

Model 8124RCBB (Ultra-Max® Radiant Series)
Cooking surface 603 in² (24 in W × 24 in D)
Overall dimensions 24 in W × 35.2 in D × 18 in H ¹
Heat output 80,000 BTU/hr
Burners / controls 4 cast-iron burners  |  4 manual valves (6" spacing)
Gas connection 3/4" NPT, rear
Shipping / installed weight 243 lb / 174 lb (110 kg / 79 kg)
Clearances 3" sides & rear from combustibles
Certifications cULus, UL EPH Classified
Warranty 2-year parts & labor on unit; 1-year on grates/burners

¹ Height includes the supplied 4" adjustable countertop legs.

What’s in the box

  • Fully assembled charbroiler with 4" legs
  • Cast-iron broiling grates (4 sections)
  • Removable drip pan & splash guard
  • Installation & operation manual

Popular accessories (sold separately)

  • 7" stainless plate-rest shelf
  • Heavy-duty equipment stand (27" max height for combustibles)
  • Conversion kit for LP gas
Installation note: This appliance is intended for commercial use on a non-combustible countertop or approved stand only. Maintain minimum 3" clearance at both sides and rear for proper ventilation and safety.

Features & Specs

Manufacturer

Star (Middleby)

Brand_name

Ultra-Max

Certifications

cULus, UL EPH Classified, Made in USA

Height

18.0in

Width

24.0in

Depth

35.2in

Shipping Weight

245.0lbs

Control Type

manual controls

Heating Source

radiant

Width (side - side) OA

19 - 24"

Specifications

Ultra-Max® Charbroiler, gas, 24"L, 35-1/5"D, 18"H, steel alloy radiants, adjustable manual controls every 6", welded steel frame with stainless steel exterior, cast iron broiling grates, drip pan, splash guard & grease trough, 4" legs, 80,000 BTU, cULus, UL EPH Classified, Made in USA
