Star (Middleby) 808HA Ultra-Max Hot Plates
$4,950.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Star (Middleby) 808HA Ultra-Max Hot Plates is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Star (Middleby) 808HA Ultra-Max Hot Plates
$4,950.00
Unit price
/
Unavailable
Description
Star Ultra-Max® 808HA 48" Countertop Gas Hotplate
8 Burners • 240,000 BTU • Made in USABuilt for the busiest kitchens, the Ultra-Max® 808HA crams eight powerful burners into just 48 inches of counter space. Heavy-duty construction, precise manual controls, and a cool-to-the-touch bullnose make it the go-to solution for high-volume sautéing, boiling, and back-up range power.
Key Features
- 30,000 BTU per burner (240,000 BTU total) on natural gas — 26,000 BTU on LP
- Lift-off cast-iron burner heads with anti-clog design for fast cleaning
- Non-tilt, heavy-duty cast-iron grates keep stock pots steady

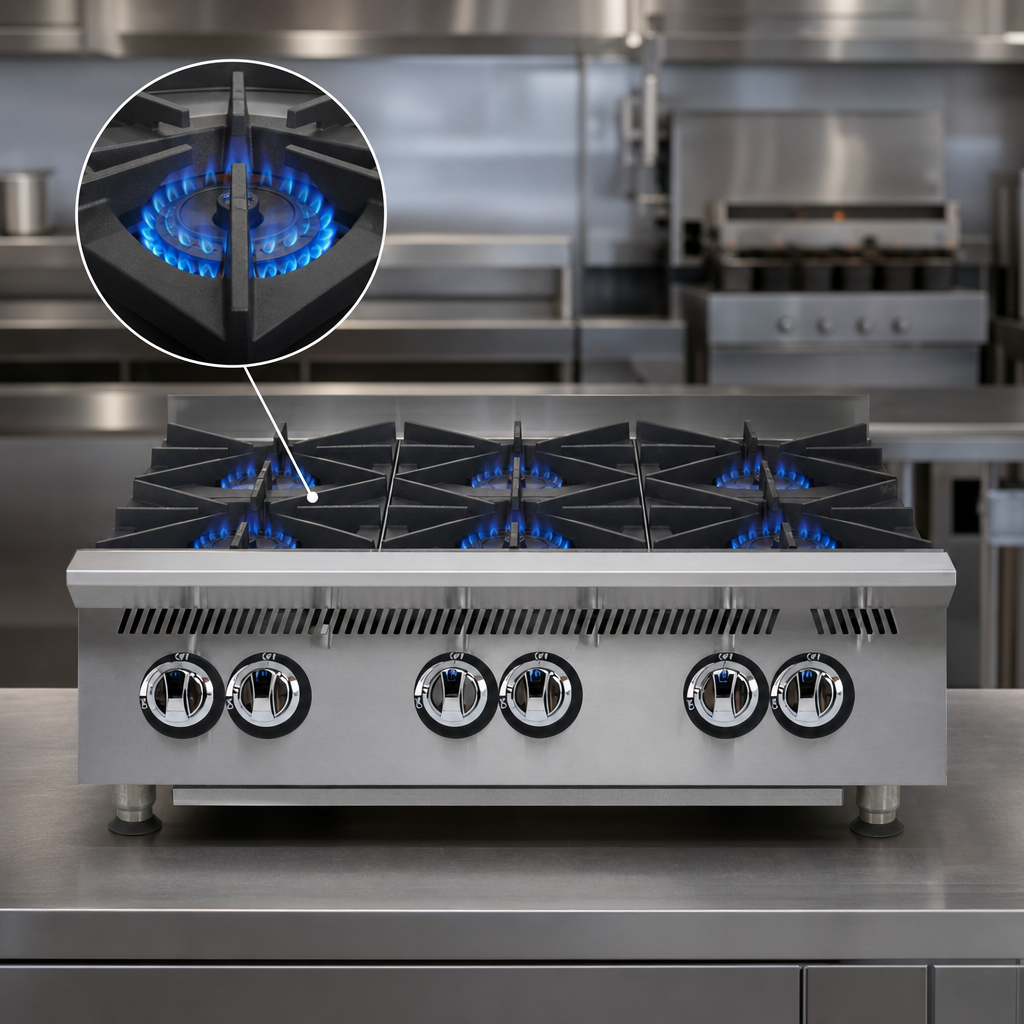

- Independent standing pilot and quarter-turn manual control for every burner
- Cool-touch stainless bullnose shields durable chrome knobs
- Full-width crumb/drip tray slides out for quick cleanup
- 4" adjustable legs for easy leveling
- cULus & UL EPH Classified gas-fired equipment
- Proudly manufactured in Smithville, Tennessee
At-a-Glance Specs
| Model | 808HA |
|---|---|
| Burners | 8 × 30,000 BTU cast-iron (240,000 BTU total) |
| Dimensions (H × W × D) | 15.1 × 48 × 32.25 in (384 × 1,220 × 819 mm) |
| Gas Connection | 3/4" NPT male (rear) |
| Gas Type | Natural gas (LP conversion kit available) |
| Ship / Installed Weight | 360 lb / 280 lb (163 kg / 127 kg) |
| Clearances (Combustible) | 9 in rear, 7 in sides |
| Certifications | cULus, UL EPH Classified, GAS-FIRED |
| Warranty | 2-year parts & labor (1-year on cast-iron components) |
Perfect For
- Rapidly boiling large stock pots or pasta water
- High-volume sauté stations and wok lines
- Expanding burner capacity on banquet or catering setups
- Kitchens that need range-level power without adding floor space
Options & Accessories
- Extended plate shelf

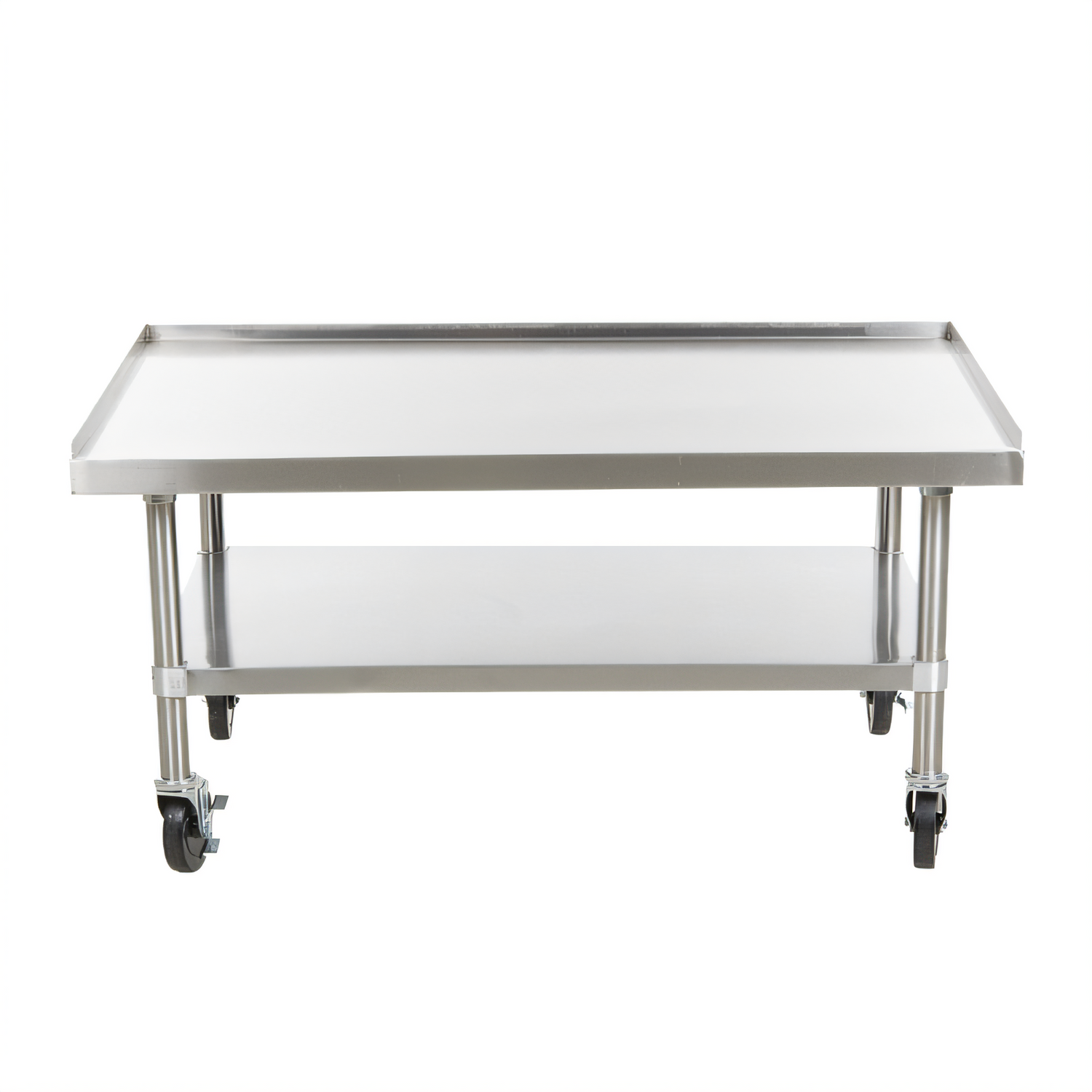

- Universal equipment stand
Flexible payment plans available through Middleby Equipment Financing.
Installation Note: Unit must be installed by a licensed gas professional.
Maintain listed clearances and connect to a 3/4" NPT gas line of adequate capacity.
Features & Specs
Features & Specs
Manufacturer
Star (Middleby)
Brand_name
Ultra-Max
Certifications
cULus, UL EPH Classified, Made in USA
Height
15.1in
Width
48.0in
Depth
32.25in
Shipping Weight
283.0lbs
Top and Front Finish
stainless steel
Burner Qty
8 burners
Legs
with legs
Width (side - side)
48 - 59"
Specifications
Ultra-Max® Hotplate, countertop, gas, 48" wide, (8) 30,000 BTU cast iron burners, manual controls, heavy duty cast iron grates, drip tray, heavy duty chrome knobs, stainless steel exterior with cool touch bullnose, 4" adjustable legs, 240,000 BTU, cULus, UL EPH Classified, Made in USA
