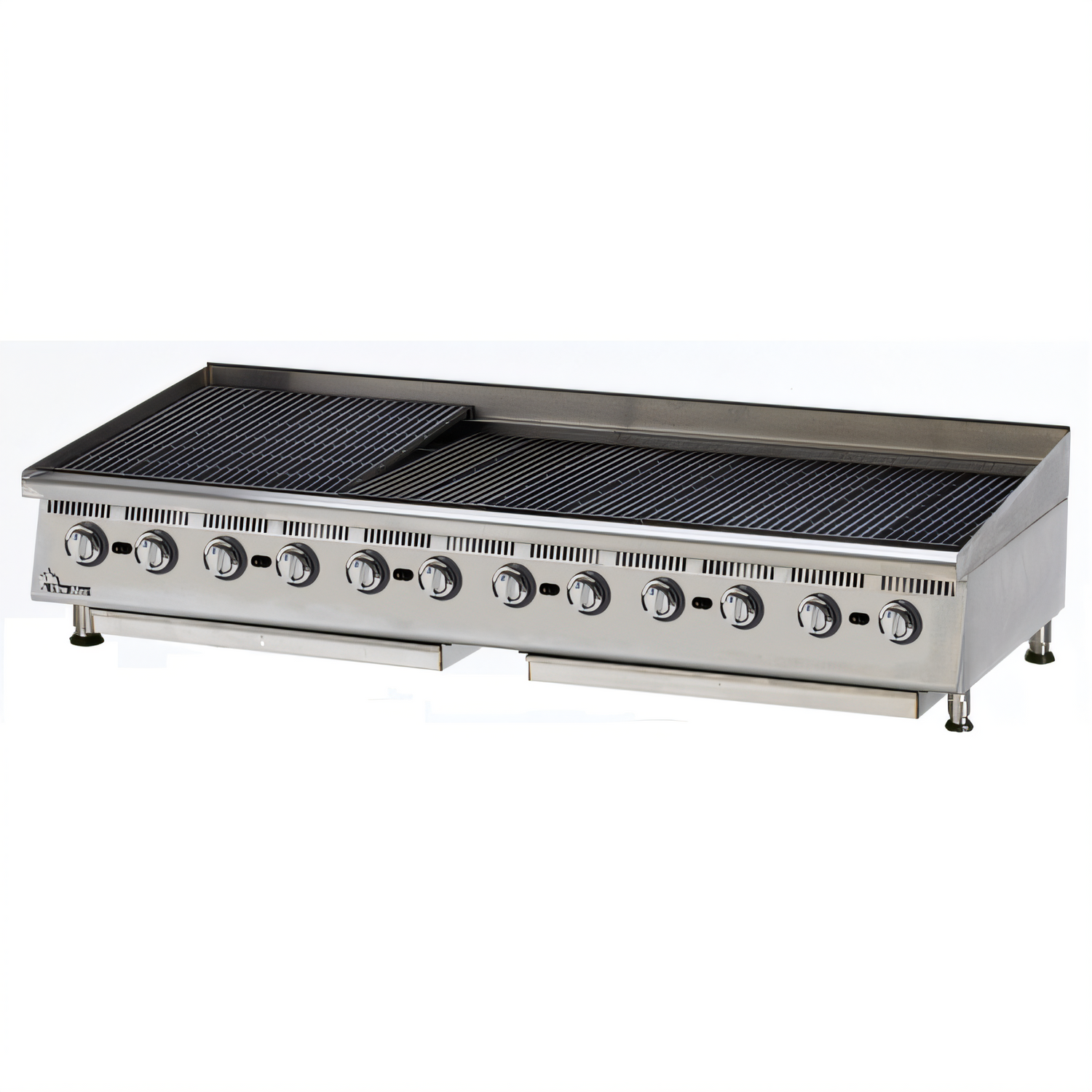

Star Ultra-Max 72-Inch Gas Lava Rock Charbroiler

SKU: 8072CBB
$13,675.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers New Arrivals Restaurant Equipment Star (Middleby)

Star Ultra-Max 72-Inch Gas Lava Rock Charbroiler

Manual controls every 6 inches; natural gas with propane conversion capability.

Built for high-volume grilling, this 72-inch lava rock charbroiler delivers 240,000 BTU of powerful heat with independent control zones every 6 inches.

  • 72-inch lava rock gas charbroiler for demanding commercial grilling.
  • 12 manual control zones let you create separate searing and holding areas.
  • 240,000 BTU total output supports fast recovery and high-volume production.
  • Cast iron broiling grates and lava rocks help produce flavorful char marks.
  • Welded steel frame with stainless steel exterior is built for heavy-duty use.
  • Drip pan, splash guard, grease trough, and water pan help manage flare-ups and cleanup.
  • Ships for natural gas and can be converted to propane.

Overall Dimensions:

72.0"W x 35.2"D x 18.0"H

Product Weight:

699.0 lb

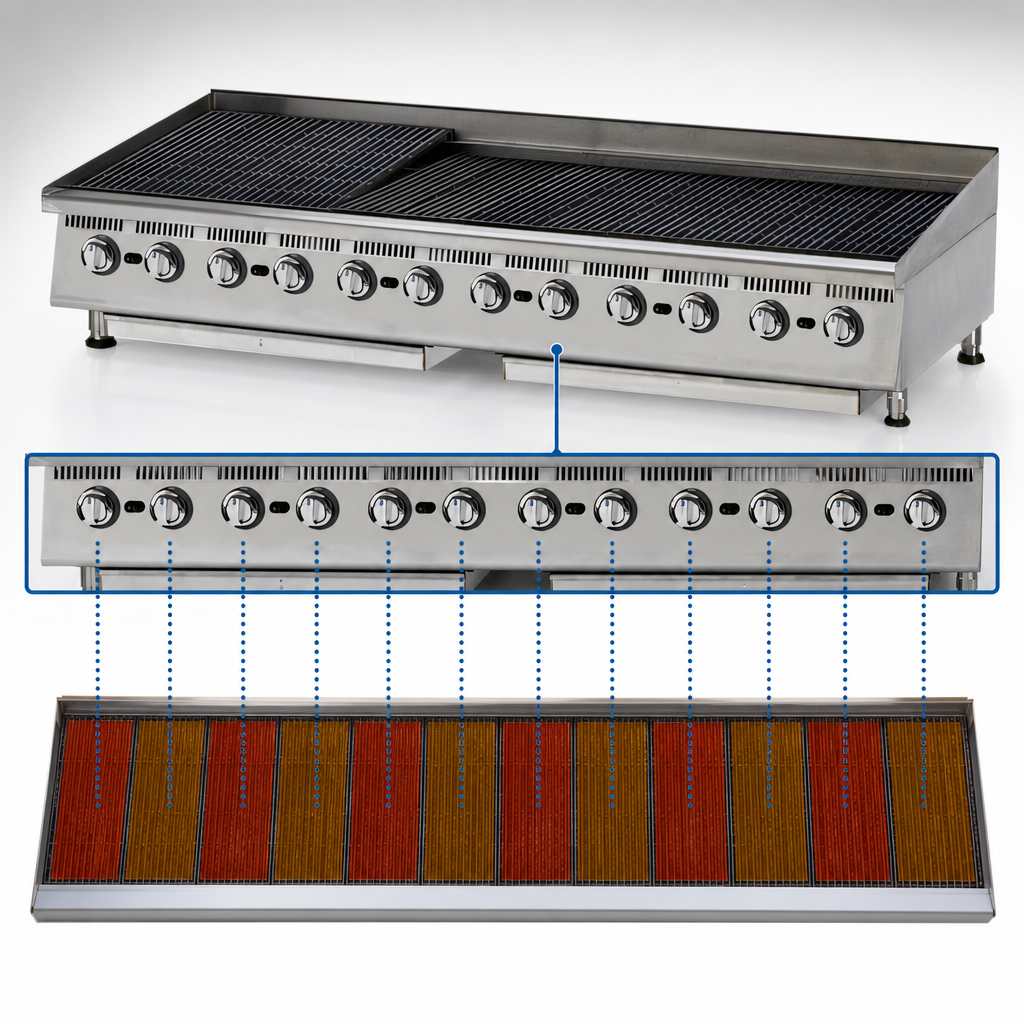

12 Individual Manual Controls

Manual valve control every 6 inches gives operators independent heat zones across the 72-inch surface.

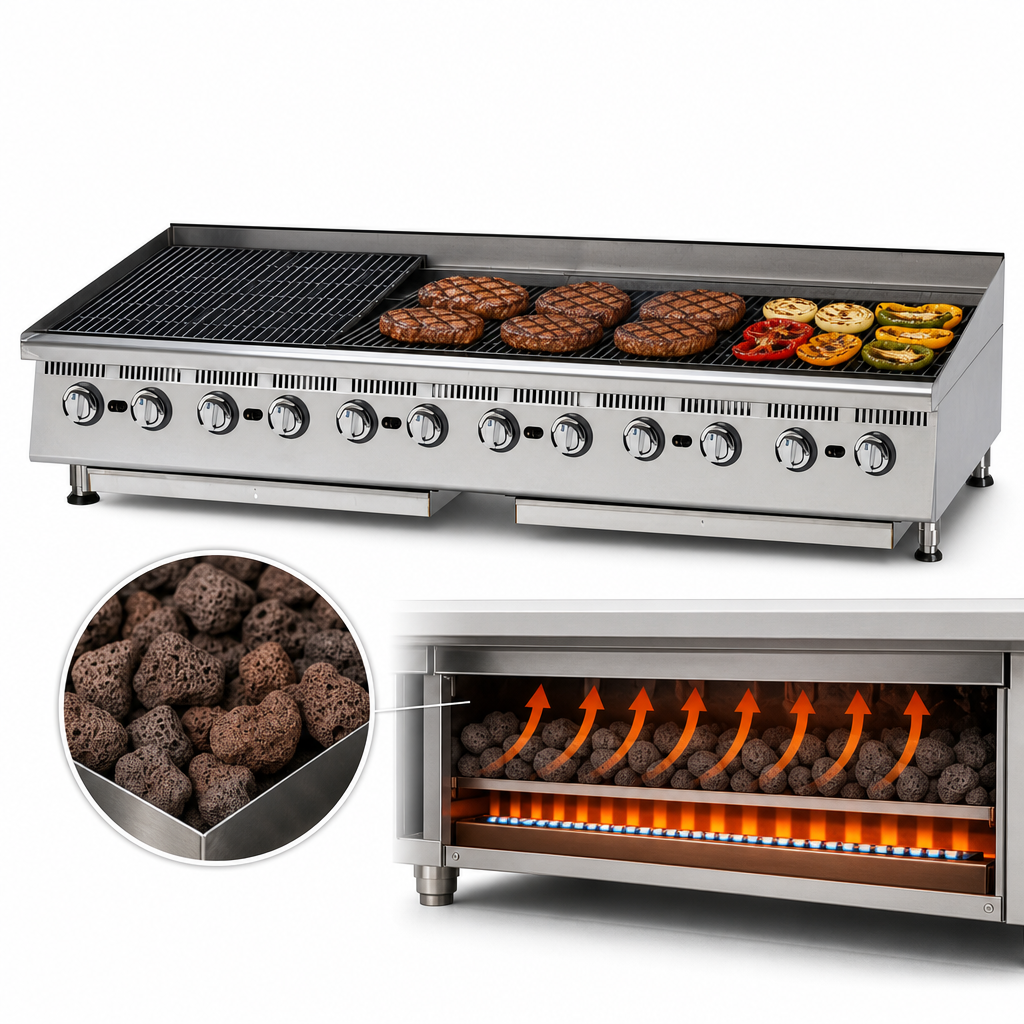

Lava Rock Heat System

Lava rocks help distribute burner heat evenly while adding the flavor profile associated with lava rock broiling.

Cast Iron Broiling Grates

Heavy-duty cast iron grates provide durable cooking support and strong grill marks.

240,000 BTU Output

High total gas input is designed for fast recovery and heavy-duty commercial grilling performance.

Stainless Steel Exterior

The welded steel frame with stainless steel exterior is built for commercial durability.

Grease Management Components

Drip pan, splash guard, grease trough, and water pan help control grease and reduce flare-ups.

Natural Gas Shipped / Propane Convertible

The unit ships set for natural gas and can be converted to propane with the proper burner orifice hoods and regulator adjustment.

Standing Pilots

Standing pilots allow quick ignition and relighting during daily operation.

4-Inch Legs

The unit includes 4-inch legs for countertop-style installation and leveling.

Type Charbroiler
Style Lava Rock
Installation Type Countertop
Controls Manual
BTU 240,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Material Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Marketing sheet PDF Download PDF Installation & operation PDF Download PDF Buying guide PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Guideline conversion PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It ships from the factory set for natural gas and can be converted for propane use with the proper burner orifice hoods and regulator adjustment.
The 72-inch model has 12 manual controls, with control points spaced every 6 inches.
The gas inlet is 3/4-inch NPT.
The unit includes a drip pan, splash guard, grease trough, and water pan to help manage grease and reduce flare-ups.
It should be installed in a non-combustible, well-ventilated location under an efficient exhaust hood, with at least 3 inches of clearance from the back and sides and 48 inches of vertical clearance to filters or other combustible material.
Remove the lava rock as needed, soak it overnight in water, clean the lava grates, and replace the rock as needed.
