Star (Middleby) 806HA Ultra-Max Hot Plates
Description

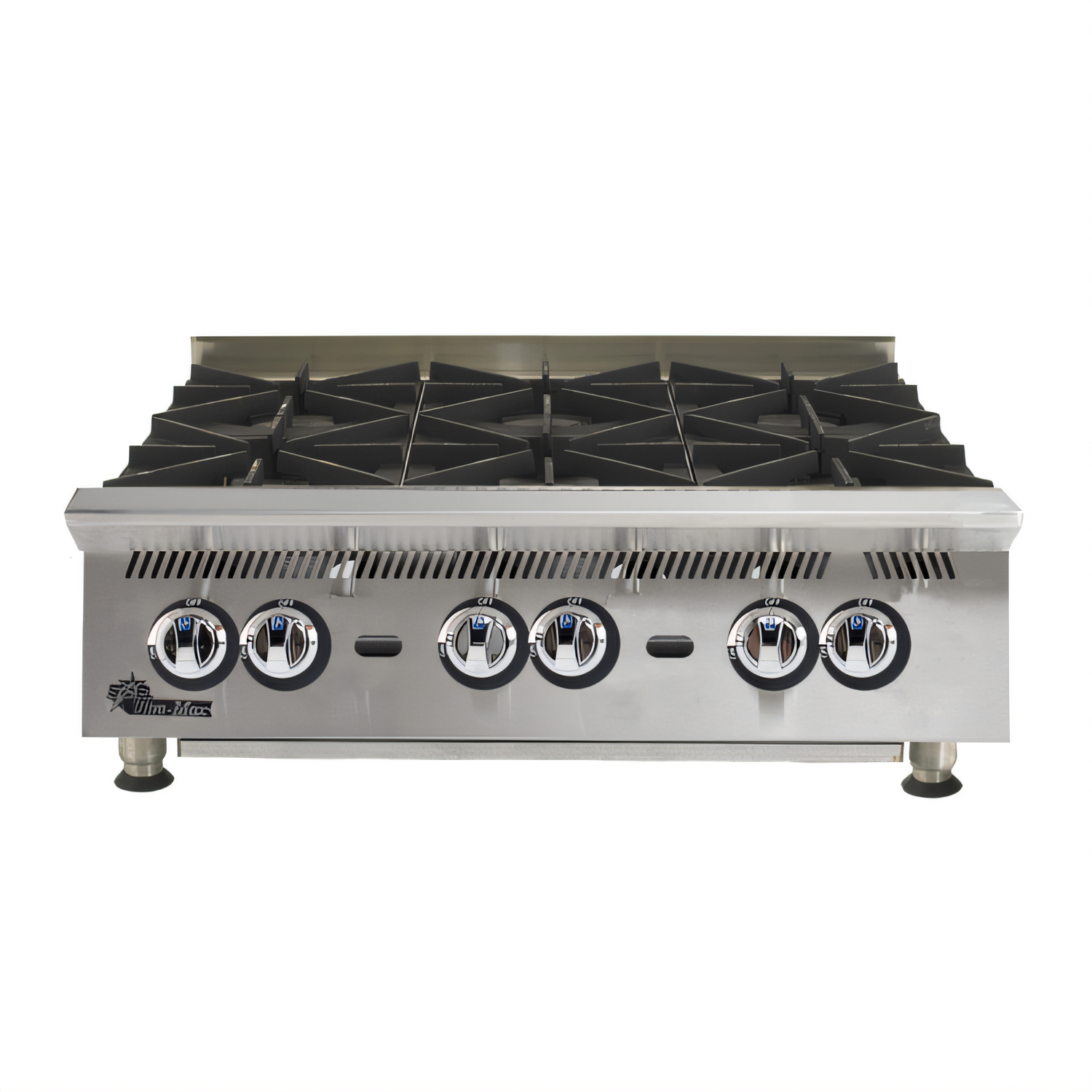

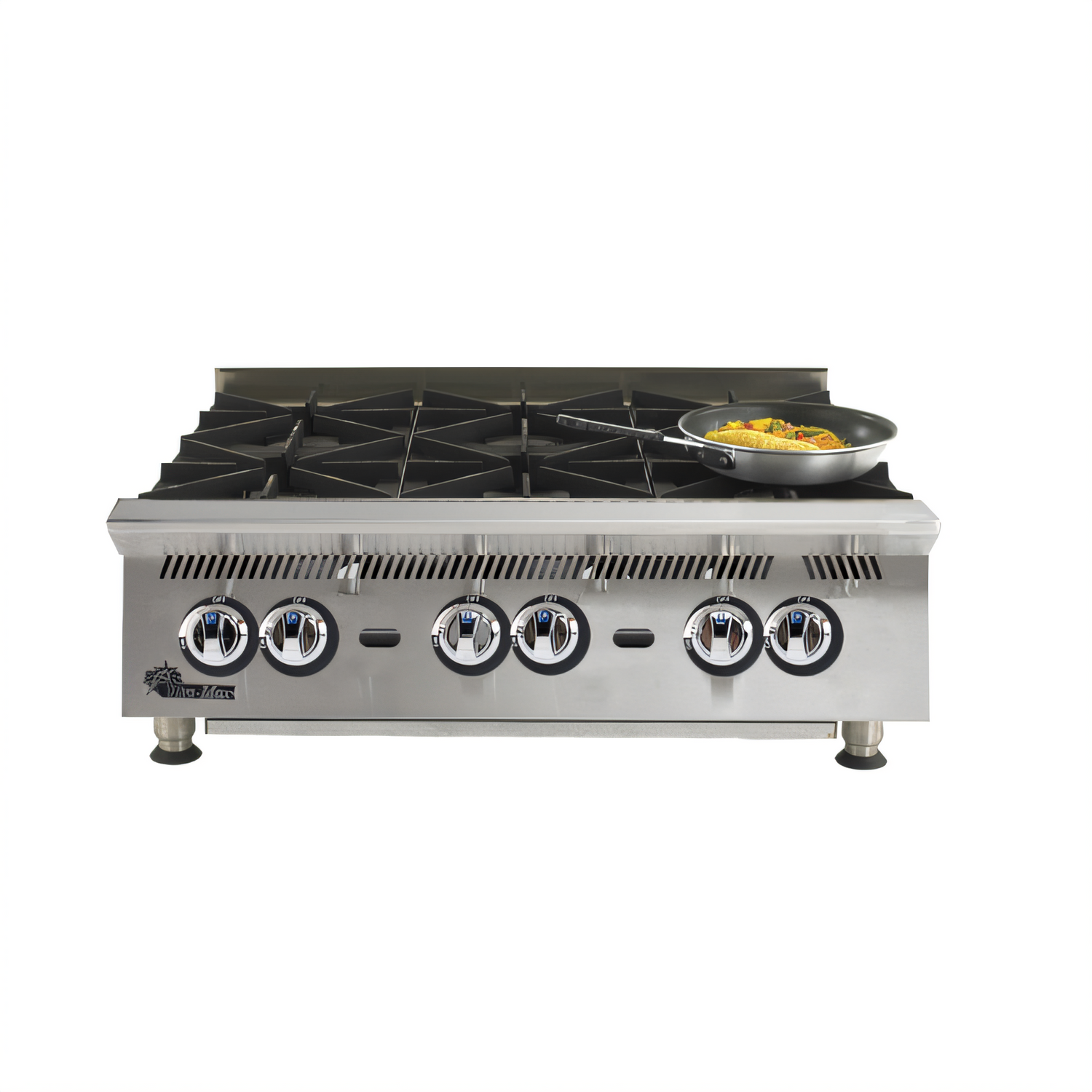

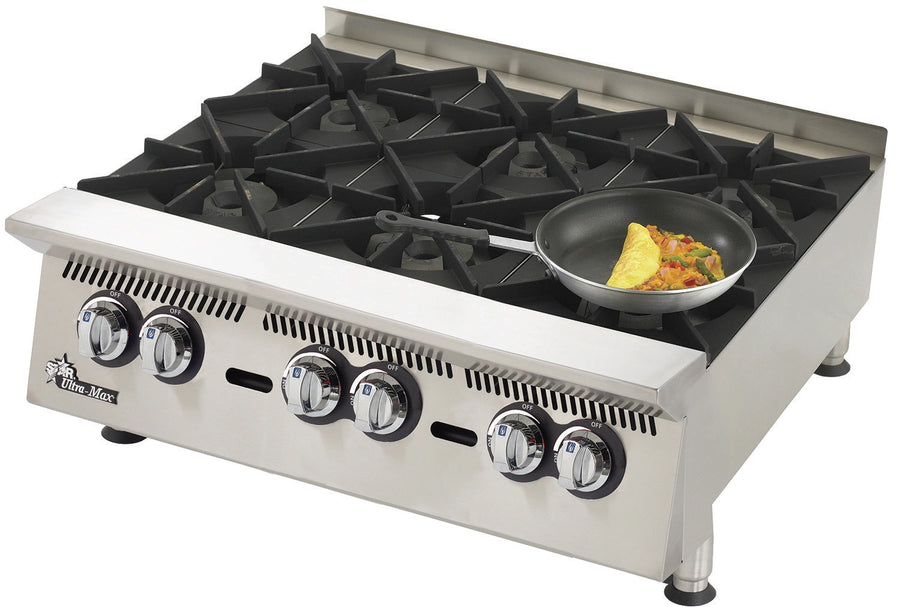

Star Ultra-Max® 36" Countertop Gas Hot Plate
Model 806HA | 6 Burners | 180,000 BTUBuilt in Smithville, Tennessee, the Ultra-Max 806HA delivers true back-of-house muscle in a compact countertop footprint. Six independently controlled, heavy-duty cast-iron burners turn out a combined 180,000 BTU of consistent, even heat—perfect for sizzling sauté pans, stock pots, and everything in between.
Why you’ll love it

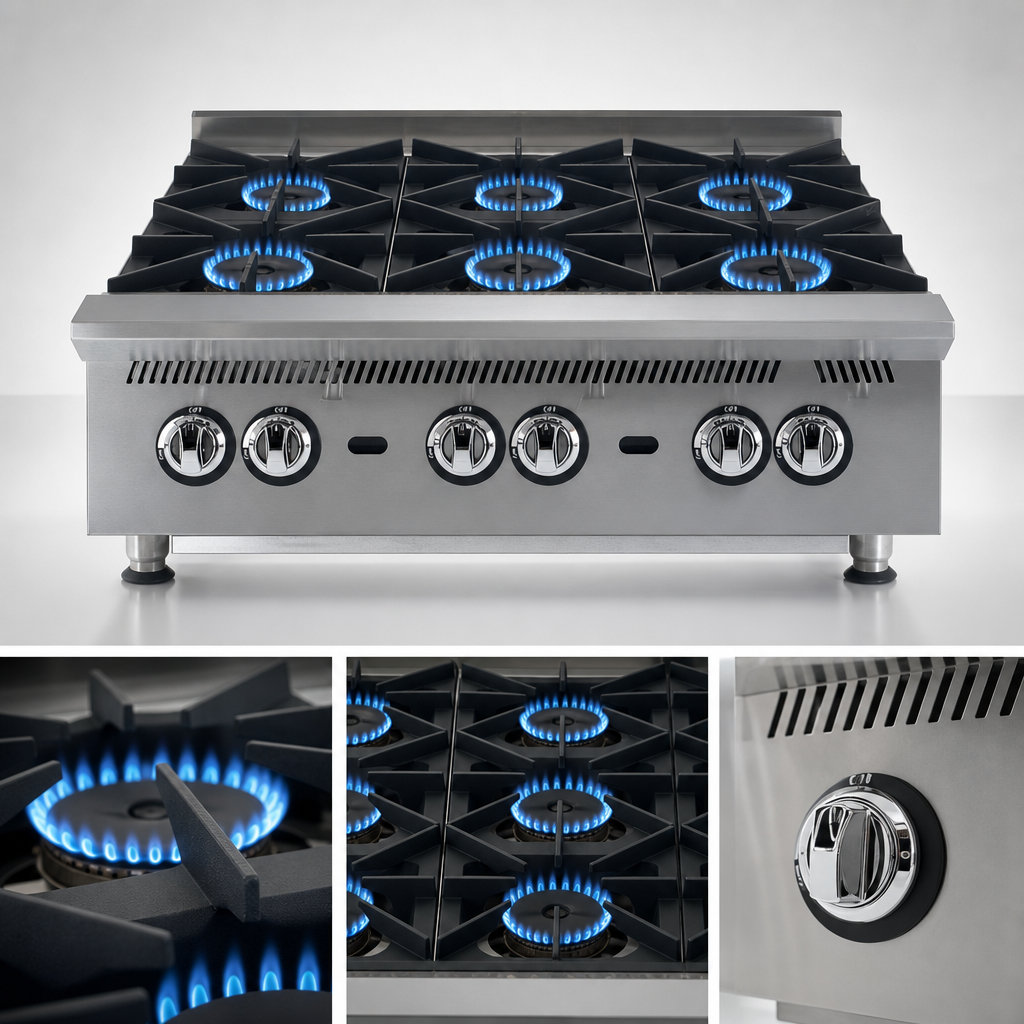

- Serious power: 6 × 30,000 BTU burners (natural gas) – 26,000 BTU each on LP.
- Clean-up made easy: Lift-off, two-piece cast-iron burner heads and a full-width aluminized steel drip tray.
- Rock-solid cooking surface: Non-tilt, heavy-duty cast-iron grates handle heavy stock pots without shifting.

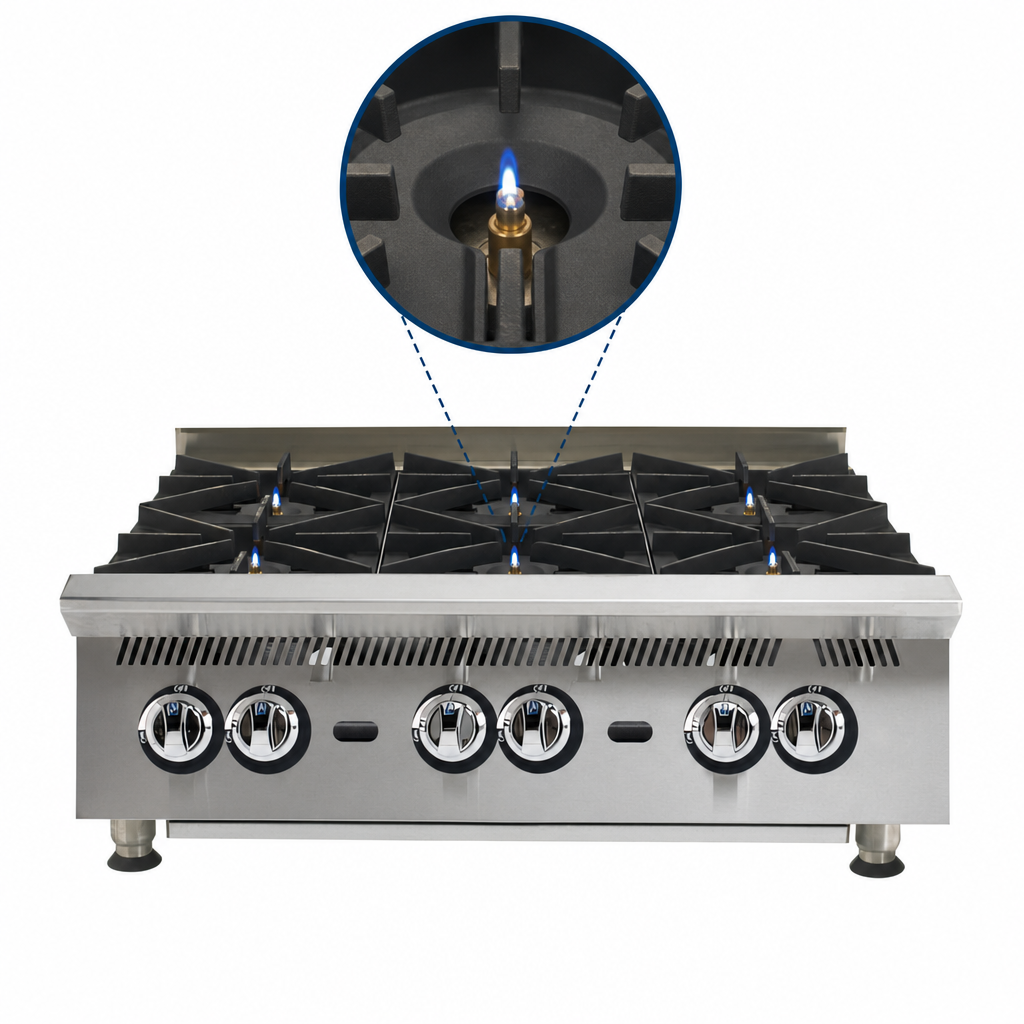

- Instant ignition: Individual standing pilots keep every burner ready on demand.
- Cool-touch bullnose: Stainless steel front keeps operators comfortable and protects the chrome-plated metal control knobs.
- Quarter-turn manual controls with integrated gas regulators for precise flame adjustment.
- Built to last: All-stainless exterior, 4" adjustable legs, and proudly Made in the USA.
- Certified & restaurant-ready: cULus, UL EPH Classified for sanitation.
At-a-glance specs
| Model | 806HA (Ultra-Max Series) |
|---|---|
| Cooking surface | 36" W countertop hot plate, 6 burners |
| BTU output | 180,000 BTU/hr (natural gas) | 156,000 BTU/hr (LP) |
| Burner type | Cast iron, lift-off heads, anti-clog design |
| Controls | 6 manual quarter-turn valves with standing pilots |
| Exterior construction | Stainless steel with cool-touch bullnose |
| Dimensions (H × W × D) | 15.1" × 36" × 32.25" (384 × 914 × 819 mm) |
| Gas connection | ¾" NPT male (regulator included) |
| Net / ship weight | 210 lb (95 kg) / 270 lb (122.5 kg) |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2 years parts & labor (Ultra-Max Series) |
Installation notes
- Maintain minimum clearances: 9" (229 mm) to the rear, 7" (178 mm) to each side from combustible surfaces.
- Unit ships for natural gas and includes LP conversion kit.
- Level the appliance with the included 4" adjustable legs for proper ventilation and cooking performance.
- Always connect to a properly sized vent hood and follow local gas codes.
Optional accessories (sold separately)
- 36" extended plate shelf
- Universal equipment stand
