Star (Middleby) 802HA Ultra-Max Hot Plates
Description

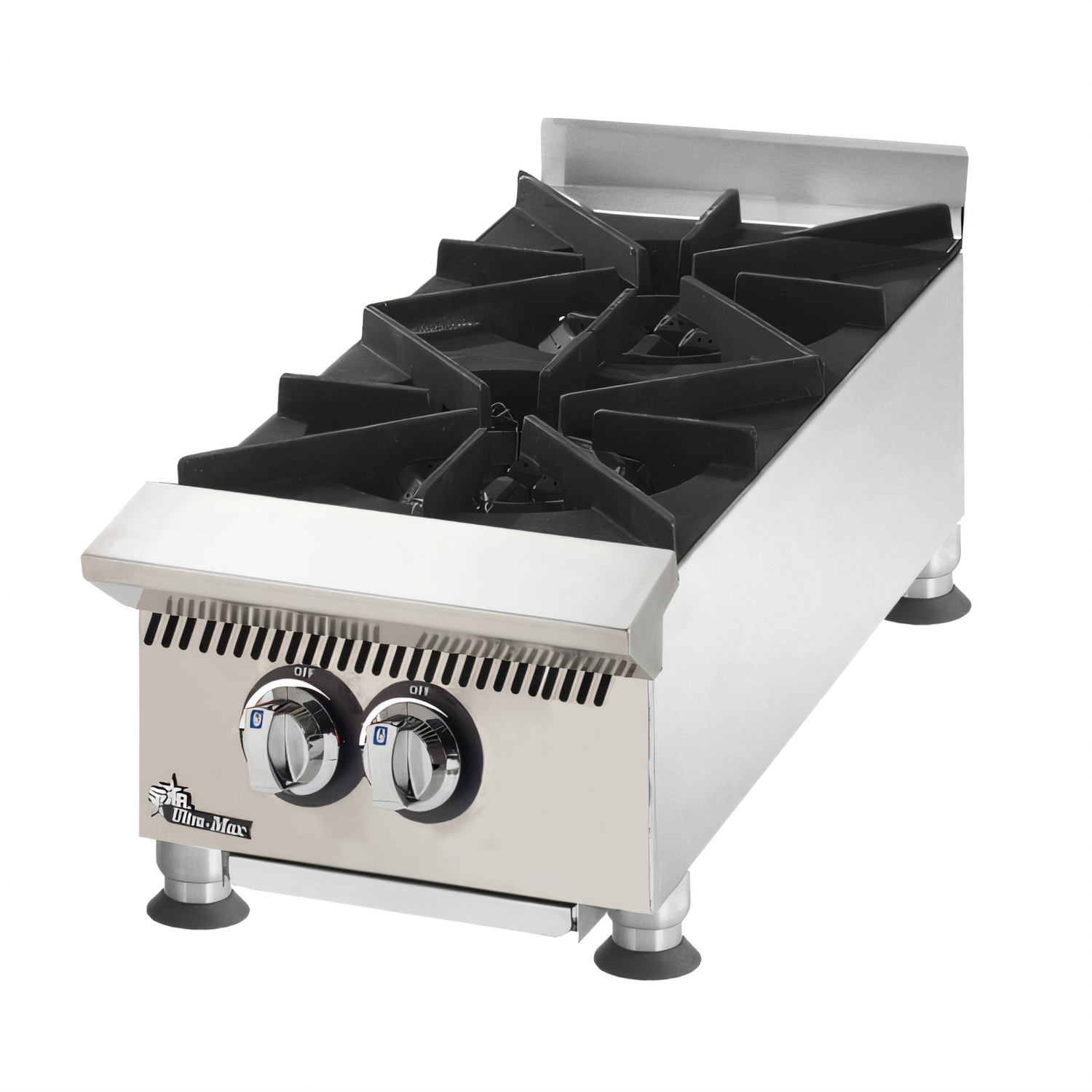

Star Ultra-Max® 12" Countertop Gas Hot Plate
Model 802HA | 60,000 BTU | Made in USATurn any prep station into a powerful cooking zone with the Ultra-Max® 12" Gas Hot Plate. Built for demanding, high-volume kitchens, this compact two-burner workhorse delivers 60,000 BTU of instant, even heat— perfect for sauté pans, stock pots, and everything in between. Heavy-duty construction, cool-touch comfort, and quick-clean features make it a long-term asset for restaurants, food trucks, ghost kitchens, and catering operations.
Why You’ll Love It

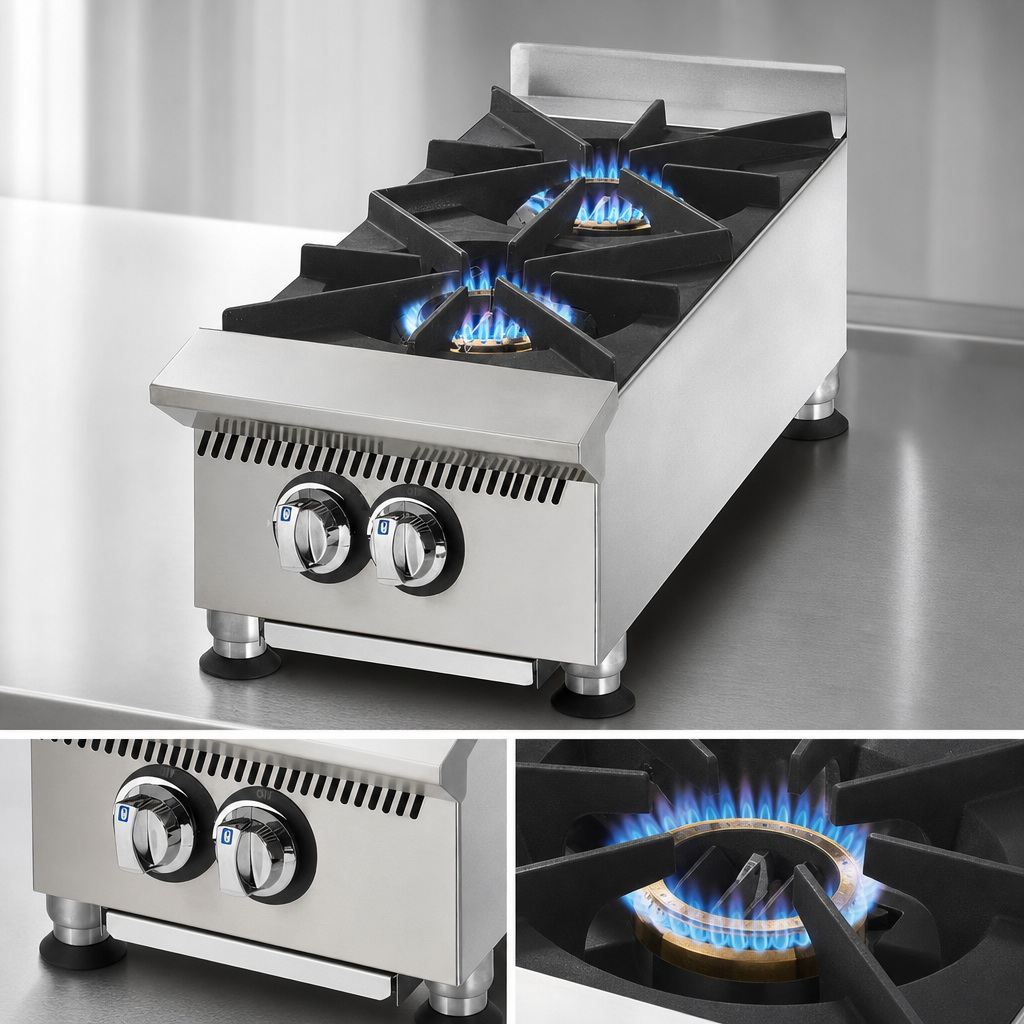

- Two 30,000 BTU cast-iron burners with lift-off heads and anti-clog design

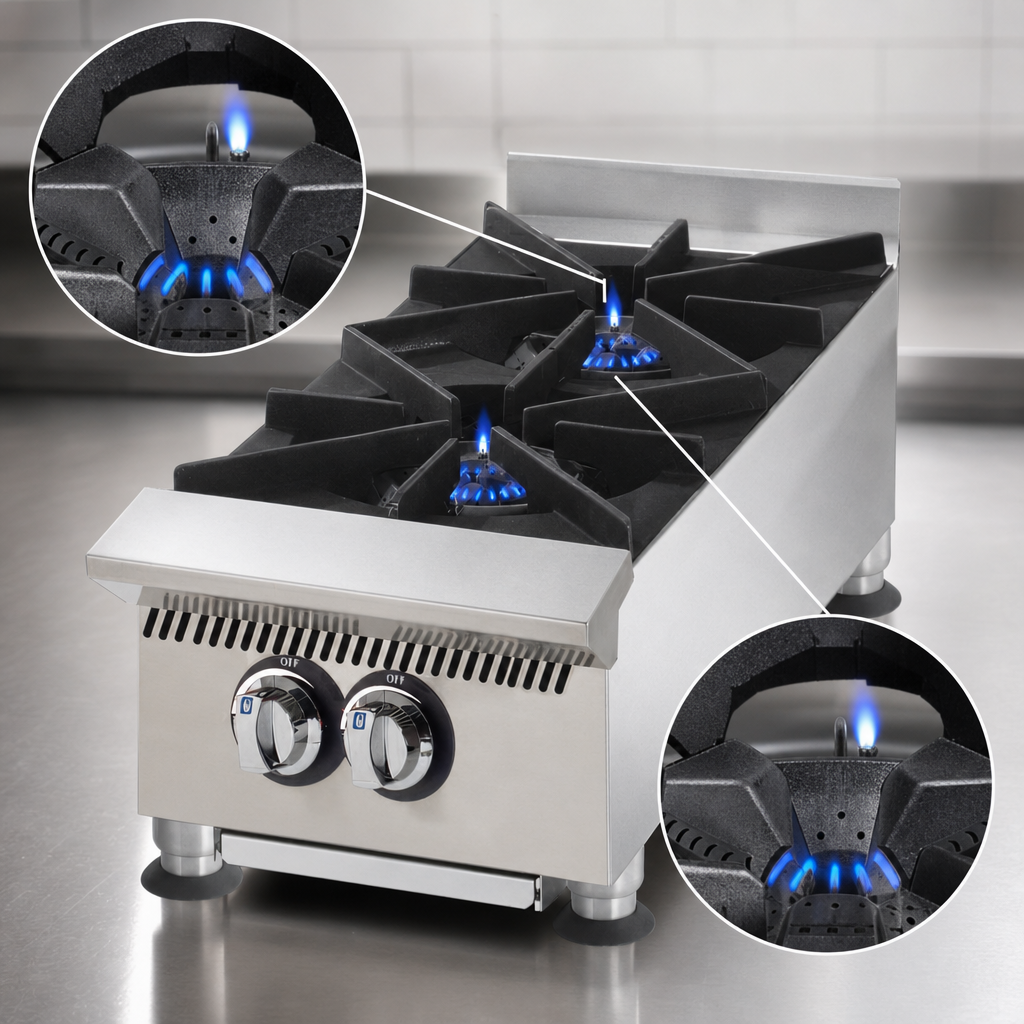

- Standing pilot for each burner—no matches, no downtime
- Non-tilt, heavy-duty cast-iron grates handle heavy stock pots with ease
- Manual, quarter-turn chrome knobs with integrated gas regulators for precise flame control
- Cool-touch stainless-steel bullnose keeps operators safe and comfortable
- Full-width aluminized steel drip tray slides out for fast cleanup
- 4" adjustable legs (height adjusts an additional 1.375") for leveling on any surface
- cULus & UL EPH Classified for gas-fired equipment
- Proudly engineered and manufactured in the USA
At-a-Glance Specs
| Cooking surface width | 12 in (305 mm) |
|---|---|
| Overall dimensions (H × W × D) | 15.1 in × 12 in × 32.25 in (384 mm × 305 mm × 819 mm) |
| Total input | 60,000 BTU/hr (Natural Gas) | 52,000 BTU/hr (LP) |
| Gas connection | 3⁄4" NPT male, rear |
| Burners | (2) cast-iron, lift-off heads, standing pilots |
| Ship / installed weight | 108 lb (49 kg) / 70 lb (32 kg) |
| Construction | Stainless-steel body, cast-iron grates, chrome-plated metal knobs |
| Included | (4) 4" adjustable legs, removable crumb/drip tray, operator’s manual |
| Warranty | 2 years parts & labor (plus 1-year on cast-iron grates & burners) |
Install & Operation Notes
- Provide 9" (229 mm) clearance at the rear and 7" (178 mm) on each side from combustible surfaces.
- Unit requires a regulated, adequately sized gas supply line; consult a licensed installer.
- Adjustable legs allow countertop airflow and simplify daily cleaning beneath the unit.
Optional Accessories (Sold Separately)
- Extended plate shelf for added plating space
- Universal equipment stand (various heights)
