Star (Middleby)

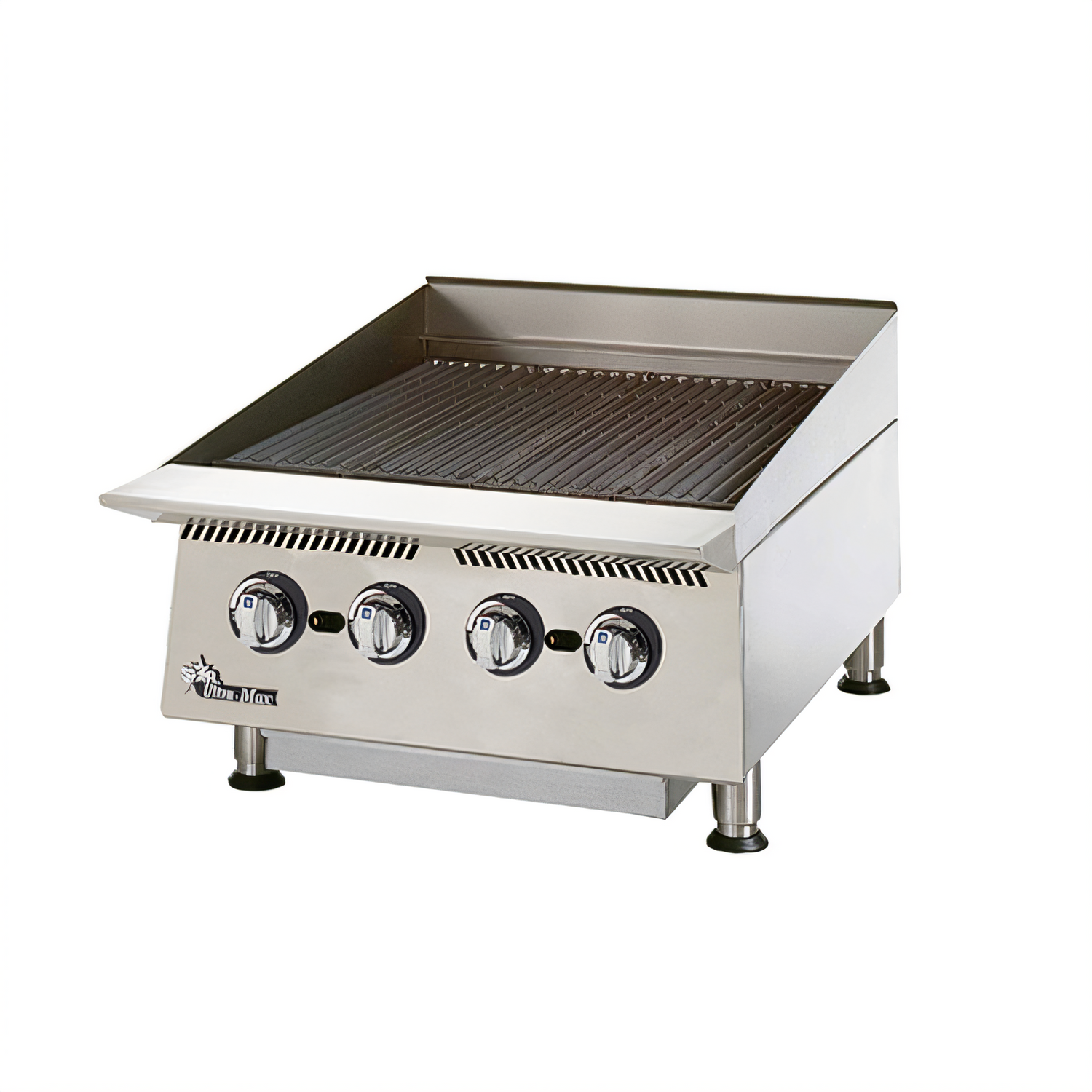

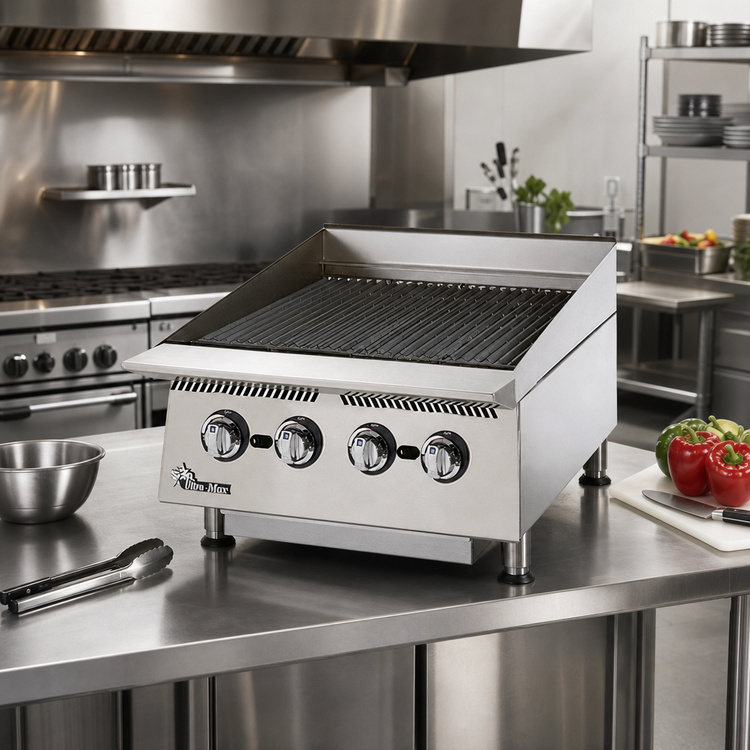

Ultra-Max 24-Inch Lava Rock Gas Charbroiler with Manual Controls

SKU: 8024CBB
$5,633.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Grills Gas Charbroilers New Arrivals Restaurant Equipment Star (Middleby)

Ultra-Max 24-Inch Lava Rock Gas Charbroiler with Manual Controls

80,000 BTU, Stainless Steel Exterior, Countertop Design

Built for high-volume grilling, this 24-inch lava rock charbroiler combines 80,000 BTU output, manual zone control, and rugged commercial construction.

  • 24-inch lava rock gas charbroiler built for commercial grilling and searing.
  • Four manual controls every 6 inches create independent heat zones.
  • Heavy-duty cast iron grates can be inclined or laid flat for flexible cooking.
  • Welded steel frame with stainless steel exterior stands up to daily use.
  • Drip pan, splash guard, and grease trough help manage grease and cleanup.
  • Ships with 4-inch legs and is made in USA.

Overall Dimensions:

24.0"W x 35.2"D x 18.0"H

Product Weight:

245.0 lb

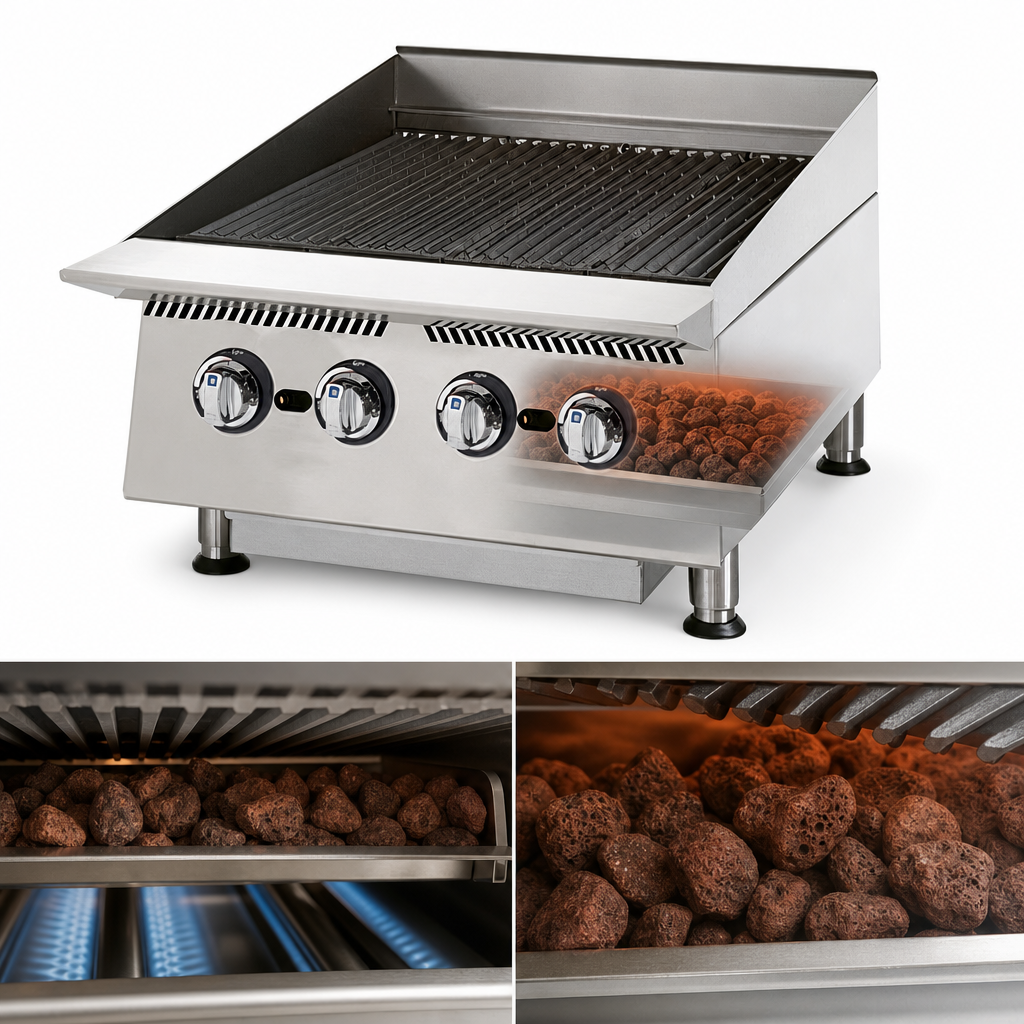

Lava Rock Radiant System

Lava rocks sit on the lower internal grates to diffuse burner heat and help deliver classic charbroiled flavor.

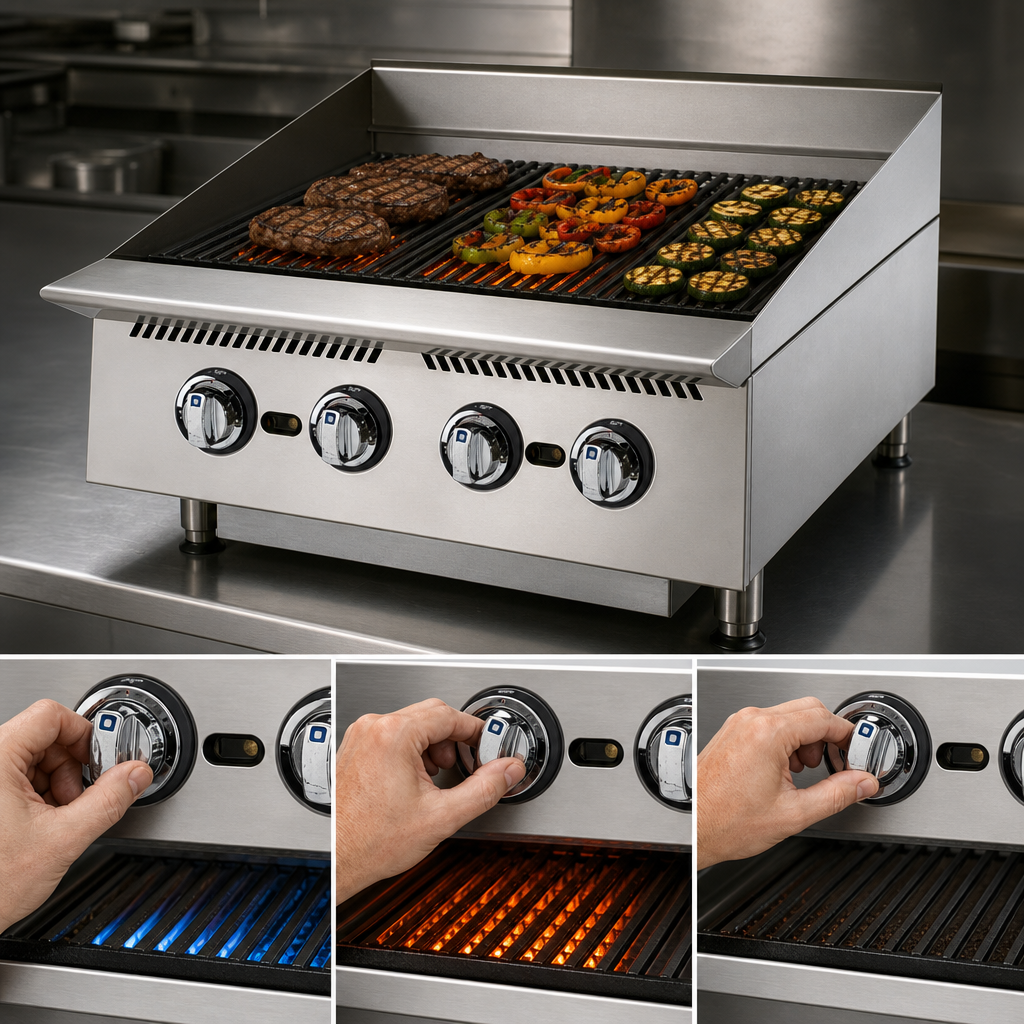

Manual High-Low Controls

Individual manual valves every 6 inches let you create separate searing and holding zones across the cooking surface.

Cast Iron Broiling Grates

Heavy-duty grates can be inclined or laid flat for flexible cooking and better marking.

Heavy-Duty Steel Construction

A welded steel frame with stainless steel exterior is built for demanding commercial kitchens.

Grease Management System

The drip pan, splash guard, and grease trough help catch drippings and simplify cleanup.

4-Inch Legs

Included legs support countertop installation and help with leveling.

80,000 BTU Output

High heat output supports fast preheat and strong searing performance.

Type Charbroiler
Style Lava Rock
Installation Type Countertop
Controls Manual
BTU 80,000 BTU
Material Steel
Finish Stainless Steel
Gas Connection Size 3/4 Inch NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 36 Inches
Shipping Height 18 Inches
Shipping Weight 245 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Buying guide PDF Download PDF Marketing sheet PDF Download PDF Middleby financial flyer PDF Download PDF Guideline conversion PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It ships set up for natural gas and can be converted to propane by changing the burner orifice hoods and adjusting the regulator.
The 24-inch unit has 4 manual controls, with one control every 6 inches.
It includes heavy-duty cast iron broiling grates that can be inclined or laid flat.
Place the lava rocks evenly on the lower internal grates in about a single layer; the manual says not to exceed two layers or 5 pounds of rock per foot.
The unit uses a 3/4-inch NPT gas inlet.
The Ultra-Max charbroiler line is covered by a 3-year parts and labor warranty.
