Star (Middleby) 772TA Ultra-Max Electric Griddles
Description
Star Ultra-Max® 772TA 72" Heavy-Duty Electric Griddle
6-Zone | Countertop | Polished Steel Plate | Made in USABuilt for high-volume kitchens that refuse to compromise on consistency, the Star Ultra-Max® 772TA delivers wall-to-wall heat across a massive 72" × 24" cooking surface. Six independent snap-action thermostats let you sear steaks, toast buns, and hold delicate foods all at once—every 12" zone responds instantly for pinpoint temperature control.
Why You’ll Love It

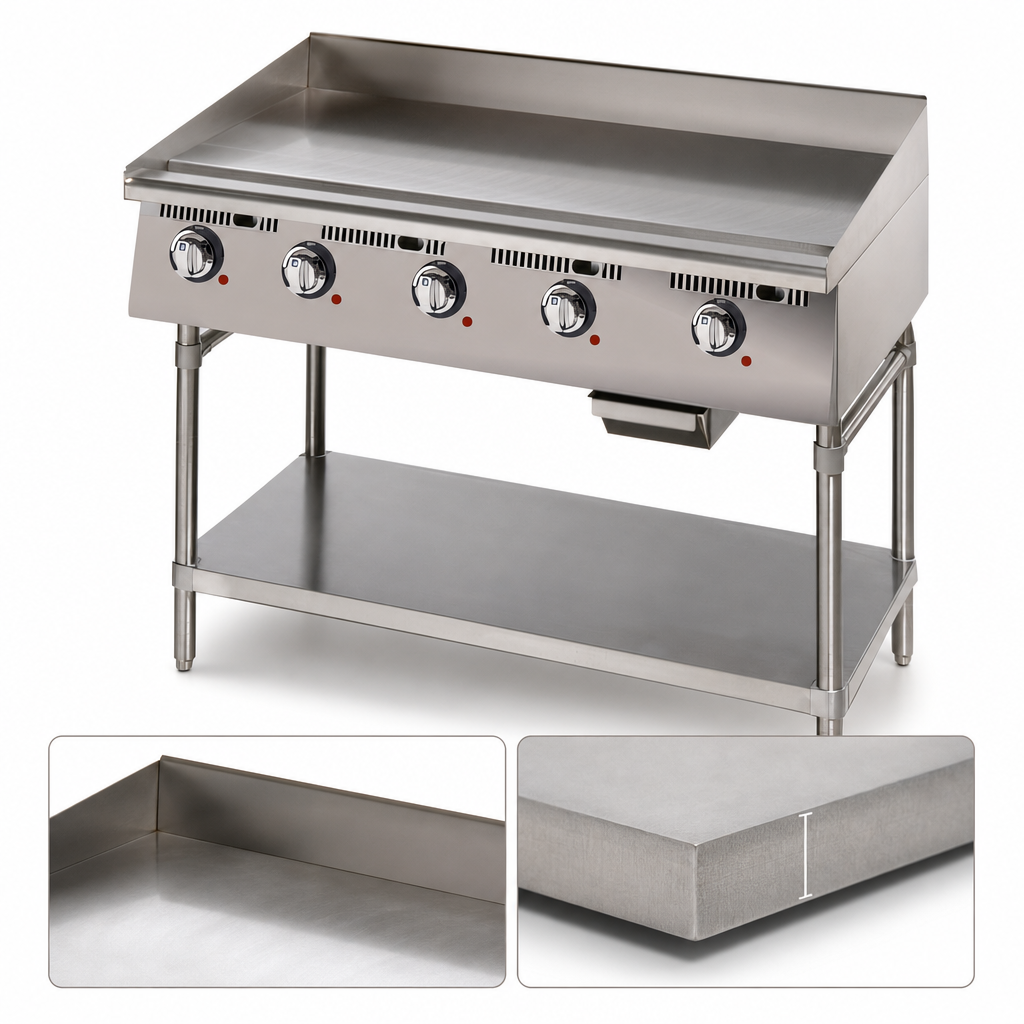

- 1" thick polished steel plate stores and distributes heat evenly for fast recovery.
- 150 – 450 °F snap-action thermostats with embedded sensors just 3⁄16" from the surface.
- 4.35 kW element under every 12" section—26.1 kW total power.
- 5.5" wrap-around splash guard plus a 3.5" front trough keep grease contained.
- Dual front-access 6 qt. grease drawers pull out for quick, mess-free emptying.
- Heavy-duty metal control knobs and welded steel frame survive the toughest shifts.
- Adjustable 4" stainless legs (1 5⁄8" of travel) simplify leveling on any countertop.
- Hard-wired 208/240 V connections (two feeds) for single or three-phase operation.
- Backed by a 2-year parts & labor warranty—serviceable nationwide.
At-a-Glance Specs
| Cooking Surface | 72" W × 24" D (1830 × 610 mm) |
|---|---|
| Plate Material / Thickness | Polished steel, 1" (25 mm) |
| Heat Zones | 6 (one thermostat every 12") |
| Temperature Range | 150 – 450 °F (66 – 232 °C) |
| Total Power | 26.1 kW (4.35 kW per zone) |
| Electrical | 208 / 240 V, 1 Φ or 3 Φ, two hard-wired connections required |
| Overall Dimensions | 72" W × 33.6" D × 18" H (1830 × 853 × 457 mm) |
| Shipping / Installed Weight | 798 lb / 670 lb (362 / 304 kg) |
| Splash Guard Height | 5.5" (140 mm) rear & sides |
| Grease Management | 3.5" trough & two 6 qt. drawers |
| Certifications | Made in USA (772 models are not UL/cUL certified) |
| Warranty | 2-year parts & labor |
