Star (Middleby) 760TA Ultra-Max Electric Griddles
$11,934.00
Unit price
/
Unavailable
Description

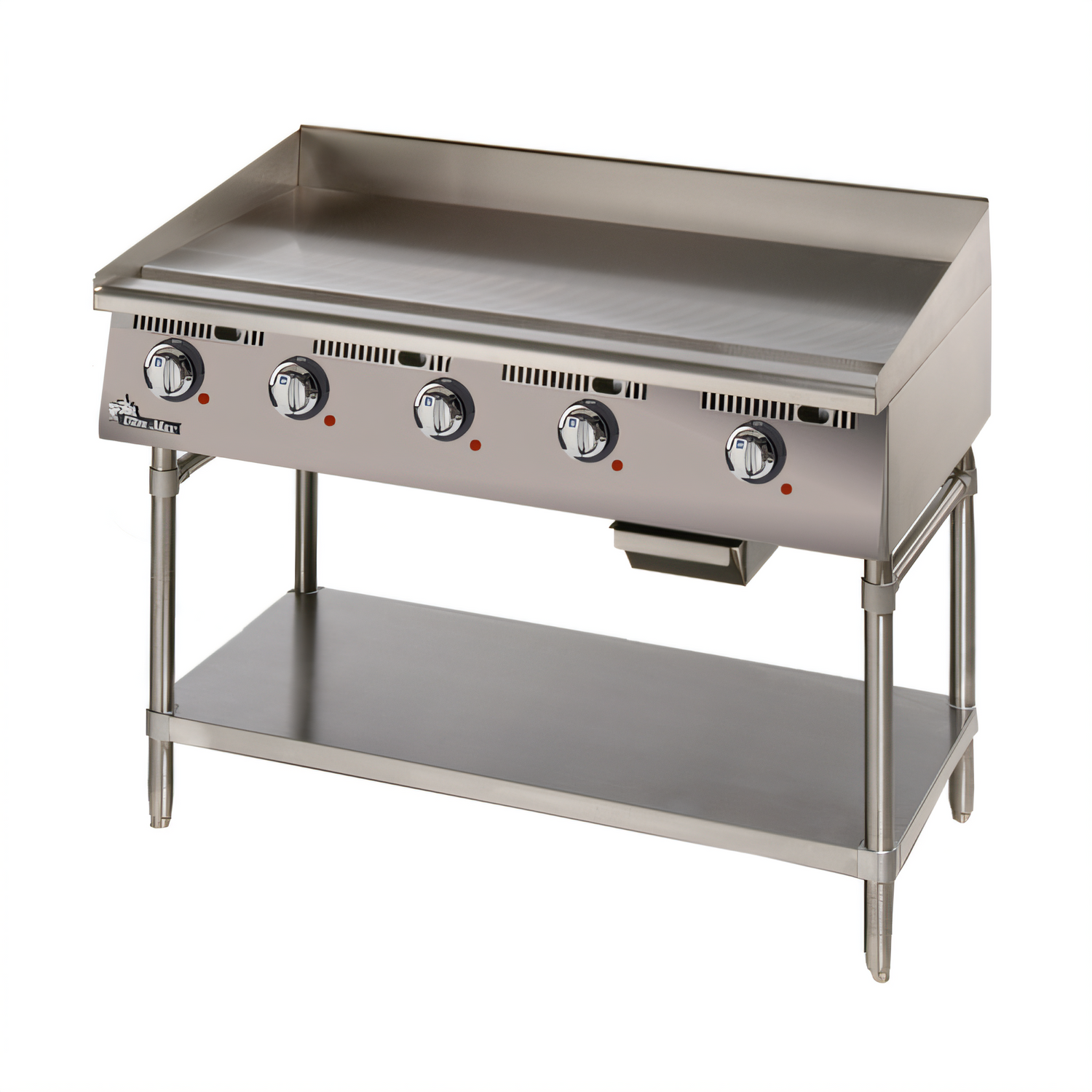

Star Ultra-Max® 60" Electric Heavy-Duty Griddle
Model 760TA | Polished Steel PlateTackle breakfast, lunch, and dinner rushes without skipping a beat. The Star Ultra-Max® 760TA delivers the power, precision, and rugged build serious kitchens demand—all in a space-saving countertop footprint.
Key Features
- Expansive 60" W × 24" D cooking surface (1,440 sq in) handles high-volume menus

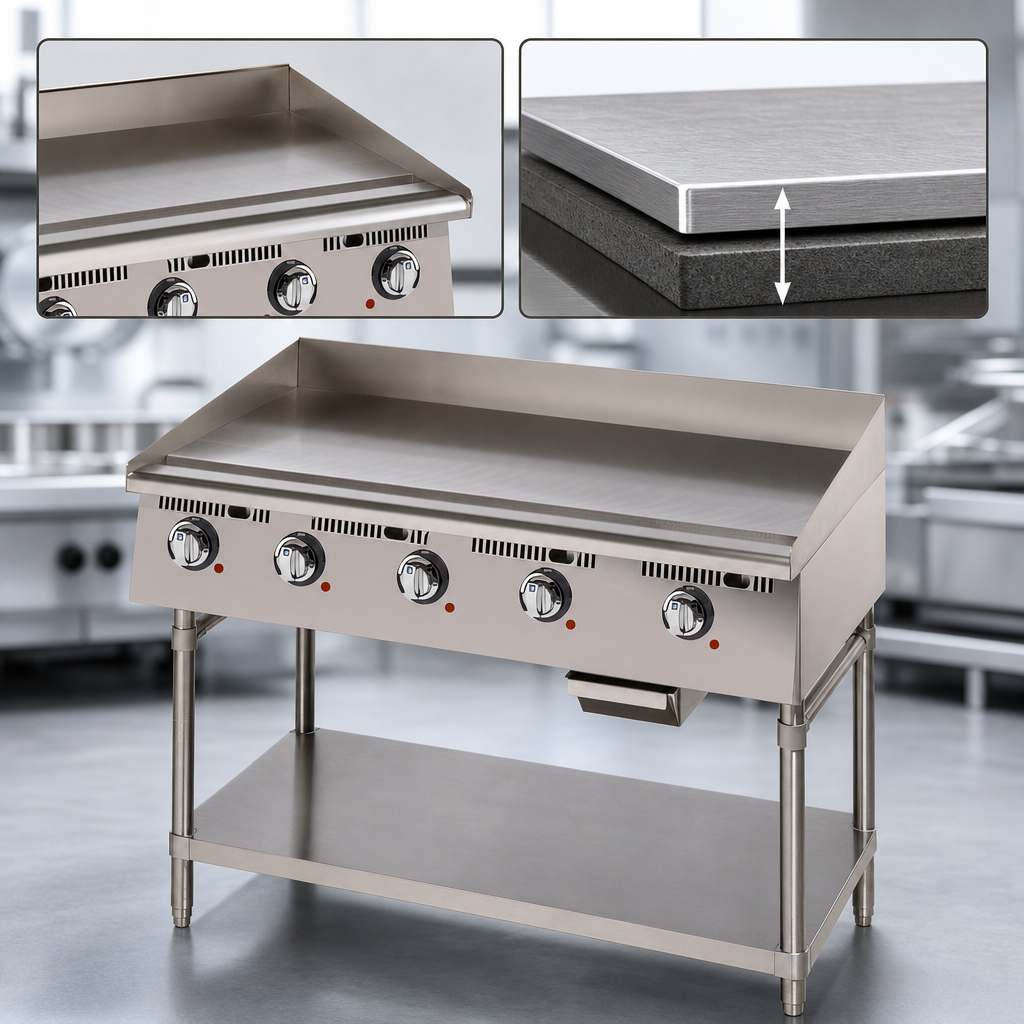

- 1" thick polished steel plate locks in heat for fast recovery and even searing

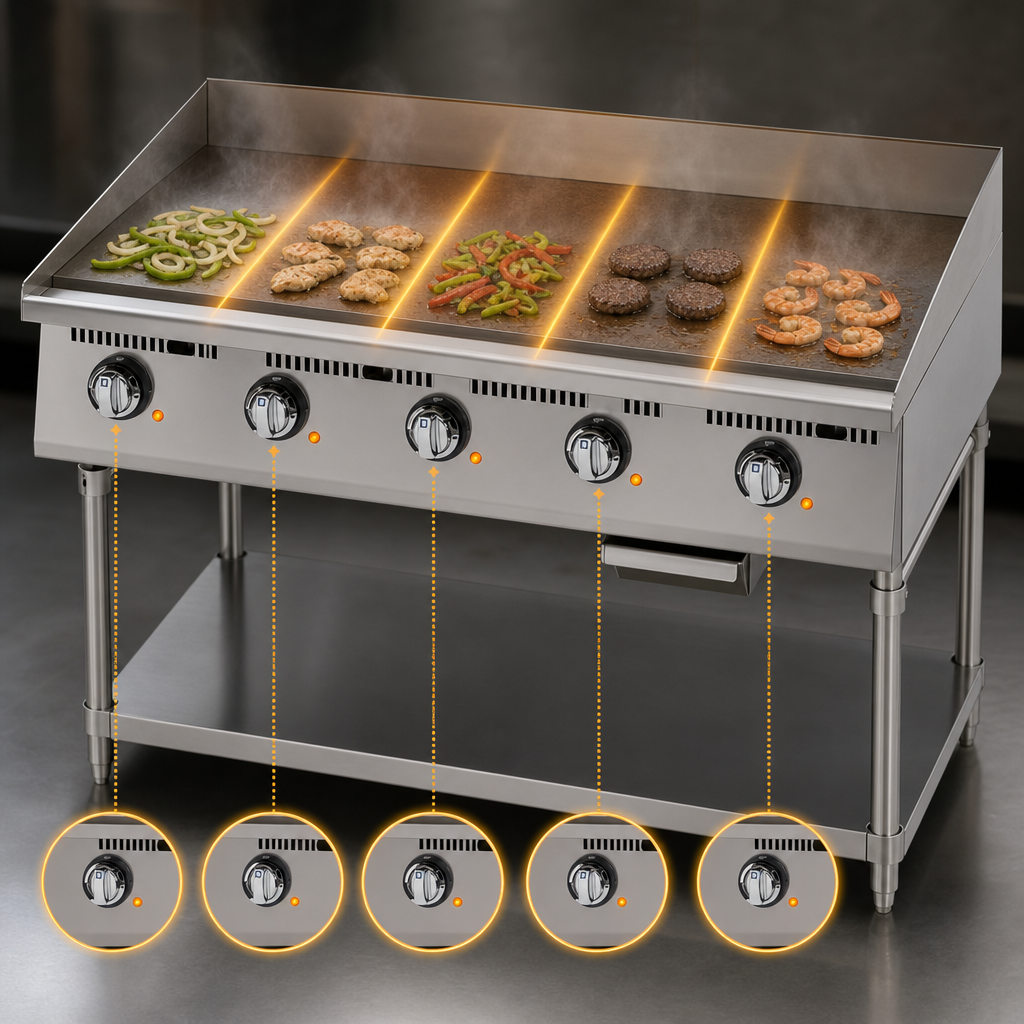

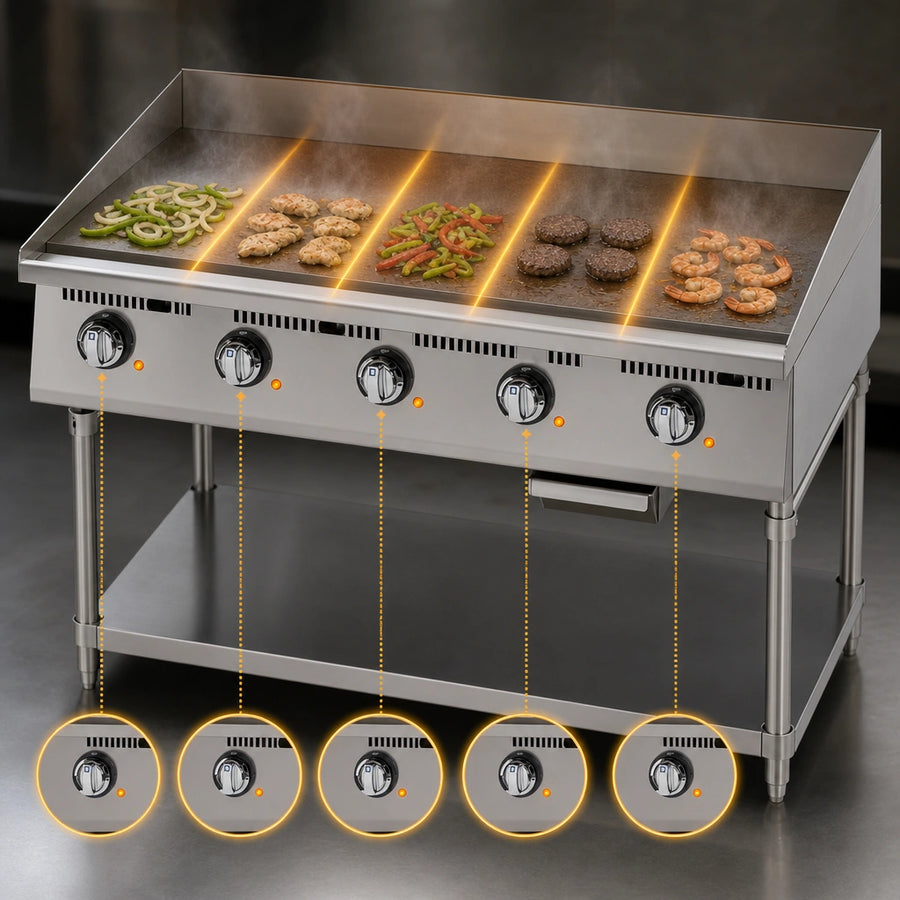

- Five independent 4.35 kW zones with snap-action thermostats (150–450 °F) for precise left-to-right control
- Sensors embedded just 3⁄16" below the plate for dependable surface readings
- 5" tapered, wrap-around splash guard keeps grease in—and mess out
- 3.5" wide front trough & 6 qt removable grease drawer for quick, tool-free clean-up
- Welded steel frame, stainless exterior & heavy-duty metal control knobs built for years of daily abuse
- 4" legs with 1-5/8" adjustment level the unit on any counter
- Made in the USA and backed by a 2-year parts & labor warranty
At-a-Glance Specifications
| Model | Ultra-Max 760TA (steel plate) |
|---|---|
| Cooking surface | 60" W × 24" D (1524 × 610 mm) |
| Plate thickness | 1" (25 mm) polished steel |
| Heat zones / controls | 5 zones | 1 snap-action thermostat per 12" |
| Temperature range | 150–450 °F (66–232 °C) |
| Element rating | 4.35 kW per zone | 21.8 kW total |
| Electrical | 208 V or 240 V, hard-wired, two connections (single- or three-phase) |
| Overall size (H × W × D) | 18" × 60" × 33.6" (457 × 1524 × 853 mm) |
| Grease management | 3.5" trough | 6 qt drawer |
| Splash guard height | 5" (127 mm) rear & sides, tapered |
| Weight | 560 lb installed | 686 lb shipping |
| Certifications | UL, UL-EPH (not CSA/cUL certified) |
| Warranty | 2 years parts & labor |
Popular Options & Accessories
- 760TCHSA: mirror-finish chrome plate for easier cleanup and reduced radiant heat
- Heavy-duty equipment stand with adjustable legs or locking casters
Electrical Notice: Unit ships without a cord and must be hard-wired by a qualified electrician.
Specify voltage and phase when ordering and allow at least 1" clearance on sides and rear.
Need flexible financing? Ask about Middleby Equipment Financing to turn this purchase into affordable monthly payments.
Features & Specs
Features & Specs
Manufacturer
Star (Middleby)
Brand_name
Ultra-Max
Certifications
Made in USA
Height
18.0in
Width
60.0in
Depth
33.6in
Shipping Weight
686.0lbs
Exterior Finish
all stainless steel exterior
Cooking Surface Width (side - side)
49" - 60"
Griddle Plate Finish
smooth steel
Cooking Surface Depth (front - back)
24" - 30"
Control Type
thermostatic
Specifications
Ultra-Max® Heavy Duty Griddle, electric, countertop, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, 150°-450°F snap-action thermostat and 4350 watt element every 12", 5" tapered wrap-around splash guard, 3-1/2" front grease trough, 6 qt. grease drawer, heavy-duty metal knobs, welded steel frame with stainless steel exterior, 4" legs with 1-5/8" adjustment, Made in USA
